CUBE ANALOG 2023
2023 Mountain
Estimate price |
1,031$
Weight | 13.9 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 27.5" -
Travel Front 100mm -
Fork RockShox Judy Silver TK
-
Groupset SX Eagle -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
158cm - 167cm
SM
165cm - 173cm
MD
169cm - 180cm
LG
177cm - 186cm
XL
183cm - 191cm
XXL
186cm - 194cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium Lite, AMF, Double Butted, Internal Cable Routing, Tapered Head Tube, Flat Mount Brake, SIC Mount, FM Kickstand Mount
Suspension Fork
RockShox Judy Silver TK Coil, 100mm, Lockout
Drivetrain

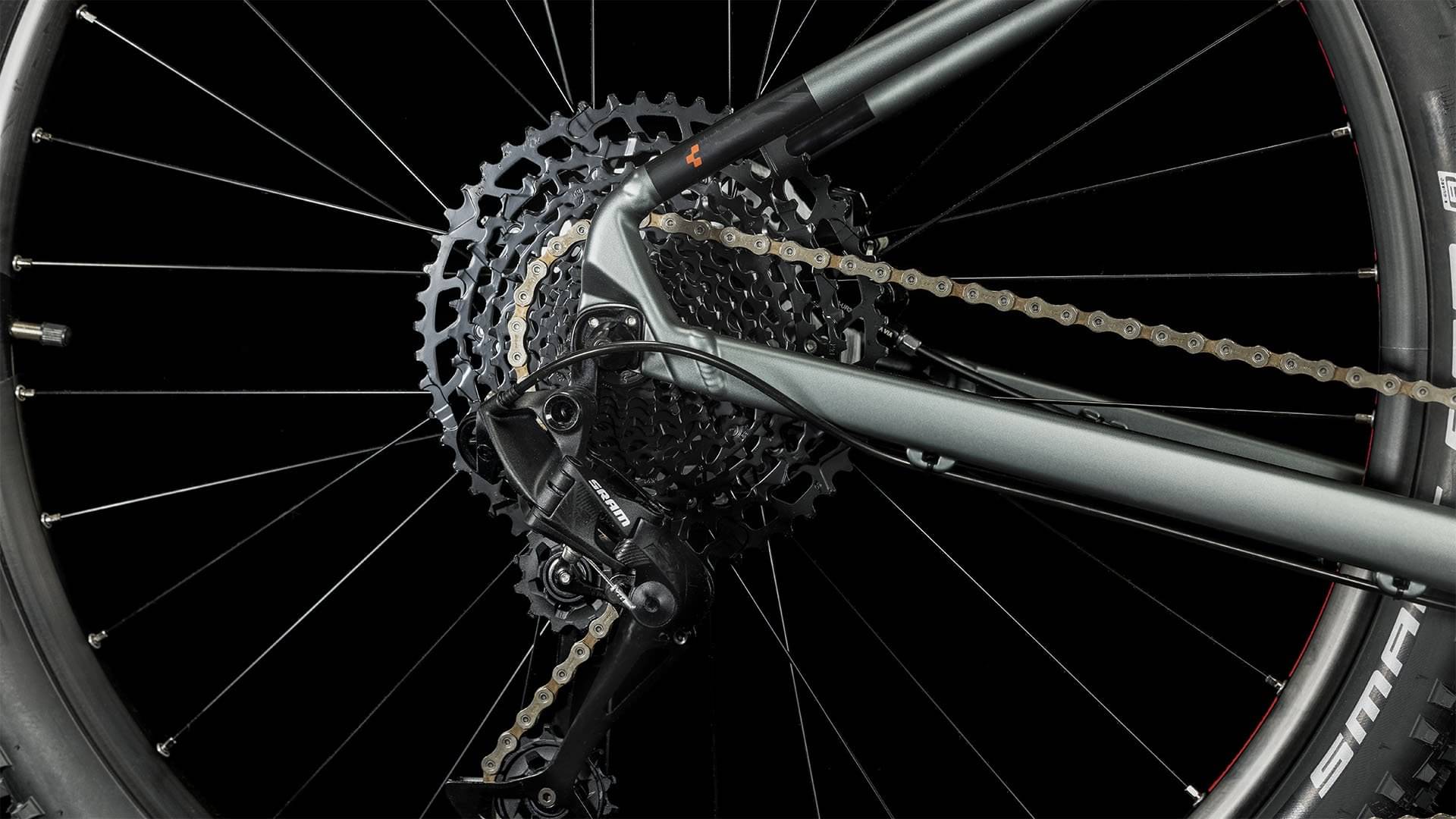

Rear Derailleur
SRAM SX Eagle™, 12-Speed
Shift Levers
SRAM SX Eagle™ Trigger
Cassette
SRAM PG-1210 Eagle™, 11-50T

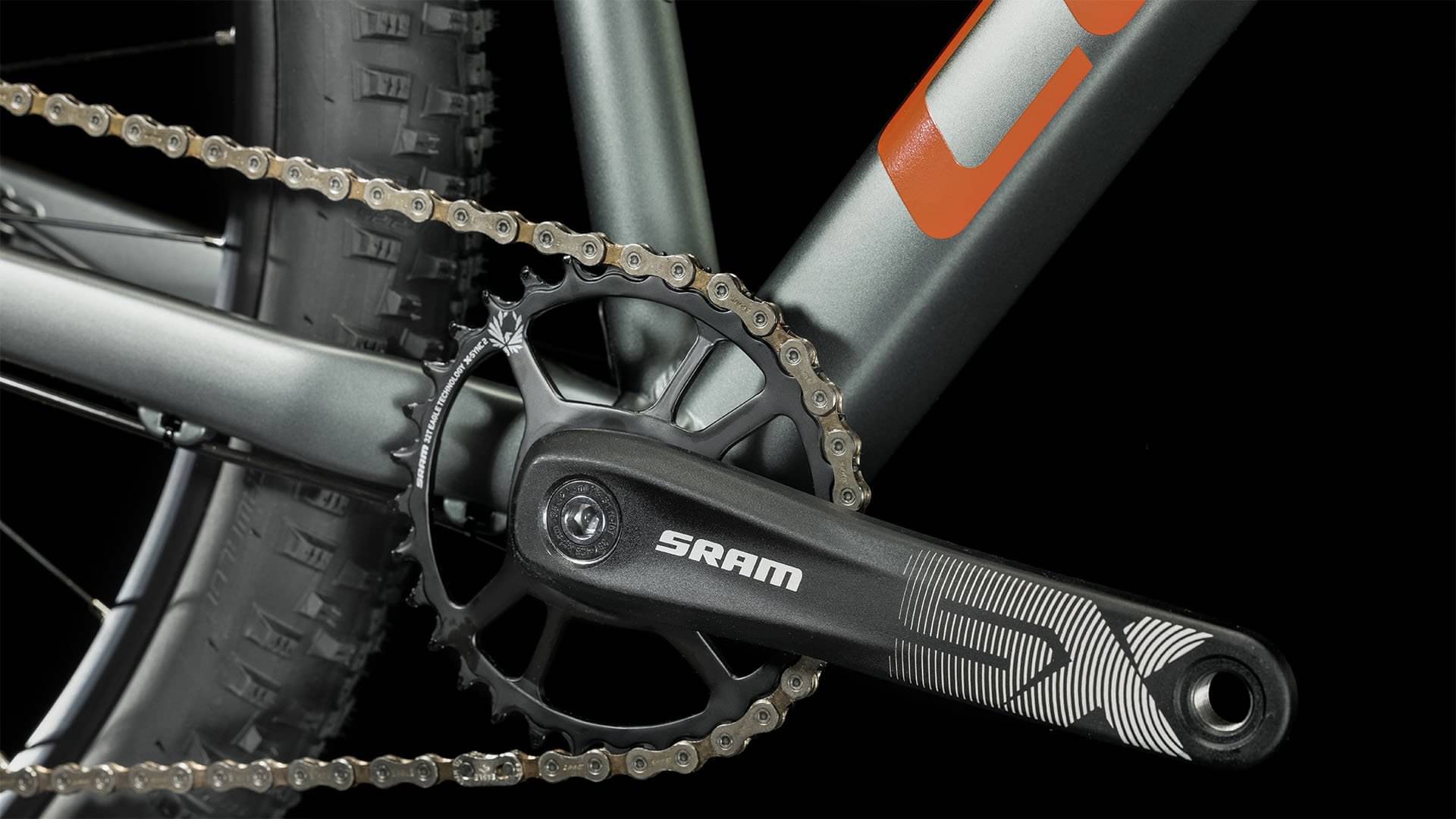

Crank
SRAM SX Eagle™ Powerspline, 32T, 175mm
Bottom Bracket
SRAM Power Spline, 73mm BSA
Chain
SRAM SX Eagle™
Pedals
ACID PP MTB
Wheels
Front Hub
Shimano HB-TX505, QR, Centerlock
Rear Hub
Shimano FH-TX505, QR, Centerlock
Rims
CUBE ZX20, 32H, Disc
Tires
Schwalbe Smart Sam, Active, 2.25
Brakes
Brakes
Shimano BR-MT200/UR300, Hydr, Disc Brake, PM/FM (180/160)
Cockpit
Stem
CUBE Performance Stem SLX, 31.8mm
Handlebar
CUBE Rise Trail Bar, 680mm
Grips
ACID React
Headset
CUBE FPH868, Semi-Integrated
Seat
Saddle
Natural Fit Venec Lite
Seatpost
CUBE Performance Post, 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.56 mm | 1.51 mm | 1.55 mm | 1.51 mm | 1.5 mm | 1.48 mm |
| Bottom Bracket Height | 303 mm | 303 mm | 309 mm | 309 mm | 309 mm | 309 mm |
| Front Center | 646 mm | 660 mm | 683 mm | 704 mm | 726 mm | 748 mm |
| Rake | 43 mm | 42 mm | 46 mm | 46 mm | 46 mm | 46 mm |
| Trail | 94 mm | 95 mm | 98 mm | 98 mm | 98 mm | 98 mm |
| Stack | 586 mm | 589 mm | 618 mm | 628 mm | 647 mm | 661 mm |
| Reach | 375 mm | 389 mm | 400 mm | 417 mm | 432 mm | 448 mm |
| Top Tube Length | 546 mm | 566 mm | 586 mm | 606 mm | 626 mm | 646 mm |
| Seat Tube Angle | 74 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 340 mm | 370 mm | 420 mm | 470 mm | 515 mm | 560 mm |
| Head Tube Angle | 68.5 ° | 68.5 ° | 68.5 ° | 68.5 ° | 68.5 ° | 68.5 ° |
| Head Tube Length | 108 mm | 111 mm | 111 mm | 122 mm | 142 mm | 157 mm |
| Chainstay Length | 418 mm | 418 mm | 441 mm | 441 mm | 441 mm | 441 mm |
| Wheelbase | 1059 mm | 1073 mm | 1116 mm | 1137 mm | 1159 mm | 1181 mm |
| Bottom Bracket Drop | 52 mm | 52 mm | 65 mm | 65 mm | 65 mm | 65 mm |
| Wheels | 27" | 27" | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 165 cm | 169 cm | 177 cm | 183 cm | 186 cm |
| Rider Max Height | 167 cm | 173 cm | 180 cm | 186 cm | 191 cm | 194 cm |
About this model
ANALOG completes the Cube Analog model. CUBE launched 12 bikes of this model so far.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Crosscountry bikes
Our math shows that the average cost of a dependable Crosscountry bike is 1905$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Crosscountry bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
When CUBE released this model in 2023, its price was 955$. If we compare this with the average Crosscountry bike cost we notice that the price is 99.48% smaller.
Crosscountry bikes average weight
Crosscountry bikes have an average weight of 12.4 kg (27.34 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
Weighing 13.9 kg (30.64 lbs), the ANALOG model is considerably heavier than average. In conclusion, the average Crosscountry bike weighs 12.1% less than ANALOG.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
Overview of components
Fork

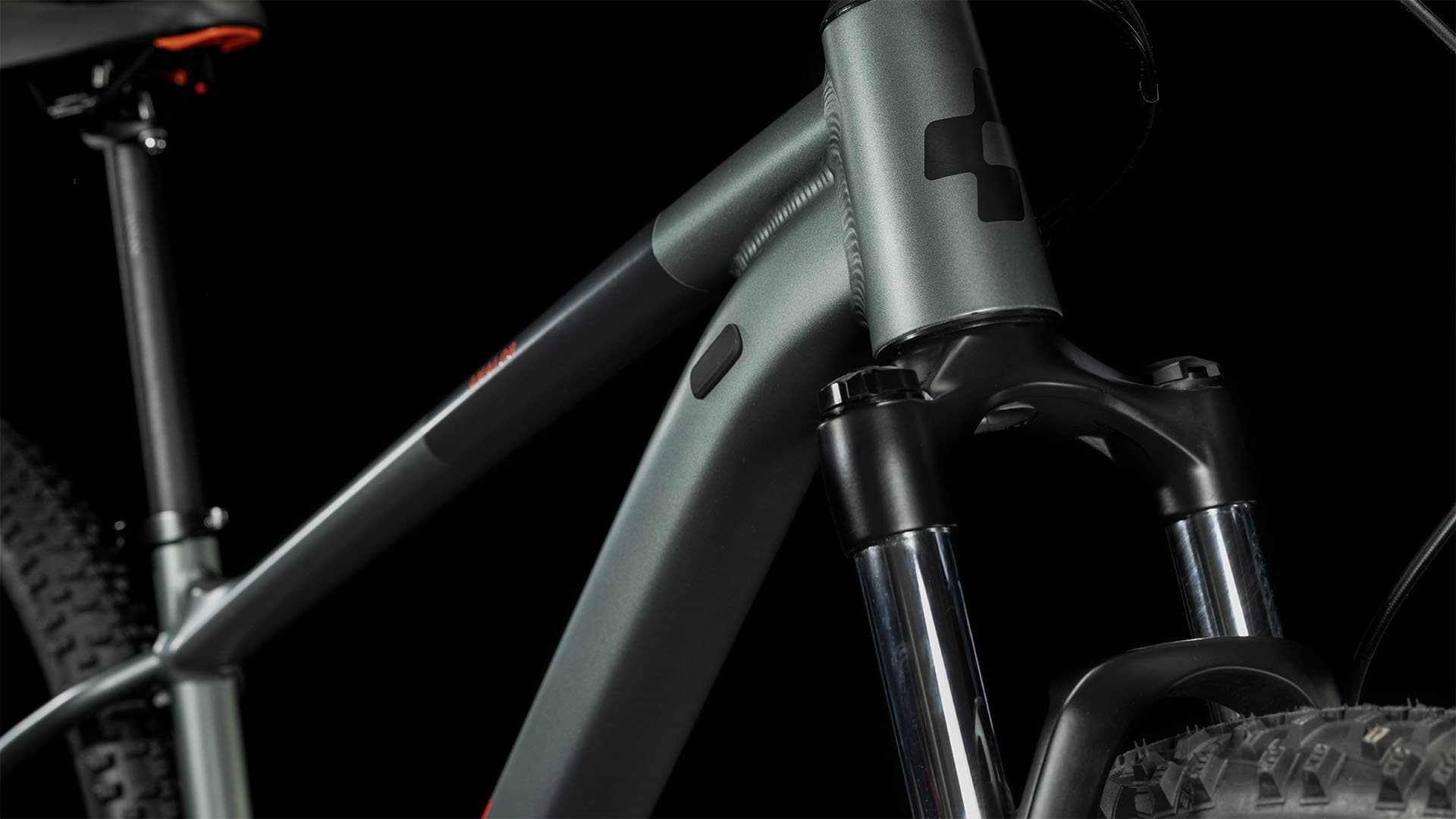

The ANALOG comes factory-installed with the RockShox Judy Silver TK fork. This has a travel range of 100mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels size
The wheels on ANALOG are the 27.5″ aluminum type. The 27.5″ wheels are a great choice for smaller riders. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
When you want to stop the bike in time, the brakes are vital. The ANALOG has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Sizes
There are 6 sizes available for this model. Rider height can be anywhere between 158 cm – 194 cm (5.18 ft – 6.36 ft). In short, it won’t be difficult to find the right one for you.
