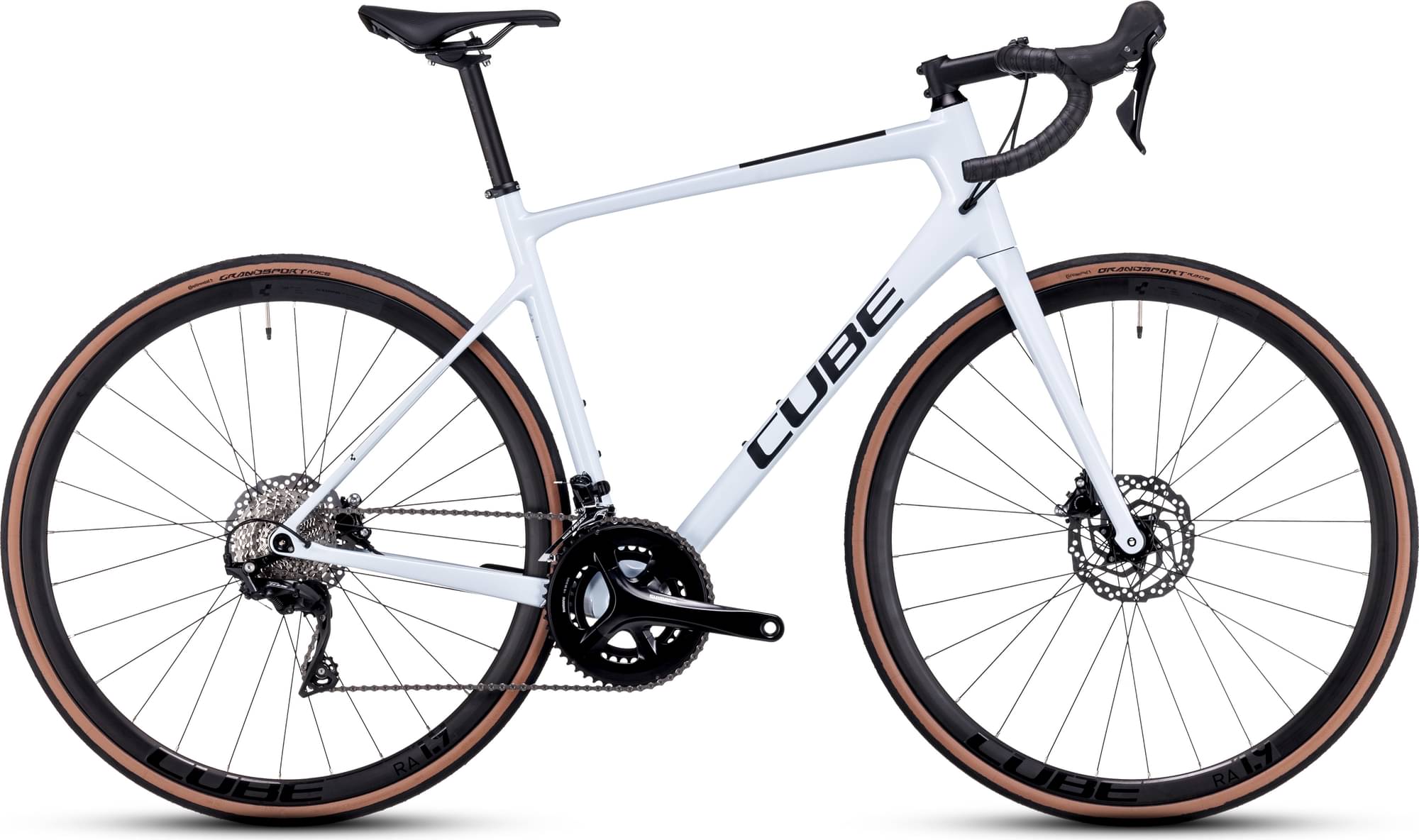

CUBE ATTAIN GTC RACE 2024
2024 Road
Estimate price |
2,178$
Weight | 9.2 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Groupset 105 -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame

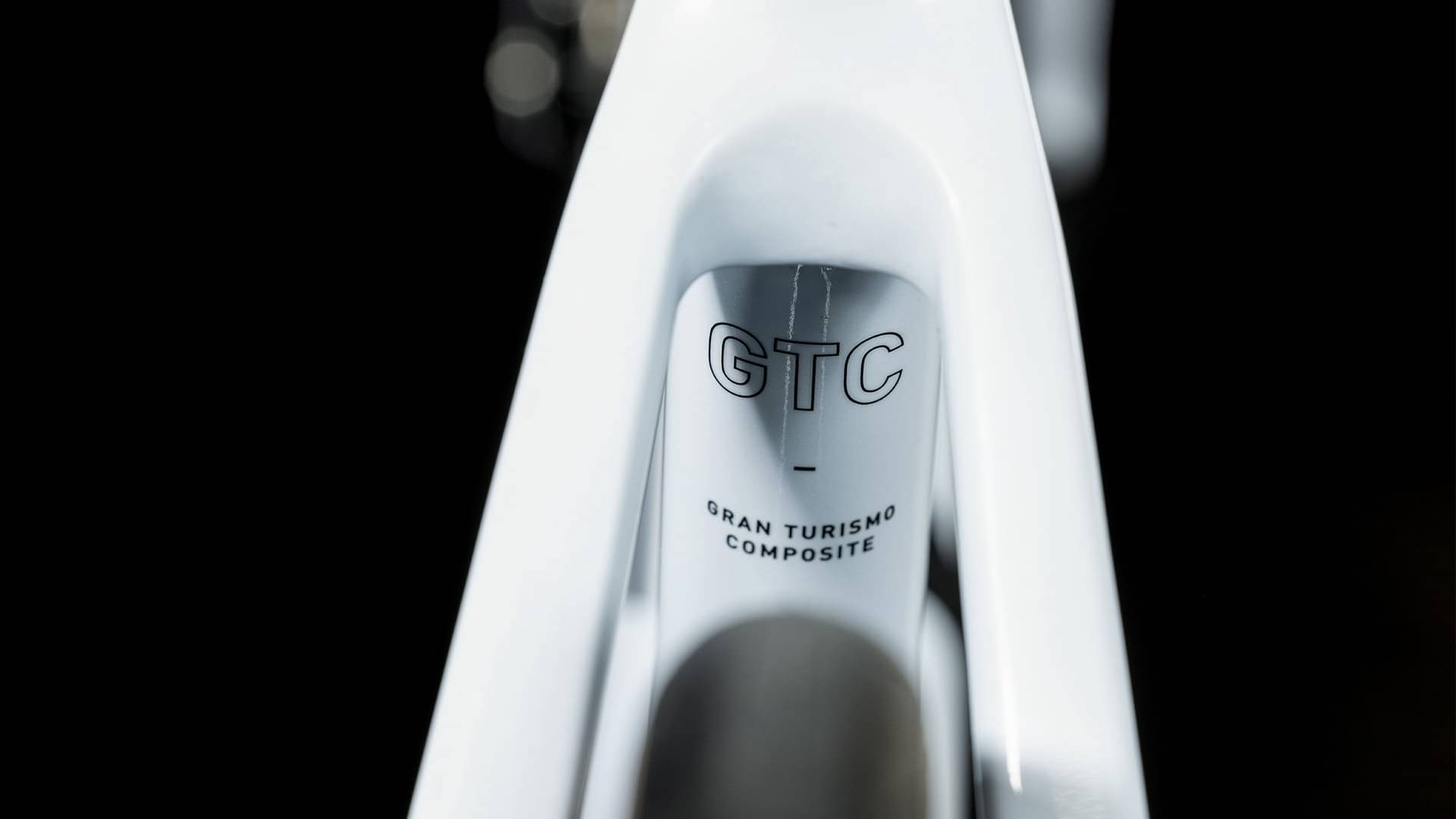

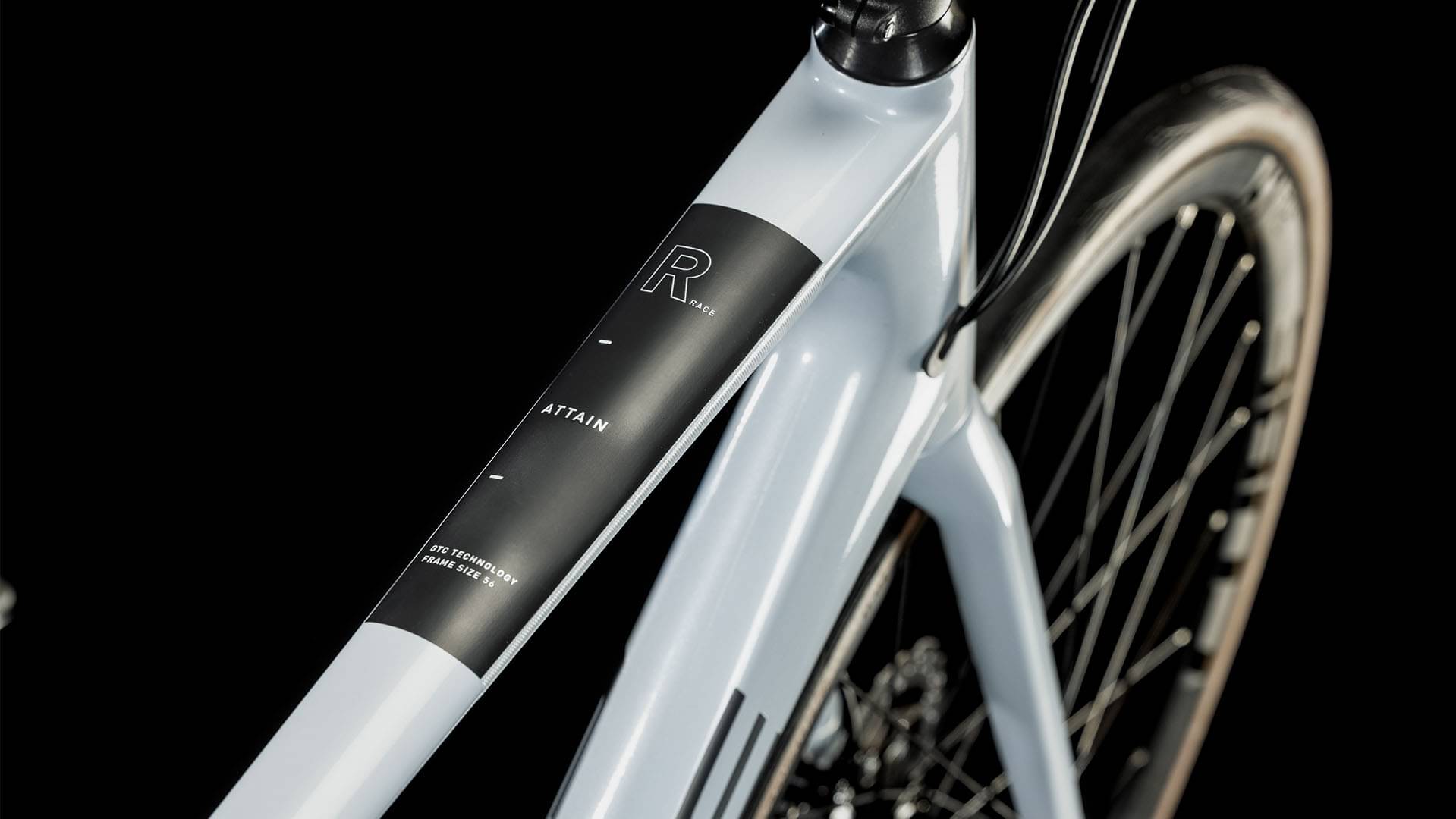

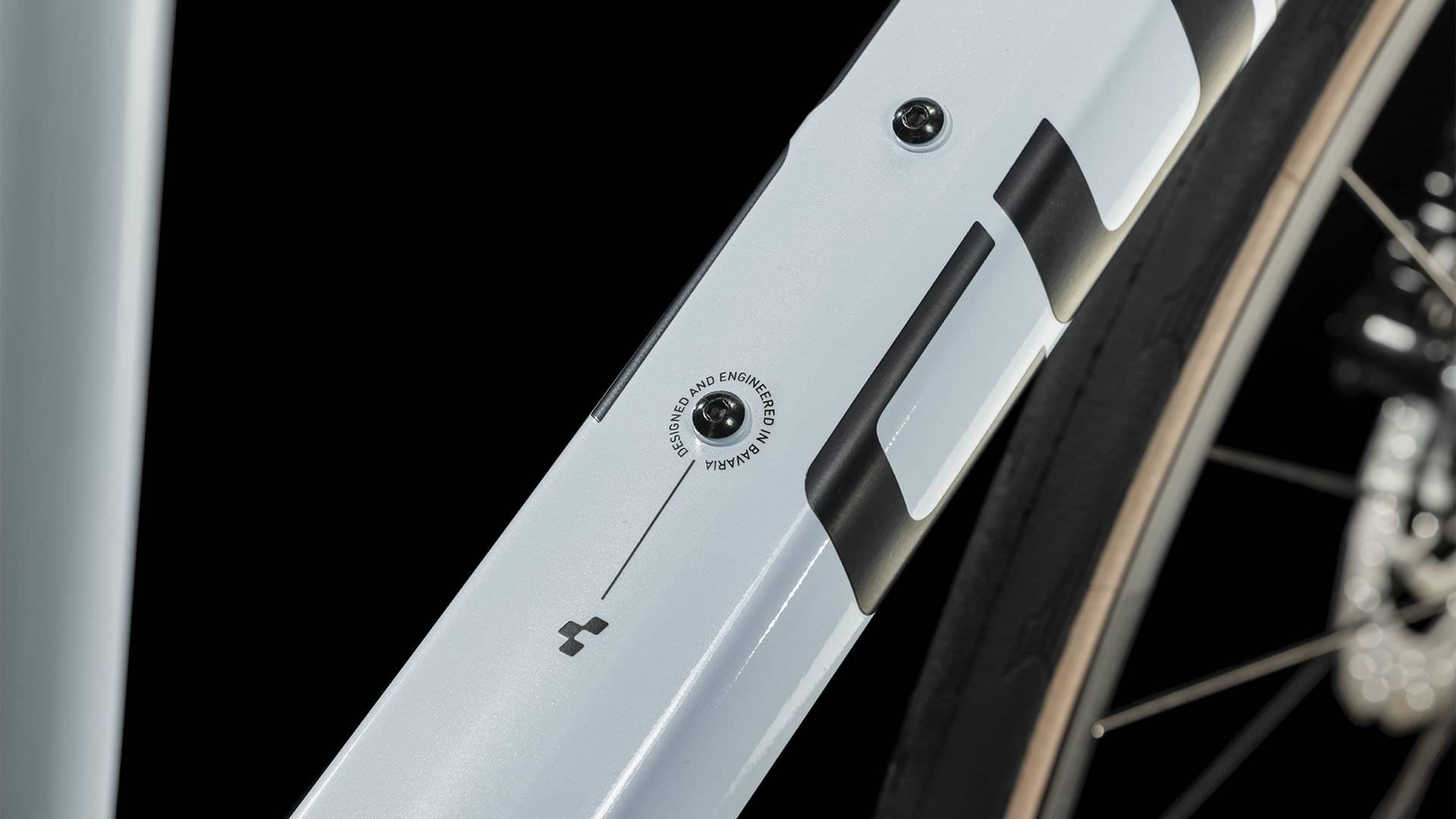

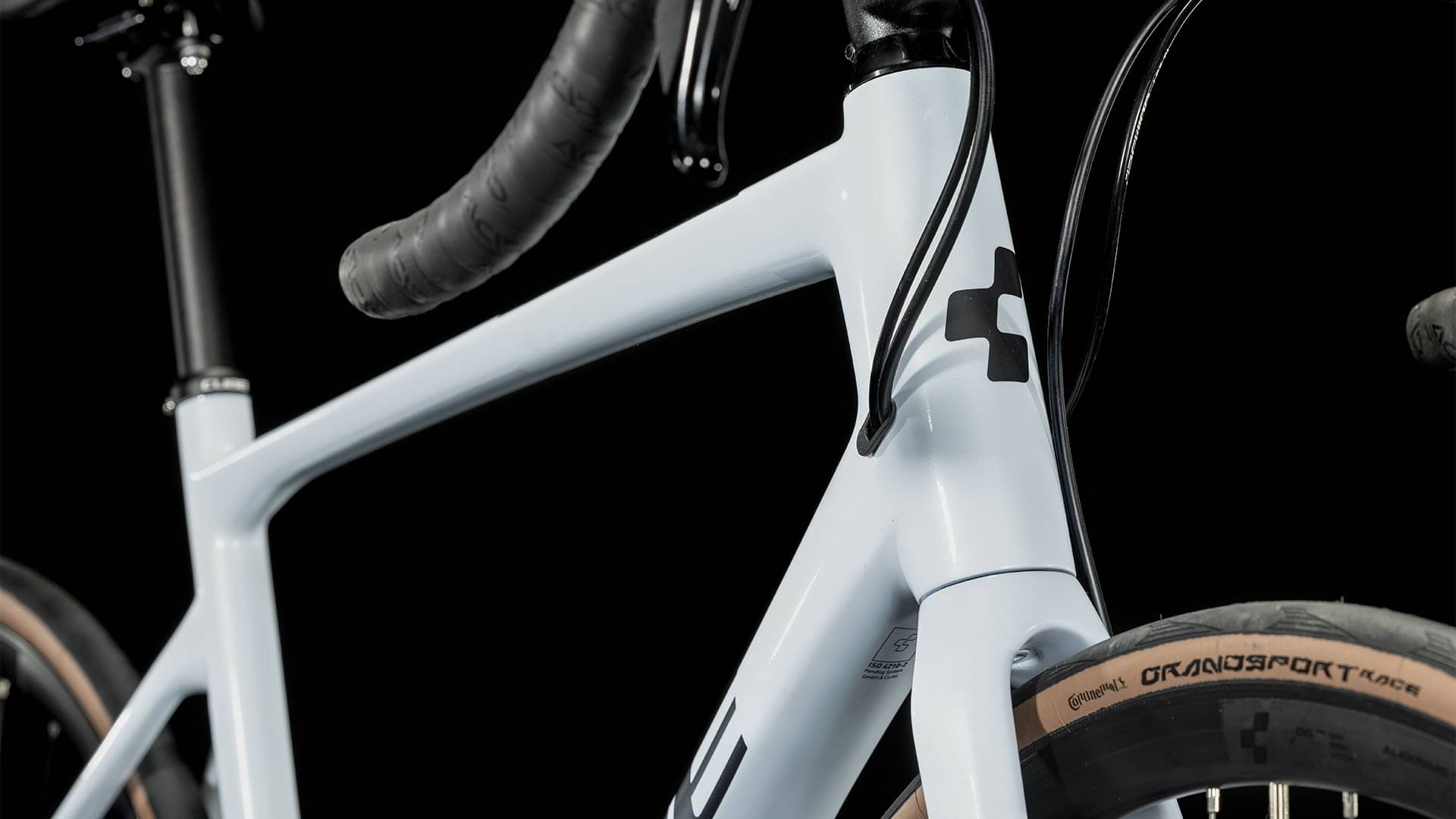

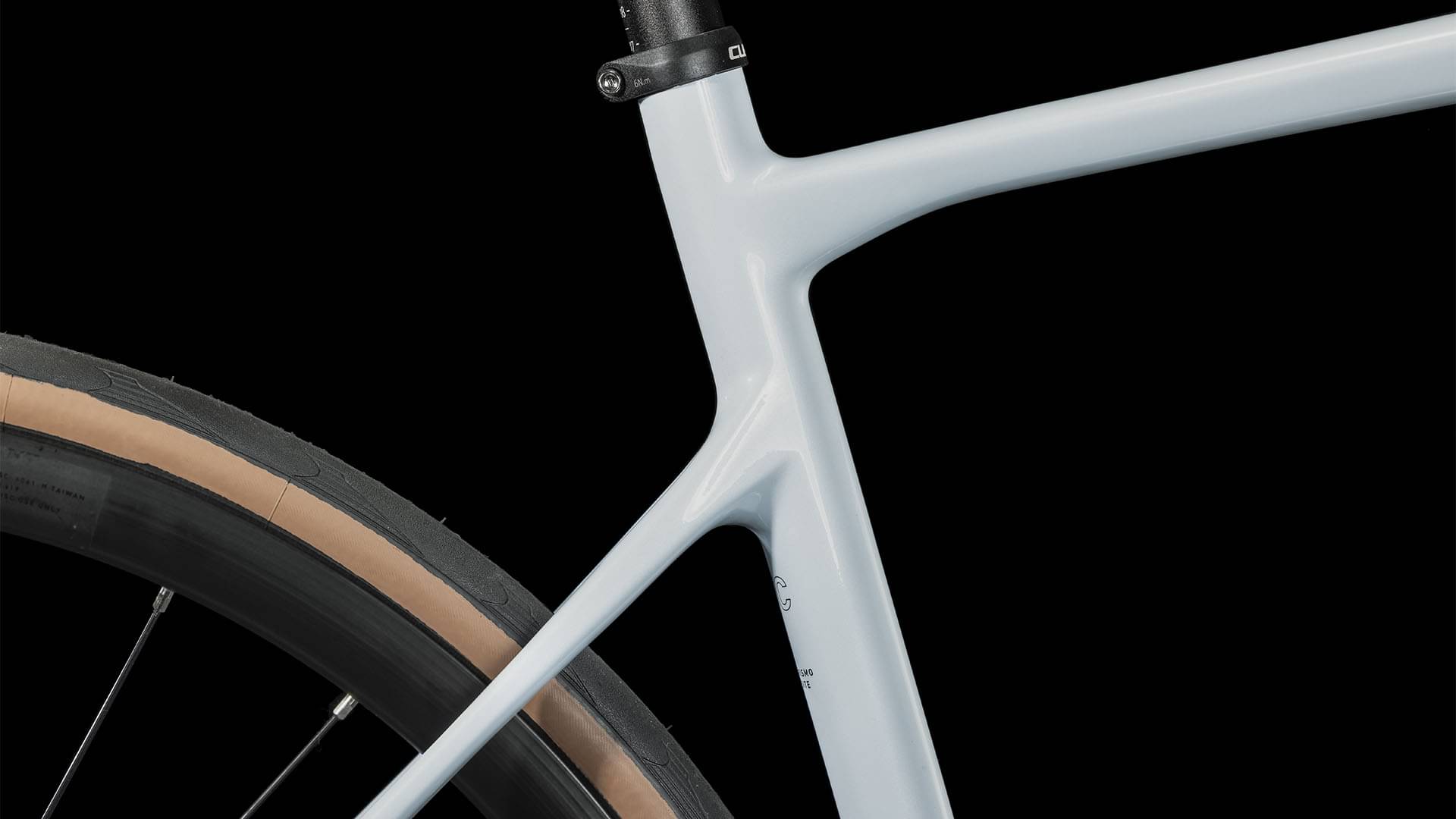

GTC Monocoque Twin Mold Technology, Road Comfort Geometry
Suspension Fork
CUBE CSL Race Disc, Full Carbon, 1 1/8" - 1 1/4" Tapered, Flat Mount, 12x100mm
Drivetrain
Rear Derailleur
Shimano 105 RD-R7000-DGS, 11-Speed
Front Derailleur
Shimano 105 FD-R7000, 31.8mm Clamp
Shift Levers
Shimano 105 ST-R7020
Cassette
Shimano CS-R7000, 11-32T
Crank
Shimano FC-RS510, 50x34T
Bottom Bracket
Shimano SM-BB71-41B, 86mm Pressfit
Chain
Shimano CN-HG600-11
Wheels
Rims
CUBE RA 1.9 Aero Disc
Tires
Conti Grand Sport Race SL, 28-622
Brakes
Brakes
Shimano 105 BR-R7070, Hydr. Disc Brake, Flat Mount (160/160)
Cockpit
Stem
CUBE Performance Stem SLX, 31.8mm
Handlebar
CUBE Compact Race Bar
Headset
VP, Top Integrated 1 1/8", Bottom Integrated 1 1/4"
Seat
Saddle
Natural Fit Nuance
Seatpost
CUBE Performance Post, 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 50cm | 53cm | 56cm | 58cm | 60cm | 62cm |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.458 mm | 1.492 mm | 1.535 mm | 1.572 mm | 1.605 mm | 1.66 mm |
| Bottom Bracket Height | 262 mm | 262 mm | 262 mm | 262 mm | 262 mm | 262 mm |
| Front Center | 581 mm | 591 mm | 605 mm | 614 mm | 624 mm | 628 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm | 49 mm |
| Trail | 61 mm | 58 mm | 54 mm | 54 mm | 54 mm | 56 mm |
| Stack | 538 mm | 561 mm | 591 mm | 610 mm | 629 mm | 649 mm |
| Reach | 369 mm | 376 mm | 385 mm | 388 mm | 392 mm | 391 mm |
| Top Tube Length | 517 mm | 537 mm | 560 mm | 575 mm | 590 mm | 595 mm |
| Seat Tube Angle | 74.6 ° | 74 ° | 73.5 ° | 73 ° | 72.5 ° | 72.5 ° |
| Seat Tube Length | 460 mm | 490 mm | 520 mm | 540 mm | 560 mm | 580 mm |
| Head Tube Angle | 71.5 ° | 72 ° | 72.5 ° | 72.5 ° | 72.5 ° | 72.5 ° |
| Head Tube Length | 130 mm | 152 mm | 182 mm | 202 mm | 222 mm | 242 mm |
| Chainstay Length | 415 mm | 415 mm | 415 mm | 415 mm | 417 mm | 417 mm |
| Wheelbase | 985 mm | 995 mm | 1009 mm | 1018 mm | 1030 mm | 1034 mm |
| Bottom Bracket Drop | 74 mm | 74 mm | 74 mm | 74 mm | 74 mm | 74 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
