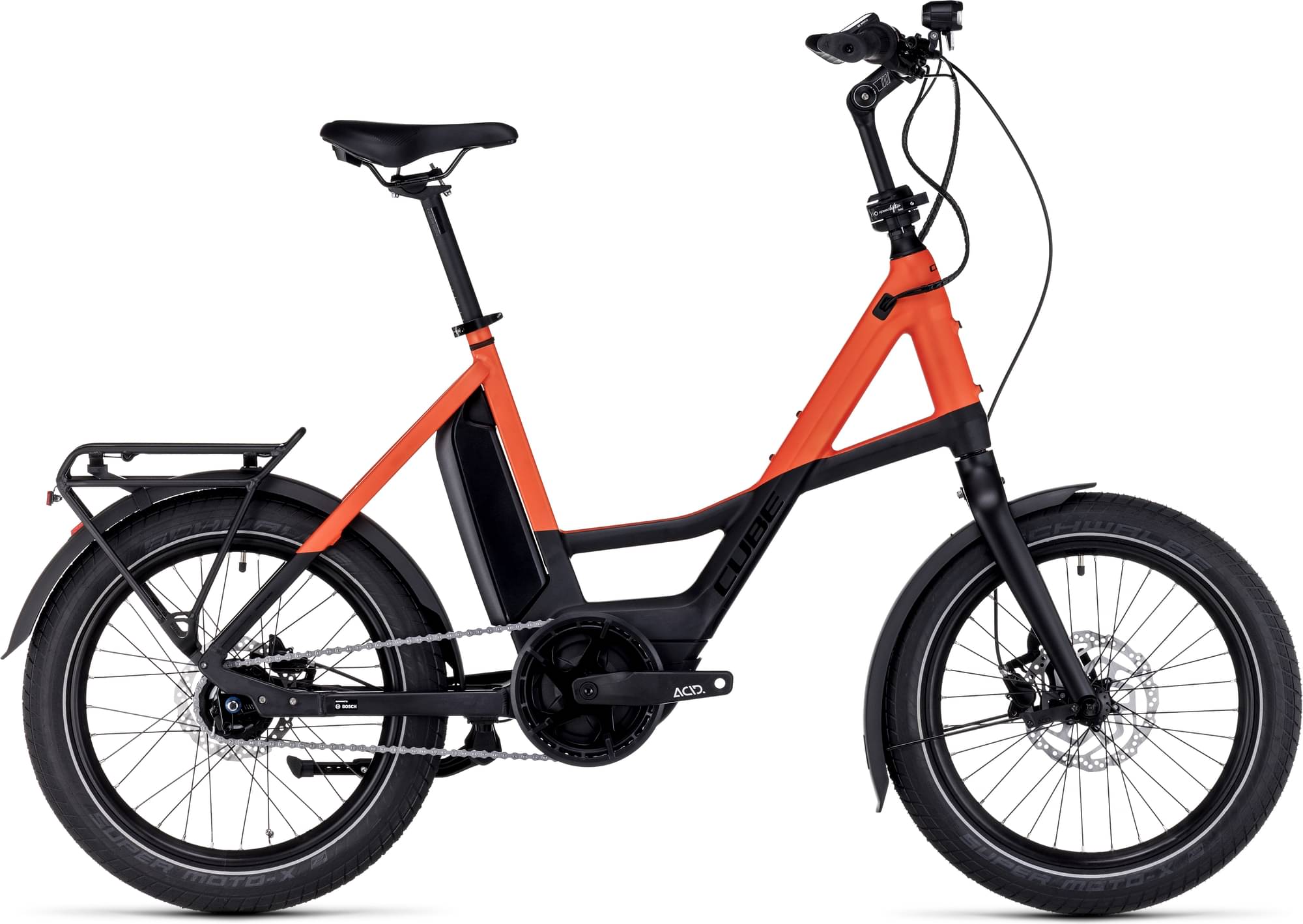

CUBE COMPACT HYBRID 500 2024
2024 E-bike
Estimate price |
3,268$
Weight | 23.8 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset Nexus -
Suspension Rigid -
Motor Bosch 250W 65Nm mid-drive -
Battery Bosch PowerPack 500 -
Drivetrain Internally Geared Hub -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium Superlite, Comfort Ride Geometry, Semi-Integrated Carrier, Double Butted, Front-Carrier Ready, Slider Dropout
Suspension Fork
Aluminium 20"
Drivetrain
Shift Levers
Shimano Nexus SL-C7000-5, Revoshift
Cassette
Shimano Nexus CS-C7000, 24T
Crank
ACID E-Crank, 165mm, 44T
Chain
KMC Z610
Pedals
CUBE PP MTB
Wheels
Front Hub
Shimano HB-TX505, QR, Centerlock
Rear Hub
Shimano Nexus SG-C7000-5D, 5-Speed, Centerlock, Nut
Rims
CUBE EX30, 32H, Disc, Tubeless Ready
Tires
Schwalbe Super Moto-X, Double Defense, 62-406
Brakes
Brakes
Shimano BR-MT200, Hydr. Disc Brake (180/160)
Cockpit

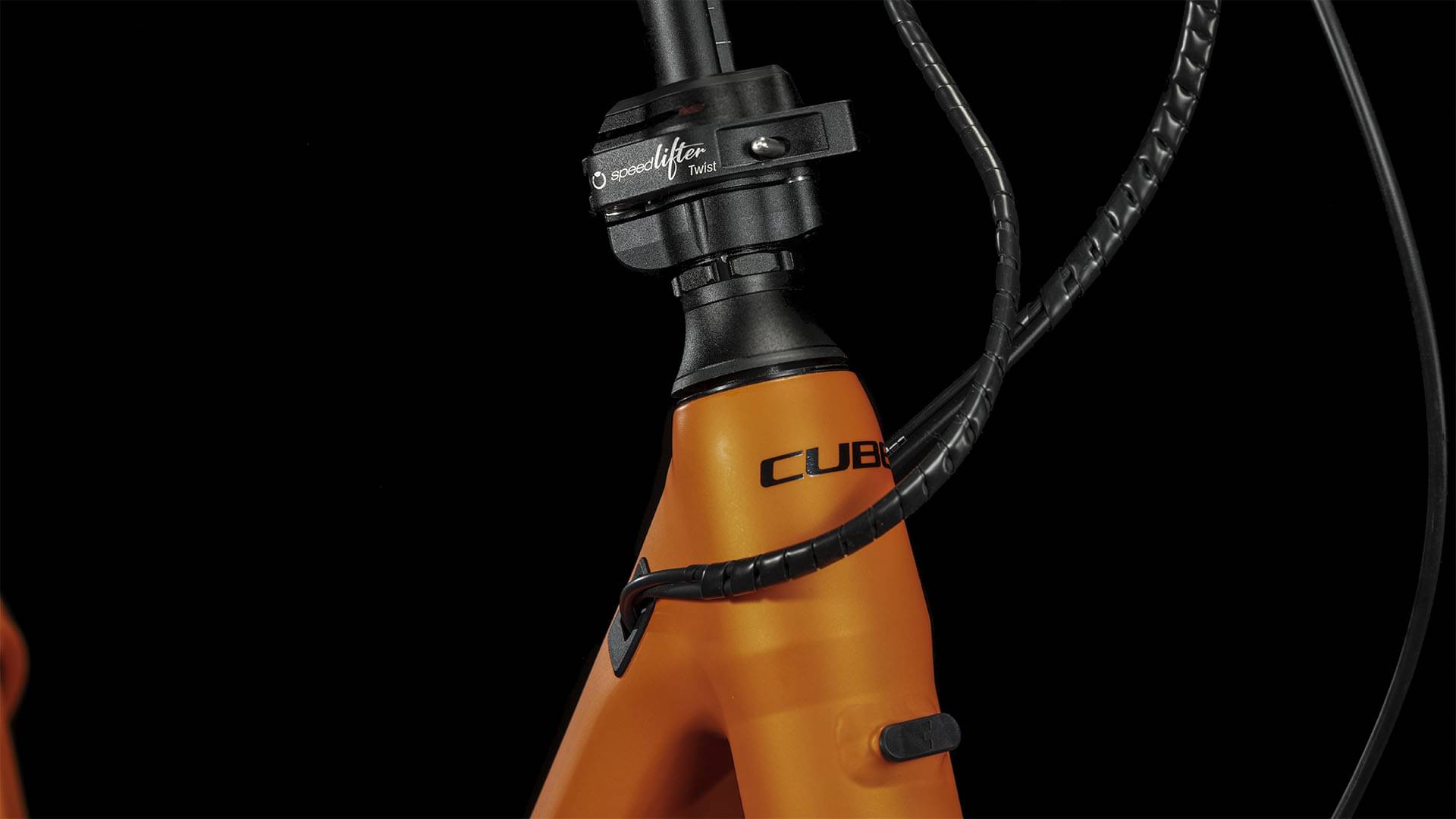

Stem
BySchulz Speedlifter Twist Pro SDS T15
Handlebar
Cube Comfort Trail Bar 680mm
Grips
ACID Travel Comfort Gripshift
Headset
Cube H835D3, Semi-Integrated, Sealed bearing
Seat
Saddle
Natural Fit Sequence
Seatpost
Newmen Evolution, 27.2mm
Motor & Battery
Motor
Bosch Drive Unit Performance Generation 3 (65Nm) Cruise (250Watt)

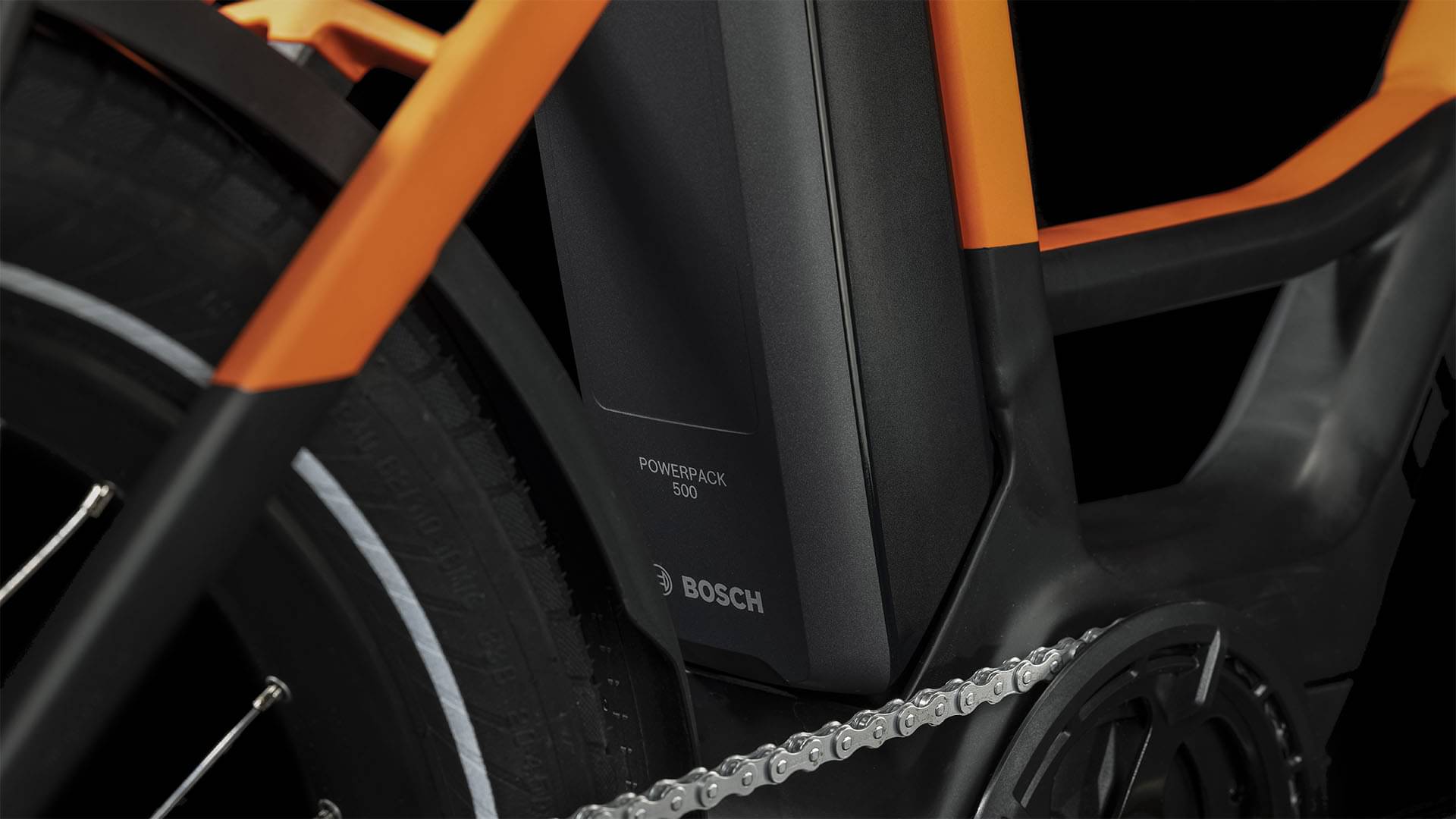

Battery
Bosch PowerPack 500
Charger
Bosch 2A
Fit data
Geometry
