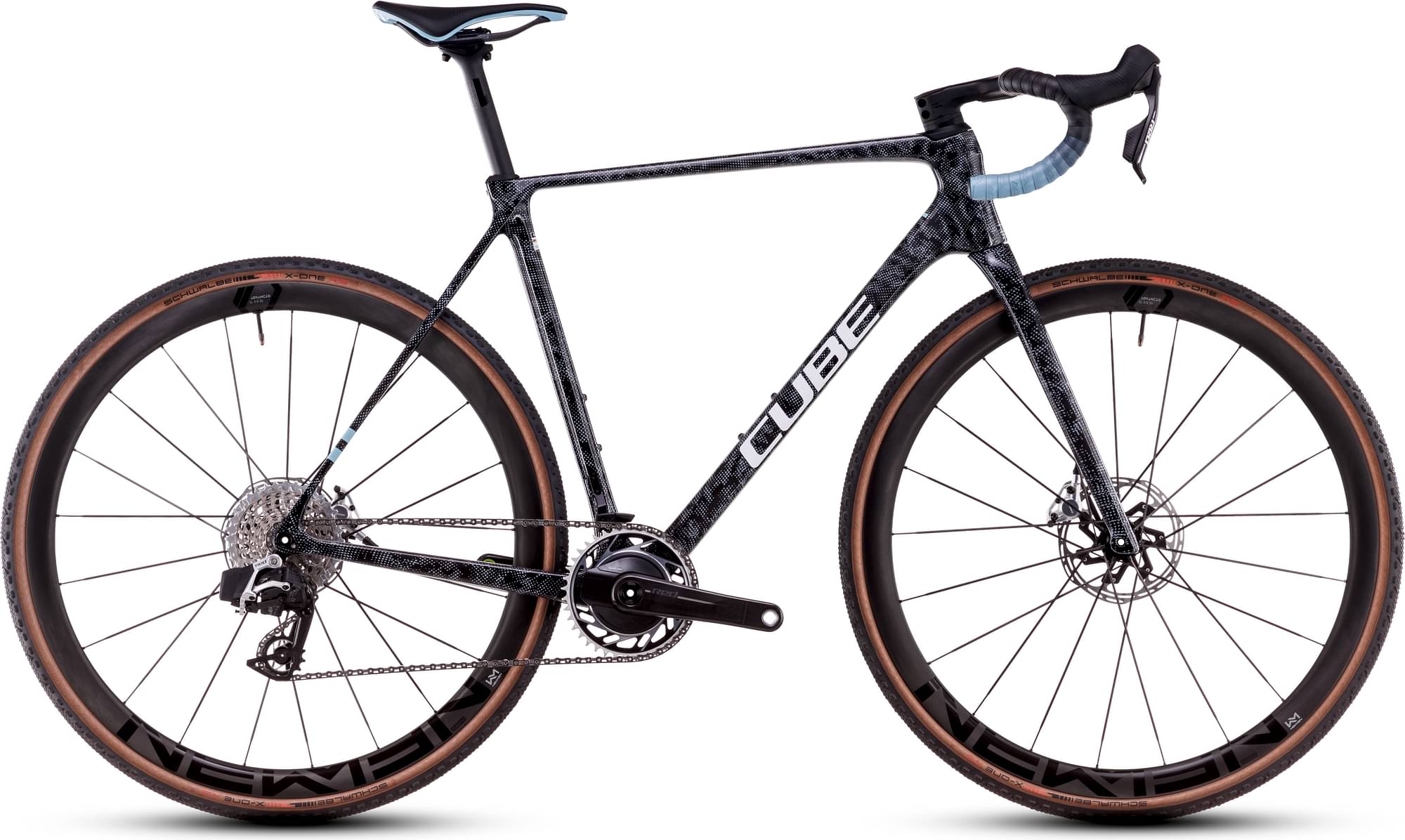

CUBE CROSS RACE C:68X SLT 2025
2025 Road
Estimate price |
7,561$
Weight | 7 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Groupset RED AXS -
Suspension Rigid -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components

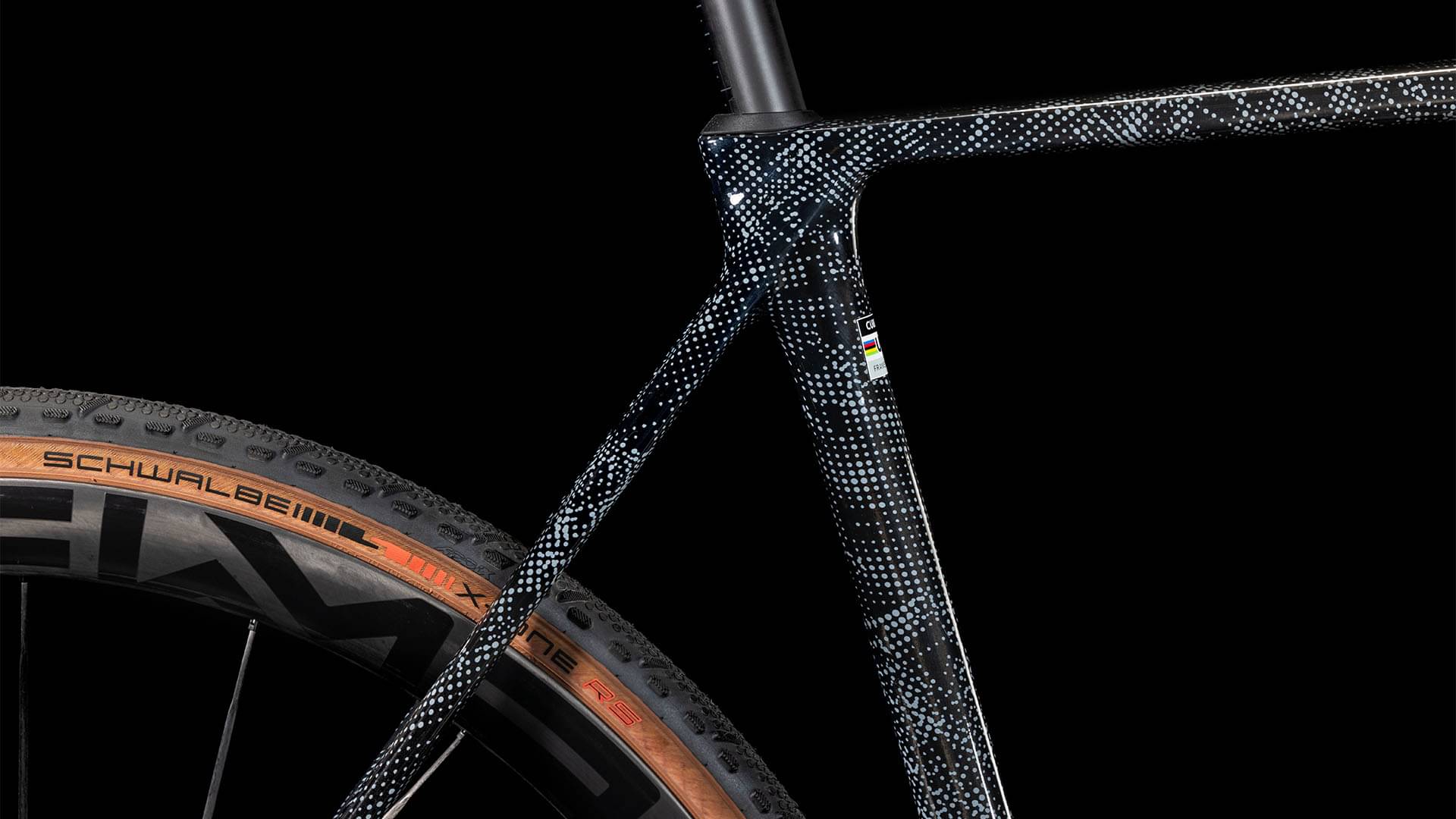

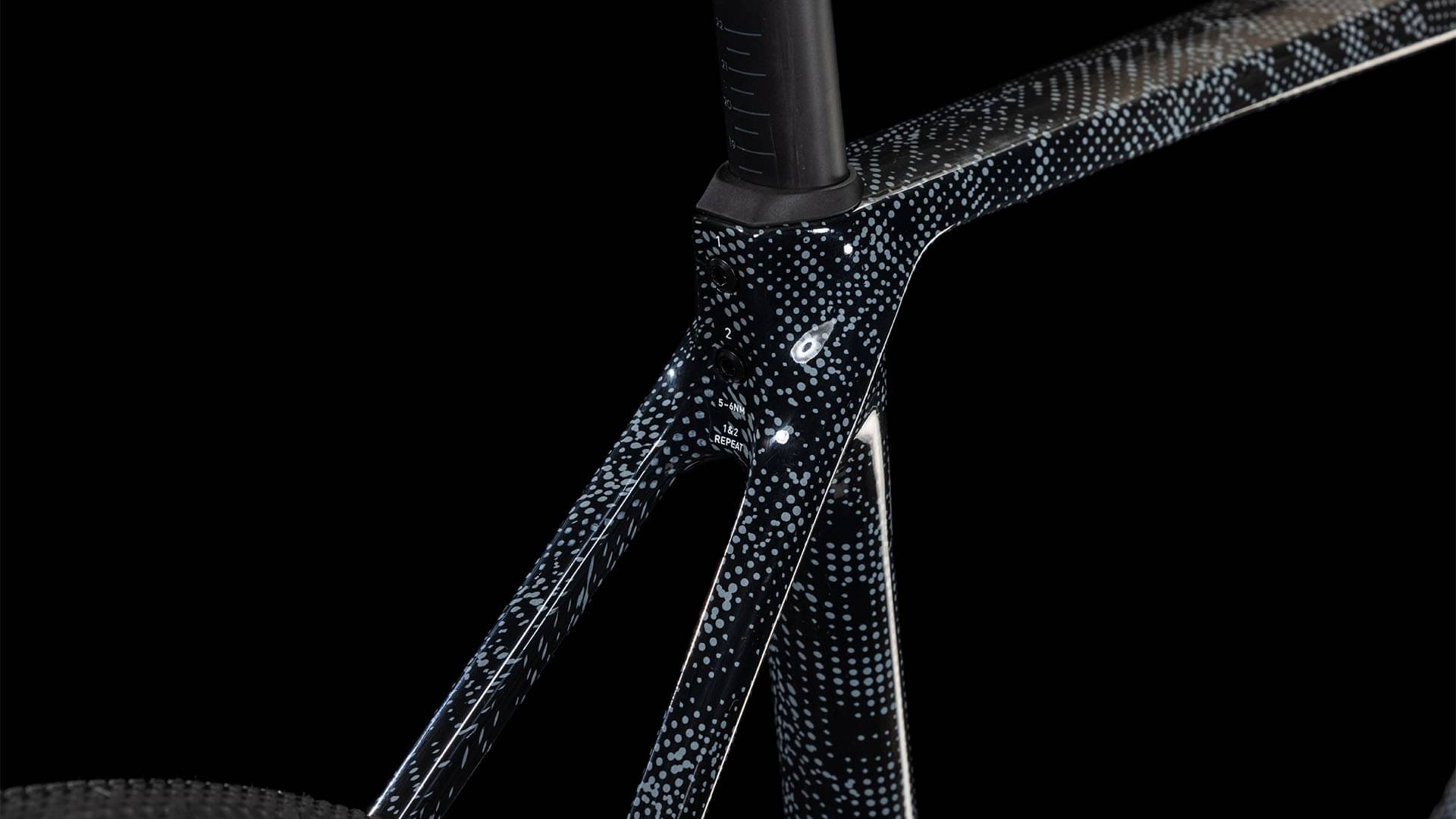

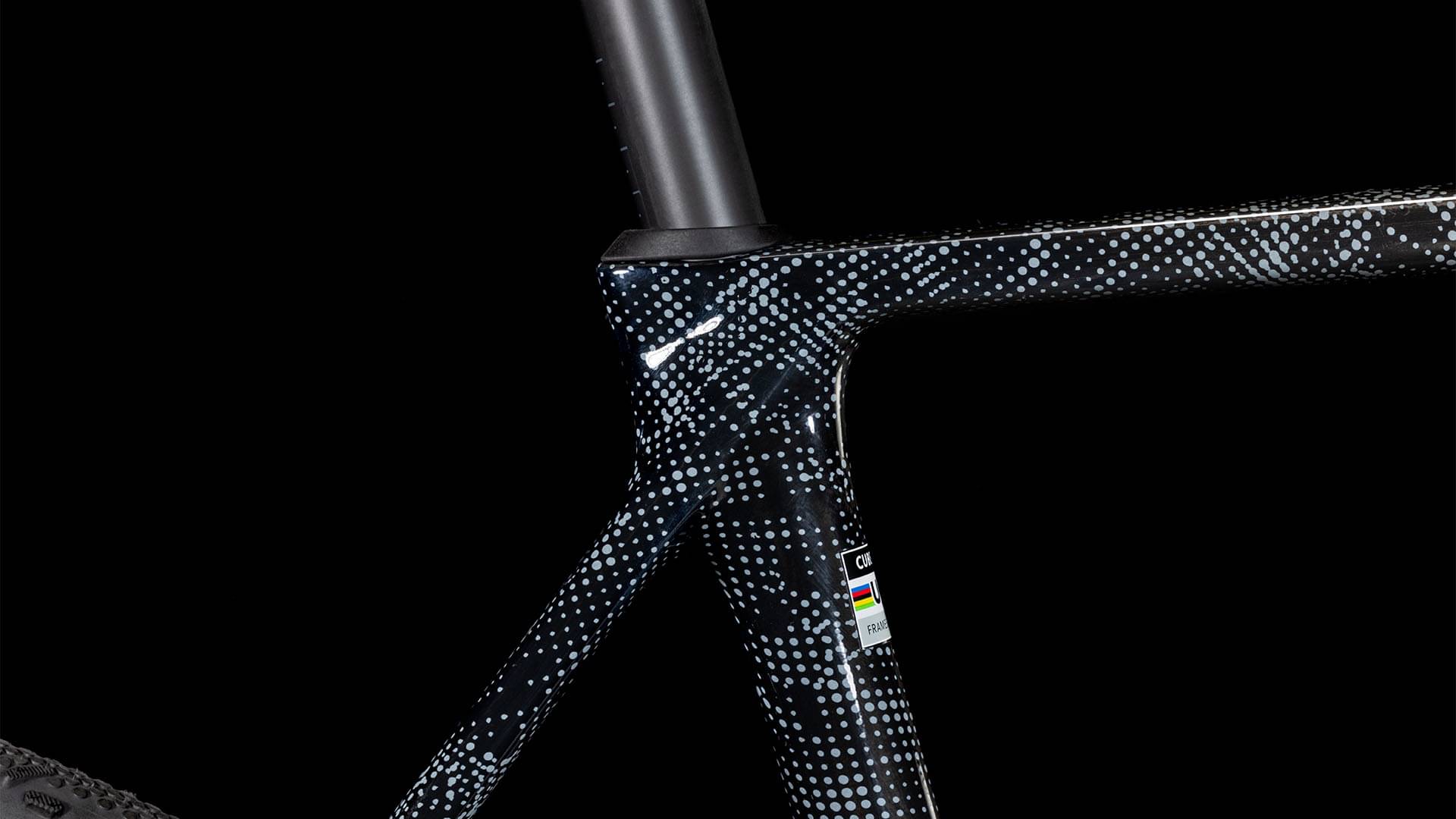

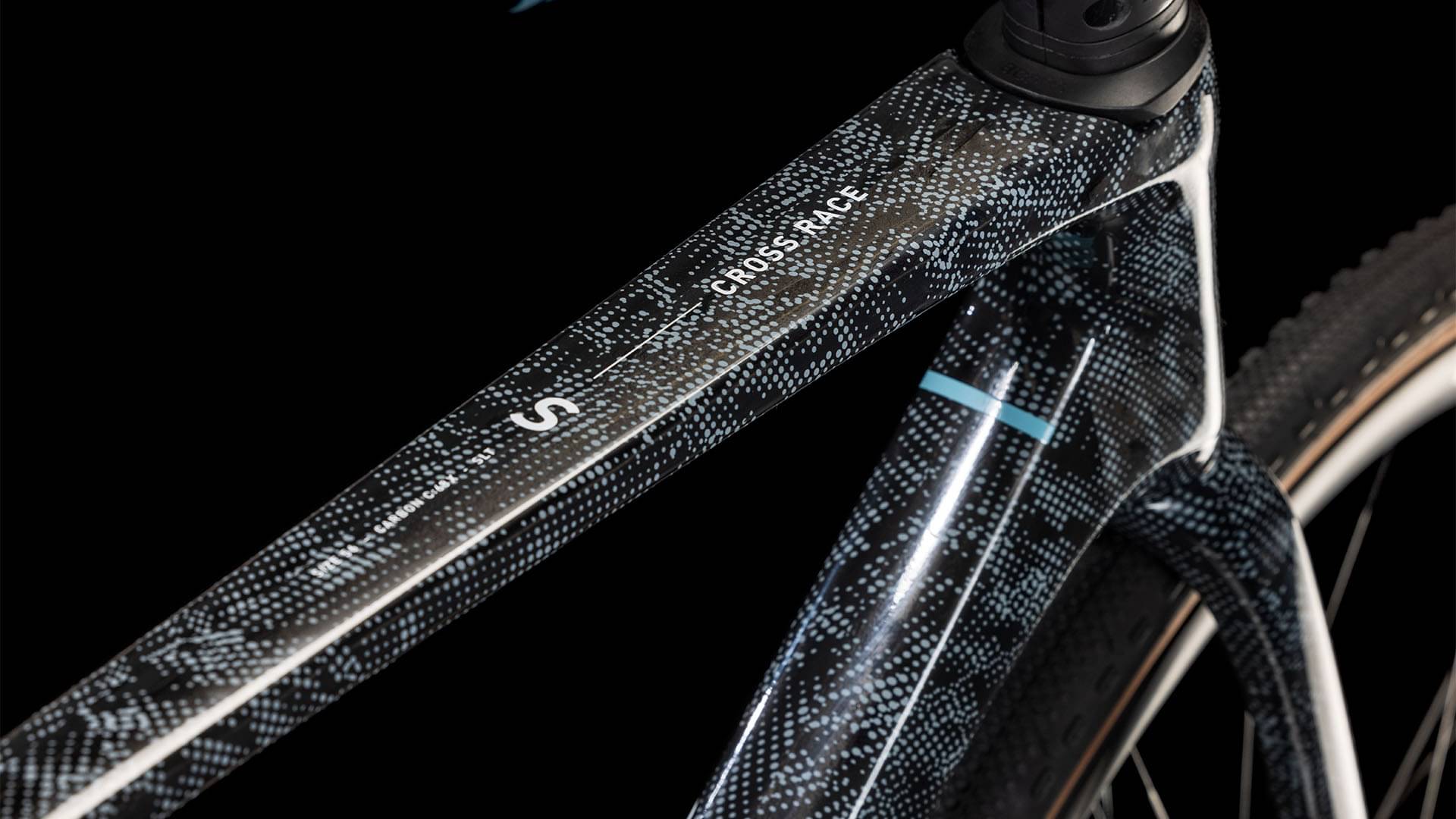

Frame
Frame
C:68X® Monocoque Advanced Twin Mold Technology, Full Internal Cable Routing, Flat Mount Disc, 12x142mm, AXH
Suspension Fork
CUBE Cross Race Disc C:68X® Technology, Integrated Cable Routing, Flat Mount Disc
Drivetrain
Rear Derailleur
SRAM Red AXS™, 12-Speed
Shift Levers
SRAM Red AXS™
Cassette
SRAM Red XG-1290, 10-36T

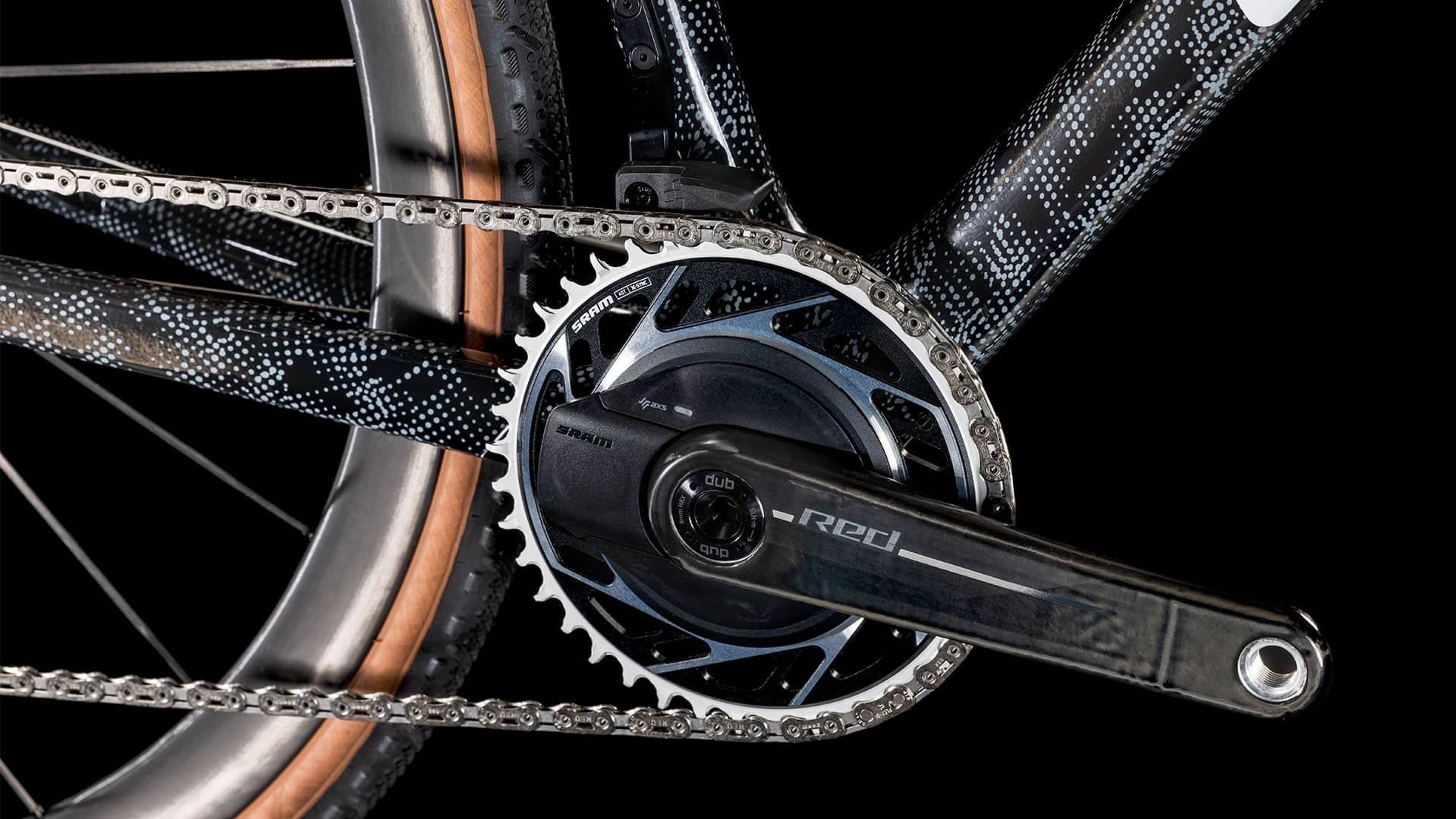

Crank
SRAM Red XPLR Power Meter, Carbon, 40T
Bottom Bracket
SRAM DUB Road Wide, Pressfit
Chain
SRAM Red E1
Wheels
Rims
Newmen Advanced SL X.R.36 VONOA Carbon, 21/21 Carbon Spokes, 12x100mm/12x142mm, Tubeless Ready
Tires
Schwalbe X-One RS, Kevlar, 33-622
Brakes
Brakes
SRAM Red AXS™, Hydr. Disc Brake (160/160)

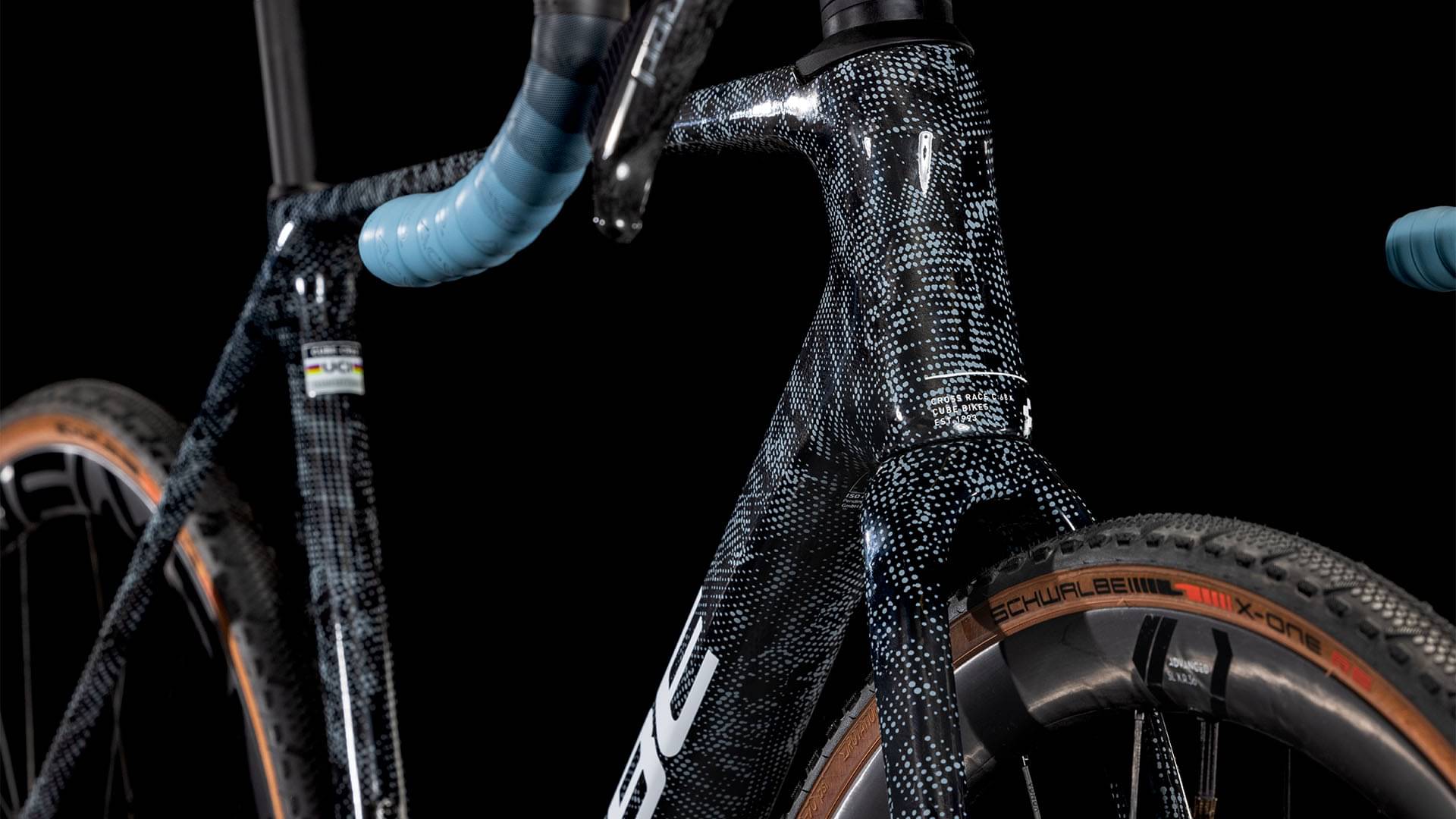

Cockpit
Handlebar
ICR Cockpit System, Integrated Cable Routing, Aero Spacer System, Garmin Mount Interface
Headset
ACROS, Top Integrated 1 1/2" w/ Integrated Cable Routing, Bottom Integrated 1 1/4"
Seat

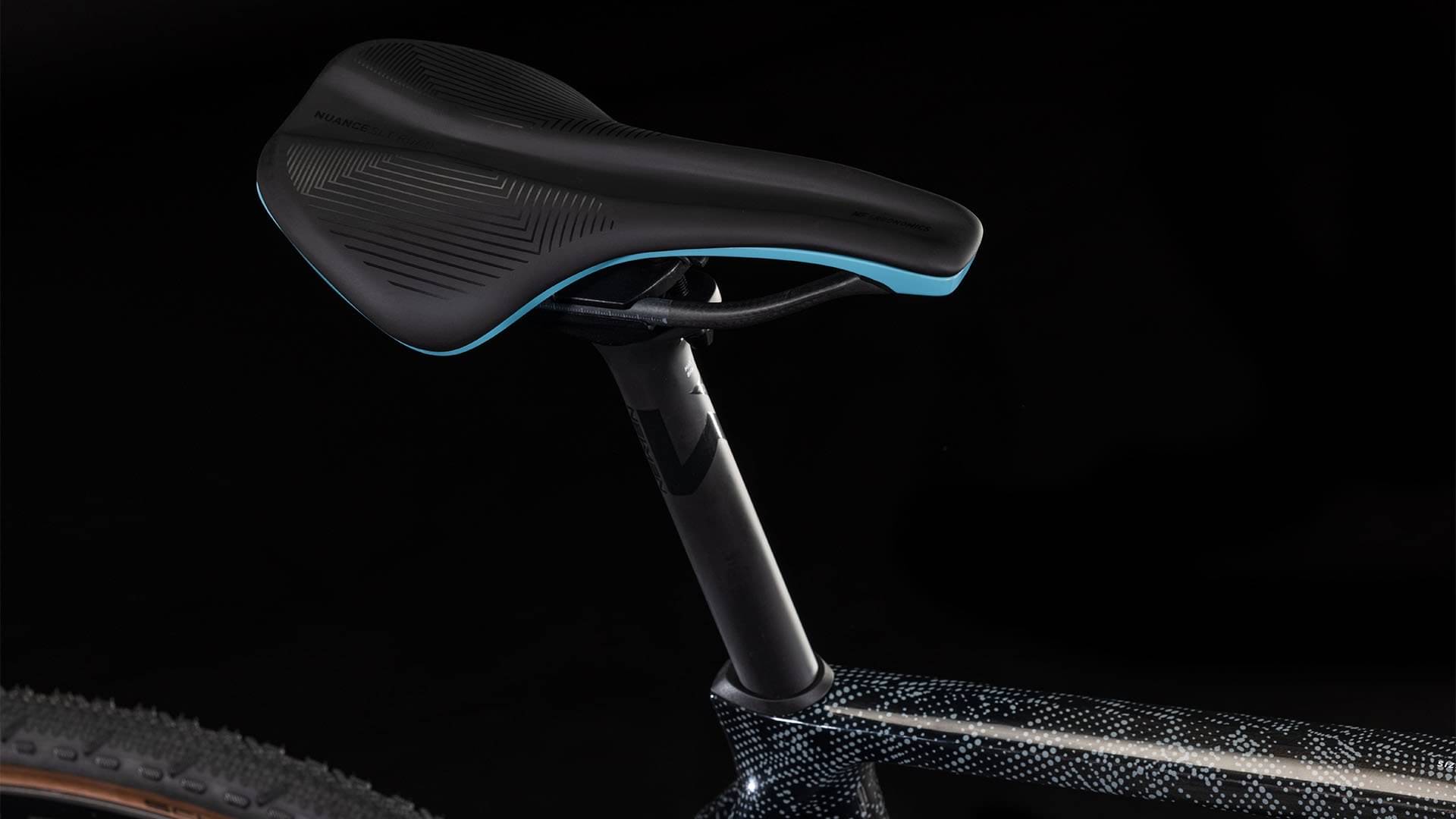

Saddle
Natural Fit Nuance SLT Road Carbon
Seatpost
Newmen Advanced, Carbon, 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 50cm | 53cm | 56cm | 58cm | 61cm |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.365 mm | 1.42 mm | 1.462 mm | 1.487 mm | 1.51 mm |
| Bottom Bracket Height | 281 mm | 281 mm | 281 mm | 281 mm | 281 mm |
| Front Center | 586 mm | 594 mm | 607 mm | 619 mm | 631 mm |
| Rake | 46 mm | 46 mm | 47 mm | 46 mm | 46 mm |
| Trail | 66 mm | 65 mm | 62 mm | 63 mm | 60 mm |
| Stack | 520 mm | 544 mm | 570 mm | 589 mm | 613 mm |
| Reach | 381 mm | 383 mm | 390 mm | 396 mm | 406 mm |
| Top Tube Length | 525 mm | 541 mm | 560 mm | 574 mm | 593 mm |
| Seat Tube Angle | 74.5 ° | 73.8 ° | 73.4 ° | 73.2 ° | 73 ° |
| Seat Tube Length | 475 mm | 505 mm | 535 mm | 555 mm | 585 mm |
| Head Tube Angle | 71.5 ° | 71.7 ° | 72 ° | 72 ° | 72.5 ° |
| Head Tube Length | 93 mm | 117 mm | 144 mm | 164 mm | 187 mm |
| Chainstay Length | 423 mm | 423 mm | 425 mm | 425 mm | 425 mm |
| Wheelbase | 1001 mm | 1009 mm | 1024 mm | 1036 mm | 1048 mm |
| Bottom Bracket Drop | 63 mm | 63 mm | 63 mm | 63 mm | 63 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
