CUBE CROSS RACE PRO 2024
2024 Road
Estimate price |
1,860$
Weight | 9.9 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Groupset GRX 800, 105 -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame

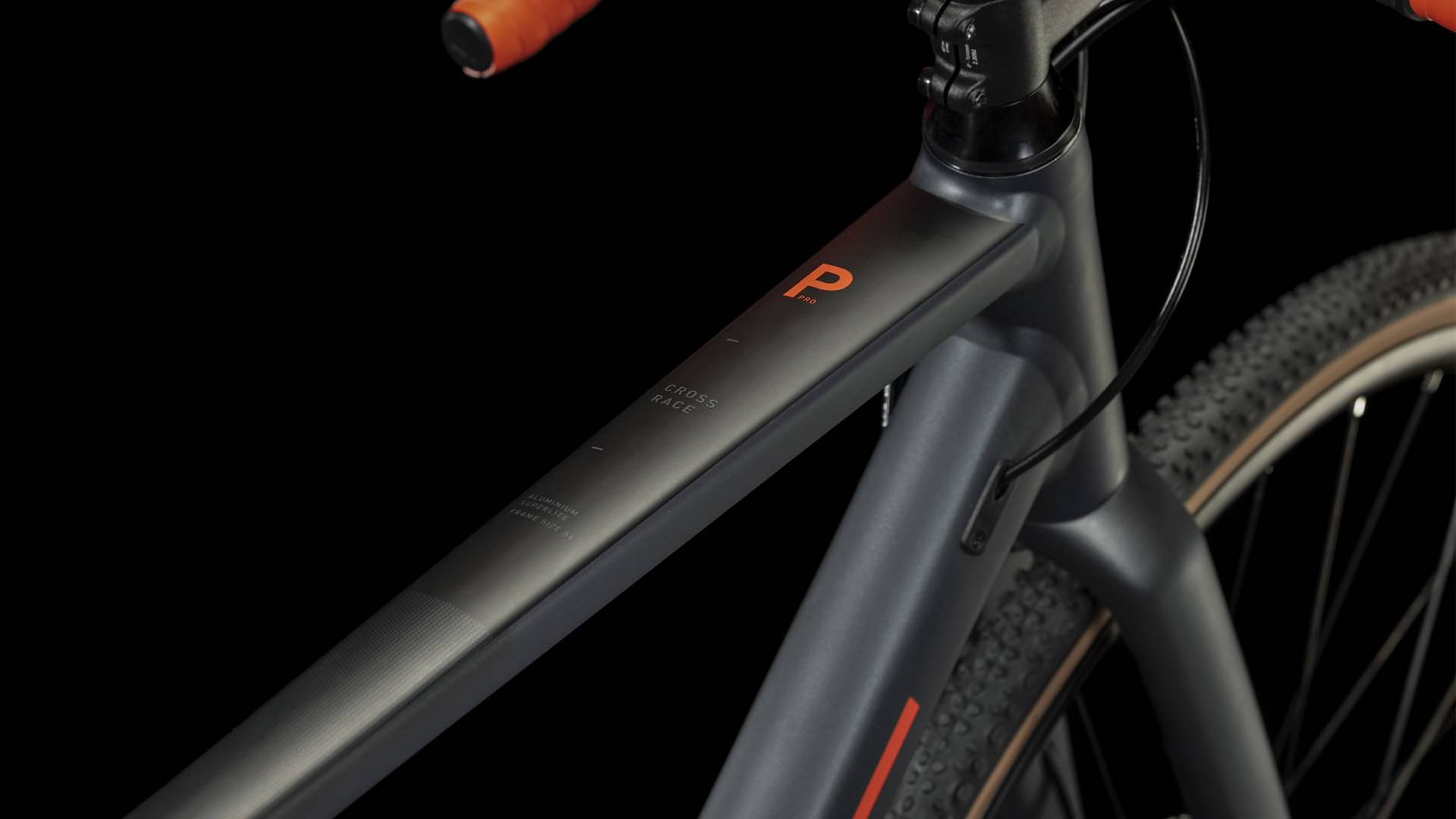

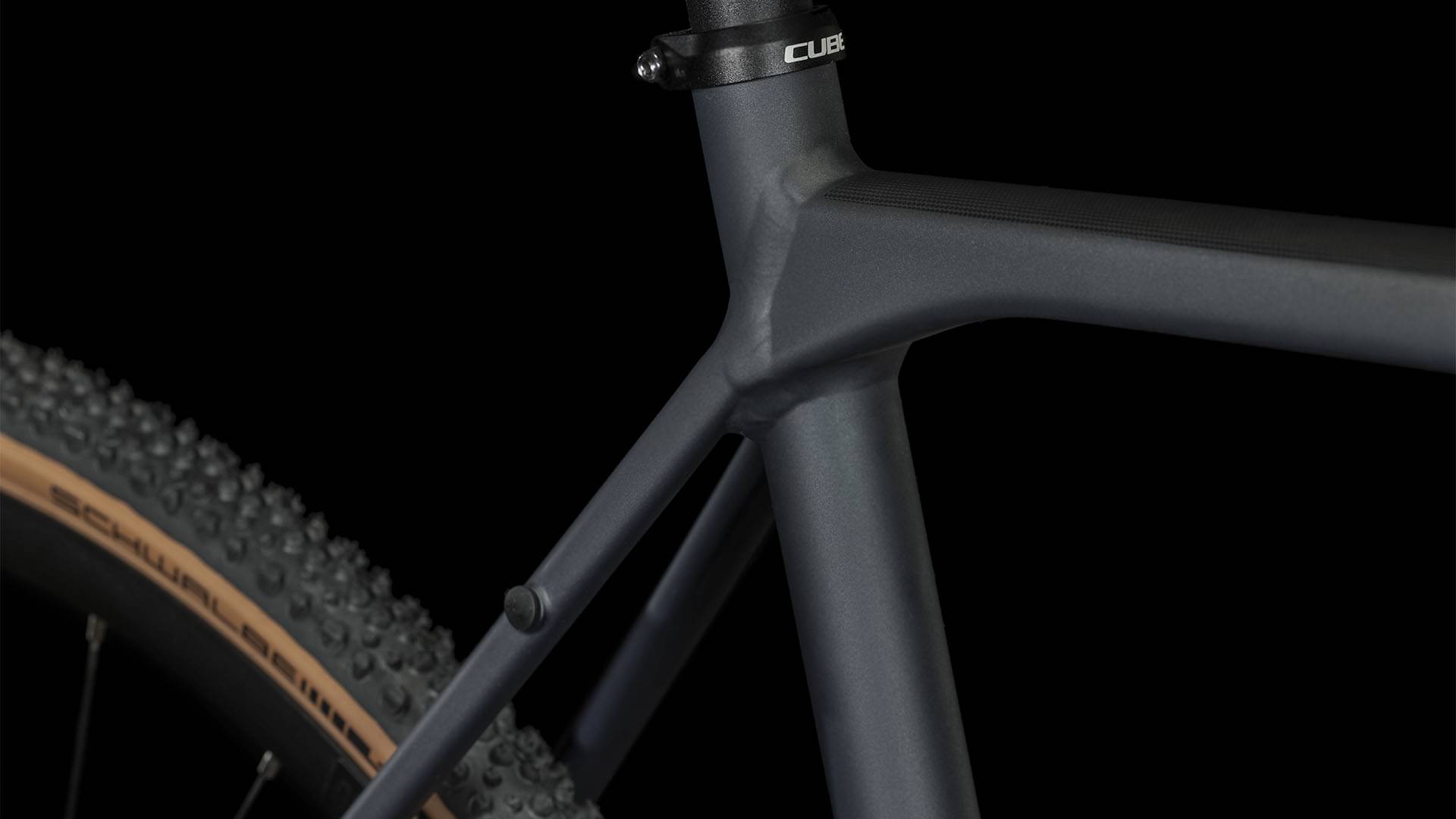

Frame
Aluminium Superlite, Double Butted, Advanced Mechanical Forming, Smooth Welded, Internal Cable Routing, Flat Mount Disc, 12x142mm, AXH

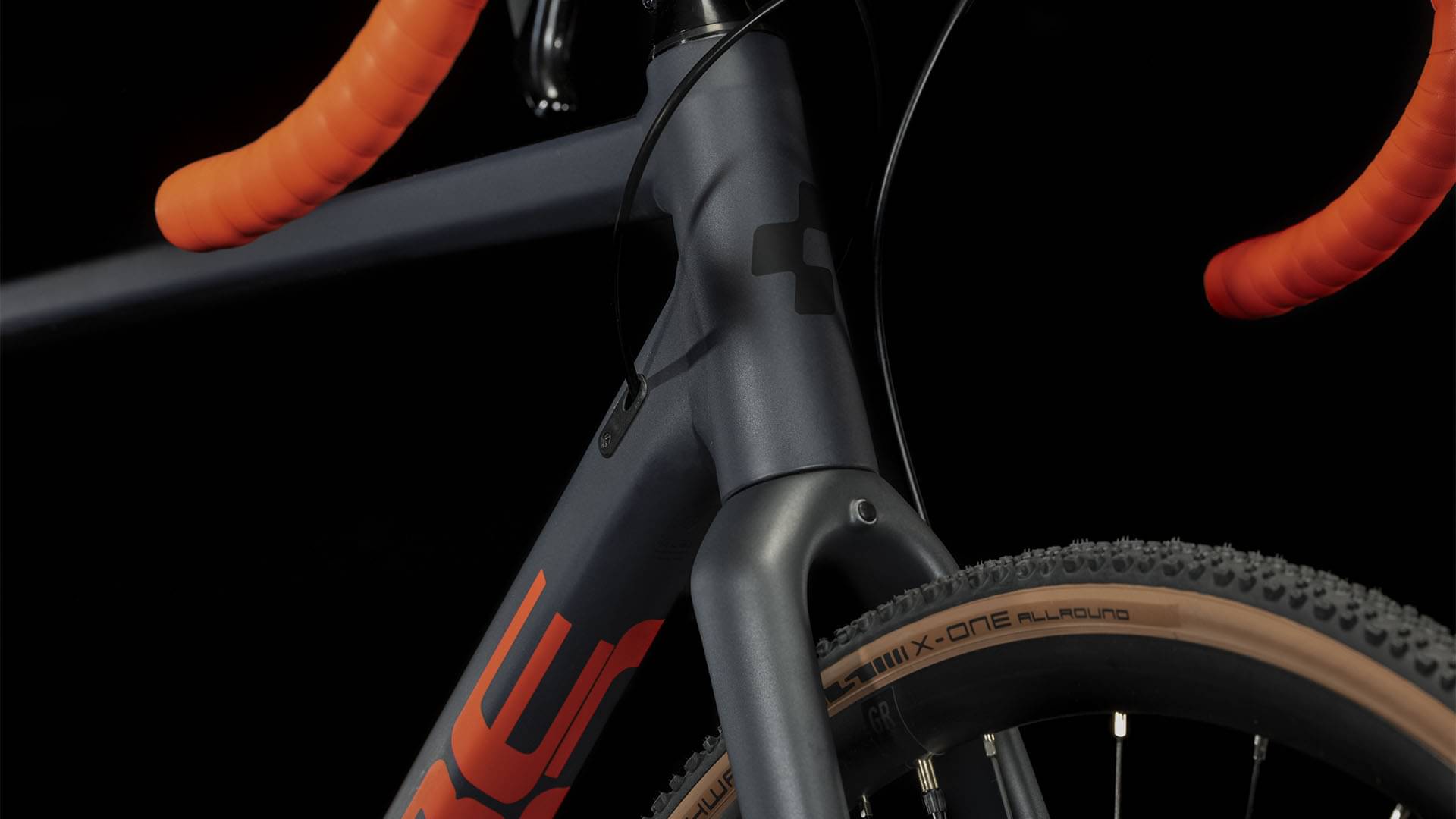

Suspension Fork
CUBE Cross Race Disc, Full Carbon, 1 1/8" - 1 1/4" Tapered, Flat Mount
Drivetrain

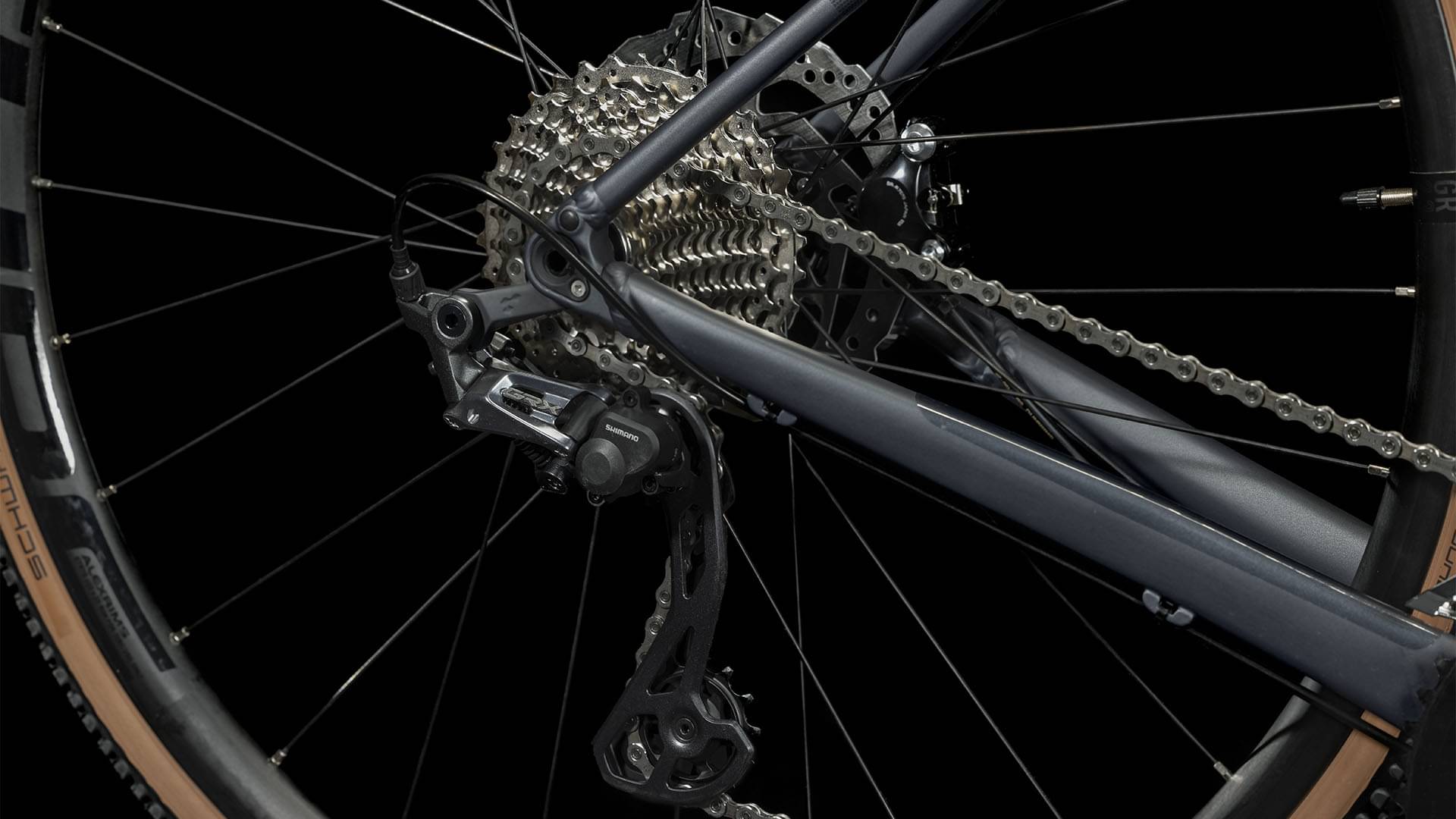

Rear Derailleur
Shimano GRX RD-RX810, Direct Mount, 11-Speed
Front Derailleur
Shimano 105 FD-R7000, 31.8mm Clamp
Shift Levers
Shimano 105 ST-R7020
Cassette
Shimano 105 CS-HG700, 11-34T
Crank
Shimano FC-RS510, 46x36T
Bottom Bracket
Shimano BB-RS500PB, Pressfit
Chain
Shimano CN-HG600-11
Wheels
Rims
CUBE RA 1.9 CX, Tubeless Ready
Tires
Schwalbe X-One Allround, PerfL, Kevlar, 33-622
Brakes
Brakes
Shimano 105 BR-R7070, Hydr. Disc Brake, Flat Mount (160/160)
Cockpit
Stem
CUBE Performance Stem SLX, 31.8mm
Handlebar
CUBE Compact Race Bar
Headset
VP Z-t, Top Zero-Stack 1 1/8" (OD 44mm), Bottom Integrated 1 1/4"
Seat

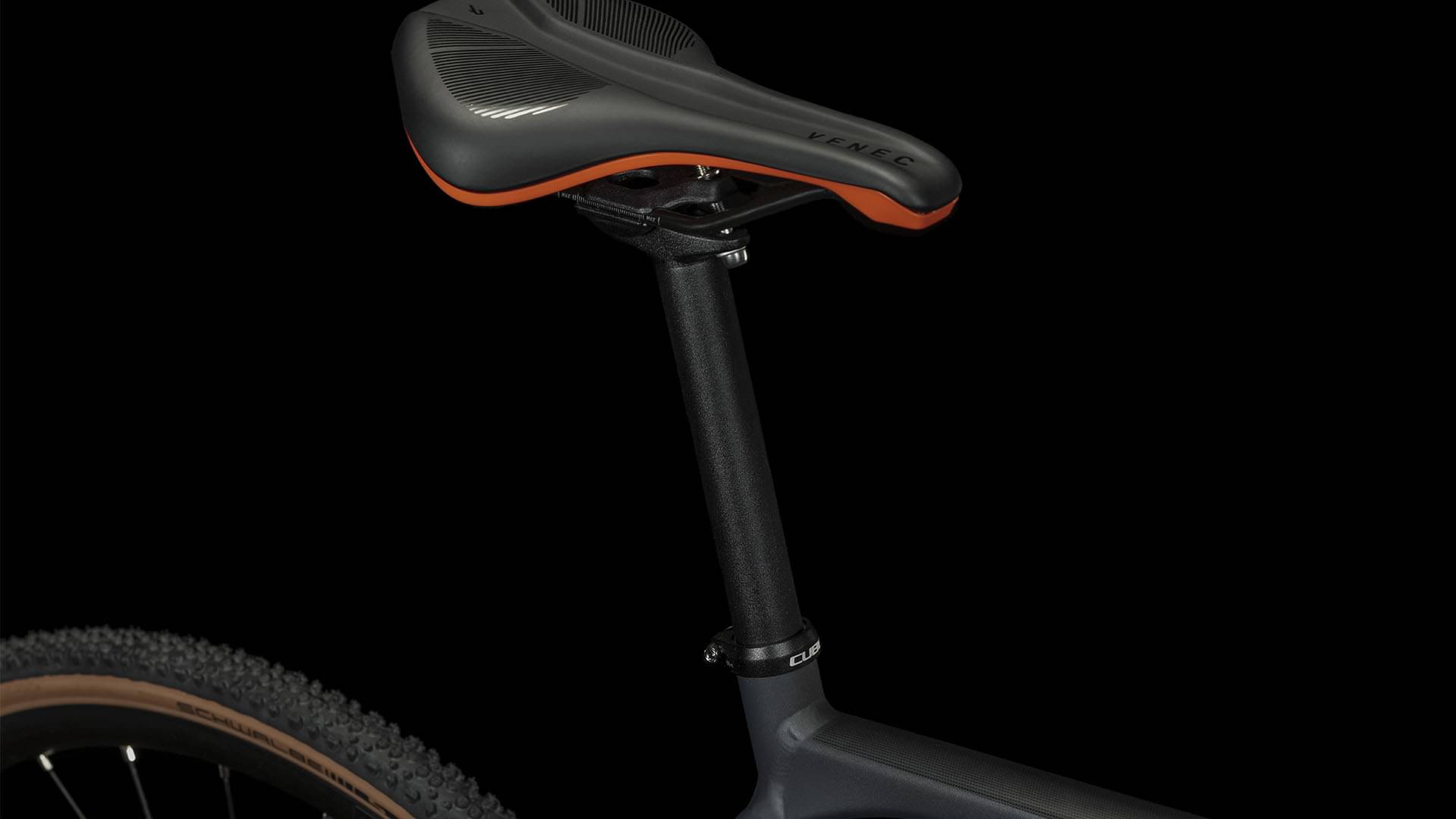

Saddle
Natural Fit Venec
Seatpost
CUBE Performance Post, 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 50cm | 53cm | 56cm | 58cm | 61cm |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.406 mm | 1.488 mm | 1.528 mm | 1.554 mm | 1.577 mm |
| Bottom Bracket Height | 276 mm | 276 mm | 276 mm | 276 mm | 276 mm |
| Front Center | 594 mm | 595 mm | 597 mm | 606 mm | 619 mm |
| Rake | 45 mm | 46 mm | 46 mm | 46 mm | 46 mm |
| Trail | 75 mm | 71 mm | 63 mm | 60 mm | 57 mm |
| Stack | 530 mm | 555 mm | 579 mm | 600 mm | 626 mm |
| Reach | 377 mm | 373 mm | 379 mm | 386 mm | 397 mm |
| Top Tube Length | 521 mm | 536 mm | 554 mm | 570 mm | 588 mm |
| Seat Tube Angle | 74.8 ° | 73.6 ° | 73.2 ° | 73 ° | 73 ° |
| Seat Tube Length | 500 mm | 530 mm | 560 mm | 580 mm | 610 mm |
| Head Tube Angle | 70.3 ° | 70.8 ° | 72 ° | 72.5 ° | 73 ° |
| Head Tube Length | 115 mm | 140 mm | 160 mm | 180 mm | 205 mm |
| Chainstay Length | 430 mm | 430 mm | 430 mm | 430 mm | 430 mm |
| Wheelbase | 1015 mm | 1016 mm | 1018 mm | 1027 mm | 1040 mm |
| Bottom Bracket Drop | 68 mm | 68 mm | 68 mm | 68 mm | 68 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
