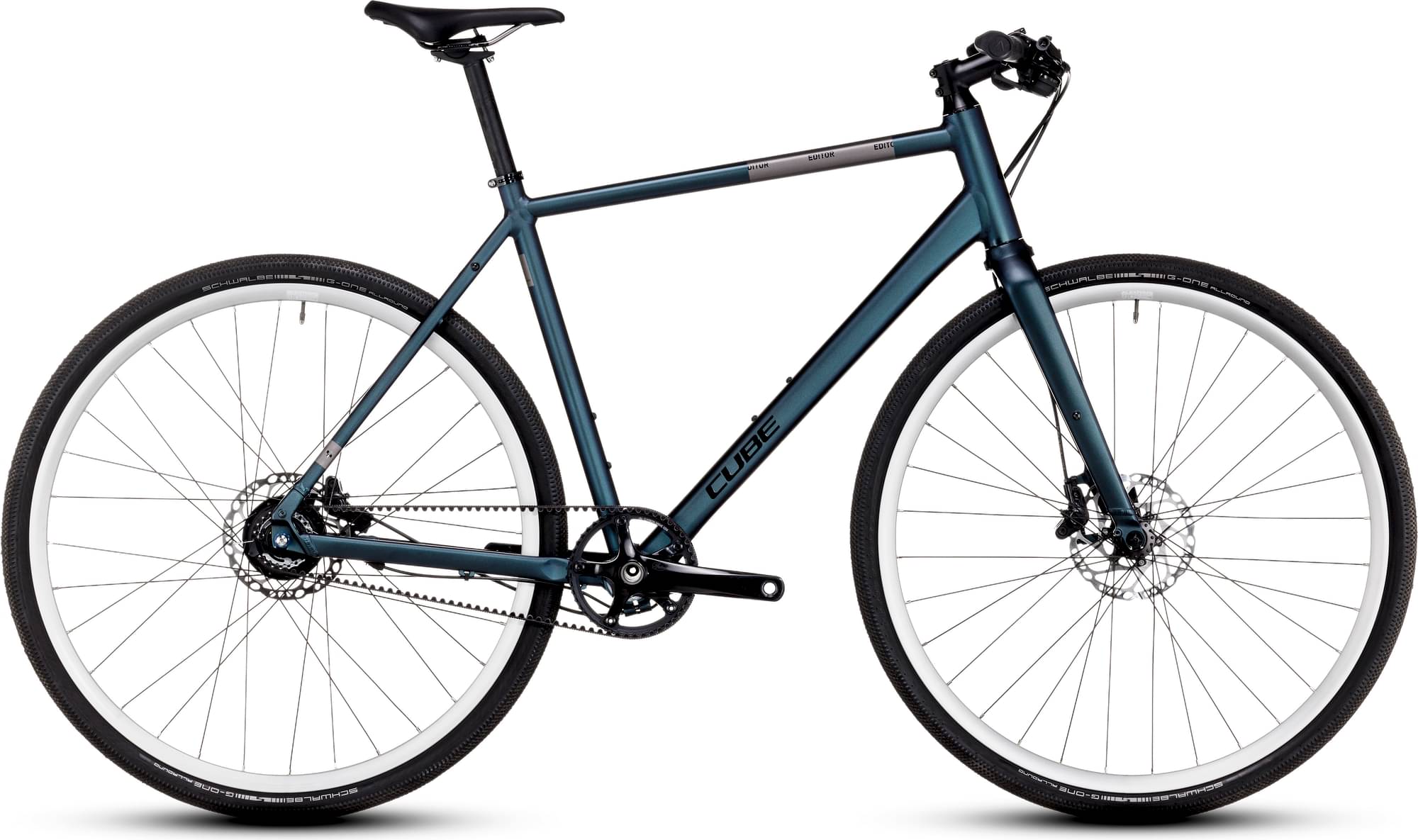

CUBE EDITOR 2023
2023 Urban
Estimate price |
1,949$
Weight | 11.4 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset Alfine, Gates CDX -
Suspension Rigid -

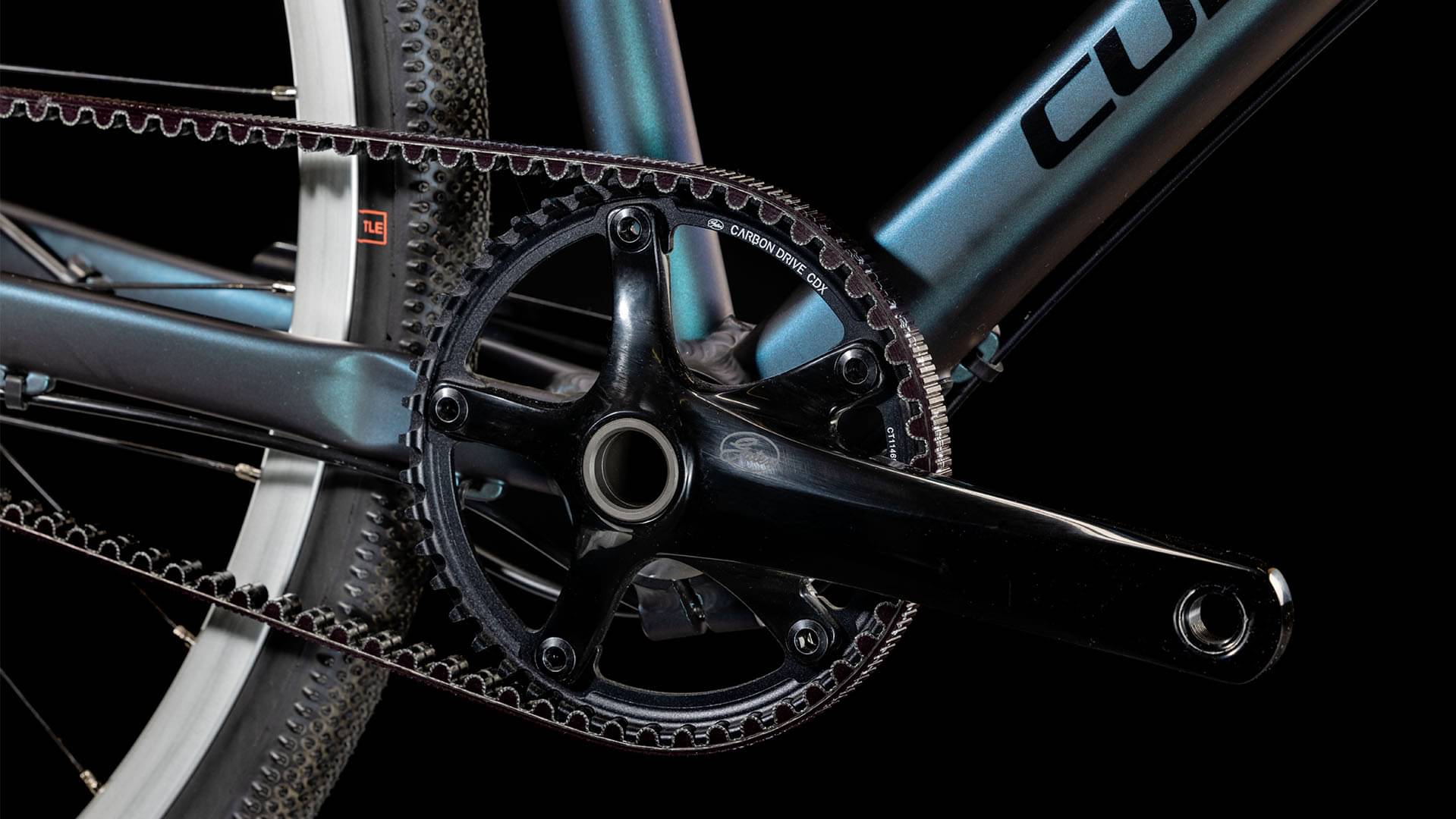

Drivetrain Belt Drive, Internally Geared Hub -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium Superlite, Urban, Double Butted
Suspension Fork
Aluminium Rigid Fork
Drivetrain
Shift Levers
Shimano Alfine SL-S700
Cassette
Gates Rear Sprocket CDN, 22T
Crank
Gates CDX Center Track, 46T, BB Gates
Pedals
VP 615M
Wheels
Front Hub
Shimano Deore HB-M6000, QR, Centerlock
Rear Hub
Shimano Alfine SG-S7001, 11-Speed
Rims
CUBE UX24, 32H, Disc
Tires
Schwalbe G-One Allround, Kevlar, 40-622
Brakes
Brakes
Shimano Deore BR-M6000, Hydr. Disc Brake (160/160)
Cockpit
Stem
CUBE Performance Stem Pro, 31.8mm
Handlebar
CUBE Flat Race Bar, 660mm
Grips
ACID Travel
Headset
VP, 1 1/8", Semi-Integrated
Seat
Saddle
Natural Fit Nuance Lite
Seatpost
CUBE Performance Post, 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.35 mm | 1.38 mm | 1.4 mm | 1.44 mm | 1.46 mm |
| Front Center | 623 mm | 624 mm | 630 mm | 641 mm | 652 mm |
| Rake | 45 mm | 45 mm | 44 mm | 45 mm | 45 mm |
| Trail | 79 mm | 73 mm | 67 mm | 66 mm | 66 mm |
| Stack | 543 mm | 561 mm | 583 mm | 603 mm | 622 mm |
| Reach | 402 mm | 406 mm | 416 mm | 420 mm | 425 mm |
| Top Tube Length | 566 mm | 576 mm | 592 mm | 602 mm | 613 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 440 mm | 480 mm | 520 mm | 560 mm | 600 mm |
| Head Tube Angle | 70 ° | 71 ° | 72 ° | 72 ° | 72 ° |
| Head Tube Length | 135 mm | 150 mm | 170 mm | 190 mm | 210 mm |
| Chainstay Length | 436 mm | 436 mm | 436 mm | 436 mm | 436 mm |
| Wheelbase | 1054 mm | 1055 mm | 1061 mm | 1072 mm | 1083 mm |
| Bottom Bracket Drop | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
About this model
EDITOR completes the Cube Editor model. CUBE released 7 bikes variations of this model so far.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Fitness bikes average price
Our math shows that the average cost of a dependable Fitness bike is 656$. However, this doesn’t mean that if you spend less money on a Fitness bike, you couldn’t get a decent one. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 1804$. In conclusion, this bike price is 175% higher than the price of the average Fitness bike.
Fitness bikes average weight
The average weight for Fitness bikes is 11.24 kg (24.78 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
slightly heavier than average, EDITOR has a weight of 11.4 kg (25.13 lbs). To sum up, it’s 1.42% heavier than the average weight of Fitness bikes.
Overview of components
Fork material
The fork is made out of aluminum, so there won’t be much extra weight added to the bike. However, they are not so stiff as carbon forks are.
Wheels size
The EDITOR 2023 bike is equipped with 700c aluminum wheels when leaving the factory. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The EDITOR comes with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
CUBE EDITOR bike has 5 sizes, in the range of 156 cm – 195 cm (5.12 ft – 6.4 ft). In conclusion, finding one for you shouldn’t be a problem.
