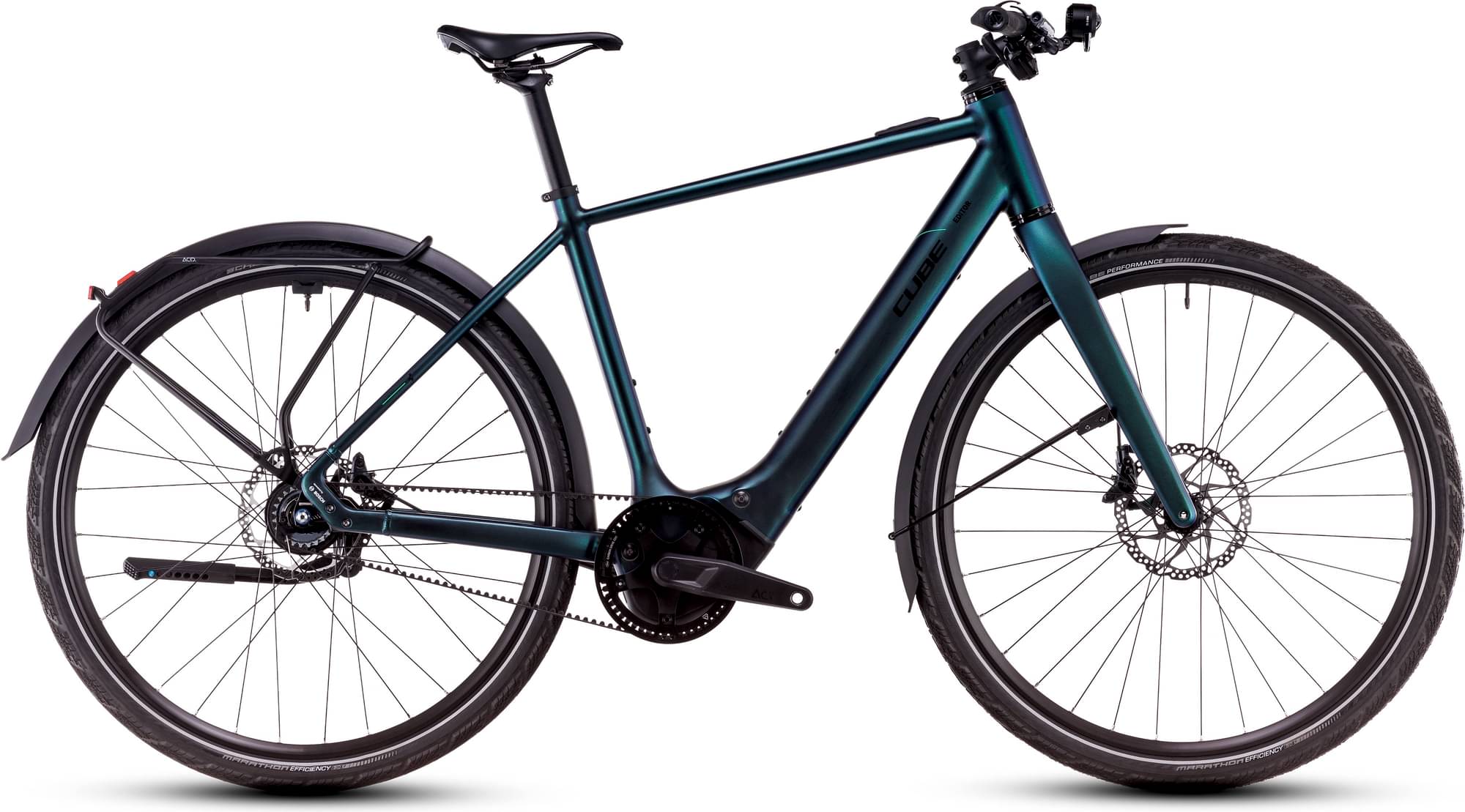

CUBE EDITOR HYBRID SLT FE 400X 2025
2025 E-bike
Estimate price |
4,071$
Weight | 19.2 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset Alfine -
Suspension Rigid -
Motor Bosch 250W 55Nm mid-drive -
Battery Bosch CompactTube 400 -
Drivetrain Belt Drive, Internally Geared Hub -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium Superlite, Gravity Casting Technology, Efficient Comfort Geometry, Fully Integrated Battery, Advanced Internal Cable Routing, Slider Dropout
Suspension Fork
CUBE Editor Full Carbon, 1 1/8" - 1 1/2" Tapered, Internal Cable Routing, 12x100mm
Drivetrain
Shift Levers
Shimano Alfine SL-S700
Cassette
Gates Rear Sprocket CDC, 24T
Crank
ACID MTB Hybrid Pro, 52T
Pedals
CUBE PP MTB
Wheels
Front Hub
Shimano Tiagra HB-RS470, 12x100mm, Centerlock
Rear Hub
Shimano Alfine SG-S7001, 11-Speed
Tires
Schwalbe Marathon Efficiency, RaceGuard, 50-622
Brakes
Brakes
Shimano Deore BR-M6100, Hydr. Disc Brake (180)
Cockpit
Stem
CUBE Performance Stem Pro, 31.8mm
Handlebar
CUBE Rise Trail Bar, 680mm
Grips
ACID Hybrid Tour
Seat
Saddle
Natural Fit Venec
Seatpost
CUBE Performance Post, 30.9mm
Motor & Battery
Motor
Bosch Drive Unit Performance SX (55Nm) Cruise (250 Watt), Smart System
Battery
Bosch CompactTube 400
Remote
Bosch System Control, incl. Mini Remote
Charger
Bosch 4A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 50cm | 54cm | 58cm | 62cm |
|---|---|---|---|---|
| Stack Reach Ratio | 1.51 mm | 1.484 mm | 1.512 mm | 1.533 mm |
| Front Center | 657 mm | 663 mm | 675 mm | 687 mm |
| Rake | 45 mm | 46 mm | 46 mm | 45 mm |
| Trail | 86 mm | 78 mm | 78 mm | 79 mm |
| Stack | 604 mm | 613 mm | 632 mm | 650 |
| Reach | 400 mm | 413 mm | 418 mm | 424 mm |
| Top Tube Length | 570 mm | 586 mm | 596 mm | 607 mm |
| Seat Tube Angle | 74.2 ° | 74.2 ° | 74.2 ° | 74.2 ° |
| Seat Tube Length | 460 mm | 510 mm | 560 mm | 600 mm |
| Head Tube Angle | 69 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 152 mm | 157 mm | 177 mm | 197 mm |
| Chainstay Length | 477 mm | 477 mm | 477 mm | 477 mm |
| Wheelbase | 1125 mm | 1131 mm | 1143 mm | 1155 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm |
| Wheels | 29" | 29" | 29" | 29" |
