CUBE EDITOR SLX 2025
2025 Urban
Estimate price |
1,744$
Weight | 12.4 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset Gates CDC, Alfine -
Suspension Rigid -
Drivetrain Belt Drive, Internally Geared Hub -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components

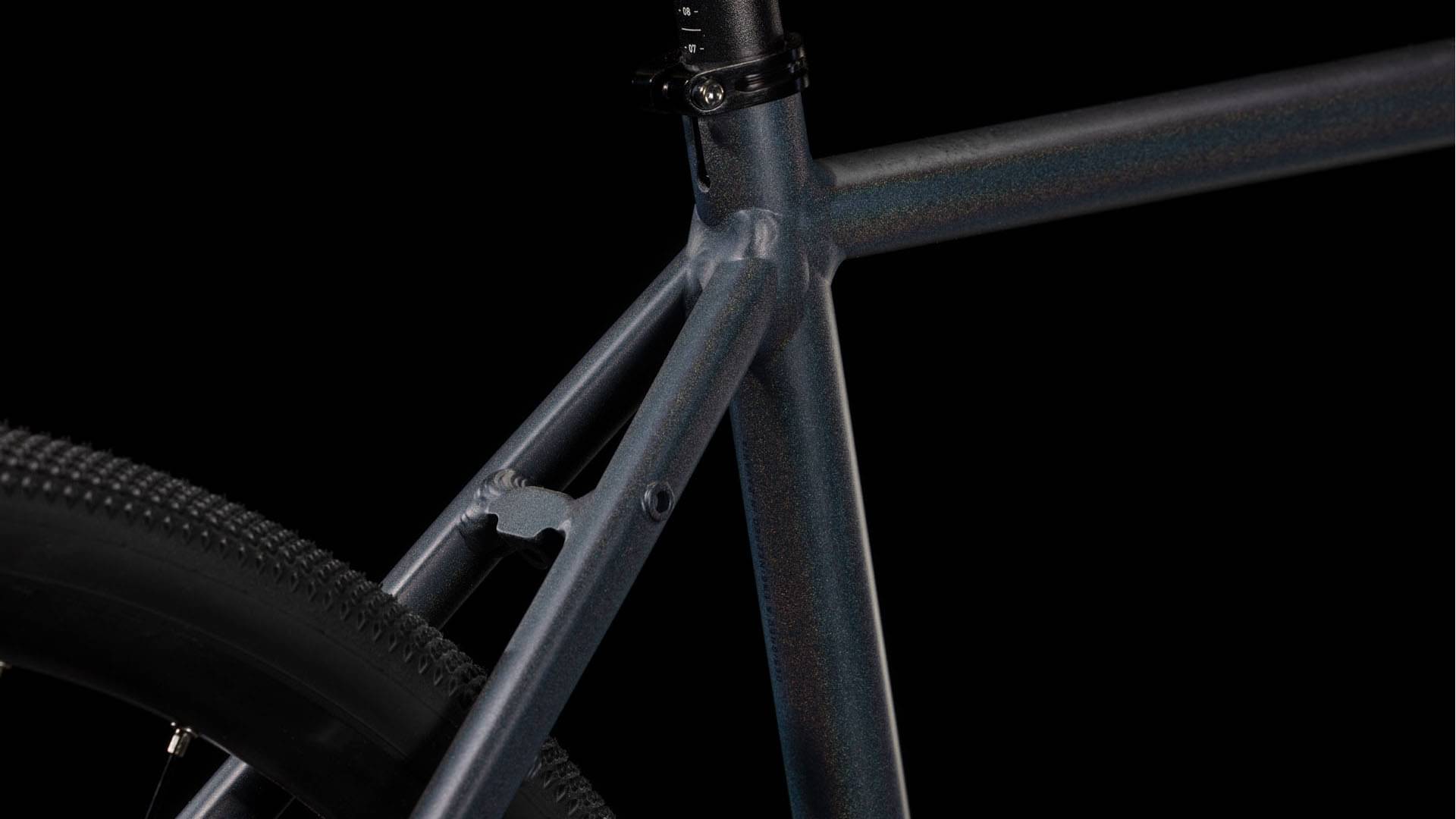

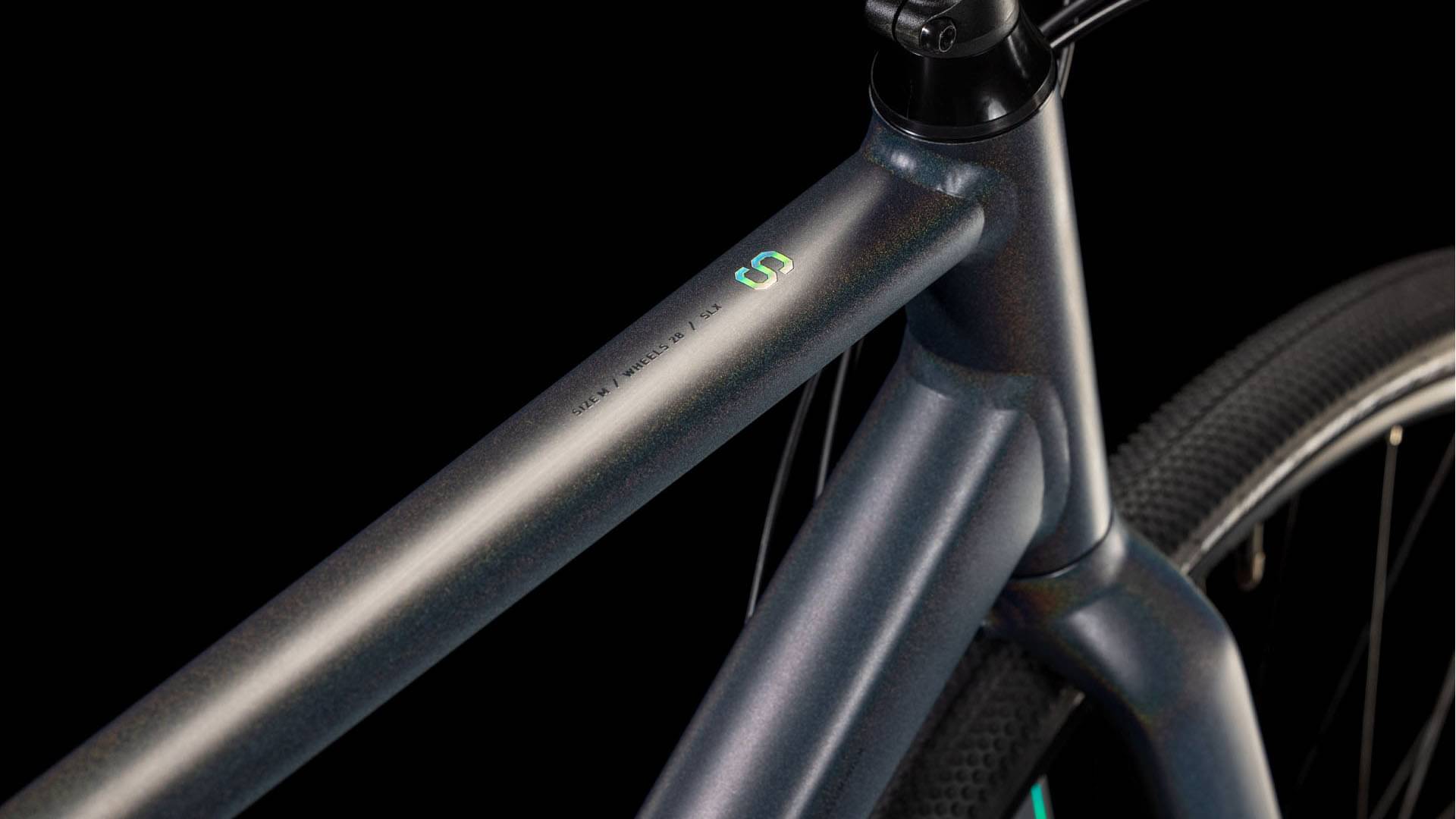

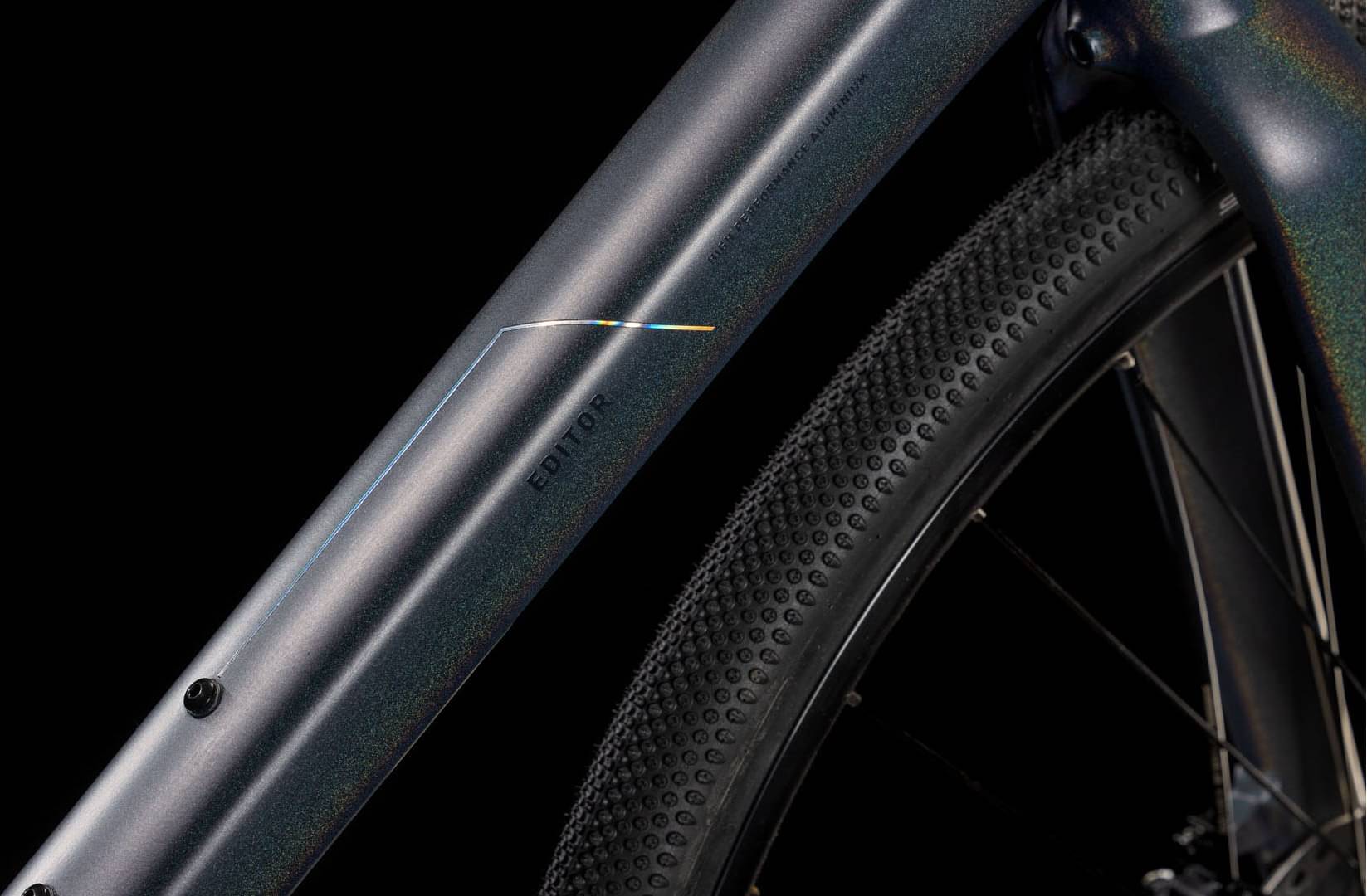

Frame
Frame
Aluminium Superlite, Urban, Double Butted
Suspension Fork
Aluminium Rigid Fork
Drivetrain
Shift Levers
Shimano Alfine SL-S700
Cassette
Gates CDX, 45.5mm Beltline, 22T

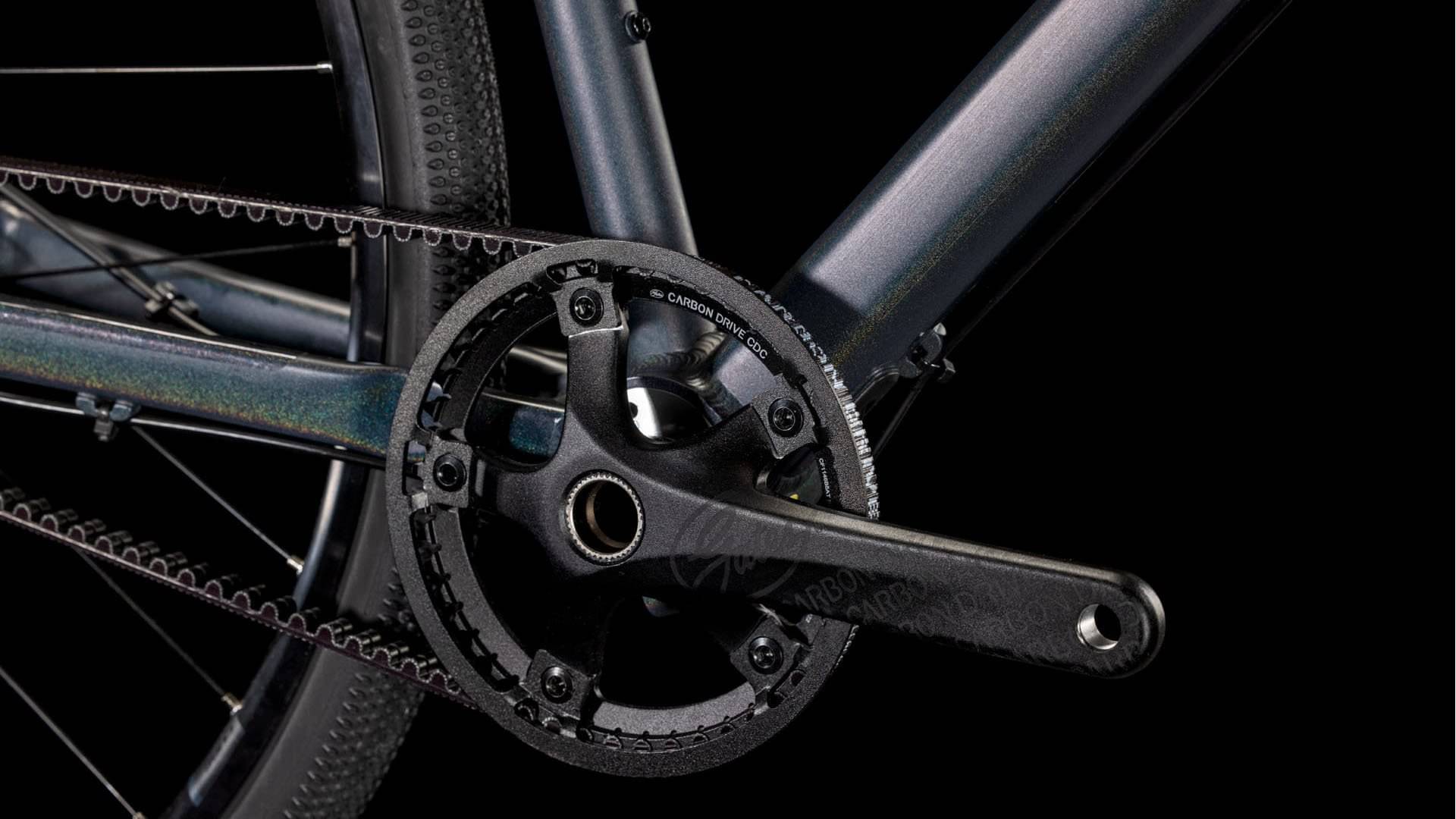

Crank
Gates S301 CDC, 45.5mm Beltline
Bottom Bracket
Gates BSA
Pedals
CUBE PP MTB
Wheels
Front Hub
Shimano XT HB-M8000, QR, Centerlock
Rear Hub
Shimano Alfine SG-S7001, 11-Speed
Rims
CUBE EX25, 32H, Disc, Tubeless Ready
Tires
Schwalbe G-One Allround, Kevlar, 40-622
Brakes
Brakes
Shimano BR-MT410, Hydr. Disc Brake (160/160)

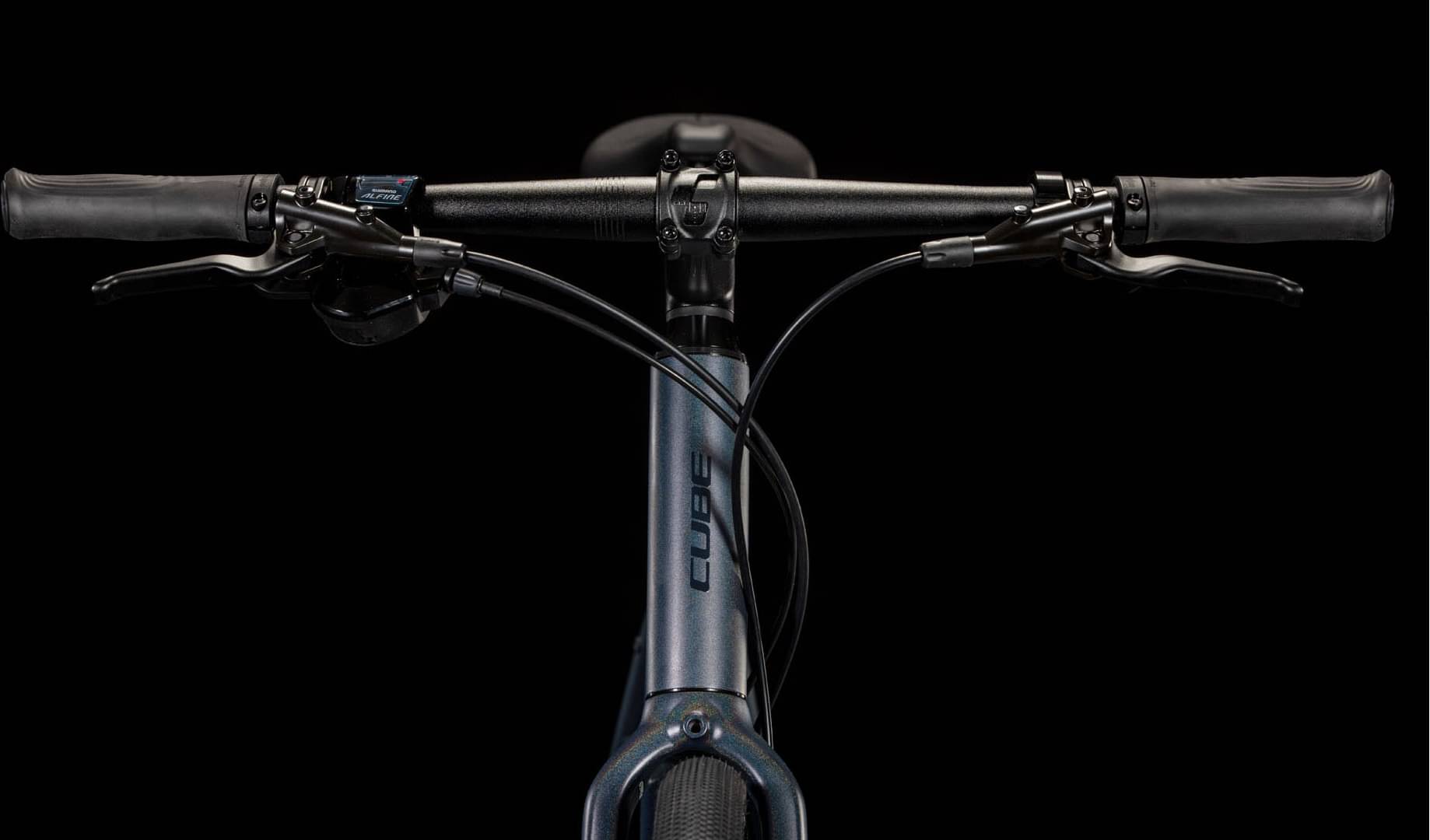

Cockpit
Stem
CUBE Performance Stem Pro, 31.8mm
Handlebar
CUBE Flat Race Bar, 660mm
Grips
ACID Travel
Headset
VP Semi-Integrated, Top 1/18", Bottom 1 1/8", Sealed Bearing
Seat
Saddle
Natural Fit Sequence
Seatpost
CUBE Performance Post, 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 46cm | 50cm | 54cm | 58cm | 62cm |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.356 mm | 1.388 mm | 1.407 mm | 1.442 mm | 1.47 mm |
| Front Center | 623 mm | 624 mm | 630 mm | 641 mm | 652 mm |
| Rake | 45 mm | 45 mm | 44 mm | 45 mm | 45 mm |
| Trail | 79 mm | 73 mm | 67 mm | 66 mm | 66 mm |
| Stack | 537 mm | 555 mm | 577 mm | 597 mm | 616 mm |
| Reach | 396 mm | 400 mm | 410 mm | 414 mm | 419 mm |
| Top Tube Length | 560 mm | 570 mm | 586 mm | 596 mm | 607 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 440 mm | 480 mm | 520 mm | 560 mm | 600 mm |
| Head Tube Angle | 70 ° | 71 ° | 72 ° | 72 ° | 72 ° |
| Head Tube Length | 135 mm | 150 mm | 170 mm | 190 mm | 210 mm |
| Chainstay Length | 430 mm | 430 mm | 430 mm | 430 mm | 430 mm |
| Wheelbase | 1048 mm | 1049 mm | 1055 mm | 1066 mm | 1077 mm |
| Bottom Bracket Drop | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
