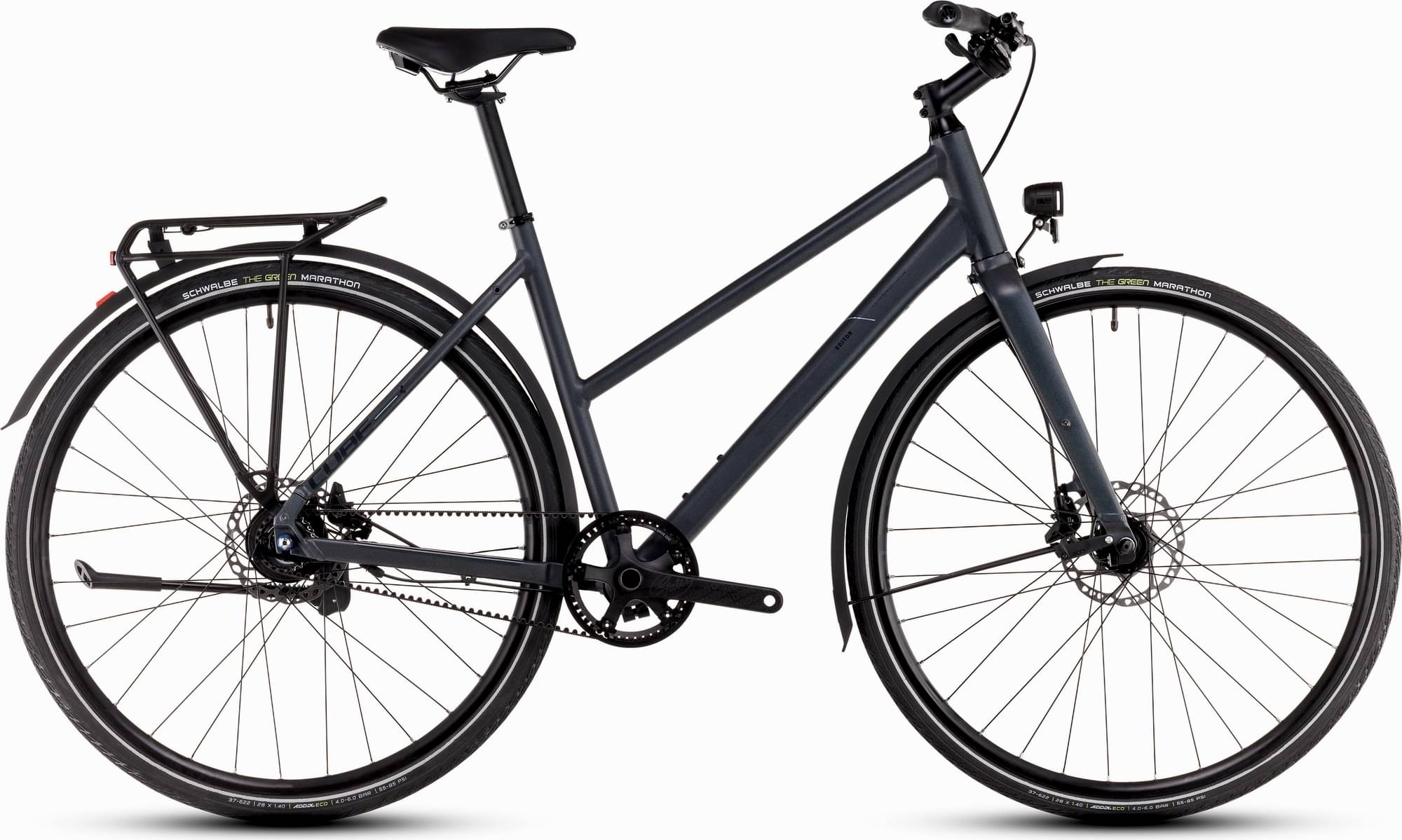

CUBE EDITOR SLX FE 2025
2025 Urban
Estimate price |
2,093$
Weight | 14.6 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset Gates CDC, Alfine -
Suspension Rigid -
Drivetrain Belt Drive, Internally Geared Hub -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium Superlite, Urban, Double Butted
Suspension Fork
Aluminium Rigid Fork
Drivetrain
Shift Levers
Shimano Alfine SL-S700
Cassette
Gates CDX, 45.5mm Beltline, 22T

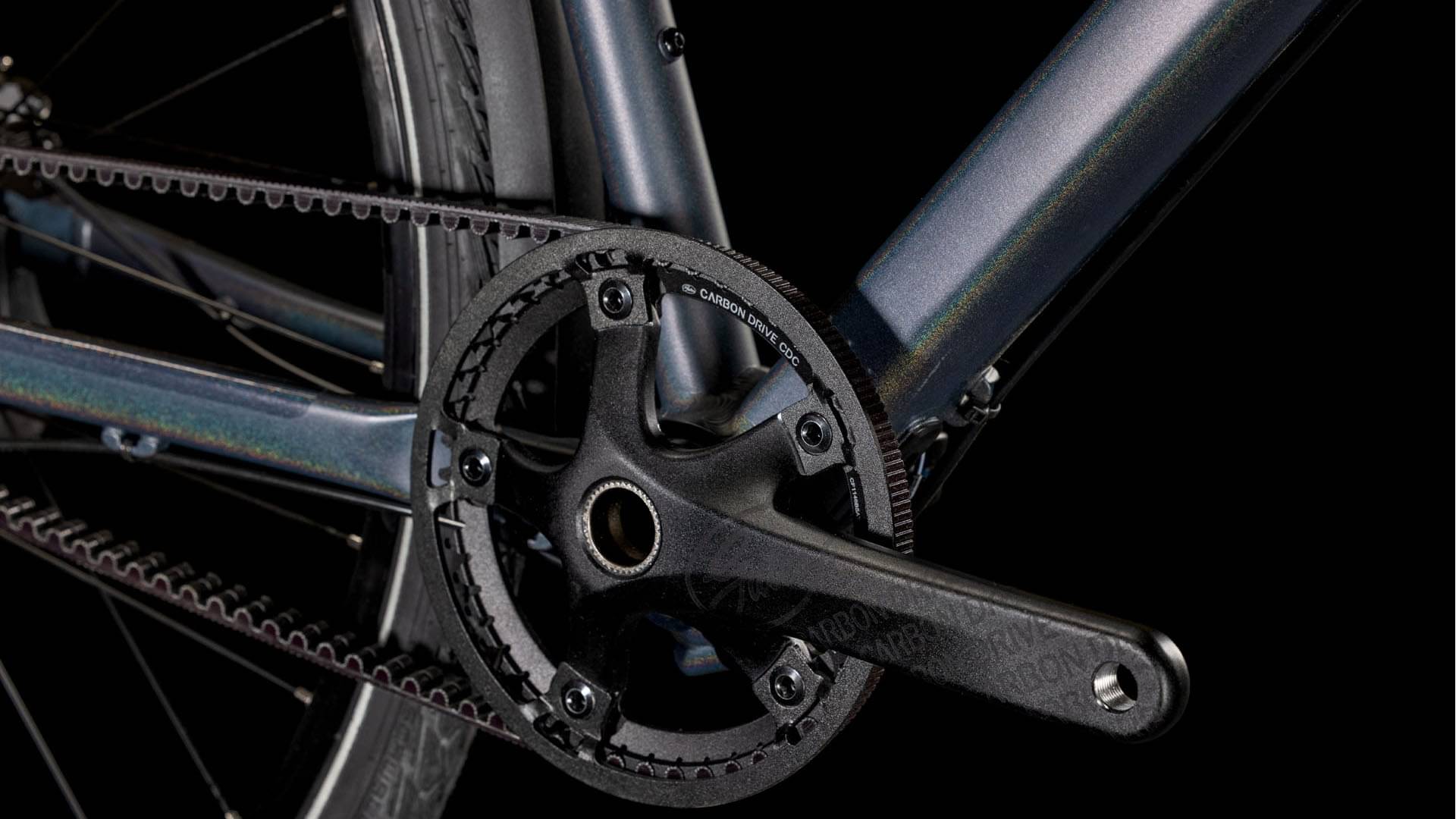

Crank
Gates S301 CDC, 45.5mm Beltline
Bottom Bracket
Gates BSA
Pedals
CUBE PP MTB
Wheels
Front Hub
Shimano DH-UR700-3D, Hub Dynamo, QR, Centerlock
Rear Hub
Shimano Alfine SG-S7001, 11-Speed
Rims
CUBE EX25, 32H, Disc, Tubeless Ready
Tires

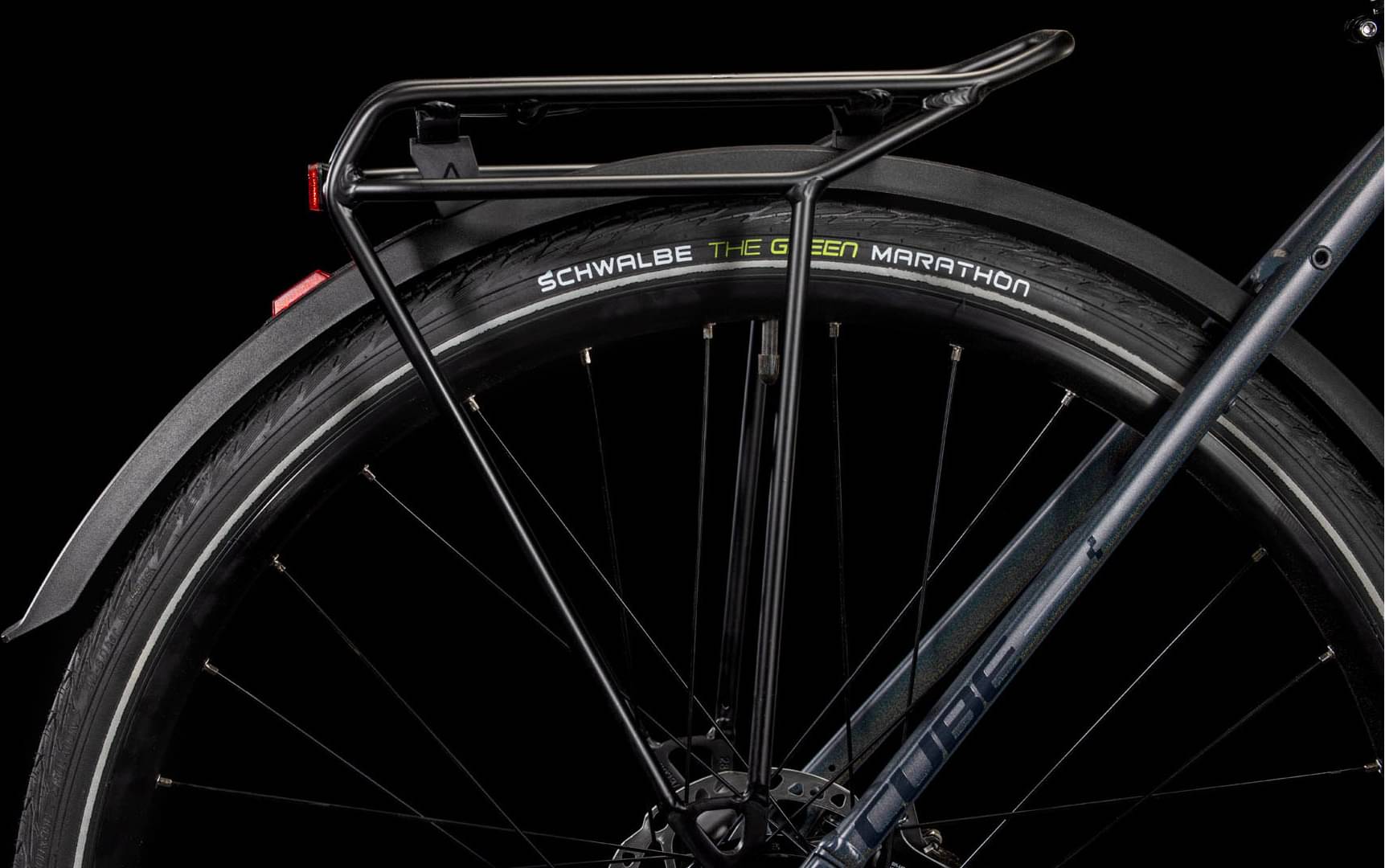

Schwalbe Marathon Green, PerfL, 37-622
Brakes
Brakes
Shimano BR-MT410, Hydr. Disc Brake (160/160)
Cockpit
Stem
CUBE Performance Stem Pro, 31.8mm
Handlebar
CUBE Comfort Trail Bar, 700mm
Grips
ACID Travel
Headset
VP Semi-Integrated, Top 1/18", Bottom 1 1/8", Sealed Bearing
Seat
Saddle
Natural Fit Sequence
Seatpost
CUBE Performance Post, 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 46cm | 50cm | 54cm |
|---|---|---|---|
| Stack Reach Ratio | 1.389 mm | 1.417 mm | 1.442 mm |
| Front Center | 624 mm | 624 mm | 630 mm |
| Rake | 45 mm | 44 mm | 44 mm |
| Trail | 79 mm | 74 mm | 67 mm |
| Stack | 546 mm | 564 mm | 587 mm |
| Reach | 393 mm | 398 mm | 407 mm |
| Top Tube Length | 560 mm | 570 mm | 586 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 440 mm | 480 mm | 520 mm |
| Head Tube Angle | 70 ° | 71 ° | 72 ° |
| Head Tube Length | 145 mm | 160 mm | 180 mm |
| Chainstay Length | 430 mm | 430 mm | 430 mm |
| Wheelbase | 1049 mm | 1049 mm | 1055 mm |
| Bottom Bracket Drop | 50 mm | 50 mm | 50 mm |
| Wheels | 700 | 700 | 700 |
