CUBE ELITE C:62, ONE 2024
2024 Mountain
Estimate price |
3,373$
Weight | 9.8 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Travel Front 100mm -
Fork RockShox SID Select
-
Groupset X1, GX Eagle -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
C:62® Monocoque Advanced Twin Mold Technology, ARG2, Tapered Headtube, PressFit BB, Boost 12x148mm, Internal Cable Routing, Dropper Post ready
Suspension Fork
RockShox SID Select, Tapered, 15x110mm, 100mm, OneLoc
Drivetrain
Rear Derailleur

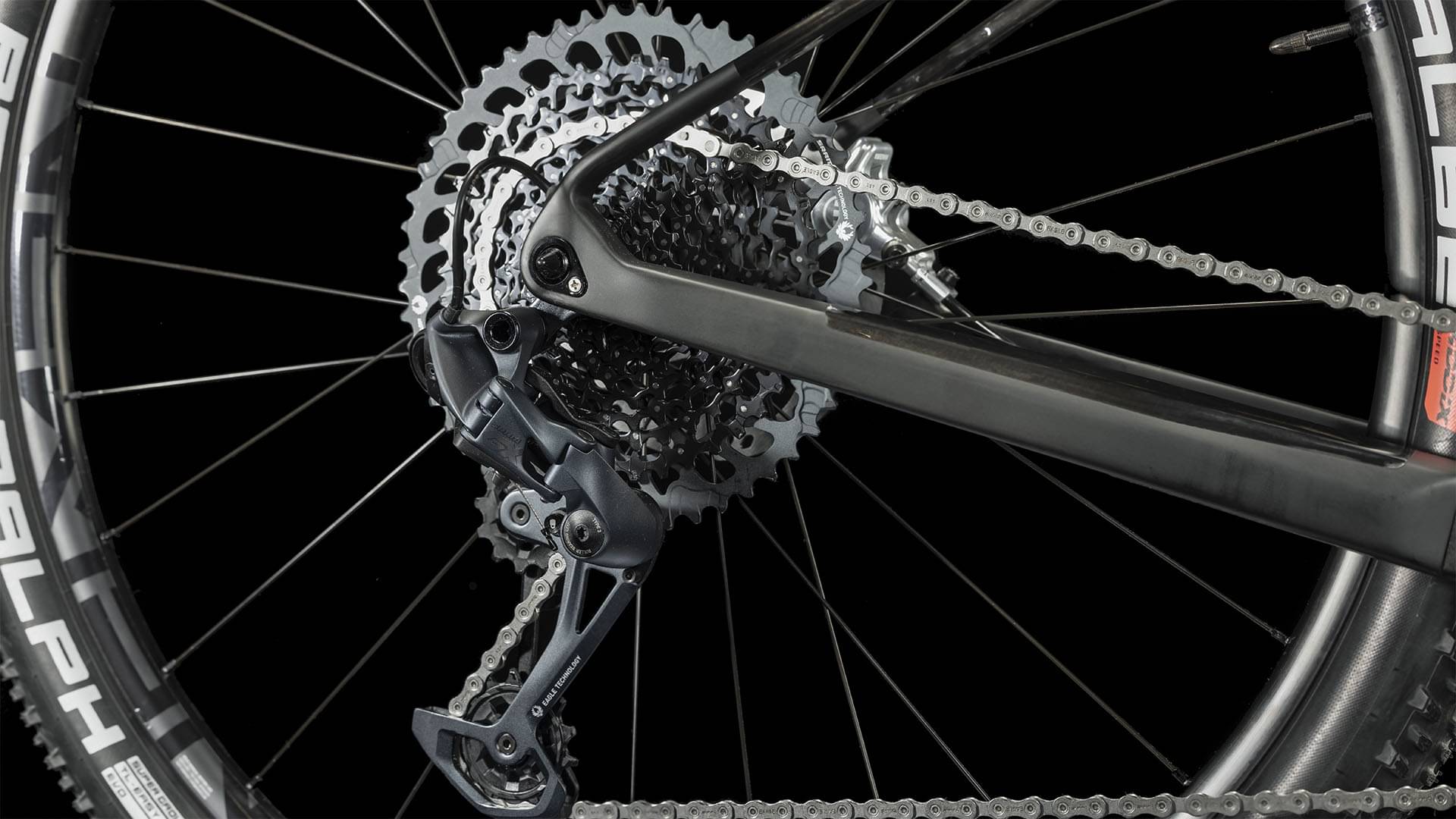

SRAM GX Eagle™, 12-Speed
Shift Levers
SRAM GX Eagle™ Trigger
Cassette
SRAM XG-1275 Eagle™, 10-52T
Crank

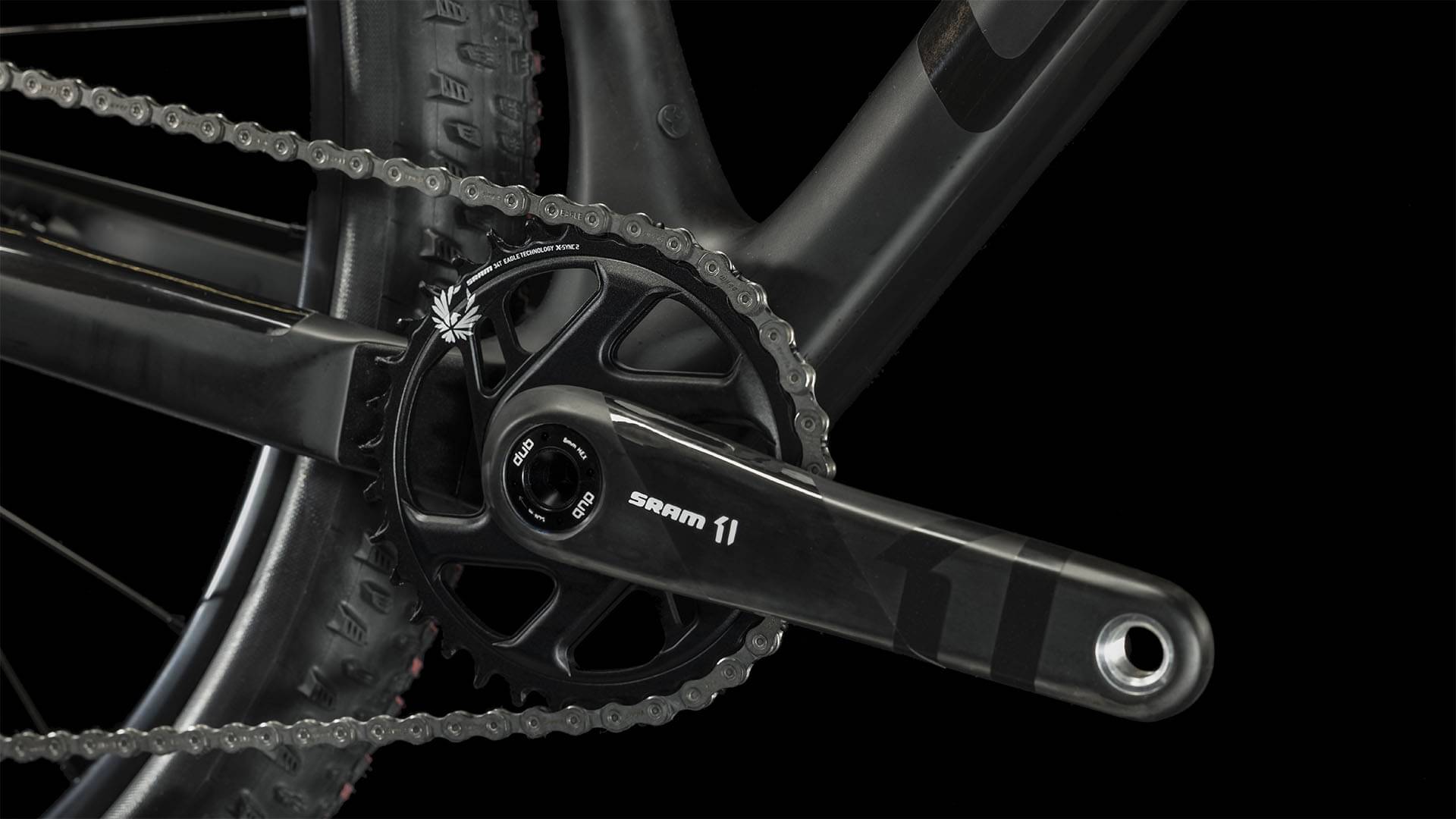

SRAM X1 Carbon Eagle™ DUB, 34T
Bottom Bracket
SRAM DUB MTB, 92mm Pressfit
Chain
SRAM NX Eagle™
Wheels
Rims
Newmen Evolution X.A.25, 28/28 Spokes, 15x110mm / 12x148mm, Tubeless Ready
Tires
Front: Schwalbe Racing Ray, Super Race, Addix Speed, Kevlar, 2.25, Rear: Schwalbe Racing Ralph, Super Race, Addix Speed, Kevlar, 2.25
Brakes
Brakes
Magura MT8 Pro PM, Hydr. Disc Brake (180/160)
Cockpit
Stem
Newmen Evolution 318.4, 31.8mm
Handlebar
Newmen Evolution 318.10, 720mm
Grips
ACID React Pro
Headset
Acros AzX/AiX, block lock, Top: semi 1 1/8", Bottom: 1 1/2"
Seat
Saddle
Natural Fit Nuance SL
Seatpost
Newmen Evolution, 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.498 mm | 1.439 mm | 1.395 mm | 1.371 mm |
| Bottom Bracket Height | 311 mm | 311 mm | 311 mm | 311 mm |
| Front Center | 661 mm | 687 mm | 712 mm | 738 mm |
| Rake | 46 mm | 46 mm | 45 mm | 45 mm |
| Trail | 94 mm | 94 mm | 96 mm | 96 mm |
| Stack | 602 mm | 610 mm | 622 mm | 639 mm |
| Reach | 402 mm | 424 mm | 446 mm | 466 mm |
| Top Tube Length | 575 mm | 600 mm | 625 mm | 650 |
| Seat Tube Angle | 73.8 ° | 73.8 ° | 73.8 ° | 73.8 ° |
| Seat Tube Length | 370 mm | 420 mm | 470 mm | 515 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 90 mm | 98 mm | 111 mm | 129 mm |
| Chainstay Length | 424 mm | 424 mm | 424 mm | 424 mm |
| Wheelbase | 1077 mm | 1103 mm | 1128 mm | 1155 mm |
| Bottom Bracket Drop | 63 mm | 63 mm | 63 mm | 63 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
