Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 63mm -
Fork Suntour NEX
-
Groupset Nexus -
Suspension Hardtail -
Drivetrain Internally Geared Hub -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components

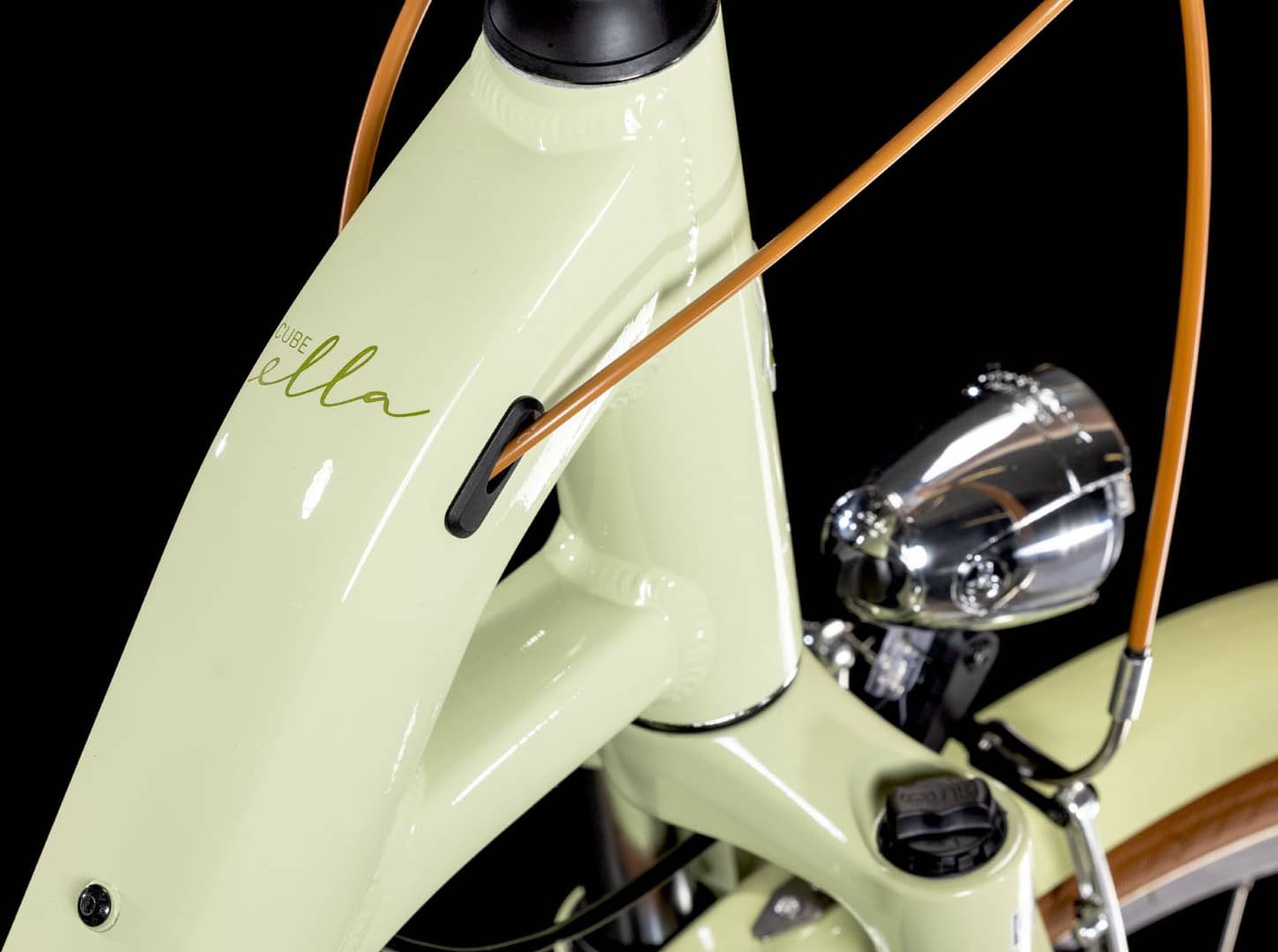

Frame
Frame
Aluminium Superlite, Trekking Comfort, IC 2.0, Double Butted

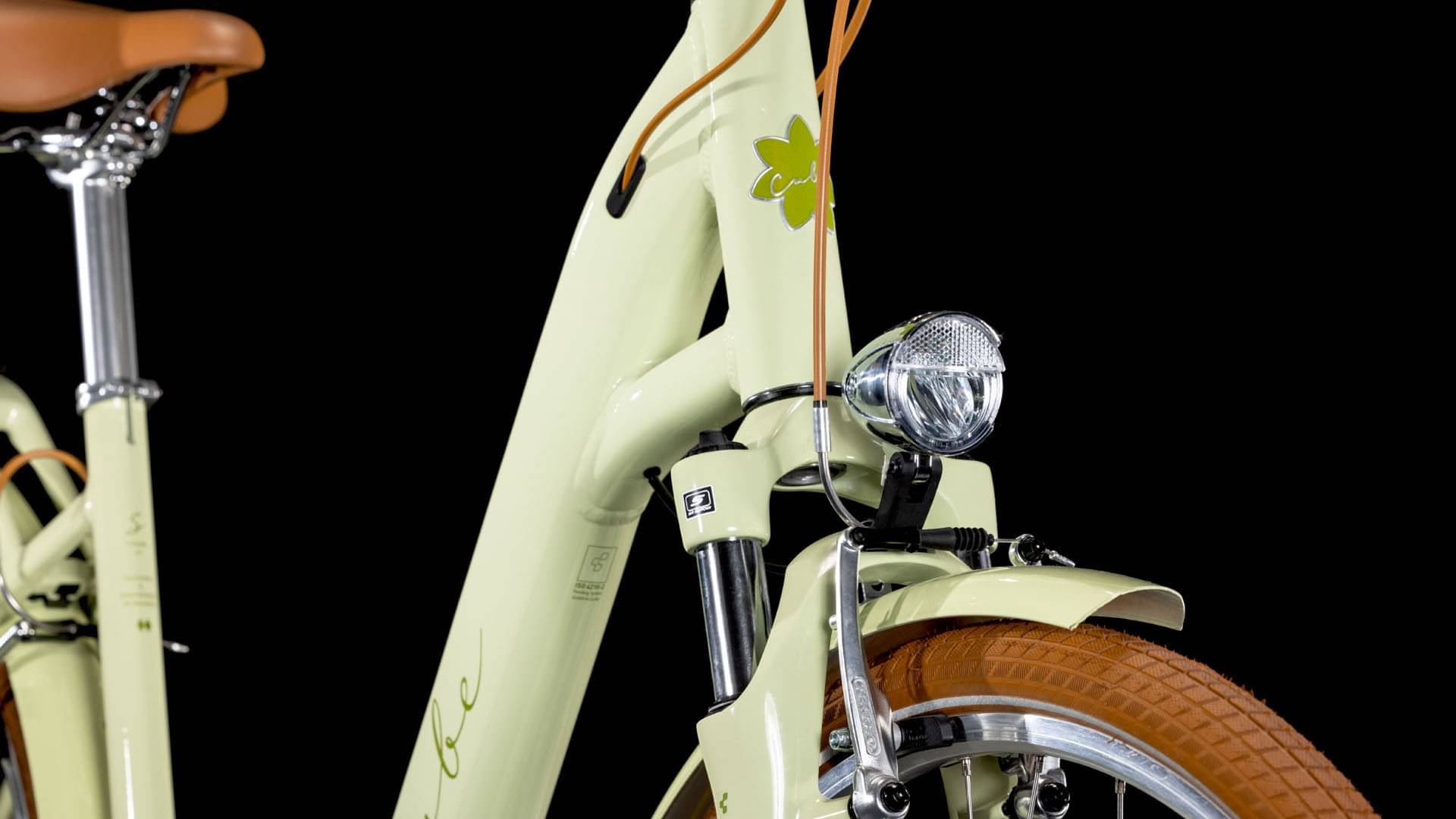

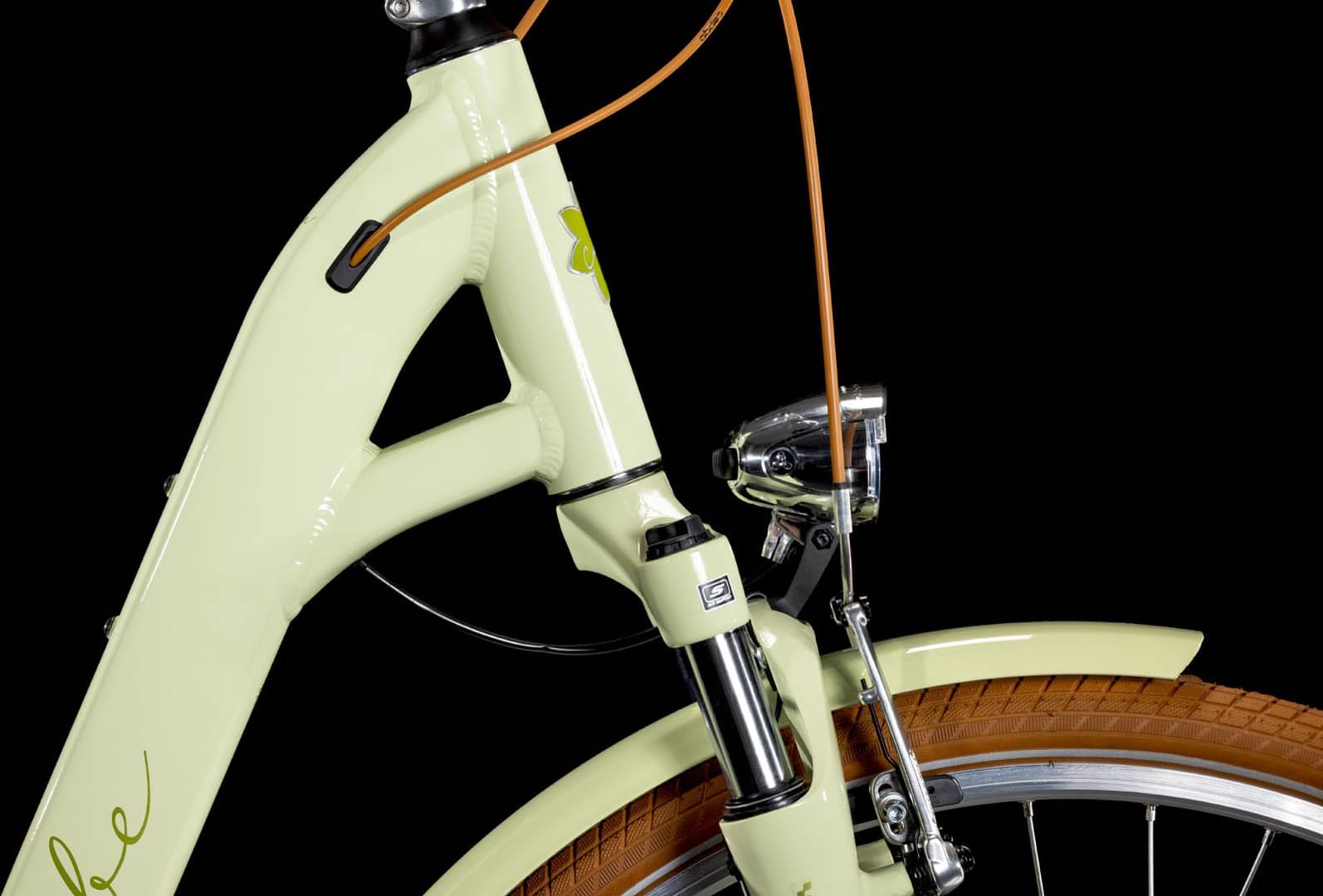

Suspension Fork
SR Suntour NEX, 63mm
Drivetrain
Shift Levers
Shimano Nexus SL-C6000
Cassette
Shimano Nexus, 20T
Crank
Shimano Nexus FC-C6000, BB-UN26K, 38T
Bottom Bracket
Thun PASO-ML
Chain
KMC HV500
Pedals
CUBE PP MTB
Wheels
Front Hub
Shimano DH-C3000, Hub Dynamo, Nut

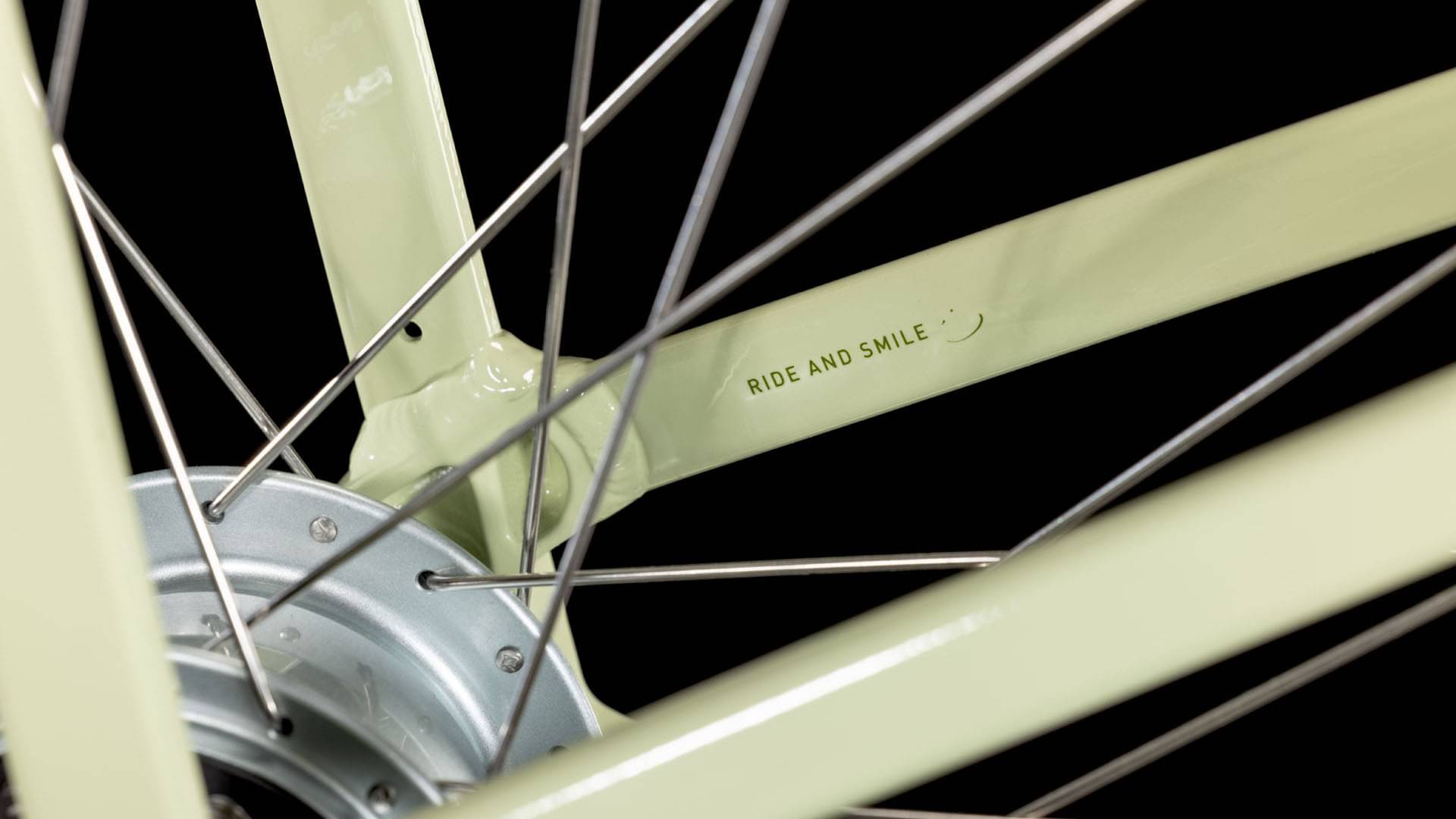

Rear Hub
Shimano Nexus SG-C6001, 8-Speed
Rims
CUBE SX24, 36H, V-Brake
Tires
Schwalbe Little Big Ben, Active, 40-622
Brakes
Brakes
V-Brake
Cockpit
Stem
CUBE Comfort City Stem, 31.8mm
Handlebar
CUBE Comfort Shape Bar
Grips
CUBE Retro
Headset
CUBE H863, 1 1/8", Semi-Integrated
Seat

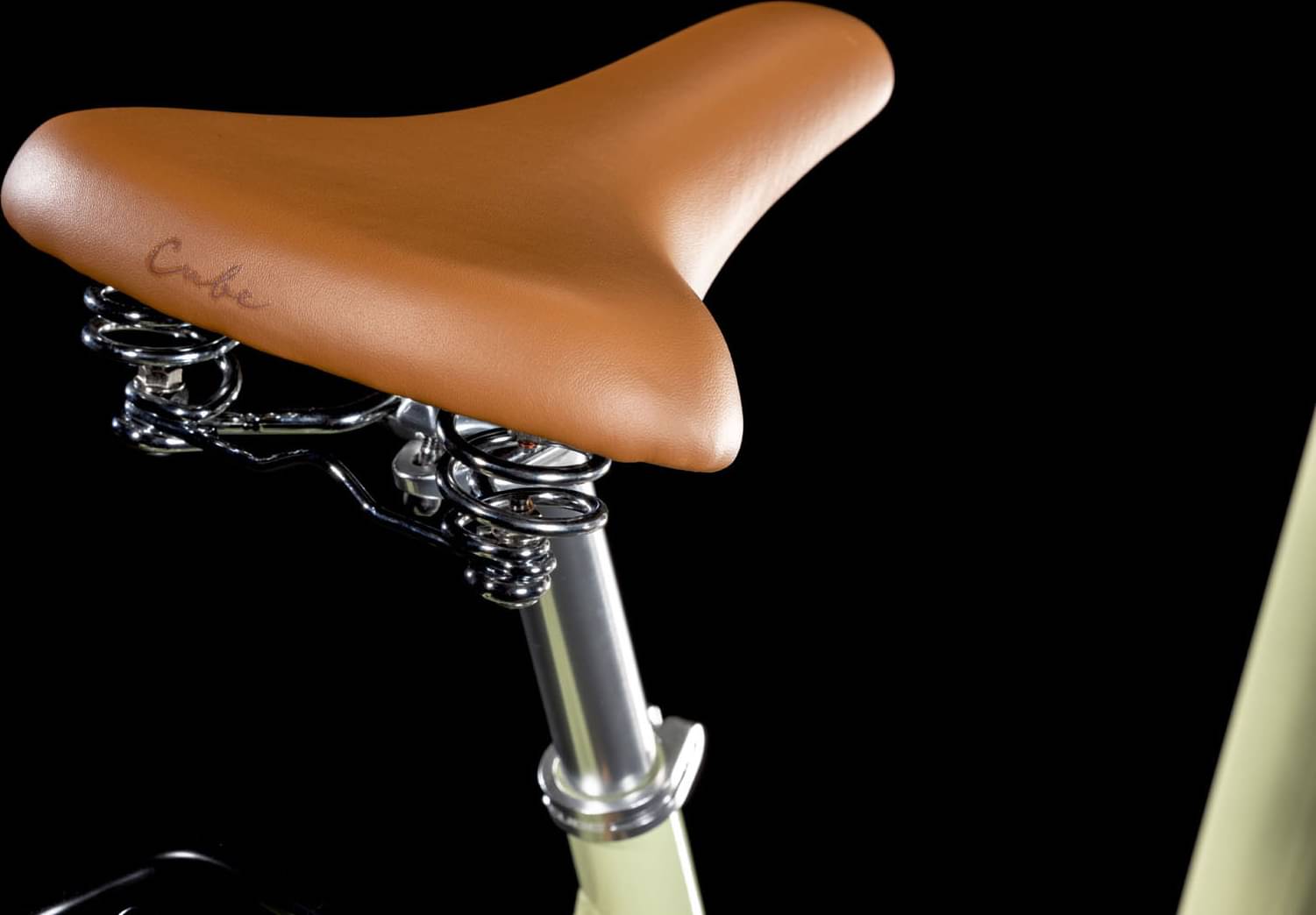

Saddle
CUBE Retro
Seatpost
CUBE Performance Post, 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 45cm | 49cm | 53cm |
|---|---|---|---|
| Stack Reach Ratio | 1.718 mm | 1.705 mm | 1.693 mm |
| Front Center | 638 mm | 654 mm | 669 mm |
| Rake | 42 mm | 42 mm | 42 mm |
| Trail | 82 mm | 82 mm | 82 mm |
| Stack | 651 mm | 665 mm | 679 mm |
| Reach | 379 mm | 390 mm | 401 mm |
| Top Tube Length | 578 mm | 593 mm | 608 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 450 mm | 490 mm | 530 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 170 mm | 185 mm | 200 mm |
| Chainstay Length | 455 mm | 455 mm | 455 mm |
| Wheelbase | 1082 mm | 1098 mm | 1114 mm |
| Bottom Bracket Drop | 75 mm | 75 mm | 75 mm |
| Wheels | 700 | 700 | 700 |
