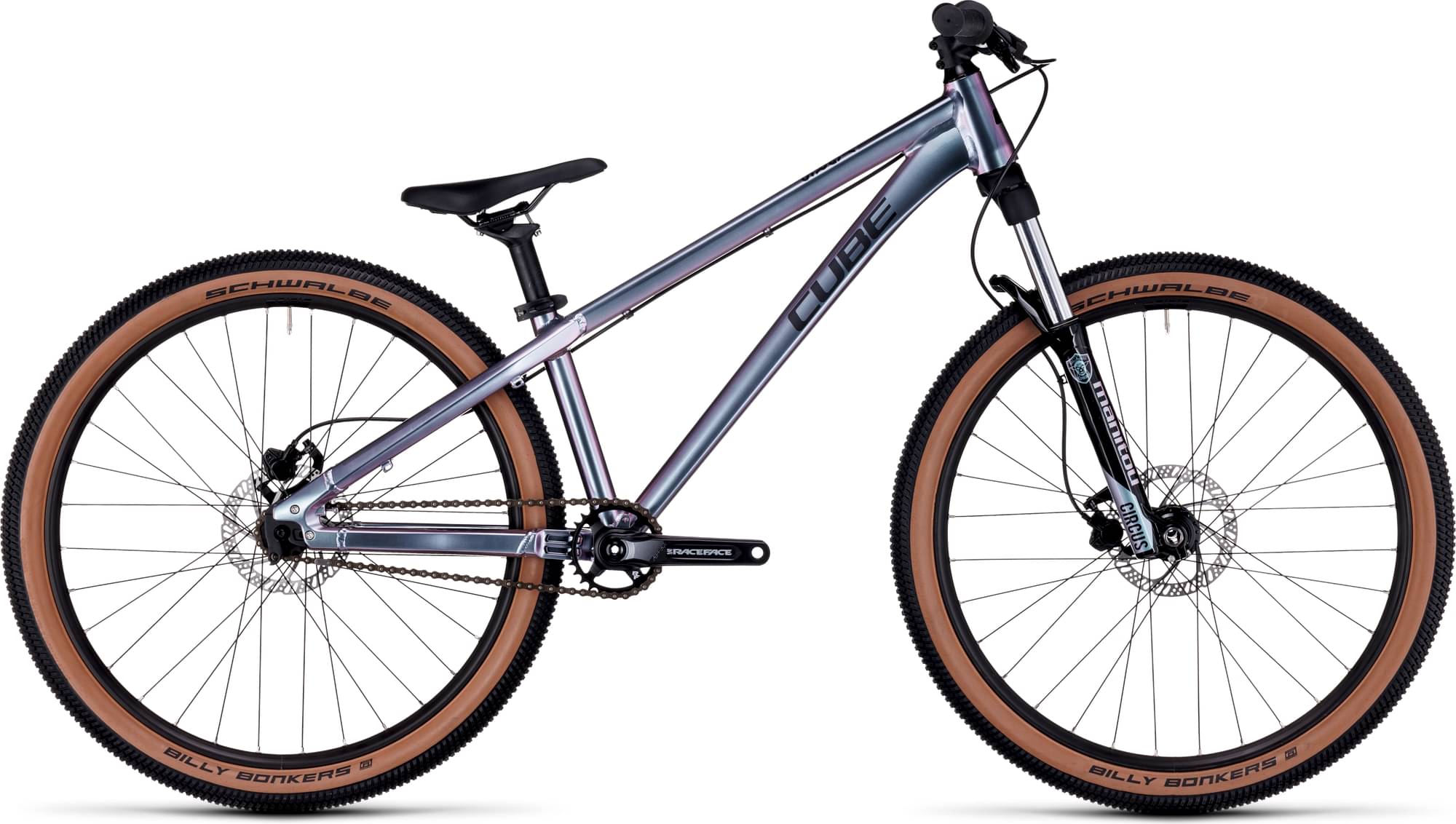

CUBE FLYING CIRCUS 2024
2024 Mountain
Estimate price |
1,261$
Weight | 11.8 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Travel Front 100mm -
Fork Manitou Circus Sport
-
Groupset Race Face -
Suspension Hardtail -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame

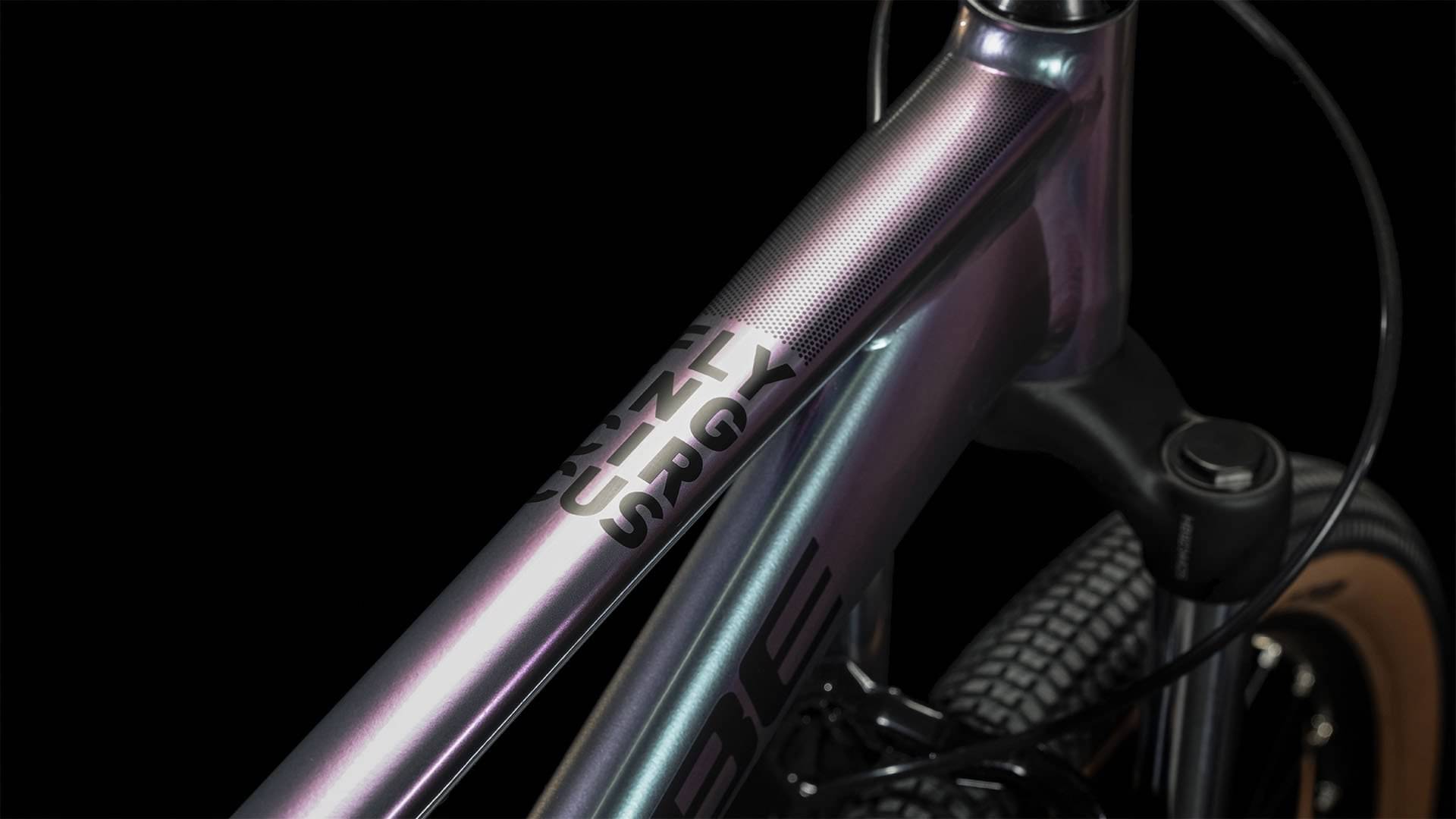

Frame
Aluminium Lite, AMF, Tapered Headtube, BSA BB, Dirt Jump Optimized, Pumptrack Optimized, Adjustable Dropouts, Rear Derailleur Ready

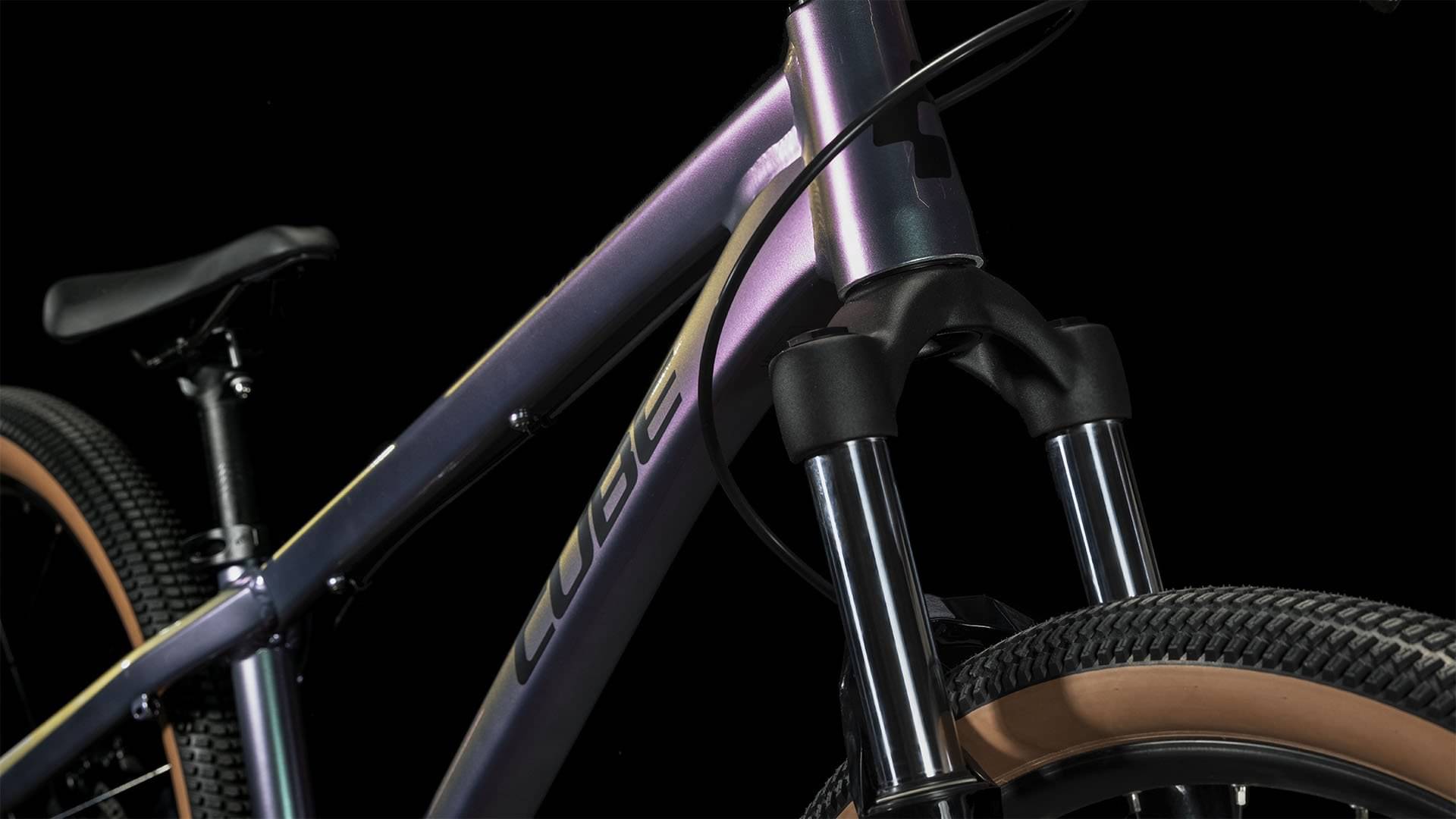

Suspension Fork
Manitou Circus Sport, 110x20mm Axle, 100mm
Drivetrain

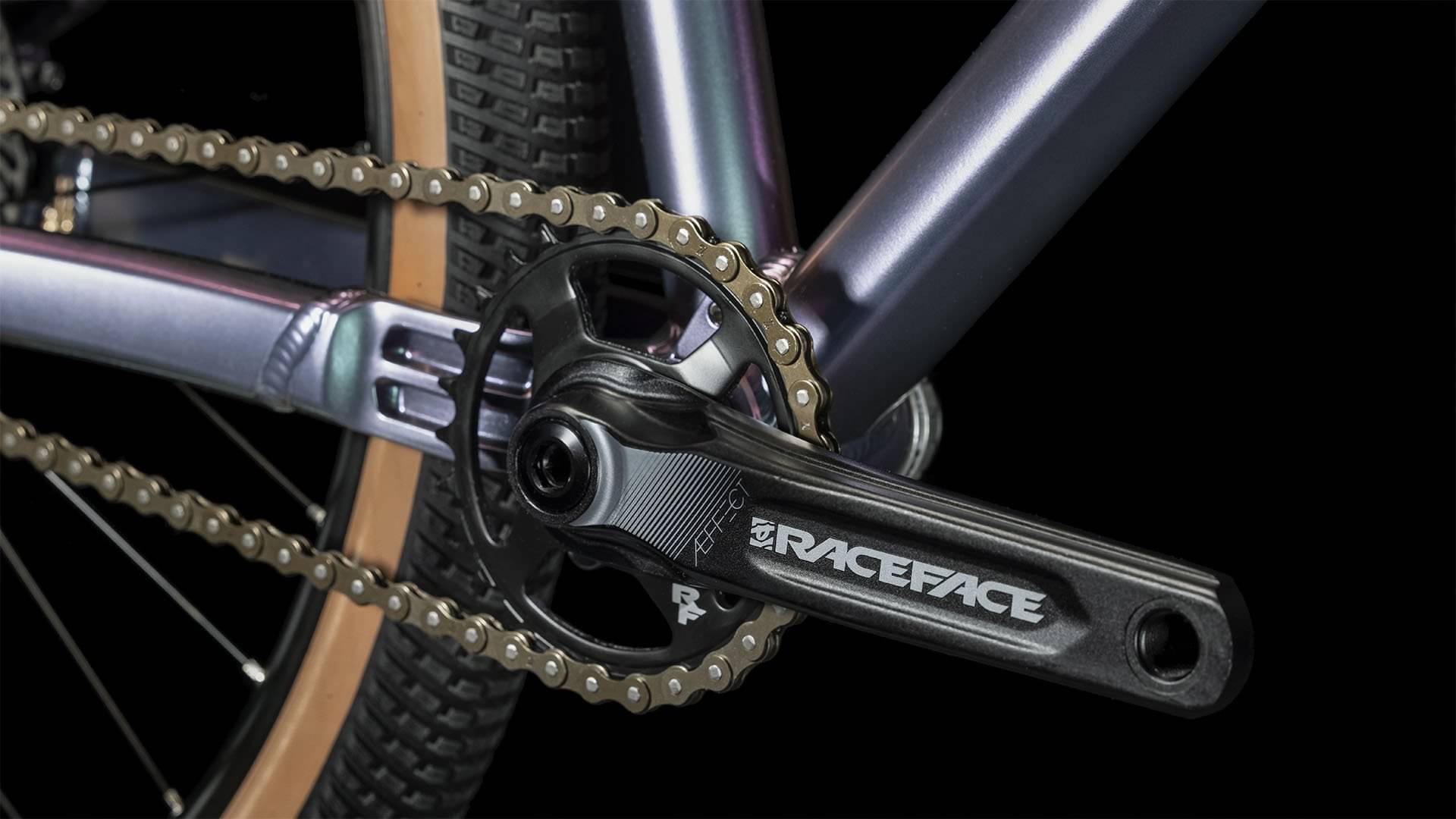

Crank
Race Face Aeffect DH, 28T, 170mm
Bottom Bracket
BSA, threaded
Chain
KMC Z1
Wheels
Front Hub
CUBE TW1F, 20mm, 6-Bolt
Rear Hub
CUBE Mi-7R, Singlespeed, Bolt-Axle, 6-Bolt
Rims
CUBE EX23, 32H, Disc, Tubeless Ready
Tires
Schwalbe Billy Bonkers, 2.25
Brakes
Brakes
Tektro HD-M275, Hydr. Disc Brake (160/160)
Cockpit
Stem
CUBE Performance Stem Pro, 31.8mm
Handlebar
CUBE Rise Trail Bar, 680mm
Grips
CUBE Dirt Grips
Headset
VP Integrated, Top 1 1/8", Bottom 1 1/2"
Seat

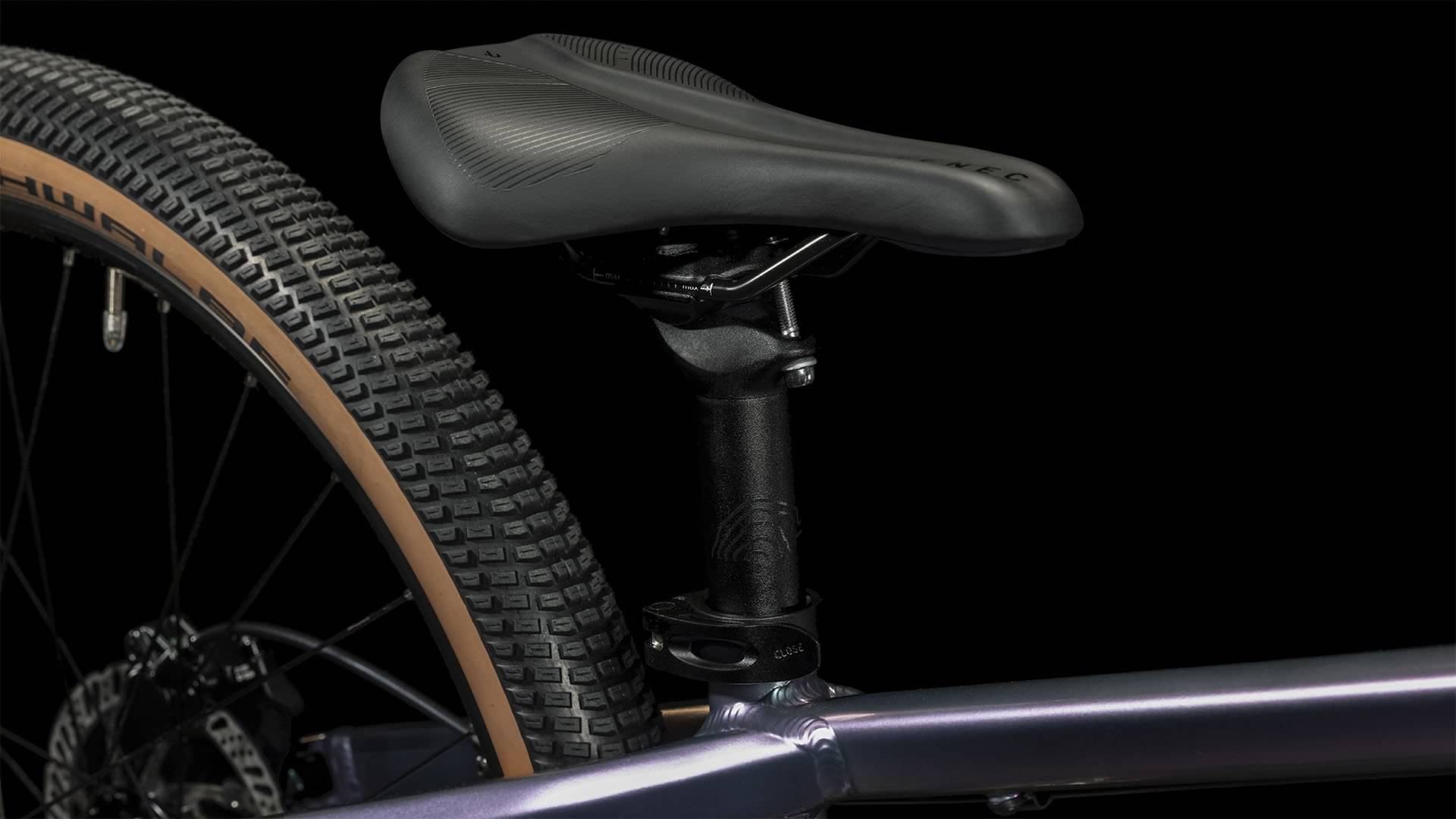

Saddle
Natural Fit Venec Lite
Seatpost
CUBE Performance Post, 30.9mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG |
|---|---|---|
| Stack Reach Ratio | 1.439 mm | 1.369 mm |
| Bottom Bracket Height | 323 mm | 323 mm |
| Front Center | 644 mm | 664 mm |
| Rake | 40 mm | 40 mm |
| Trail | 89 mm | 89 mm |
| Stack | 564 mm | 564 mm |
| Reach | 392 mm | 412 mm |
| Top Tube Length | 570 mm | 590 mm |
| Seat Tube Angle | 72.5 ° | 72.5 ° |
| Seat Tube Length | 310 mm | 310 mm |
| Head Tube Angle | 69 ° | 69 ° |
| Head Tube Length | 115 mm | 115 mm |
| Chainstay Length | 388 mm | 388 mm |
| Wheelbase | 1031 mm | 1051 mm |
| Bottom Bracket Drop | 20 mm | 20 mm |
| Wheels | 26" | 26" |
