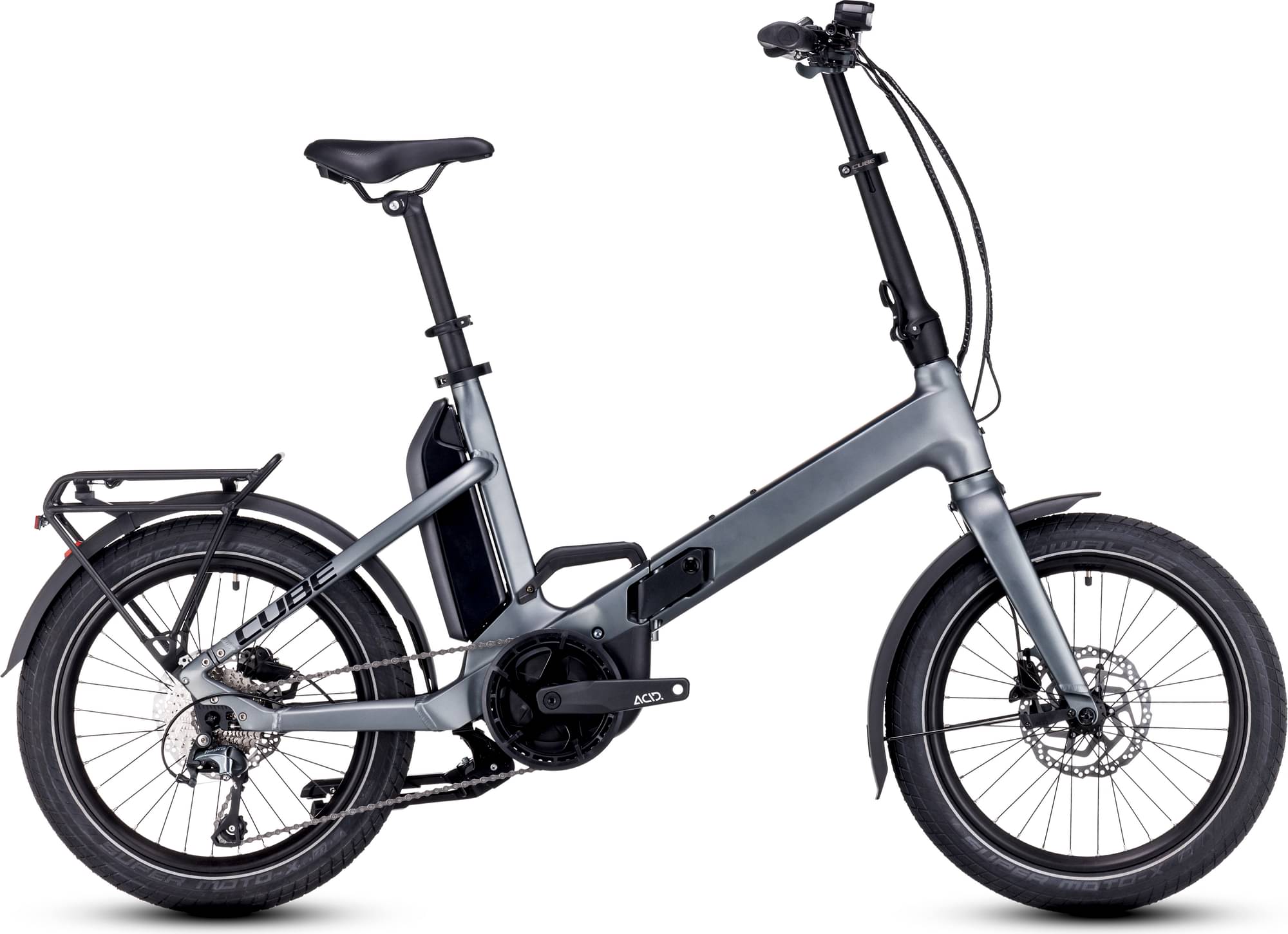

CUBE FOLD SPORT HYBRID 500 2024
2024 E-bike
Estimate price |
3,547$
Weight | 24.4 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset Tiagra -
Suspension Rigid -
Motor Bosch 250W 50Nm mid-drive -
Battery Bosch PowerPack 500 -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components

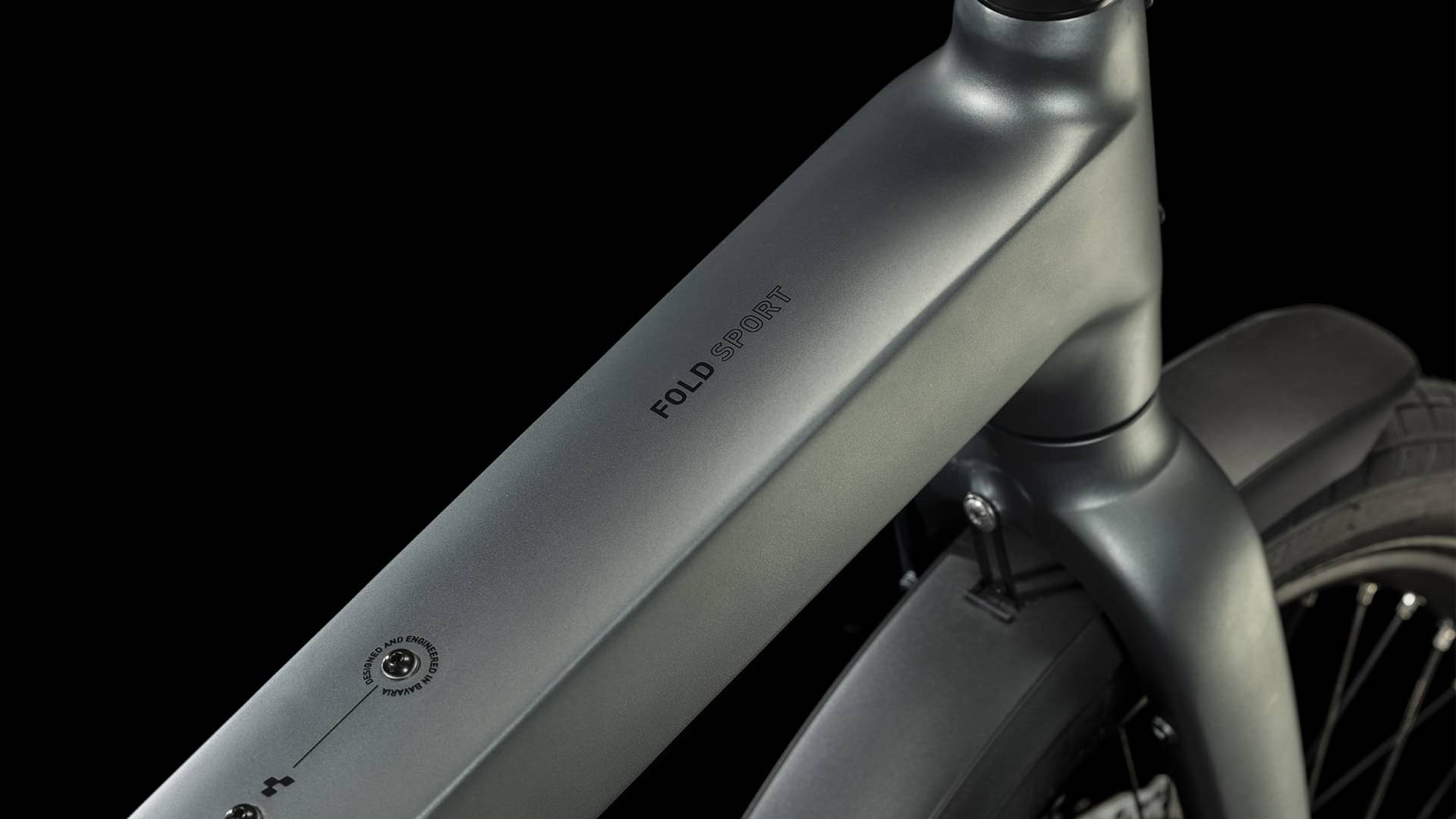

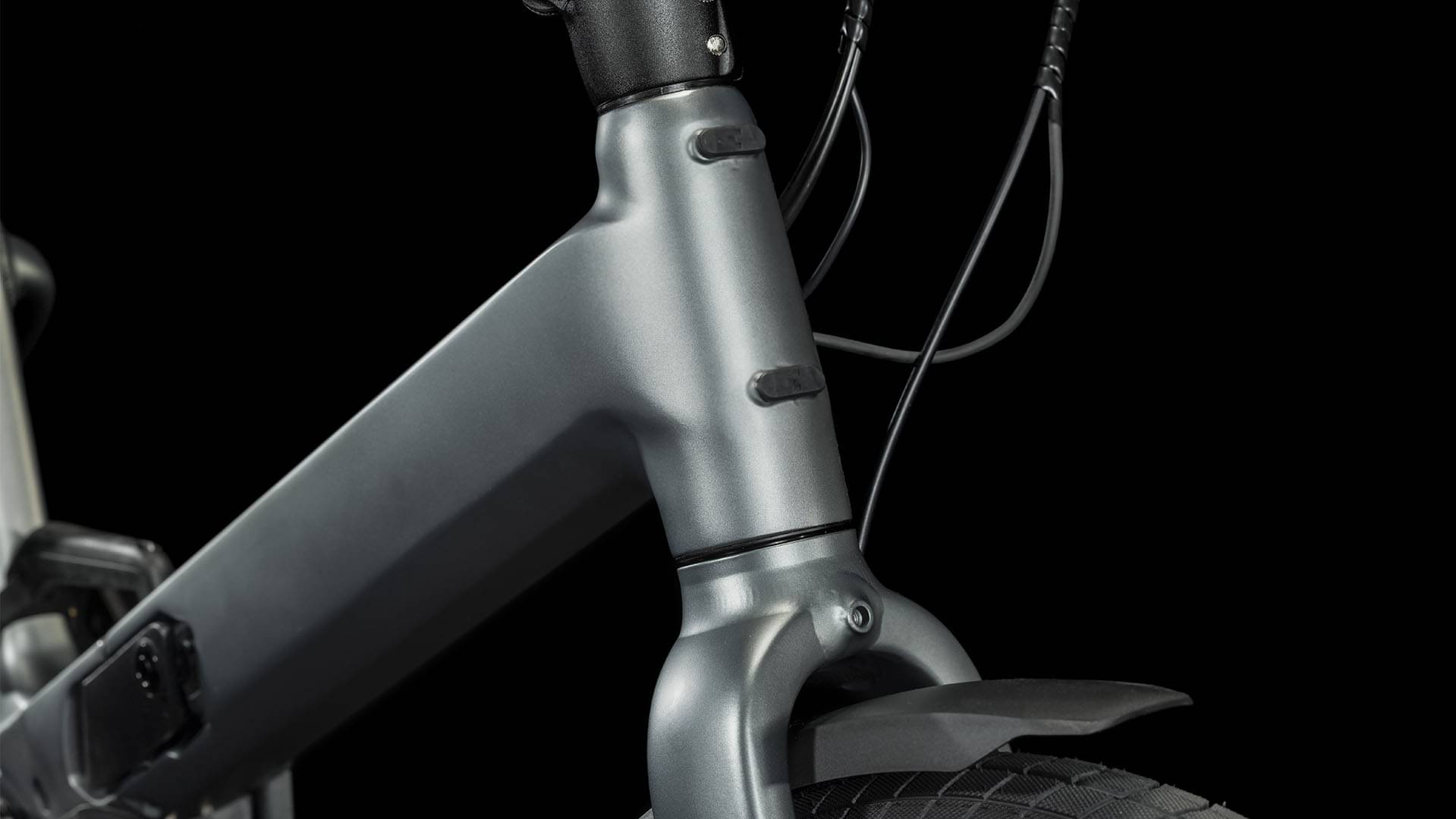

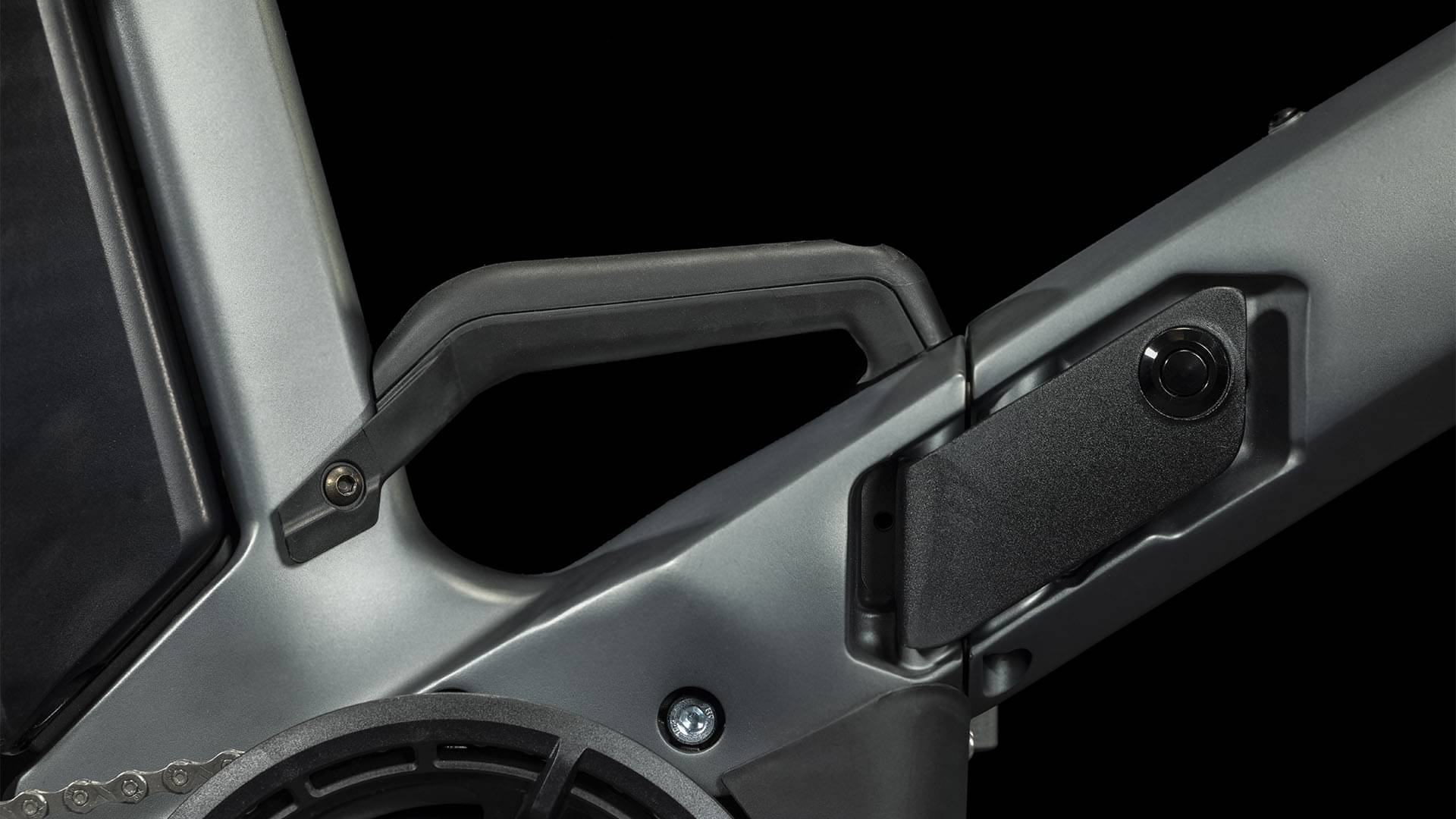

Frame
Frame
Aluminium Superlite, Comfort Ride Geometry, Semi-Integrated Carrier, Front-Carrier Ready, Slider Dropout, Integrated Folding Technology, Carrying Handlebar
Suspension Fork
Aluminium 20"
Drivetrain
Shift Levers
Shimano Tiagra SL-4700
Cassette
Shimano CS-HG500, 11-34T
Crank
ACID E-Crank, 165mm, 42T
Chain
KMC X10
Pedals
ACID PP Trekking
Wheels
Front Hub
Shimano HB-TX505, QR, Centerlock
Rear Hub
Shimano FH-TX505, QR, Centerlock
Rims
CUBE EX30, 32H, Disc, Tubeless Ready
Tires
Schwalbe Super Moto-X, Double Defense, 62-406
Brakes
Brakes
Shimano BR-MT200, Hydr. Disc Brake (180/180)

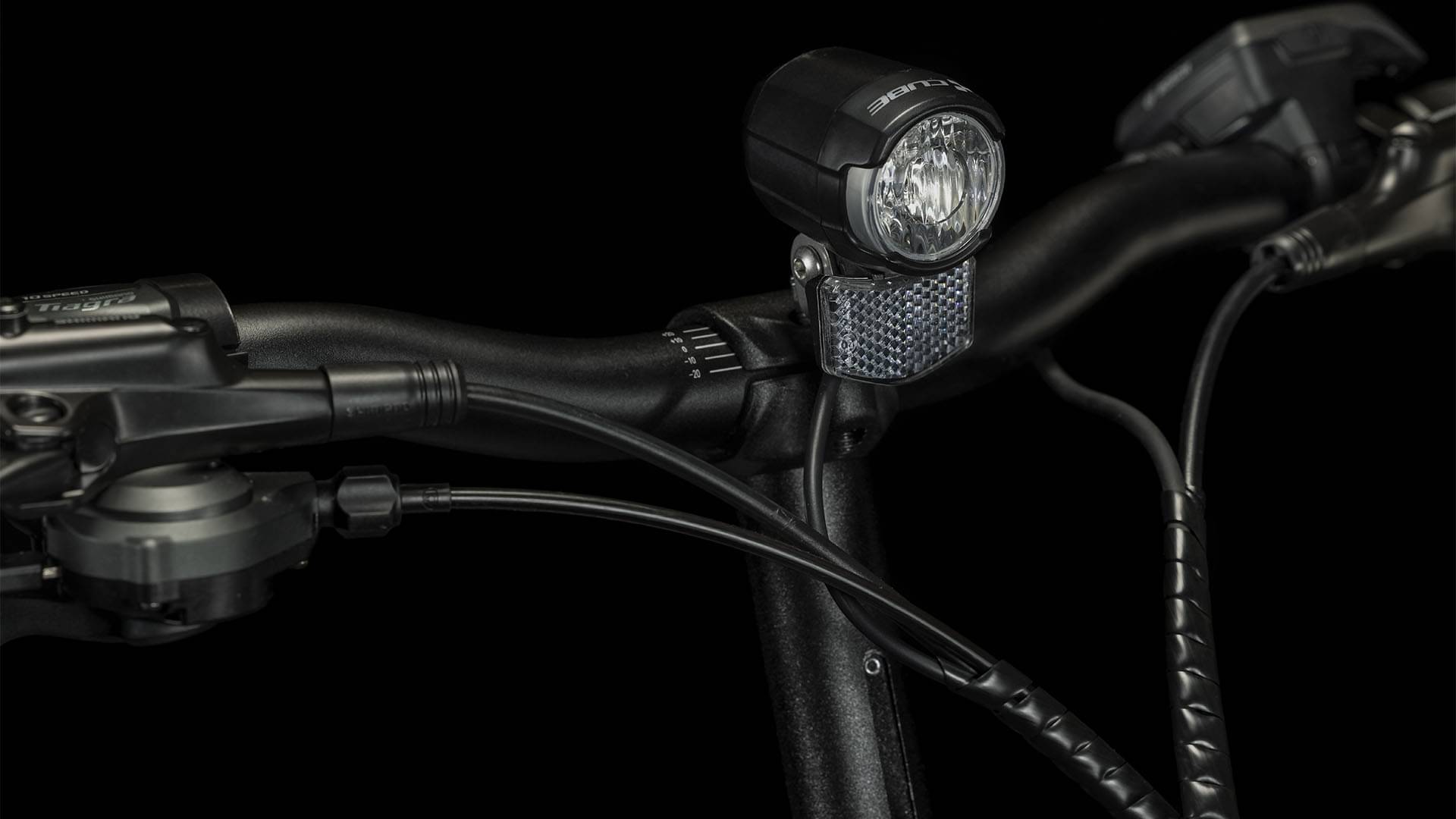

Cockpit
Stem
Cube Folding Stem, Adjustable Length, 25,4mm Clamp
Handlebar
CUBE Comfort Trail Bar, 680mm, 25,4mm
Grips
ACID Travel Comfort
Headset
ACROS AZF-1038, Top Zero-Stack 1 1/8" (ZS 44mm), Bottom Zero-Stack 1 1/2" (ZS 56mm)

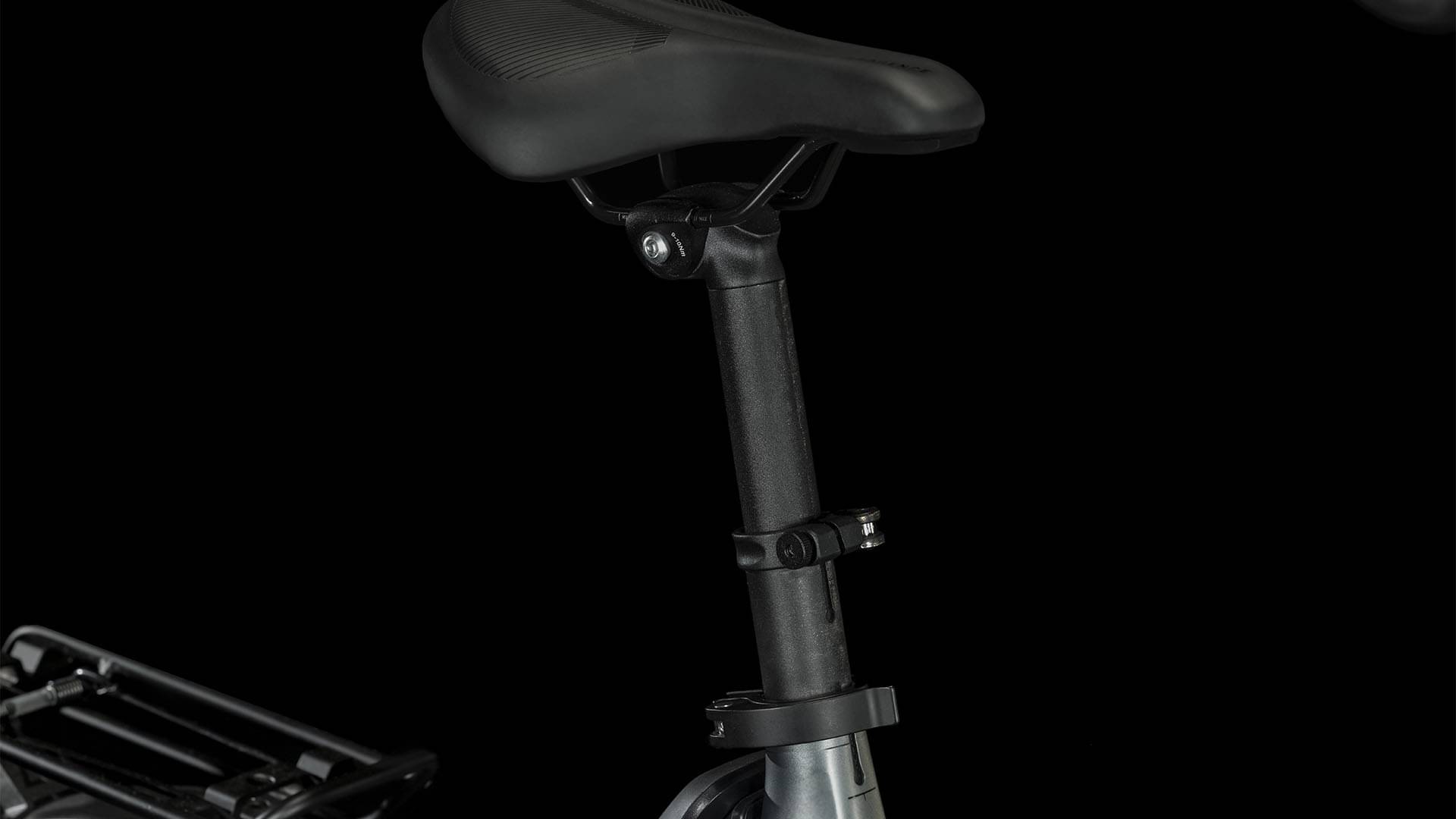

Seat
Saddle
Natural Fit Sequence
Seatpost
Satori Sorata 34,9mm, 280mm -440mm telescoping seatpost
Motor & Battery
Motor
Bosch Drive Unit Active Plus Generation 3 (50Nm) Cruise (250Watt)
Battery
Bosch PowerPack 500
Charger
Bosch 2A
Fit data
Geometry
