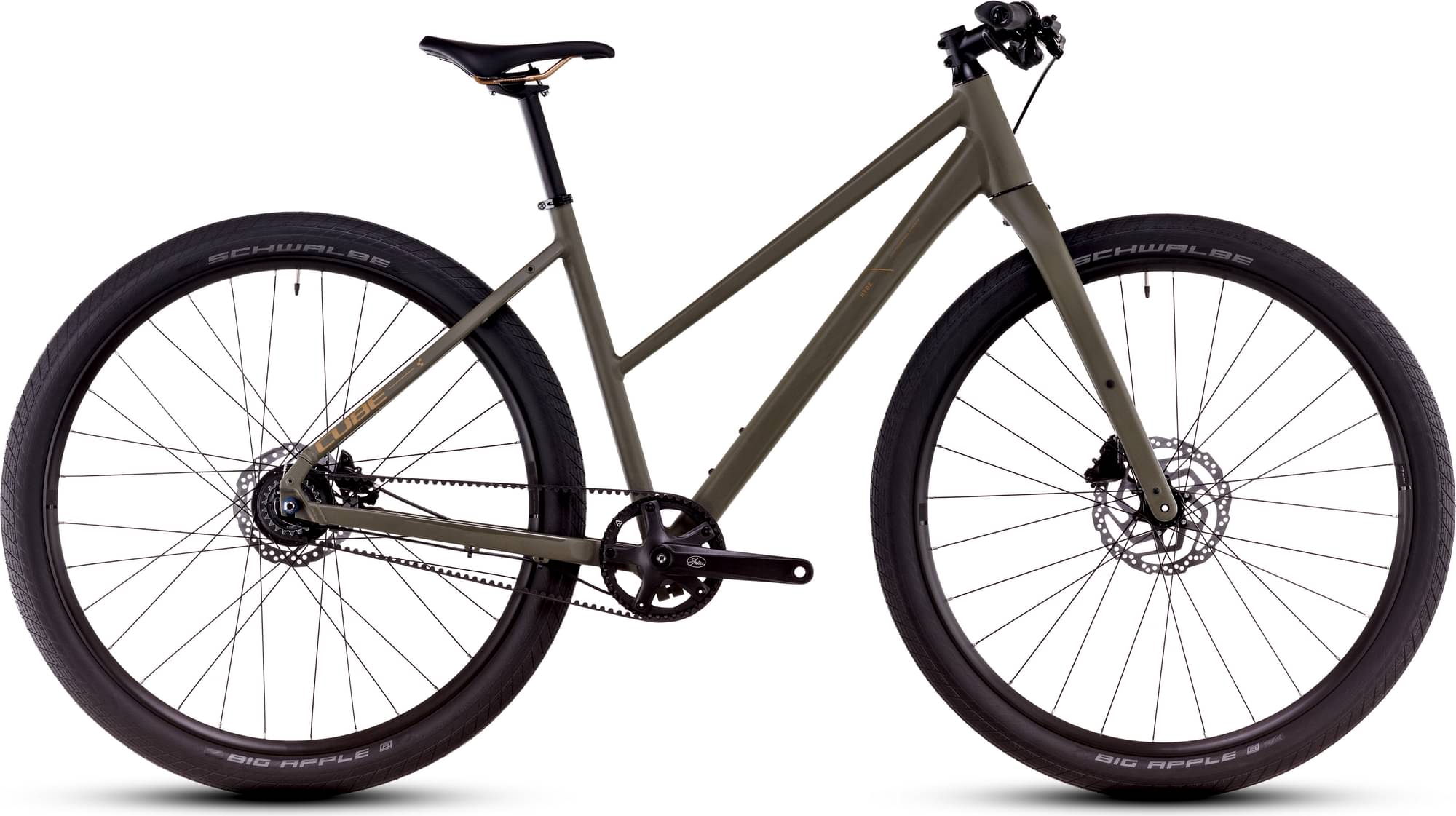

CUBE HYDE PRO 2025
2025 Urban
Estimate price |
1,162$
Weight | 12.6 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset Gates CDN, Alfine -
Suspension Rigid -
Drivetrain Belt Drive, Internally Geared Hub -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components

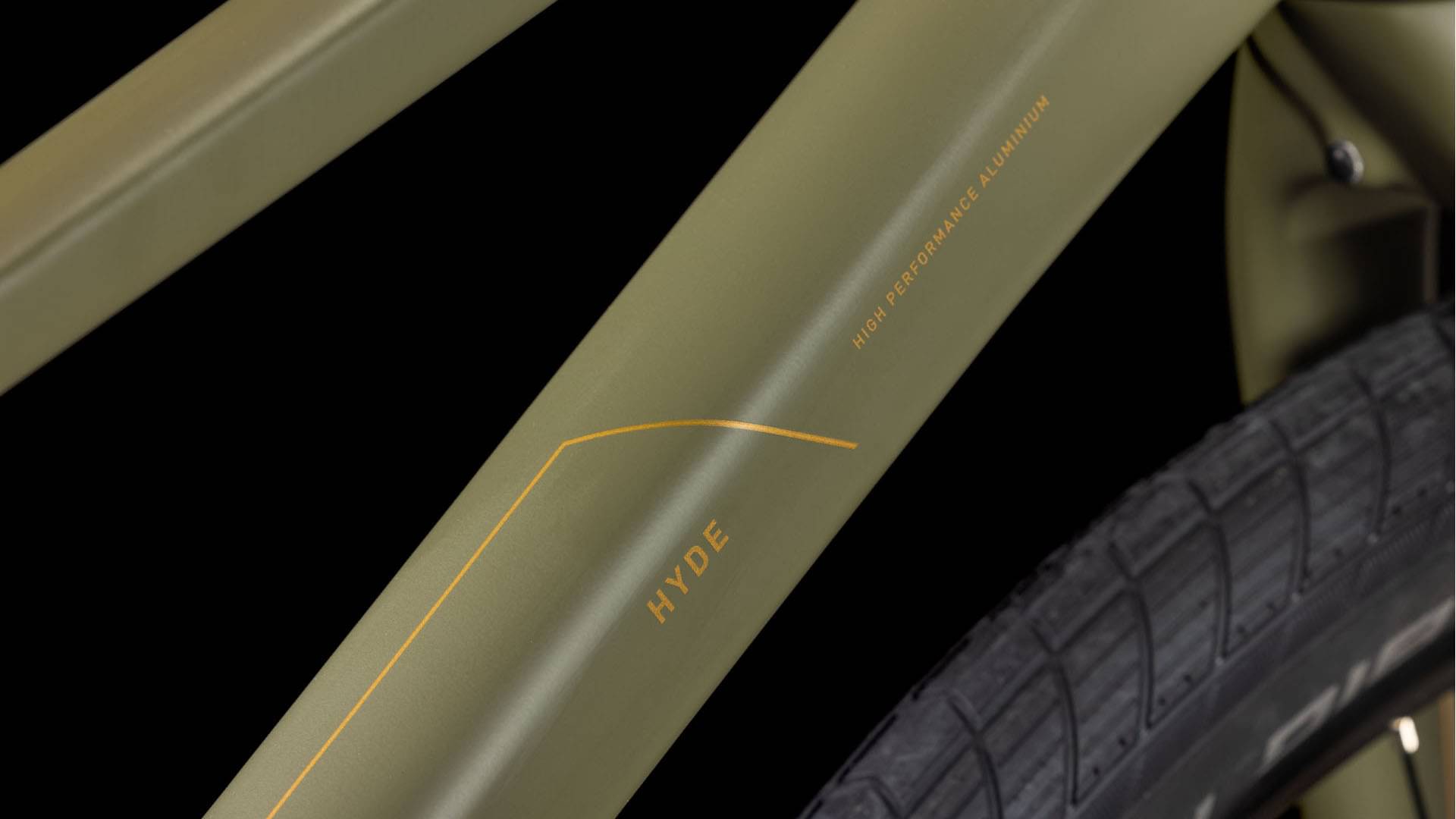

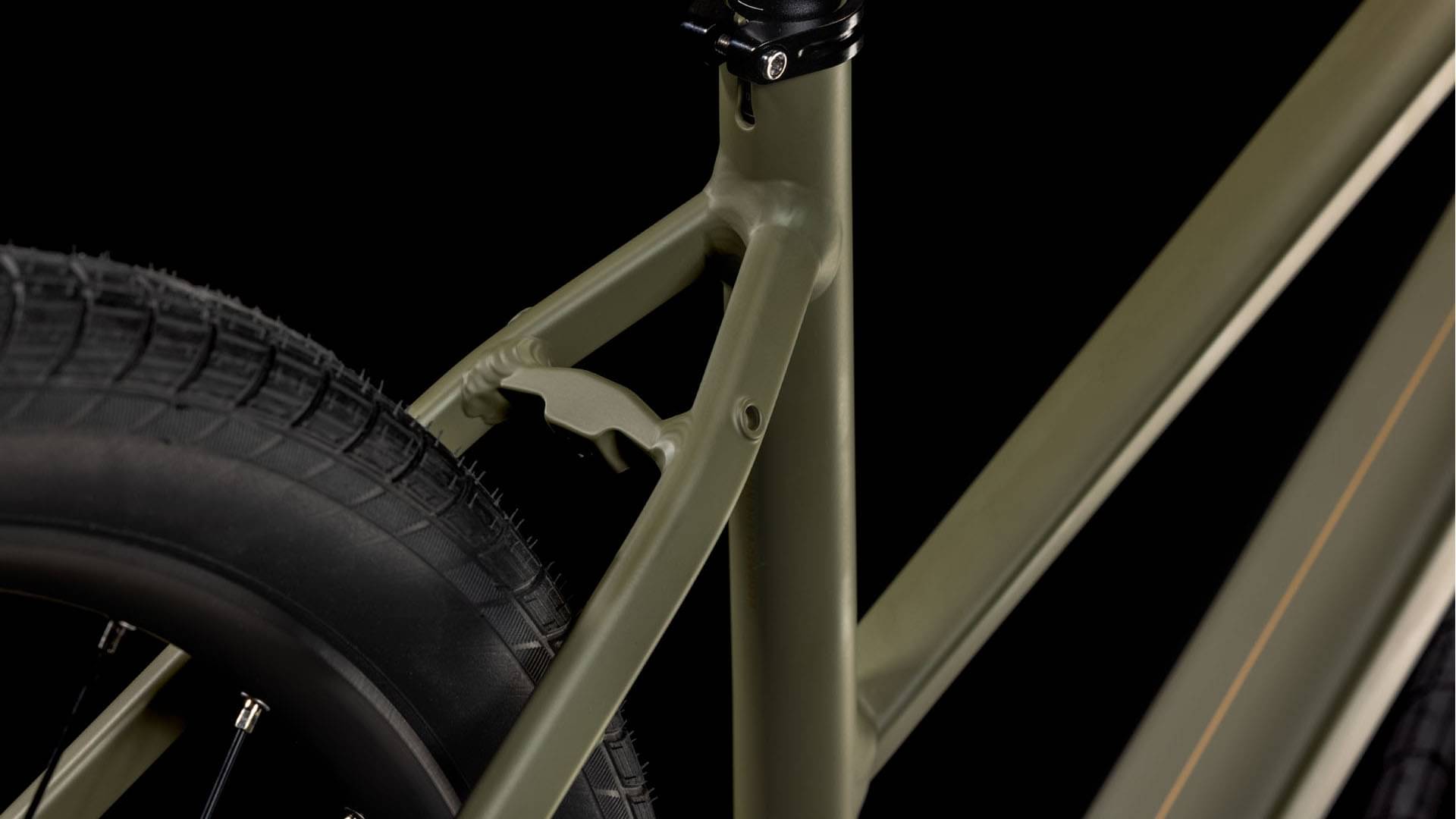

Frame
Frame
Aluminium Superlite, Urban 29, Taper, Double Butted

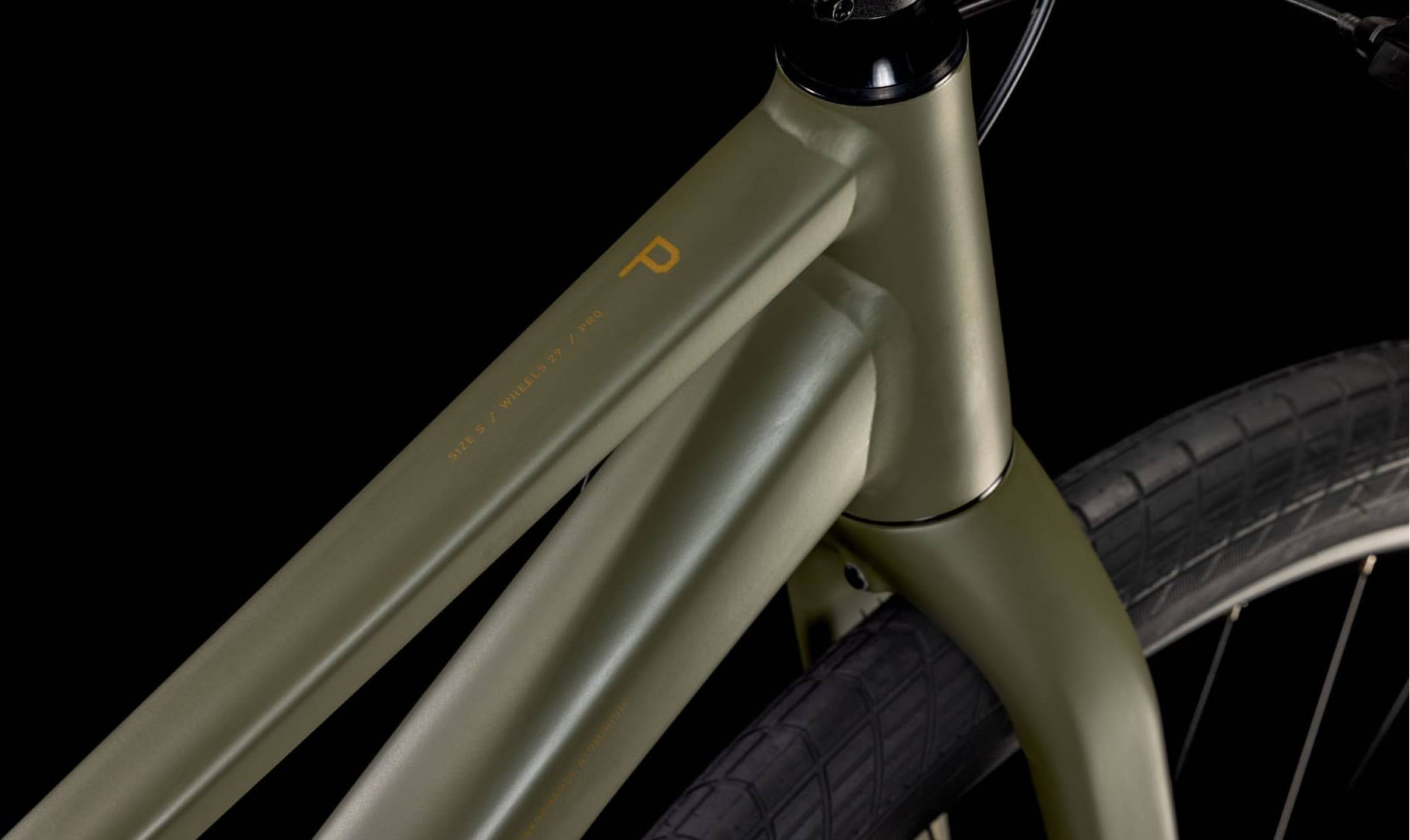

Suspension Fork
CUBE TK Disc, C:62® Full Carbon, Taper, Flat Mount, 12x100mm
Drivetrain
Shift Levers
Shimano Alfine SL-S503
Cassette
Gates Rear Sprocket CDC, 45.5mm Beltline, 22T

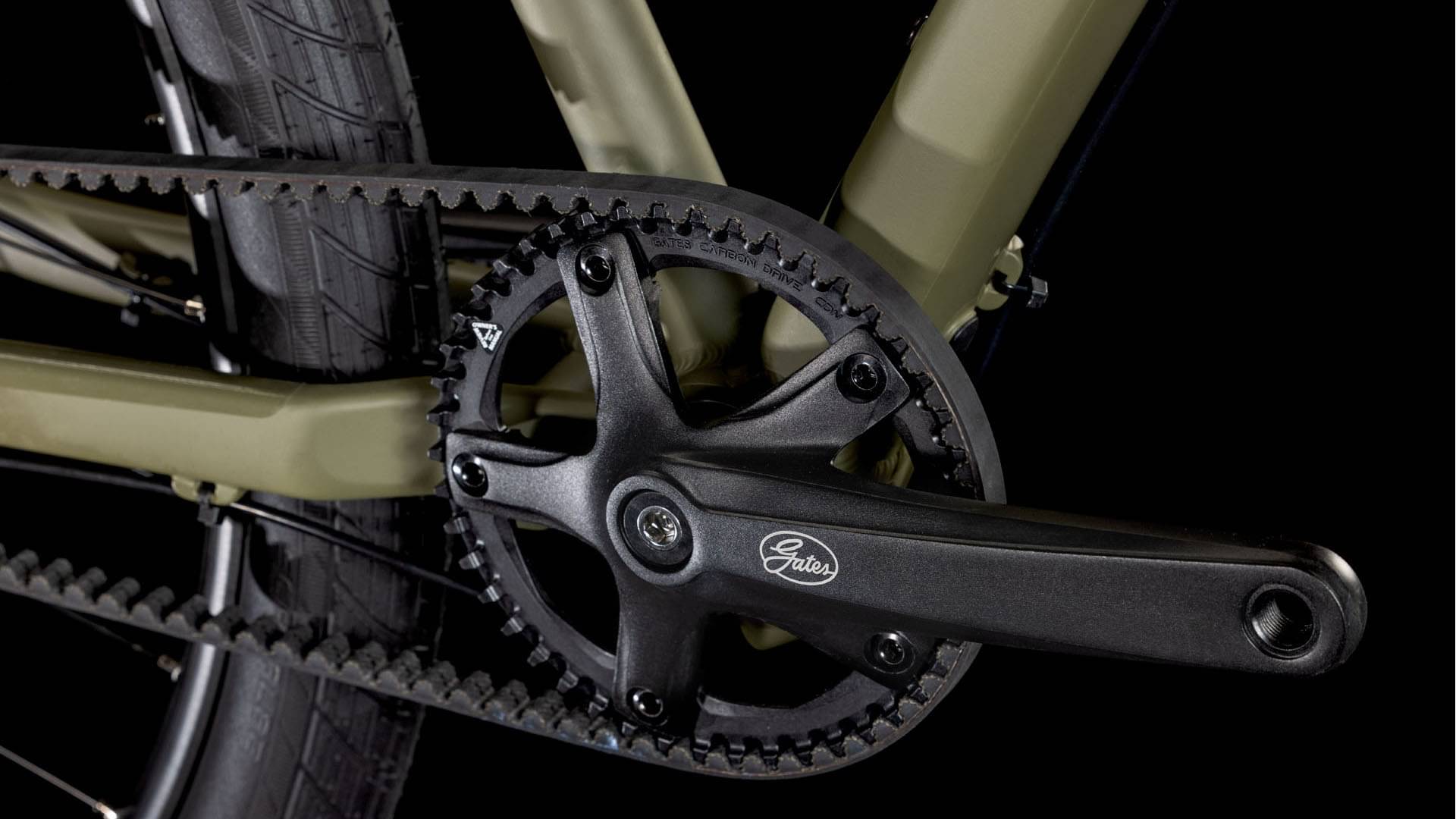

Crank
Gates S150 CDN, 46T, 45.5mm Beltline
Bottom Bracket
Thun Zumba
Pedals
CUBE PP MTB
Wheels
Front Hub
CUBE by NewMen Road Basic R, 12x100, CenterlockL

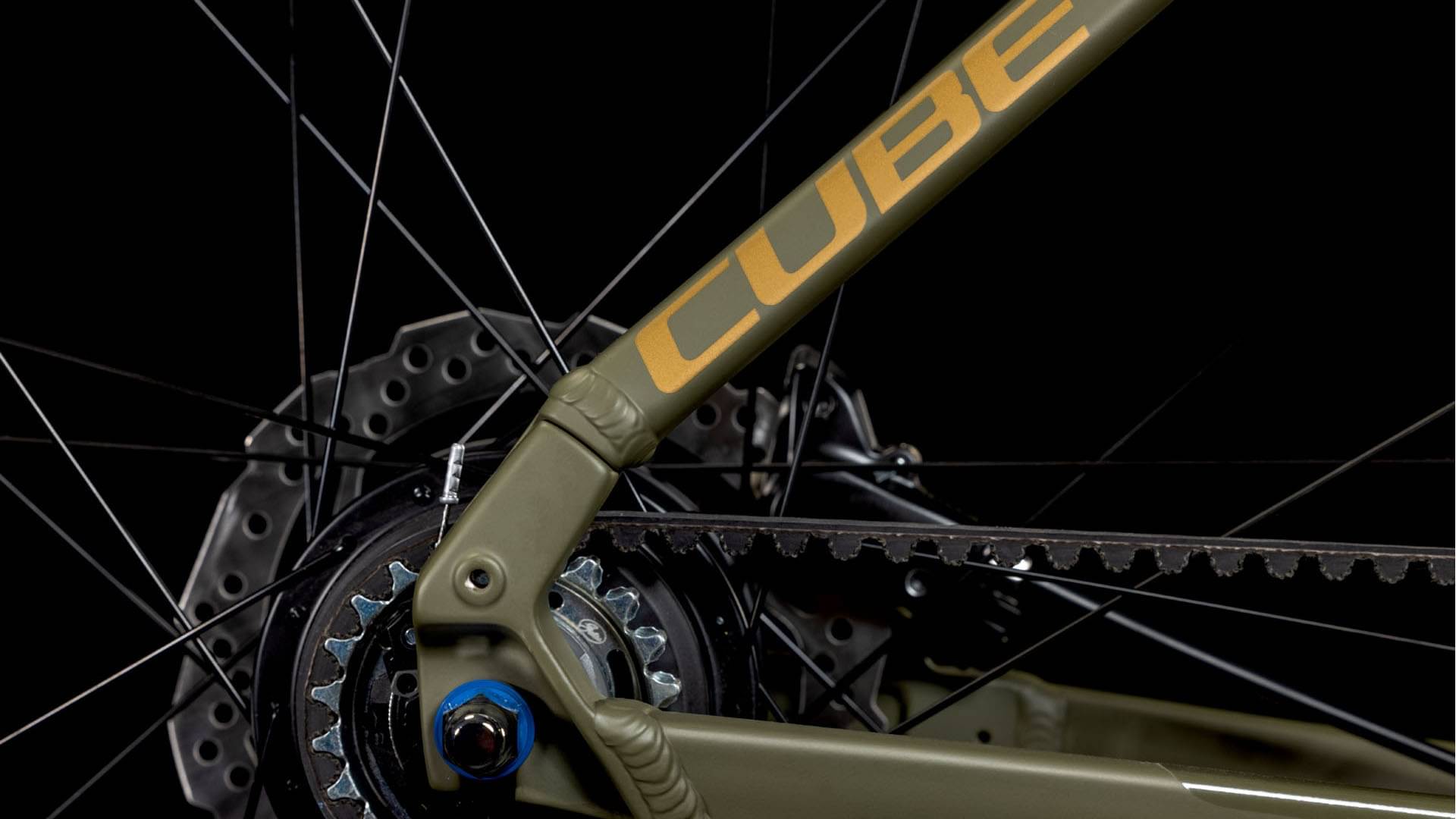

Rear Hub
Shimano Nexus SG-C6001-8D, 8-Speed
Rims
CUBE EX25, 28H / 32H, Disc, Tubeless Ready
Tires
Schwalbe Big Apple, ActiveL, 55-622
Brakes
Brakes
Shimano BR-MT200, Hydr. Disc Brake (160/180)
Cockpit
Stem
CUBE Performance Stem Pro, 31.8mm
Handlebar
CUBE Flat Race Bar, 660mm
Grips
ACID Travel
Headset
VP Semi-Integrated, Top 1/18", Bottom 1 1/2", Sealed Bearing
Seat
Saddle
ACID Nuance Lite
Seatpost
CUBE Performance Post, 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 46cm | 50cm | 54cm |
|---|---|---|---|
| Stack Reach Ratio | 1.501 mm | 1.552 mm | 1.606 mm |
| Front Center | 638 mm | 638 mm | 638 mm |
| Rake | 55 mm | 45 mm | 45 mm |
| Trail | 68 mm | 79 mm | 73 mm |
| Stack | 584 mm | 607 mm | 631 mm |
| Reach | 389 mm | 391 mm | 393 mm |
| Top Tube Length | 551 mm | 565 mm | 580 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73.5 ° |
| Seat Tube Length | 440 mm | 480 mm | 520 mm |
| Head Tube Angle | 70 ° | 70 ° | 71 ° |
| Head Tube Length | 125 mm | 145 mm | 165 mm |
| Chainstay Length | 470 mm | 470 mm | 470 mm |
| Wheelbase | 1099 mm | 1099 mm | 1099 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm |
| Wheels | 29" | 29" | 29" |
