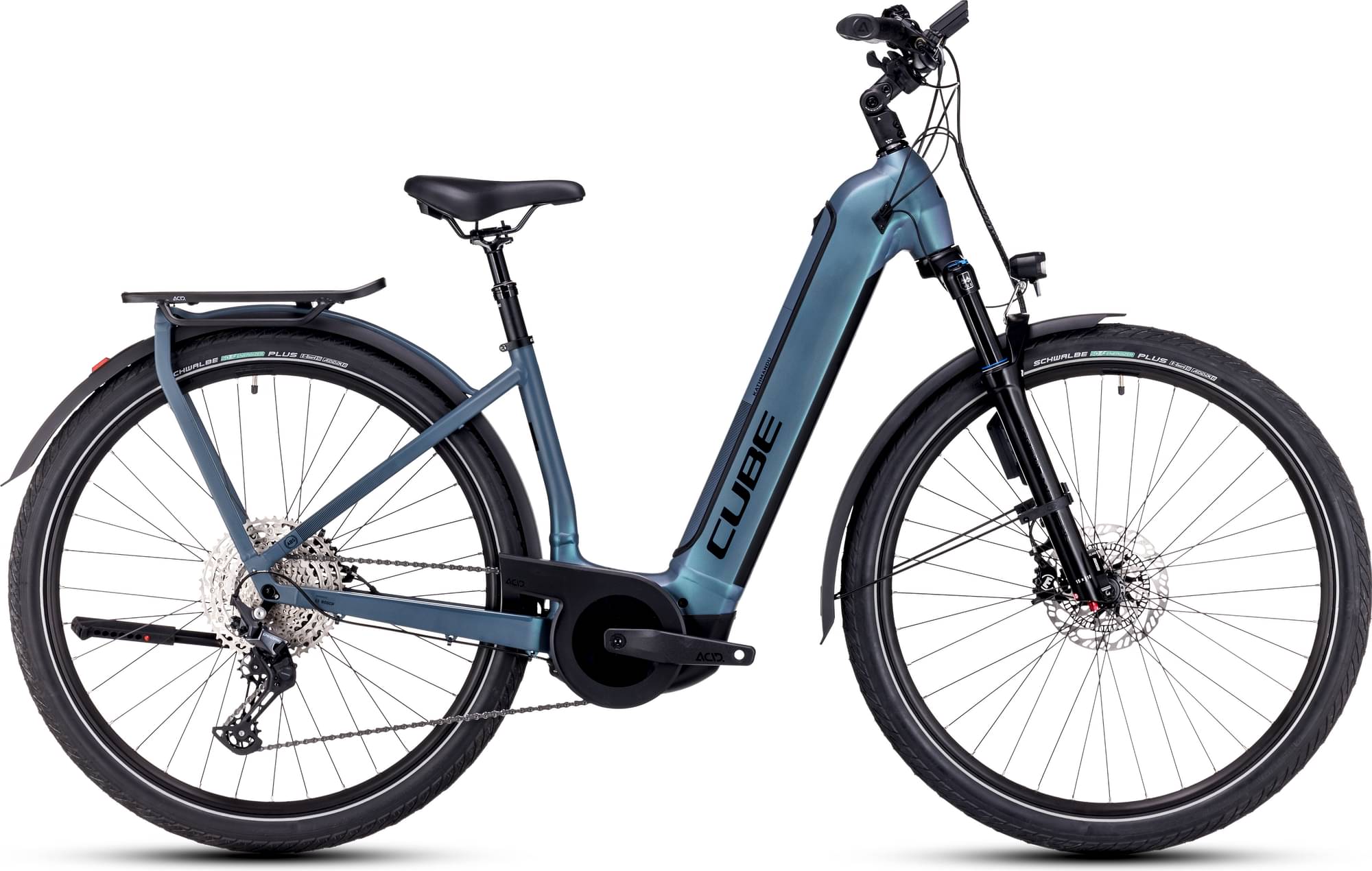

CUBE KATHMANDU HYBRID, ABS 750 2024
2024 E-bike
Estimate price |
5,275$
Weight | 27.6 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 100mm -
Fork Suntour MOBIE
-
Groupset Deore -
Suspension Hardtail -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch PowerTube 750 -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame

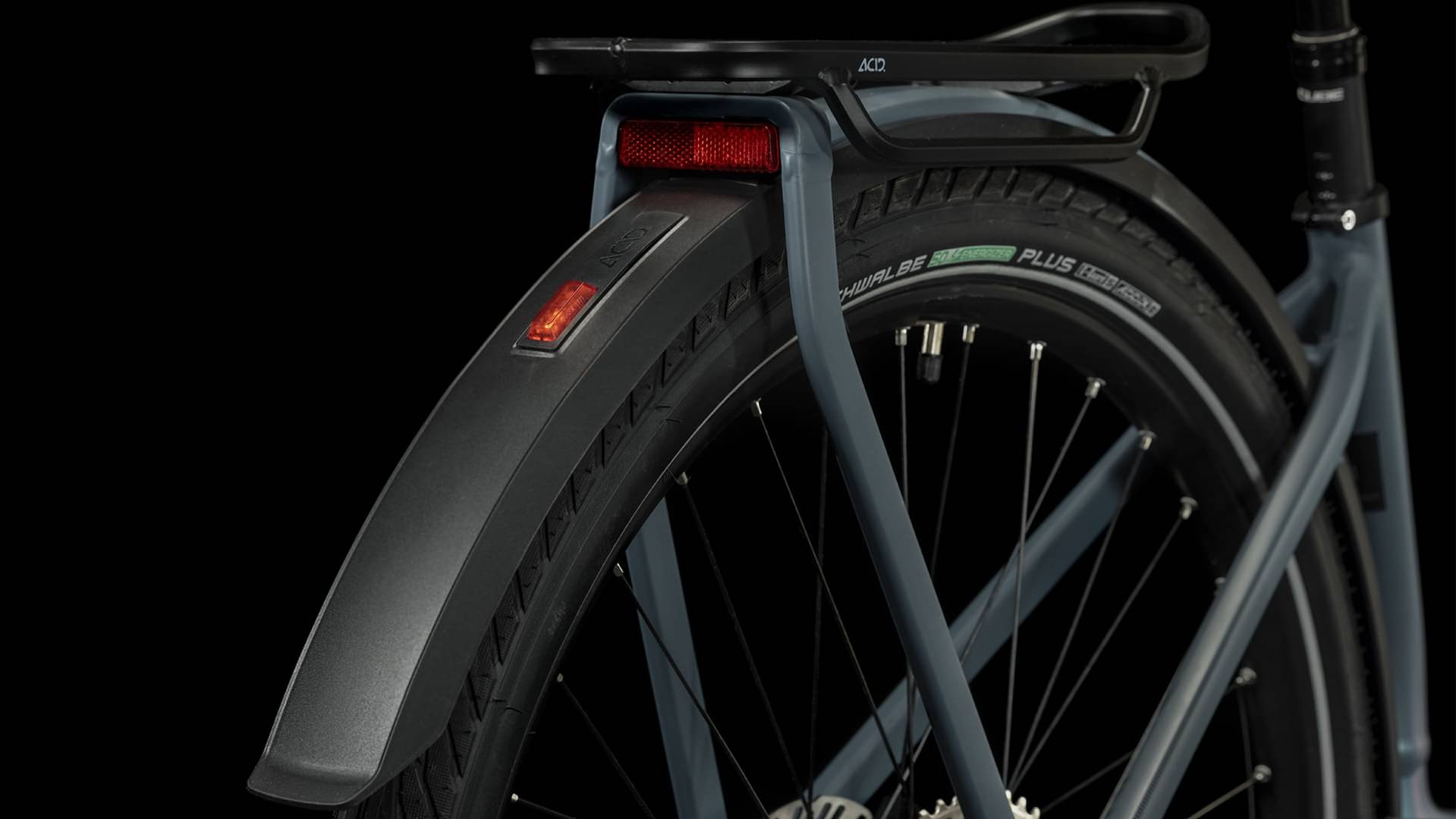

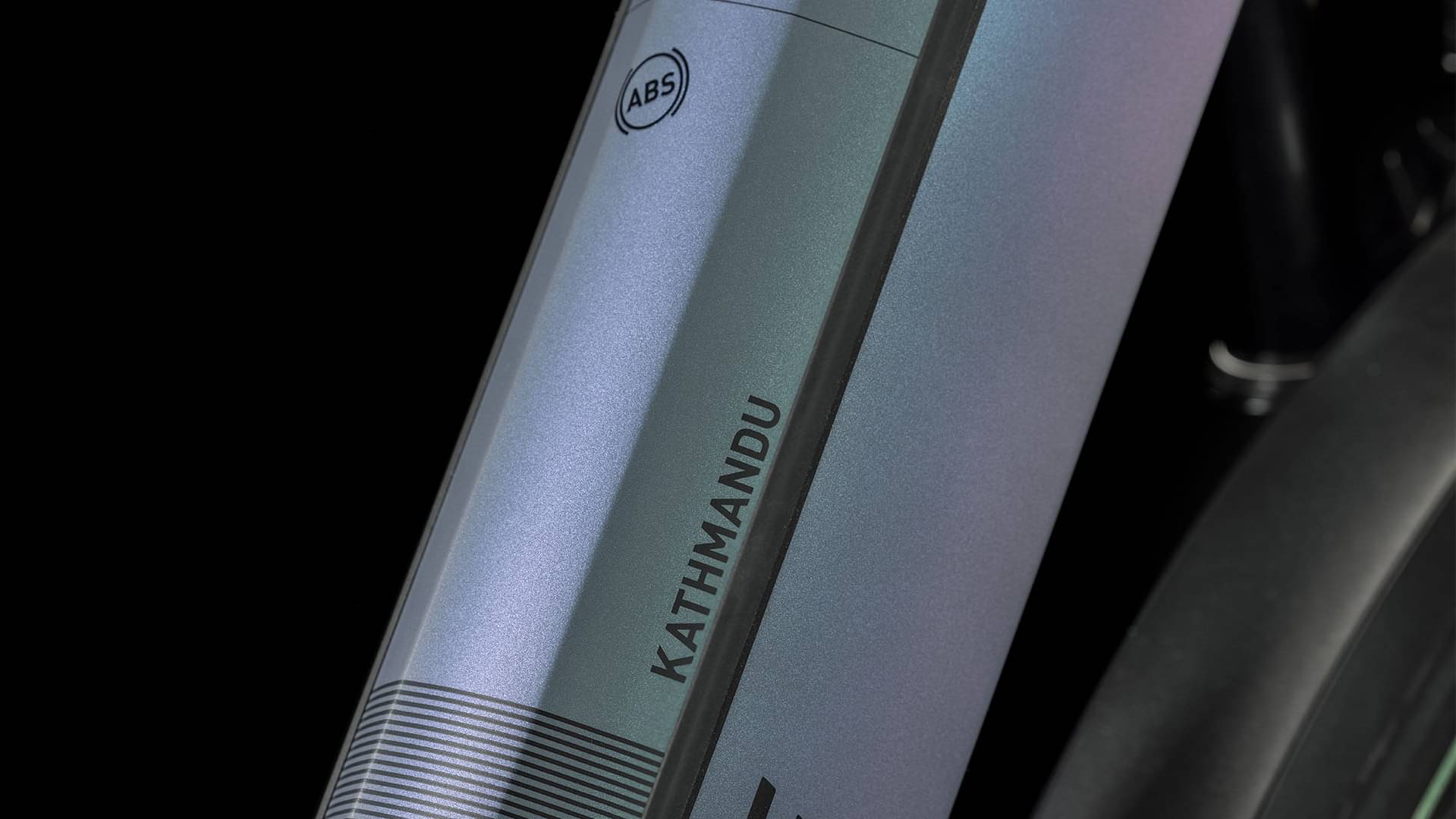

Aluminium Superlite, Gravity Casting Technology, Efficient Comfort Geometry, Boost148, Fully Integrated Battery, Integrated Carrier 3.0, Advanced Internal Cable Routing, 1.5 Headtube (EE: Tapered Headtube)

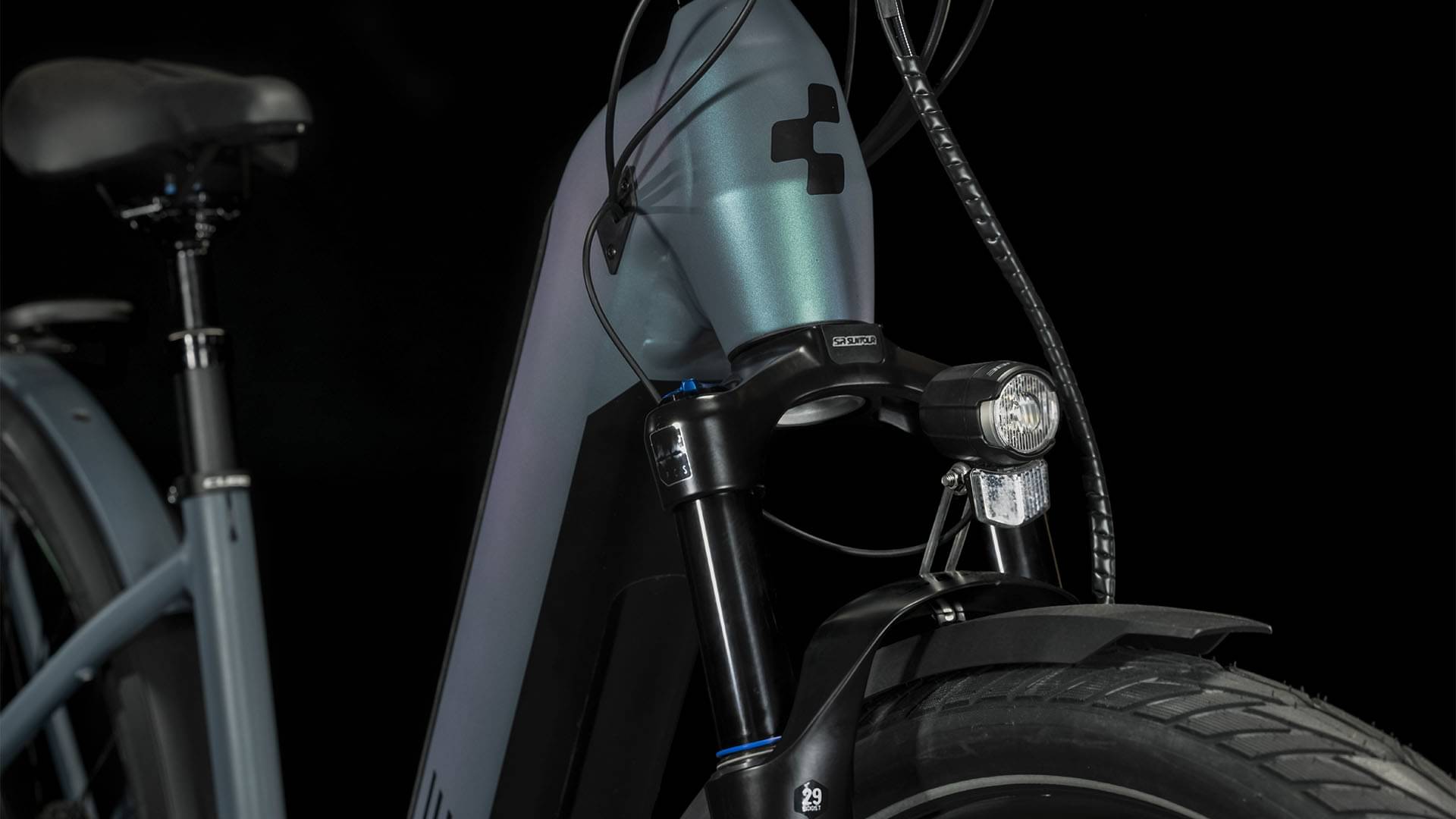

Suspension Fork
SR Suntour Mobie 35 EQ Air, ABS, Tapered, 15x110mm, 100mm
Drivetrain
Rear Derailleur
Shimano Deore RD-M6100-SGS, ShadowPlus, 12-Speed
Shift Levers
Shimano Deore SL-M6100-IR, Direct Attach
Cassette
Shimano Deore CS-M6100, 10-51T
Crank
ACID E-Crank, 40T, 175mm (EE: 170mm)
Chain
Shimano CN-M6100
Pedals
ACID PP Trekking
Wheels
Front Hub
Shimano HB-MT400-B, 15mm, Boost, Centerlock
Rear Hub
Shimano FH-MT410-B, 12mm, Boost, Centerlock
Rims
CUBE EX23, 36H, Disc, Tubeless Ready
Tires
Schwalbe Energizer Plus, Performance, Green Guard, 55-622
Brakes
Brakes
Magura MT C ABS, Hydr. Disc Brake (180/180)

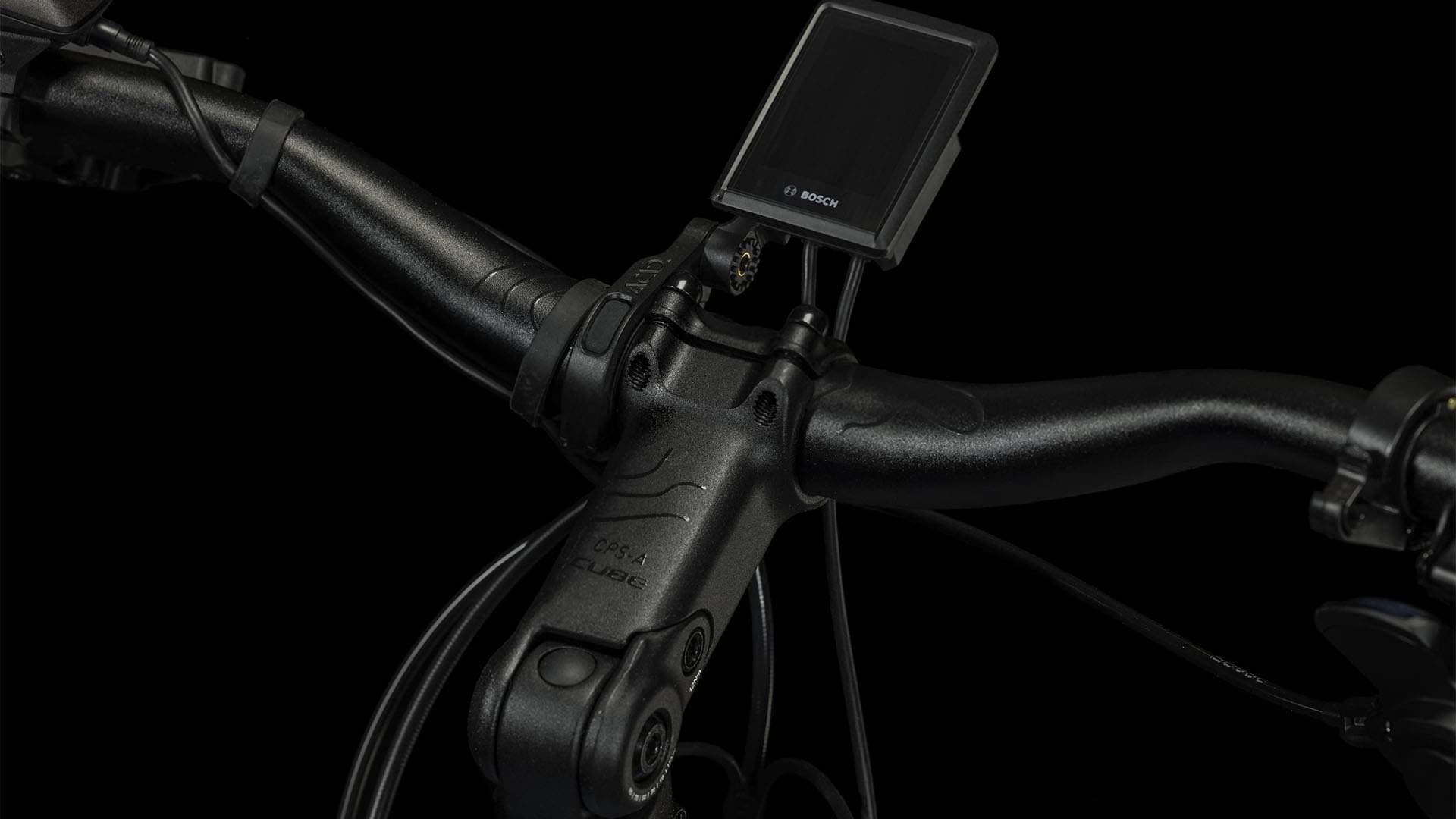

Cockpit
Stem
CUBE Comfort Stem Pro, 31.8mm, Adjustable
Handlebar
CUBE Comfort Trail Bar, 700mm
Grips
ACID Travel Comfort
Headset
M/Z: ACROS AZF-1035, ICR (Integrated Cable Routing), BlockLock 120°, Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm) // EE: ACROS AZX-1040, BlockLock 135°, Top Zero-Stack 1 1/8" (ZS 44mm), Bottom Zero-Stack 1 1/2" (ZS 56mm)
Seat

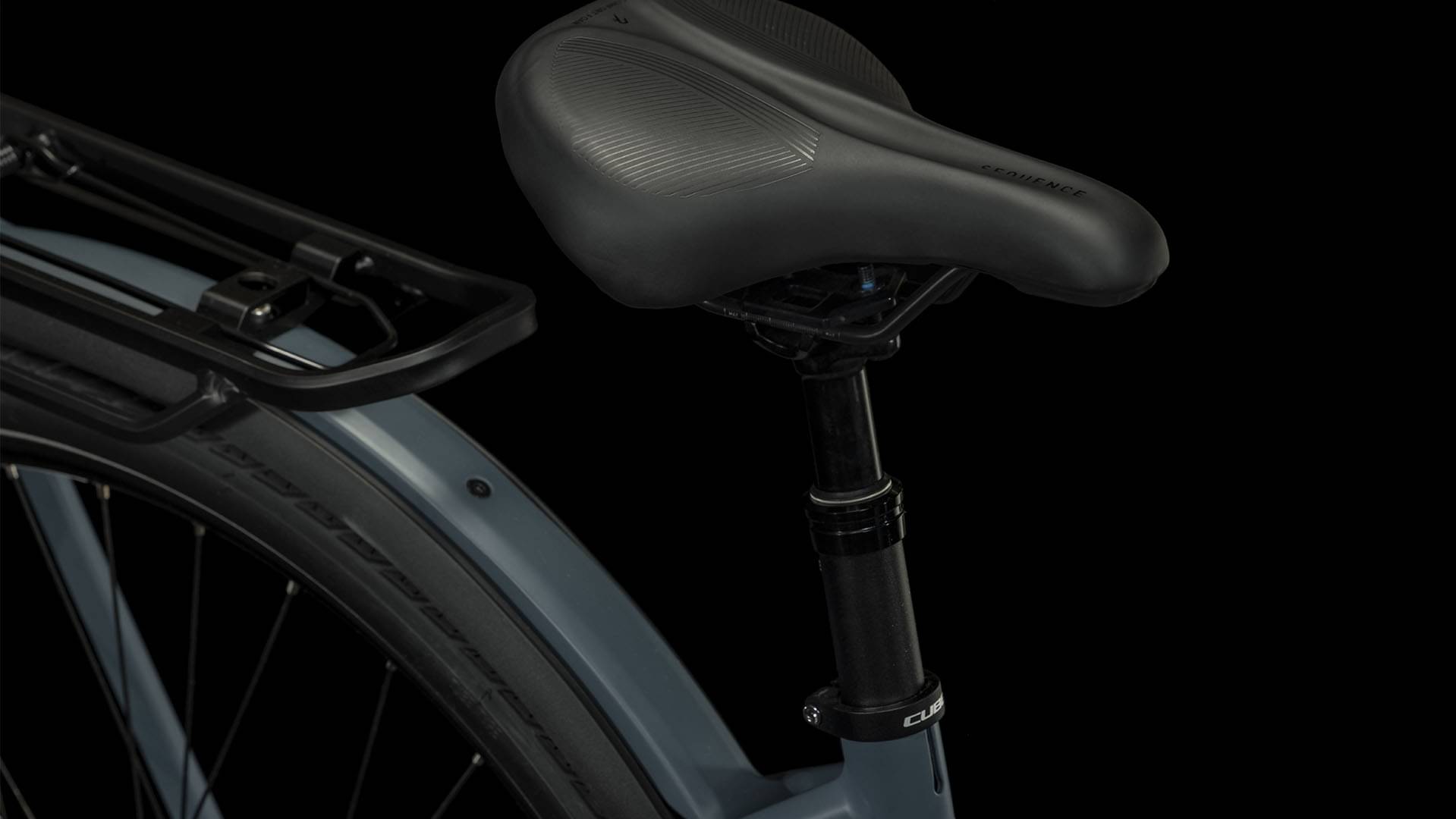

Saddle
Natural Fit Sequence Comfort
Seatpost
CUBE Suspension Seatpost HD, 30.9mm
Motor & Battery
Motor
Bosch Drive Unit Performance CX Generation 4 (85Nm) Cruise (250Watt), Smart System
Battery
Bosch PowerTube 750
Remote
Bosch LED Remote
Charger
Bosch 4A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 46cm | 50cm | 54cm | 58cm |
|---|---|---|---|---|
| Stack Reach Ratio | 1.712 mm | 1.712 mm | 1.687 mm | 1.659 mm |
| Front Center | 688 mm | 688 mm | 699 mm | 709 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 83 mm | 83 mm | 83 mm | 83 mm |
| Stack | 673 mm | 673 mm | 678 mm | 682 mm |
| Reach | 393 mm | 393 mm | 402 mm | 411 mm |
| Top Tube Length | 600 mm | 600 mm | 610 mm | 620 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 440 mm | 480 mm | 520 mm | 560 mm |
| Head Tube Angle | 68.5 ° | 68.5 ° | 68.5 ° | 68.5 ° |
| Head Tube Length | 150 mm | 150 mm | 155 mm | 160 mm |
| Chainstay Length | 490 mm | 490 mm | 490 mm | 490 mm |
| Wheelbase | 1168 mm | 1168 mm | 1179 mm | 1189 mm |
| Bottom Bracket Drop | 75 mm | 75 mm | 75 mm | 75 mm |
| Wheels | 29" | 29" | 29" | 29" |
