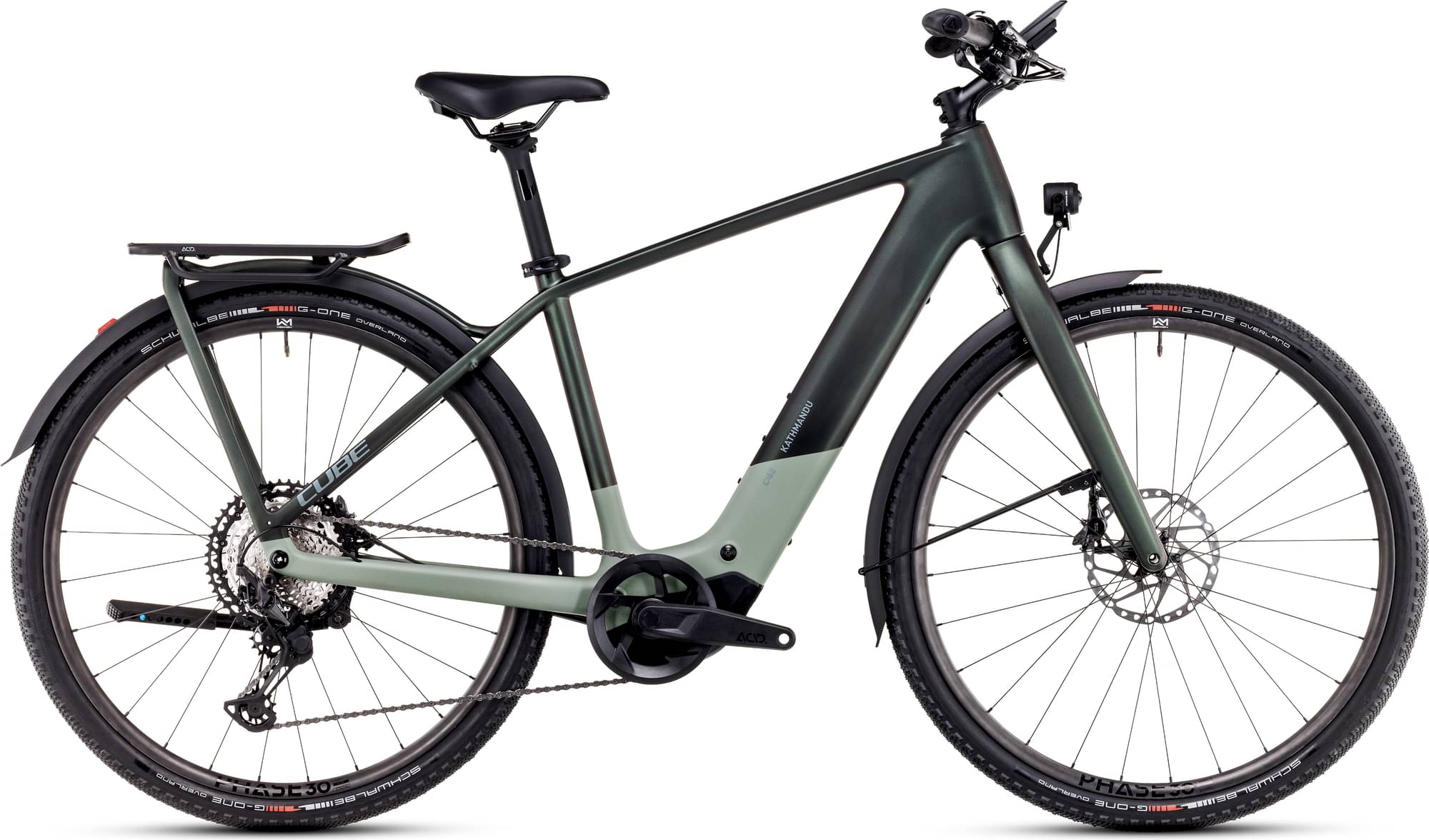

CUBE KATHMANDU HYBRID C:62, SLT 400X 2025
2025 E-bike
Estimate price |
5,583$
Weight | 16.3 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Groupset XT -
Suspension Rigid -
Motor Bosch 250W 55Nm mid-drive -
Battery Bosch CompactTube 400 -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
C:62® Advanced Twin Mold, Efficient Comfort Geometry, Boost148, Fixed Integrated Battery, Flat Mount Disc, Integrated Carrier 3.0, Advanced Internal Cable Routing, UDH™
Suspension Fork
CUBE C:62® Technology, 1 1/2" - 1 1/2" Tapered, Internal Light Cable Option, 15x110mm
Drivetrain
Rear Derailleur
Shimano XT RD-M8100-SGS, ShadowPlus, 12-Speed
Shift Levers
Shimano XT SL-M8100-IR, Direct Attach
Cassette
Shimano XT CS-M8100, 10-51T
Crank
ACID MTB Hybrid Pro
Chain
Shimano CN-M8100
Pedals
ACID PP MTB
Wheels
Rims
Newmen Phase 30, 28/28 Spokes (Light/Base), 15x110mm / 12x148mm, Tubeless Ready
Tires
Schwalbe G-ONE Overland, SuperGround, Kevlar, 50-622
Brakes
Brakes
Shimano XT BR-M8100, Hydr. Disc Brake (180/180)
Cockpit
Stem
CUBE Performance Stem Pro, 31.8mm
Handlebar
CUBE Comfort Trail Bar, 700mm
Grips
ACID Travel Comfort
Seat
Saddle
Natural Fit Sequence Comfort
Seatpost
Newmen Advanced, Carbon, 31.6mm
Motor & Battery
Motor
Bosch Drive Unit Performance SX (55Nm) Cruise (250 Watt), Smart System
Battery
Bosch CompactTube 400
Remote
Bosch LED Remote
Charger
Bosch 4A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 50cm | 54cm | 58cm | 62cm |
|---|---|---|---|---|
| Stack Reach Ratio | 1.557 mm | 1.581 mm | 1.608 mm | 1.63 mm |
| Front Center | 647 mm | 660 mm | 673 mm | 686 mm |
| Rake | 45 mm | 45 mm | 46 mm | 46 mm |
| Trail | 79 mm | 79 mm | 78 mm | 78 mm |
| Stack | 618 mm | 637 mm | 656 mm | 675 mm |
| Reach | 397 mm | 403 mm | 408 mm | 414 mm |
| Top Tube Length | 582 mm | 593 mm | 604 mm | 615 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 440 mm | 490 mm | 540 mm | 590 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 130 mm | 150 mm | 170 mm | 190 mm |
| Chainstay Length | 490 mm | 490 mm | 490 mm | 490 mm |
| Wheelbase | 1127 mm | 1140 mm | 1153 mm | 1166 mm |
| Bottom Bracket Drop | 75 mm | 75 mm | 75 mm | 75 mm |
| Wheels | 29" | 29" | 29" | 29" |
