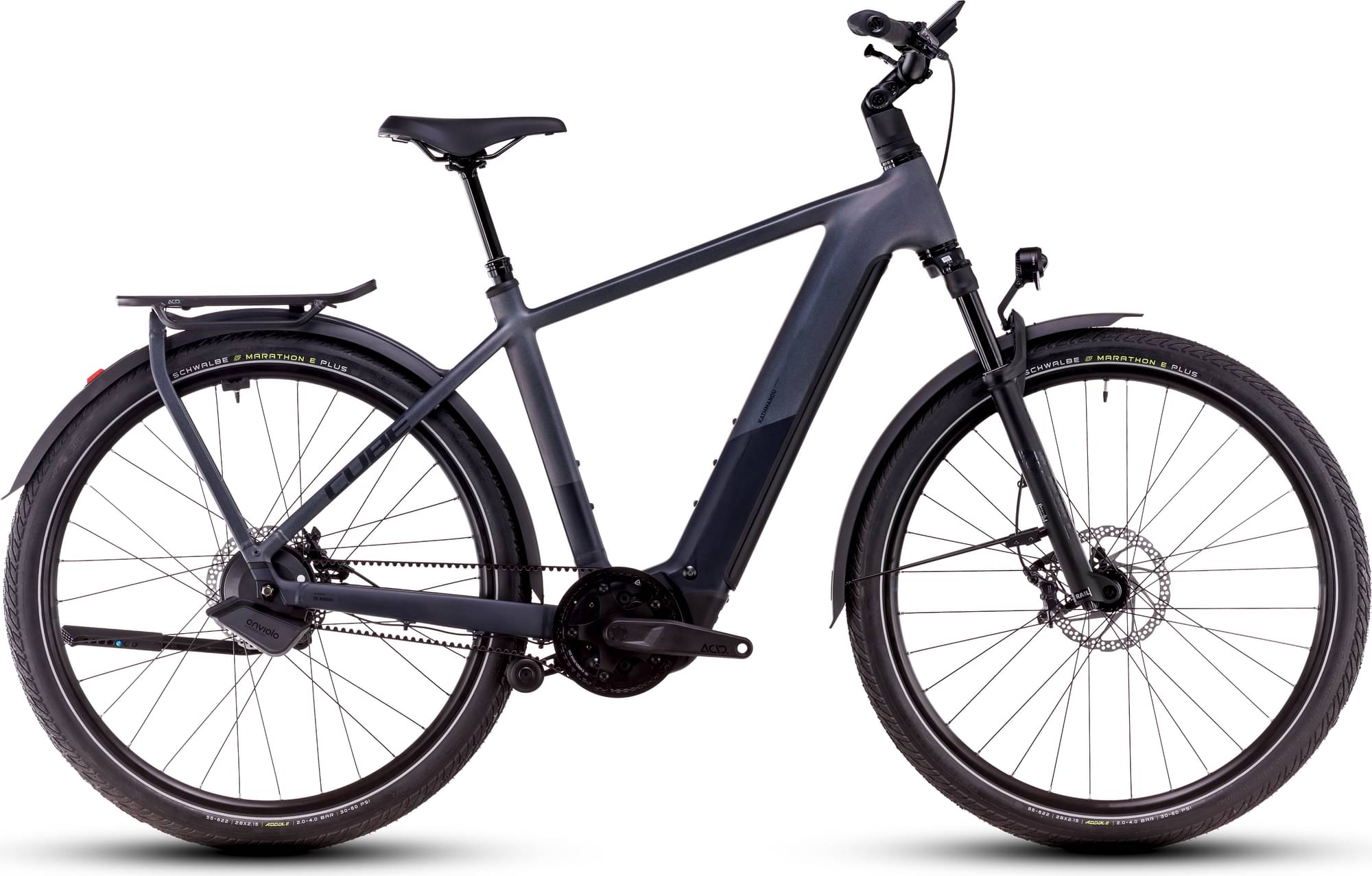

CUBE KATHMANDU HYBRID, COMFORT SLX 800 2025
2025 E-bike
Estimate price |
5,816$
Weight | 29.2 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 100mm -
Fork Fox AWL
-
Suspension Hardtail -
Motor Bosch 600W 85Nm mid-drive -
Battery Bosch PowerTube 800 -
Drivetrain Belt Drive, Internally Geared Hub -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components

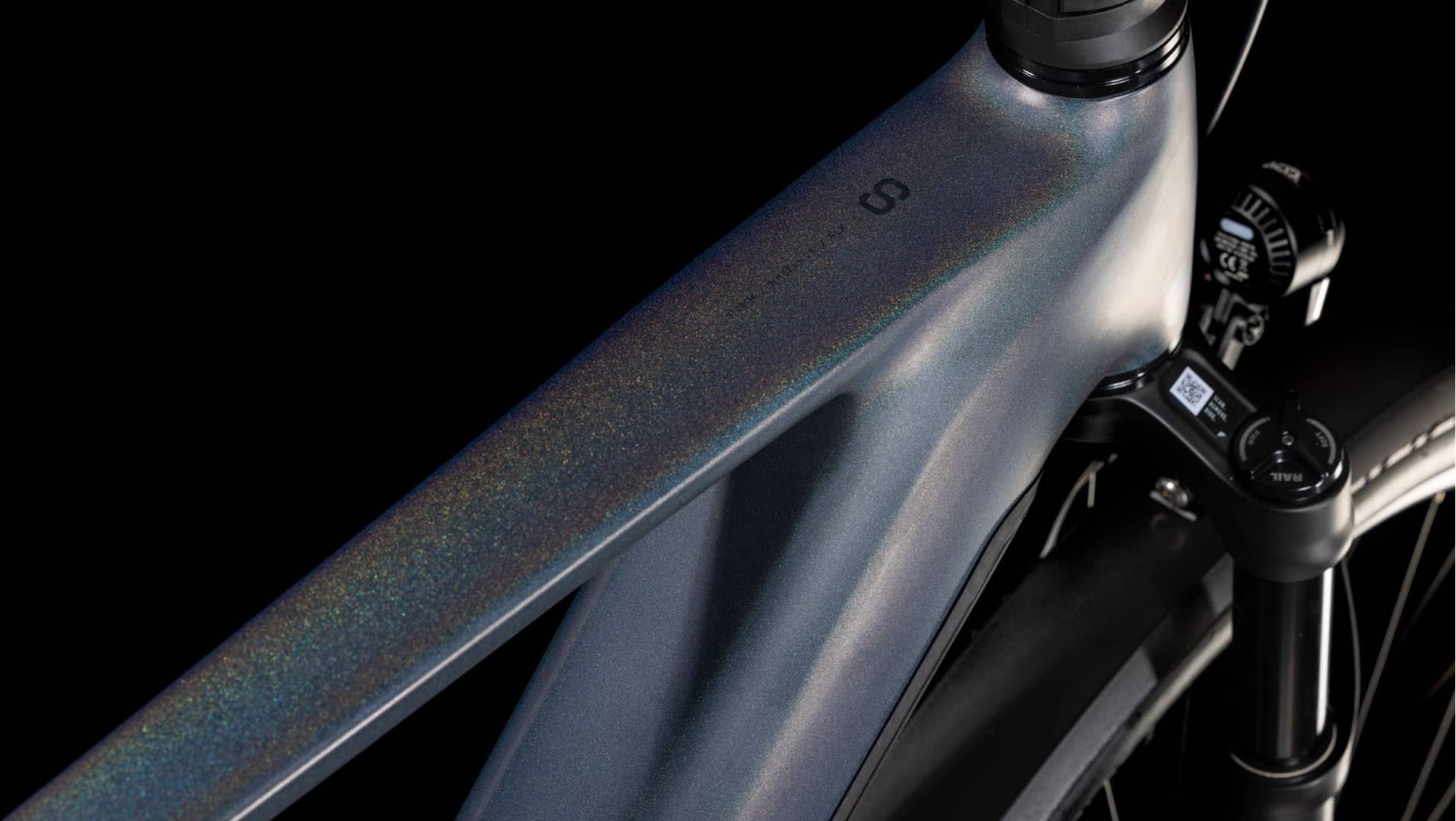

Frame
Frame
Aluminium Superlite, Gravity Casting Technology, Efficient Comfort Geometry, Fully Integrated Battery, Integrated Carrier 3.0, Advanced Internal Cable Routing, 1.5 Headtube

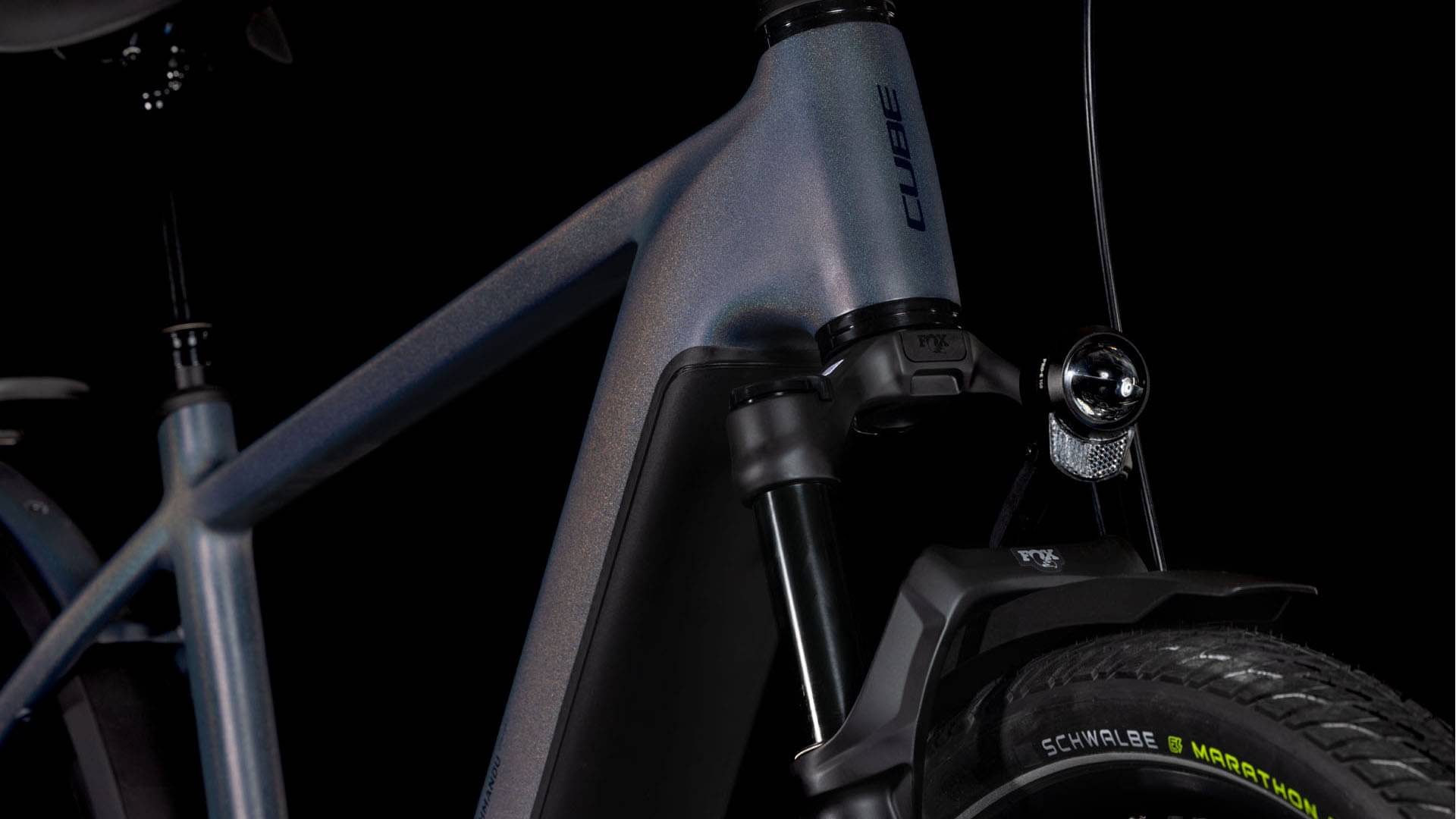

Suspension Fork
Fox 34 Float AWL, 2-Position Sweep-Adjust RAIL Damper, Tapered, 15x110mm, E-Bike Optimized, 100mm
Drivetrain
Shift Levers
Enviolo AC-CLIQ Automatiq
Cassette
Gates Rear Sprocket E9 CDX, 24T

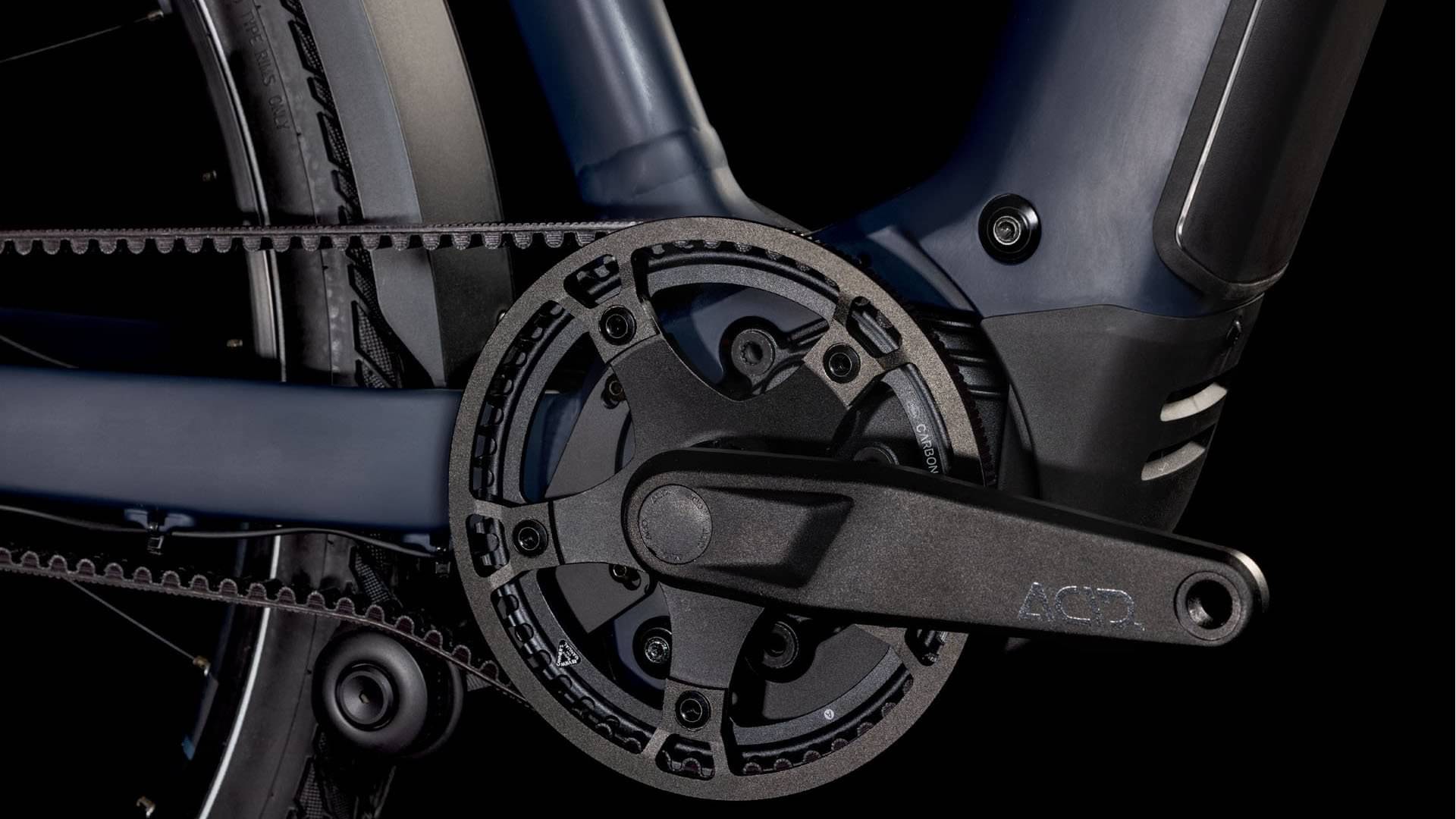

Crank
ACID MTB Hybrid Pro
Pedals
ACID PP MTB
Wheels
Front Hub
CUBE Engineered By Newmen, 15mm, Boost, 6-Bolt
Rear Hub
Enviolo Trekking, 380%, 6-Bolt, 135mm

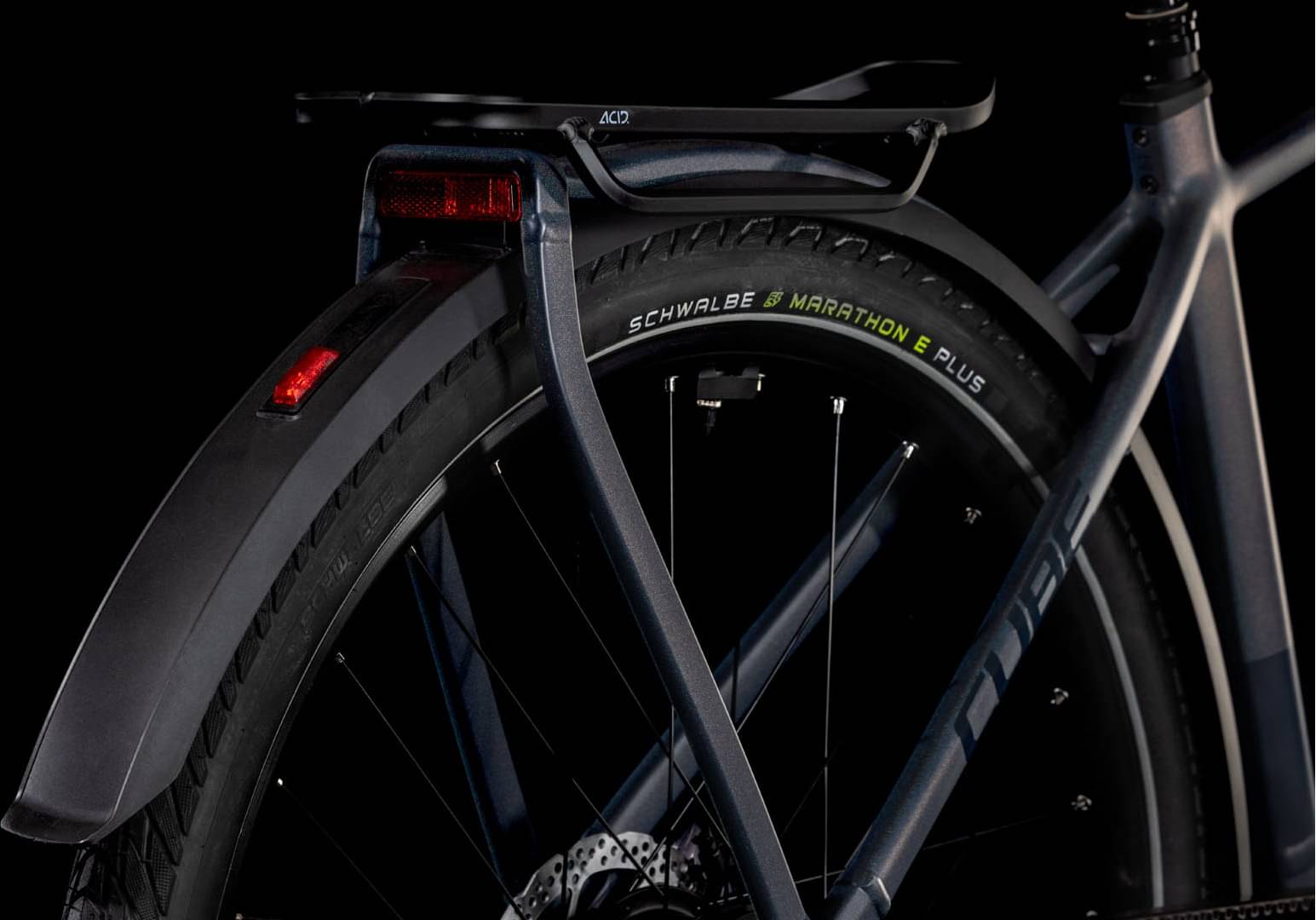

Tires
Schwalbe Marathon E-Plus, PerfL, 55-622
Brakes
Brakes
Shimano XT BR-M8120, Hydr. Disc Brake (180/180)

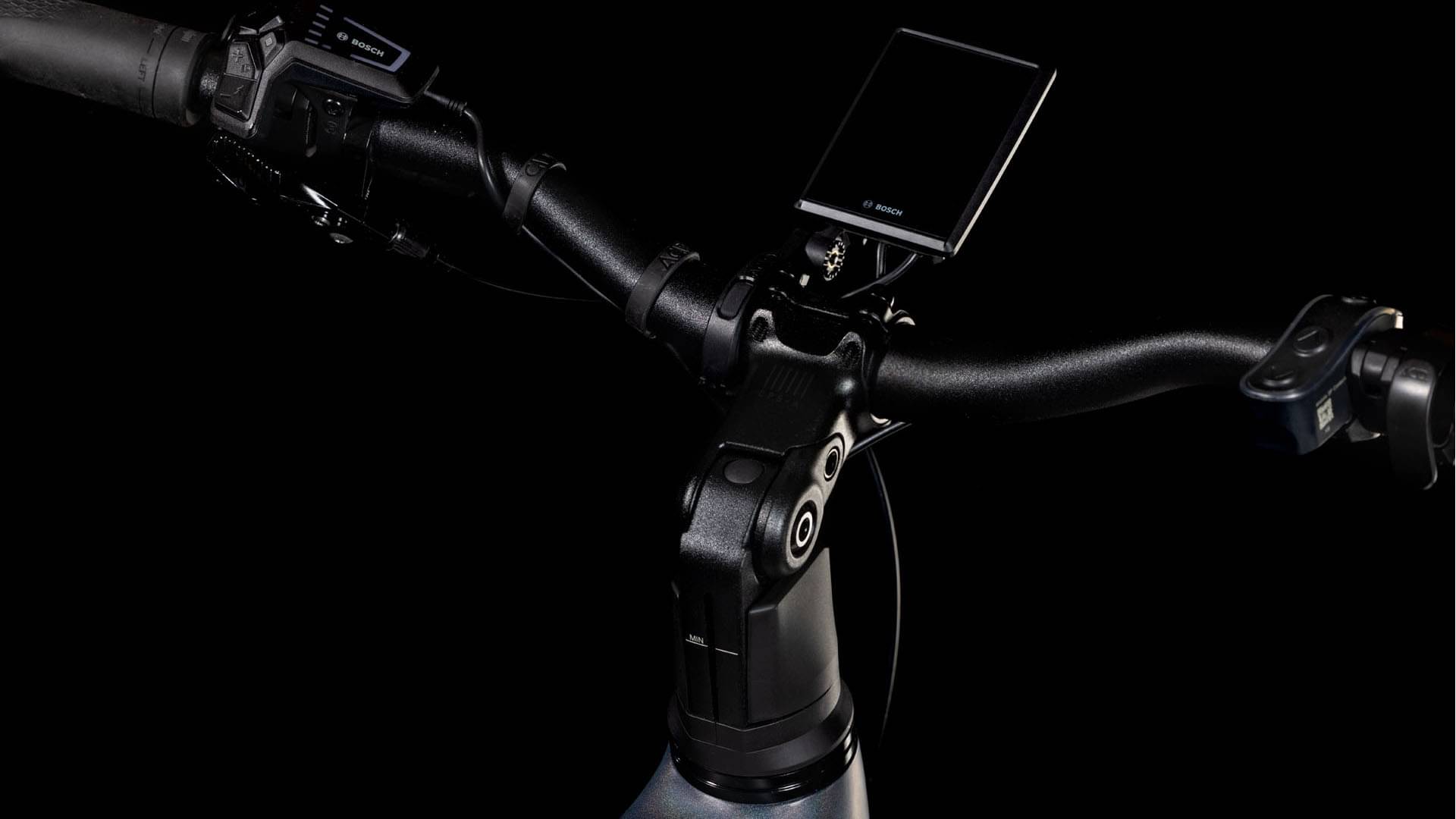

Cockpit
Stem
CUBE Comfort Stem Pro, 31.8mm, Adjustable
Handlebar
CUBE Comfort Trail Bar, 700mm
Grips
ACID Travel Comfort Gripshift
Headset
ACROS AZF-1035, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm), HIC
Seat
Saddle
ACID Shen Pro
Seatpost
CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm
Motor & Battery
Motor
Bosch Drive Unit Performance Line CX 85Nm (BDU38), Smart System
Battery
Bosch PowerTube 800
Remote
Bosch LED Remote
Charger
Bosch 4A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 50cm | 54cm | 58cm | 62cm |
|---|---|---|---|---|
| Stack Reach Ratio | 1.591 mm | 1.595 mm | 1.568 mm | 1.576 mm |
| Front Center | 682 mm | 691 mm | 712 mm | 735 mm |
| Rake | 44 mm | 44 mm | 43 mm | 44 mm |
| Trail | 94 mm | 90 mm | 91 mm | 90 mm |
| Stack | 638 mm | 654 mm | 668 mm | 692 mm |
| Reach | 401 mm | 410 mm | 426 mm | 439 mm |
| Top Tube Length | 590 mm | 610 mm | 630 mm | 650 |
| Seat Tube Angle | 73.5 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 460 mm | 510 mm | 560 mm | 600 mm |
| Head Tube Angle | 68 ° | 68.5 ° | 68.5 ° | 68.5 ° |
| Head Tube Length | 110 mm | 125 mm | 140 mm | 165 mm |
| Chainstay Length | 499 mm | 499 mm | 499 mm | 499 mm |
| Wheelbase | 1173 mm | 1182 mm | 1203 mm | 1226 mm |
| Bottom Bracket Drop | 68 mm | 68 mm | 68 mm | 68 mm |
| Wheels | 29" | 29" | 29" | 29" |
