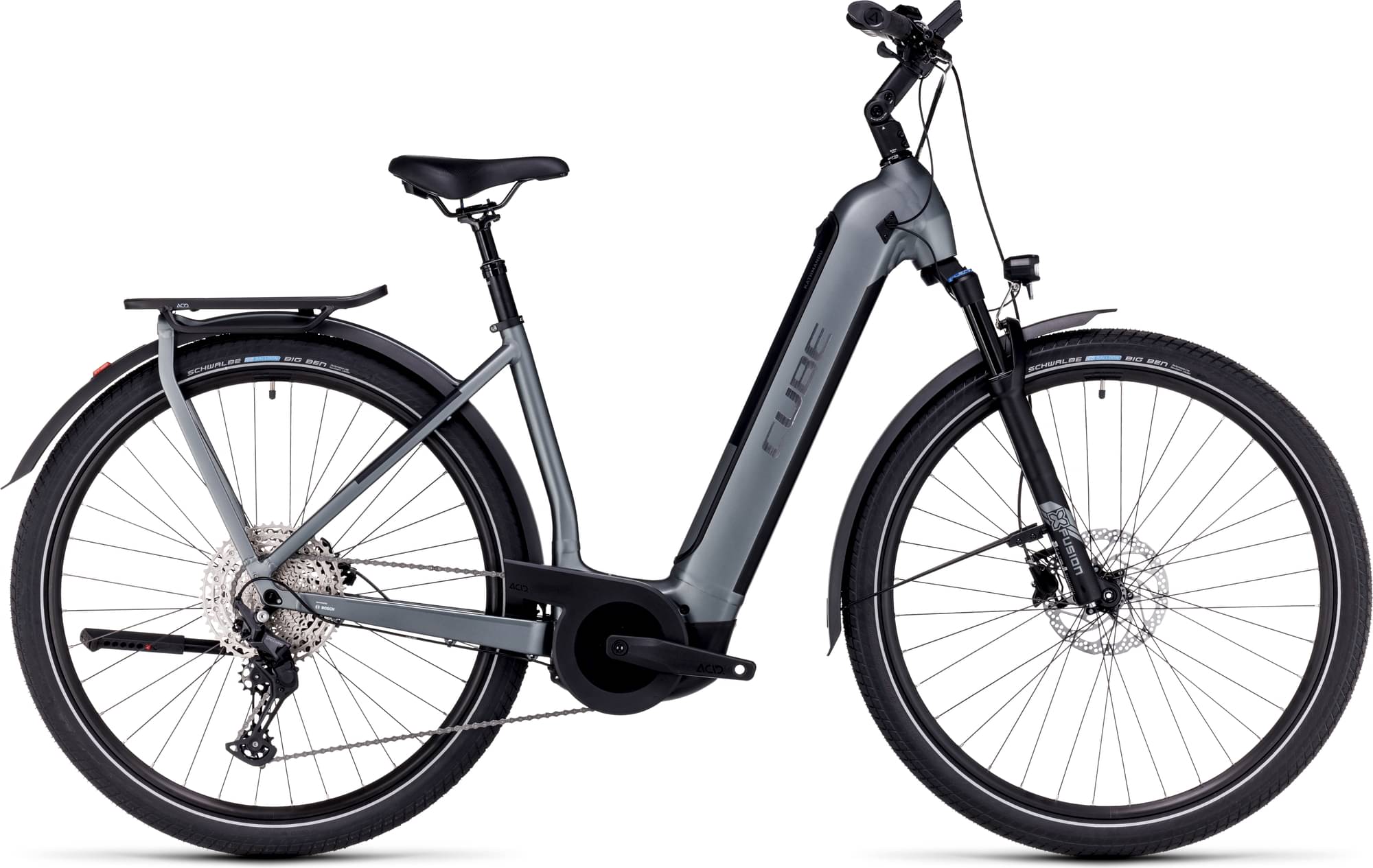

CUBE KATHMANDU HYBRID, PRO 625 2024
2024 E-bike
Estimate price |
4,013$
Weight | 26.2 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 100mm -
Fork X-Fusion MIG
-
Groupset Deore -
Suspension Hardtail -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch PowerTube 625 -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
151cm - 164cm
SM
159cm - 170cm
MD
165cm - 177cm
LG
171cm - 184cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame

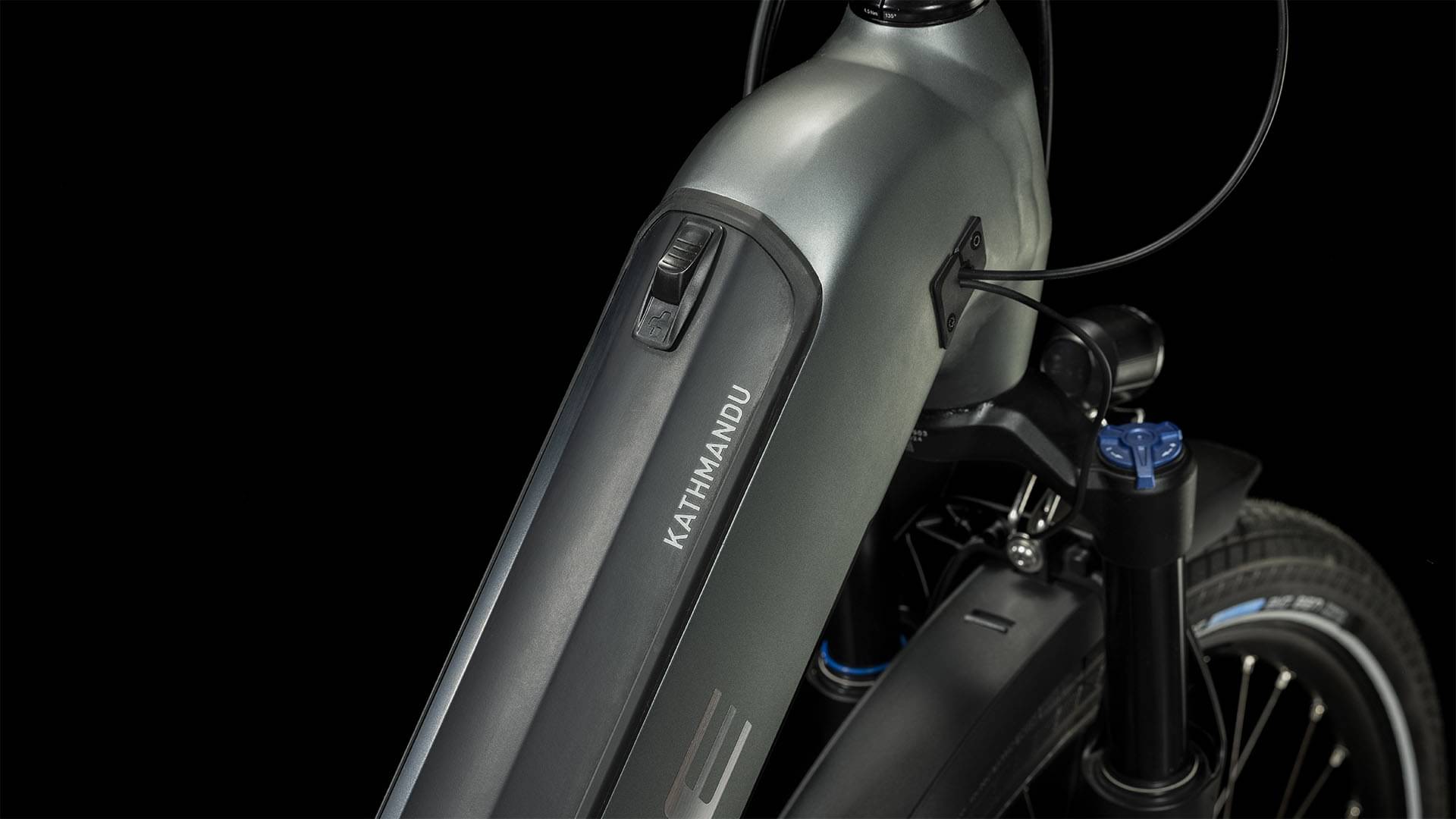

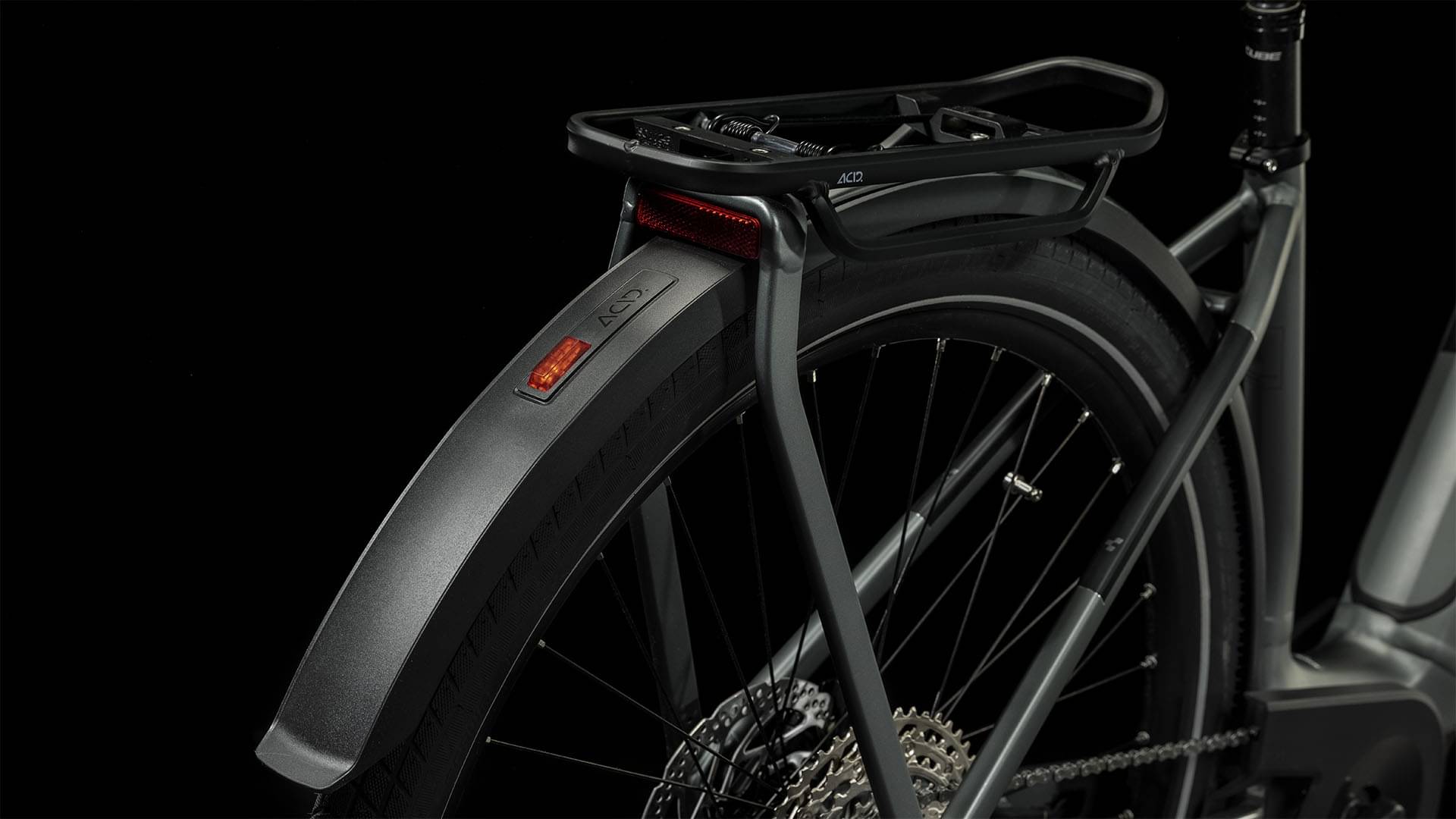

Aluminium Superlite, Gravity Casting Technology, Efficient Comfort Geometry, Boost148, Fully Integrated Battery, Integrated Carrier 3.0, Advanced Internal Cable Routing, 1.5 Headtube (EE: Tapered Headtube)
Suspension Fork
X-Fusion MIG32 Air, Tapered, 15x110mm, 100mm, Lockout
Drivetrain
Rear Derailleur
Shimano Deore RD-M5100-SGS, 11-Speed
Shift Levers
Shimano Deore SL-M5100, Rapidfire-Plus
Cassette
Shimano Deore CS-M5100, 11-51T
Crank
ACID E-Crank, 40T, 175mm (EE: 170mm)
Chain
KMC X11
Pedals
ACID PP Trekking
Wheels
Front Hub
Shimano HB-MT400-B, 15mm, Boost, Centerlock
Rear Hub
Shimano FH-MT400-B, 12mm, Boost, Centerlock
Rims
CUBE EX23, 36H, Disc, Tubeless Ready
Tires
Schwalbe Big Ben, Performance, K-Guard, 55-622
Brakes
Brakes
Shimano BR-MT200, Hydr. Disc Brake (180/180)
Cockpit
Stem

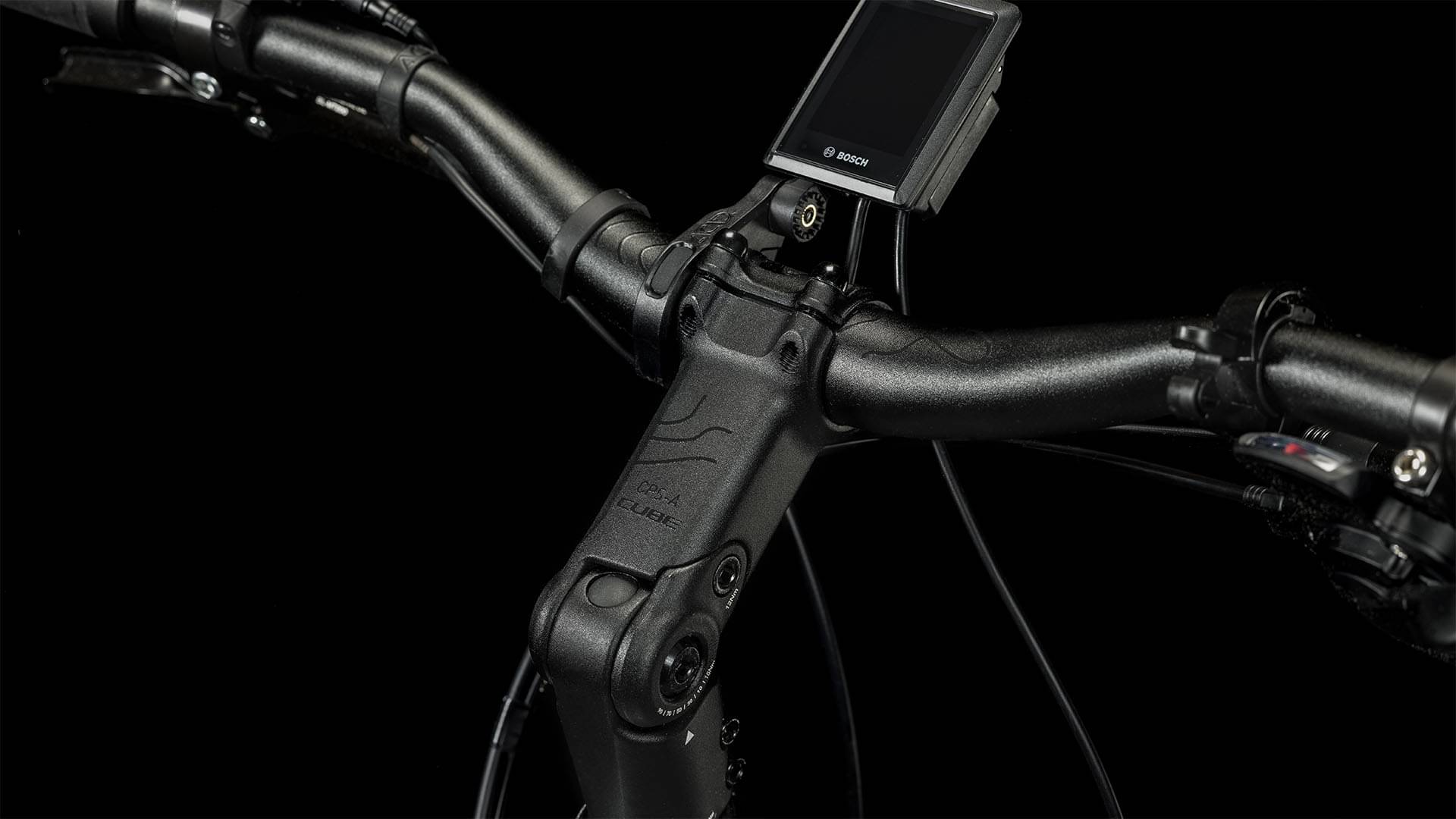

CUBE Comfort Stem Pro, 31.8mm, Adjustable
Handlebar
CUBE Comfort Trail Bar, 700mm
Grips
ACID Travel Comfort
Headset
M/Z: ACROS AZF-1035, ICR (Integrated Cable Routing), BlockLock 120°, Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm) // EE: ACROS AZX-1040, BlockLock 135°, Top Zero-Stack 1 1/8" (ZS 44mm), Bottom Zero-Stack 1 1/2" (ZS 56mm)
Seat
Saddle

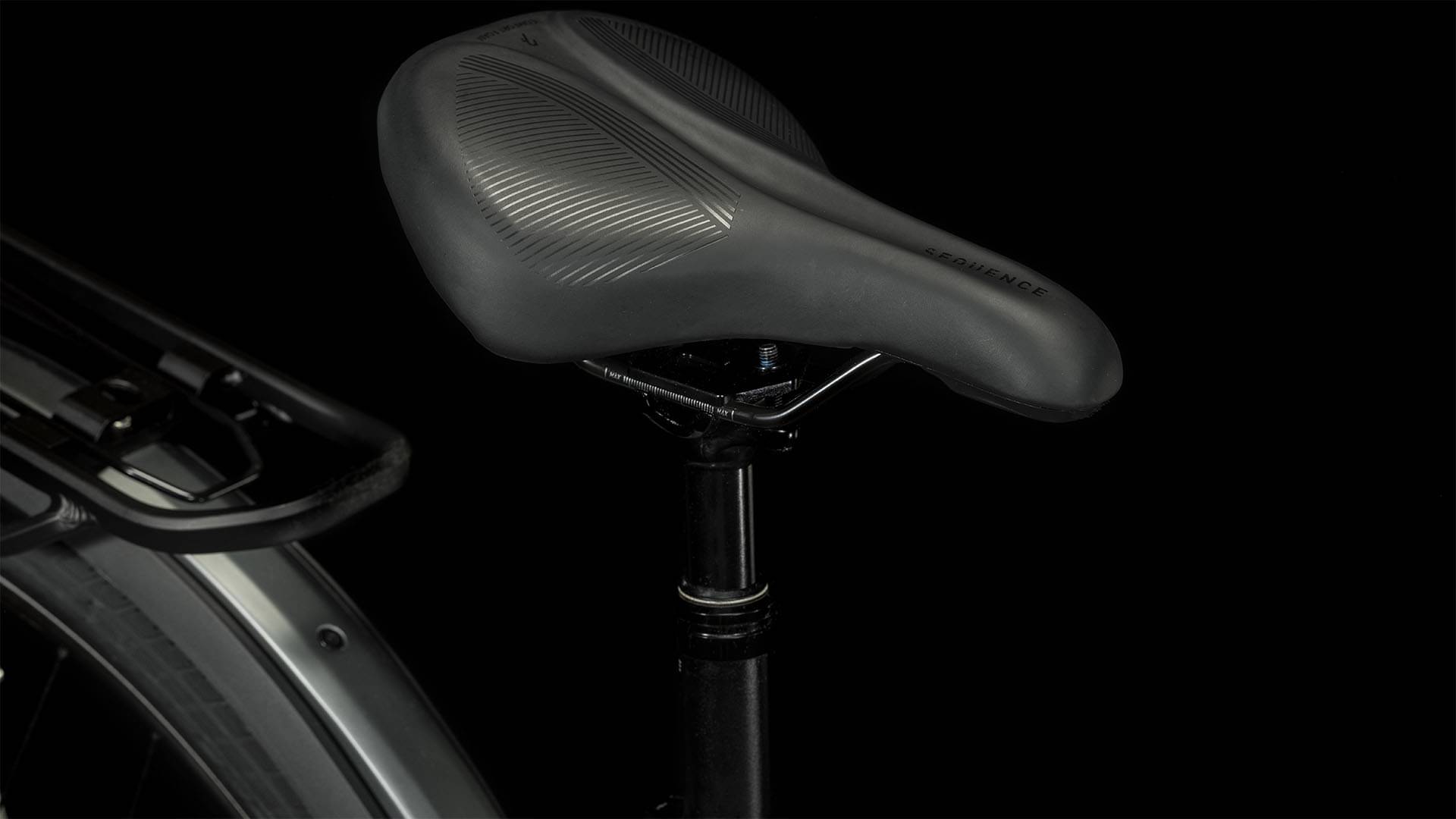

Natural Fit Sequence Comfort
Seatpost
CUBE Suspension Seatpost HD, 30.9mm
Motor & Battery
Motor
Bosch Drive Unit Performance CX Generation 4 (85Nm) Cruise (250Watt), Smart System
Battery
Bosch PowerTube 625
Remote
Bosch LED Remote
Charger
Bosch 4A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG |
|---|---|---|---|---|
| Stack Reach Ratio | 1.712 mm | 1.712 mm | 1.687 mm | 1.659 mm |
| Front Center | 688 mm | 688 mm | 699 mm | 709 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 83 mm | 83 mm | 83 mm | 83 mm |
| Stack | 673 mm | 673 mm | 678 mm | 682 mm |
| Reach | 393 mm | 393 mm | 402 mm | 411 mm |
| Top Tube Length | 600 mm | 600 mm | 610 mm | 620 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 440 mm | 480 mm | 520 mm | 560 mm |
| Head Tube Angle | 68.5 ° | 68.5 ° | 68.5 ° | 68.5 ° |
| Head Tube Length | 150 mm | 150 mm | 155 mm | 160 mm |
| Chainstay Length | 490 mm | 490 mm | 490 mm | 490 mm |
| Wheelbase | 1168 mm | 1168 mm | 1179 mm | 1189 mm |
| Bottom Bracket Drop | 75 mm | 75 mm | 75 mm | 75 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 151 cm | 159 cm | 165 cm | 171 cm |
| Rider Max Height | 164 cm | 170 cm | 177 cm | 184 cm |
