Bike details
Overview
Key information split into simple groups.

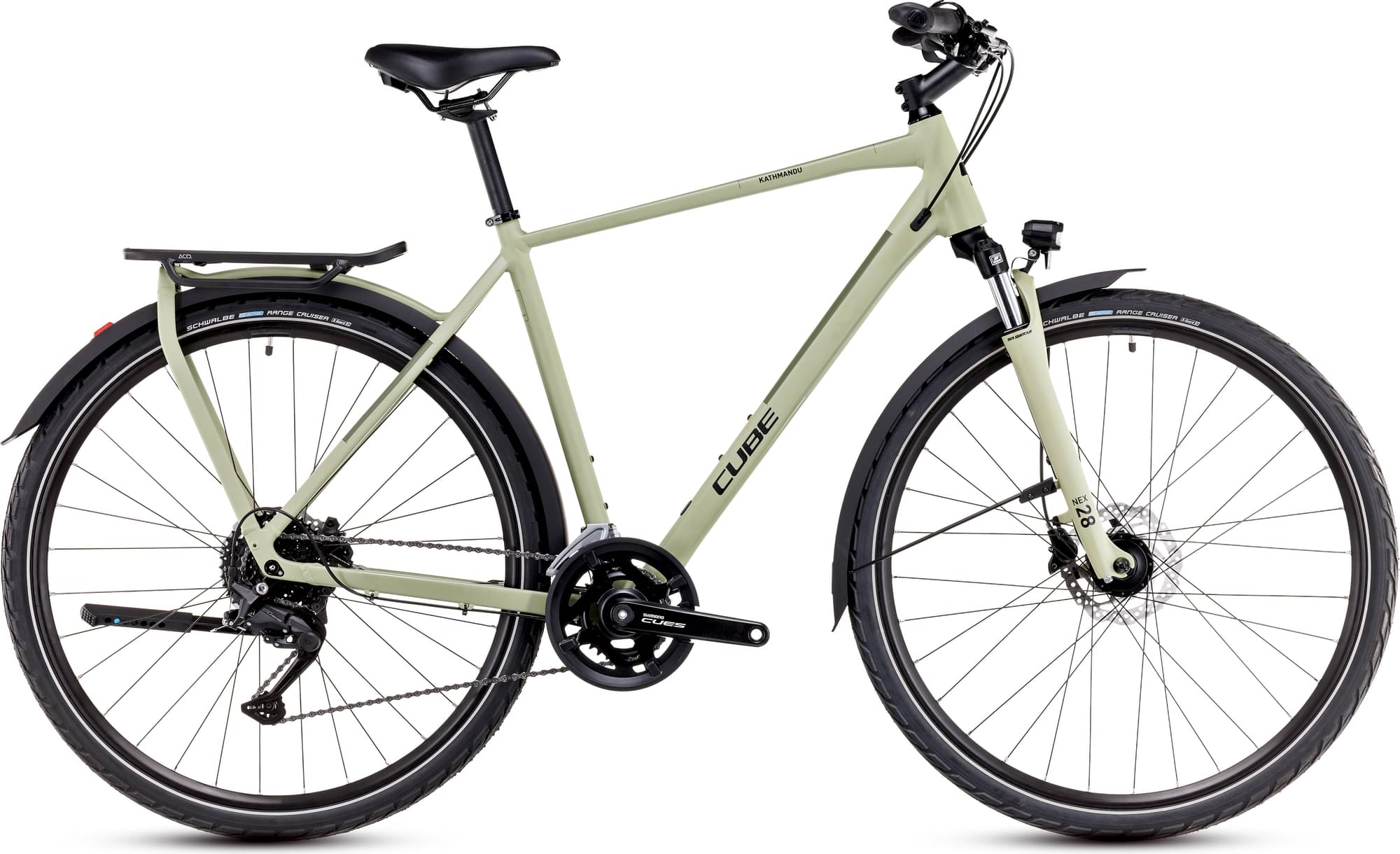

Bike summary
-
Category -
Frame Aluminum -
Travel Front 63mm -
Fork Suntour NEX
-
Groupset CUES -
Suspension Hardtail -
Drivetrain 2 × 9 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components

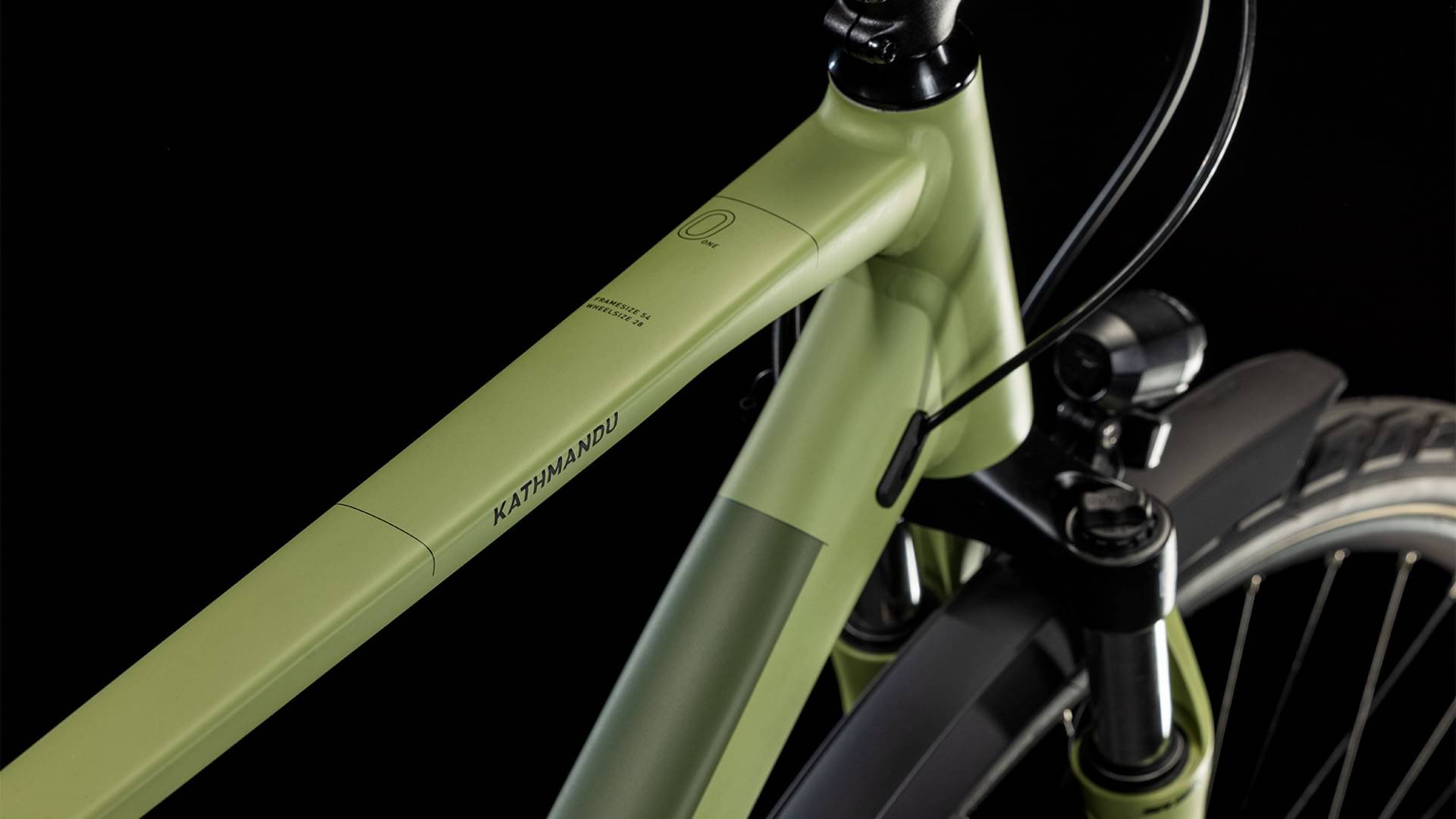

Frame
Frame

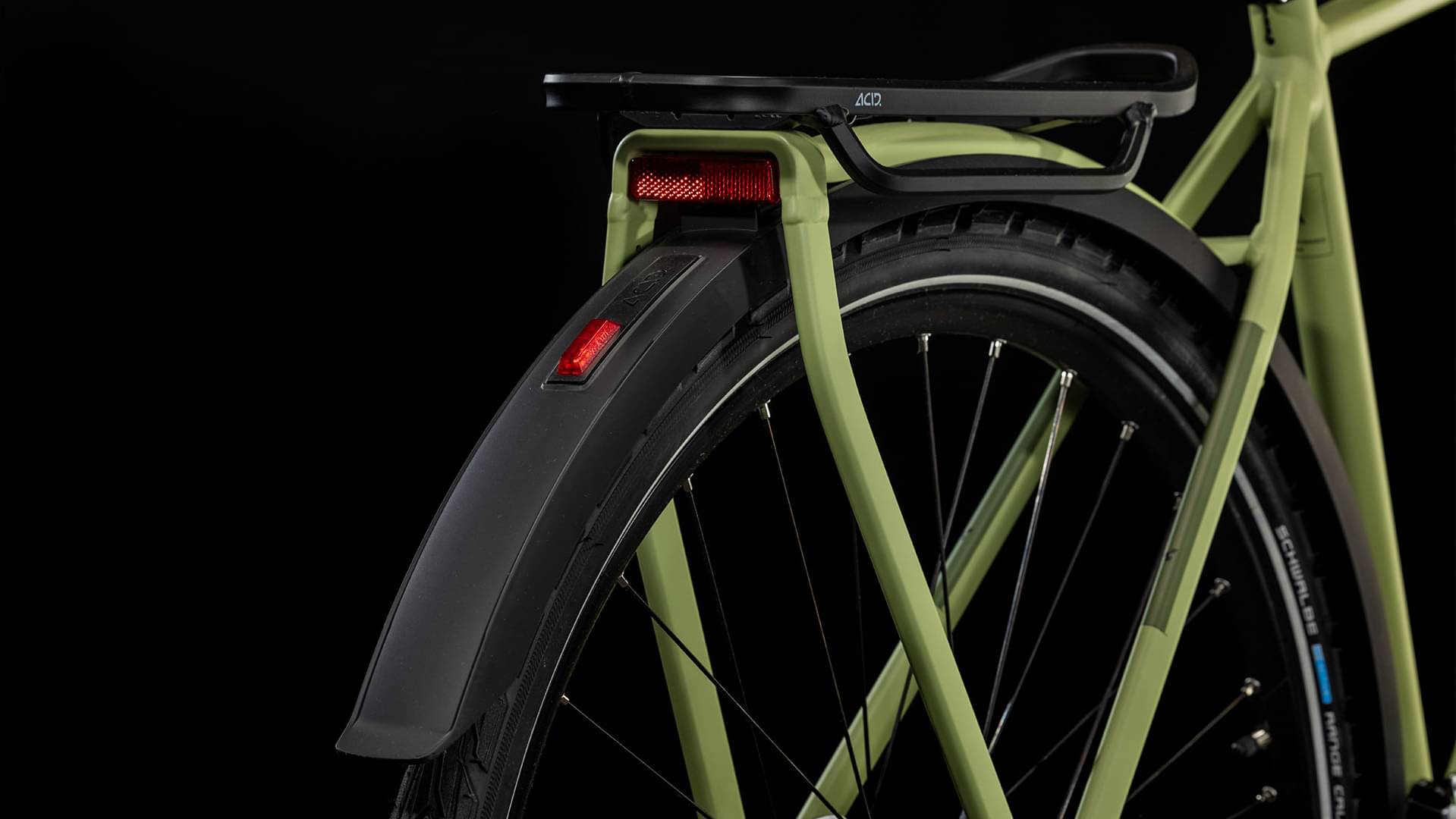

Aluminium Superlite, Trekking Comfort, Integrated Carrier 3.0, Double Butted

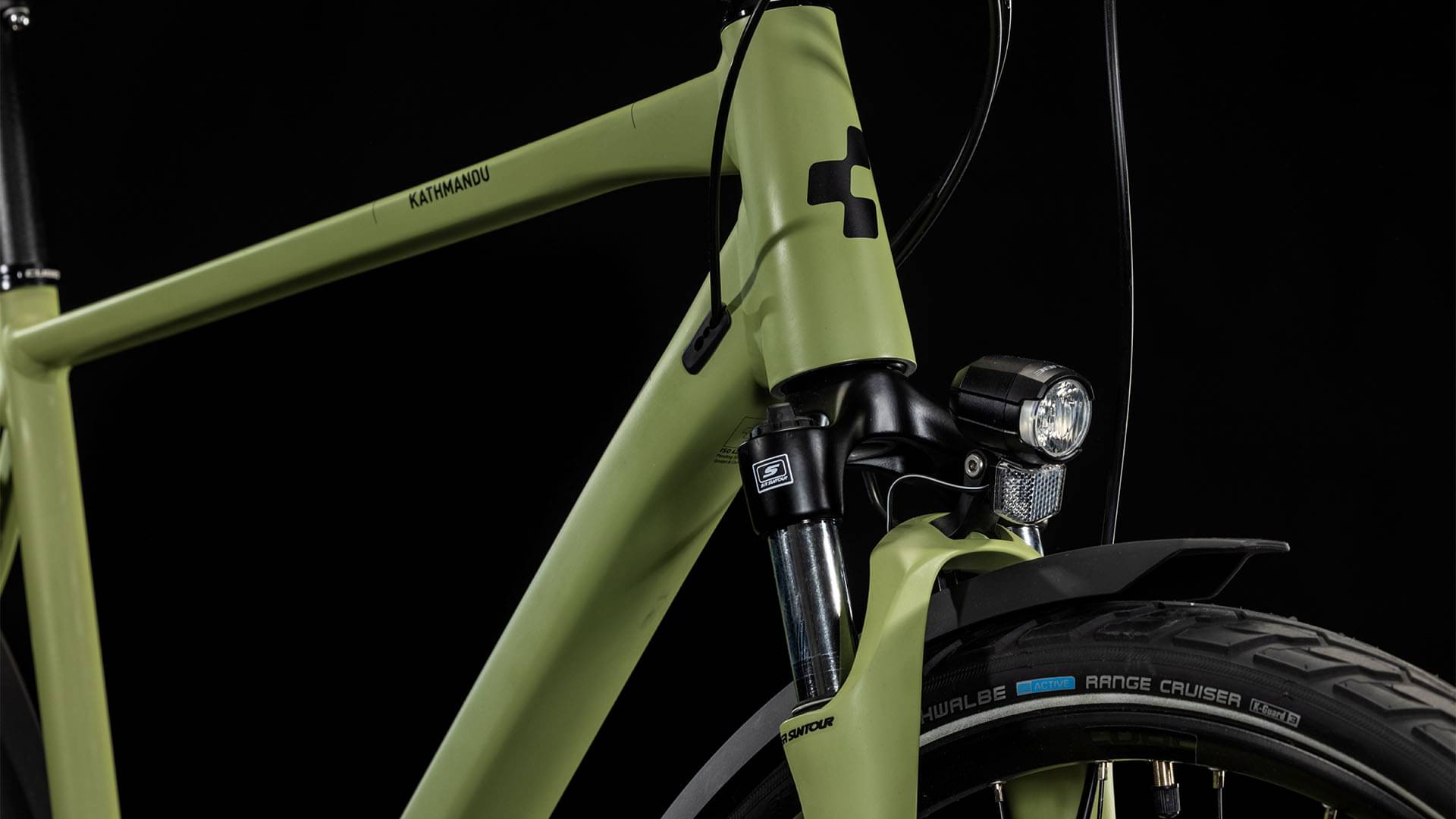

Suspension Fork
SR Suntour NEX, 63mm
Drivetrain
Rear Derailleur
Shimano Cues RD-U4020-SGS, 9-Speed
Front Derailleur
Shimano Cues FD-U4010, Top-Swing, 31.8mm
Shift Levers
Shimano Cues SL-U4010- Rapidfire-Plus
Cassette
Shimano CS-LG300, 11-36T

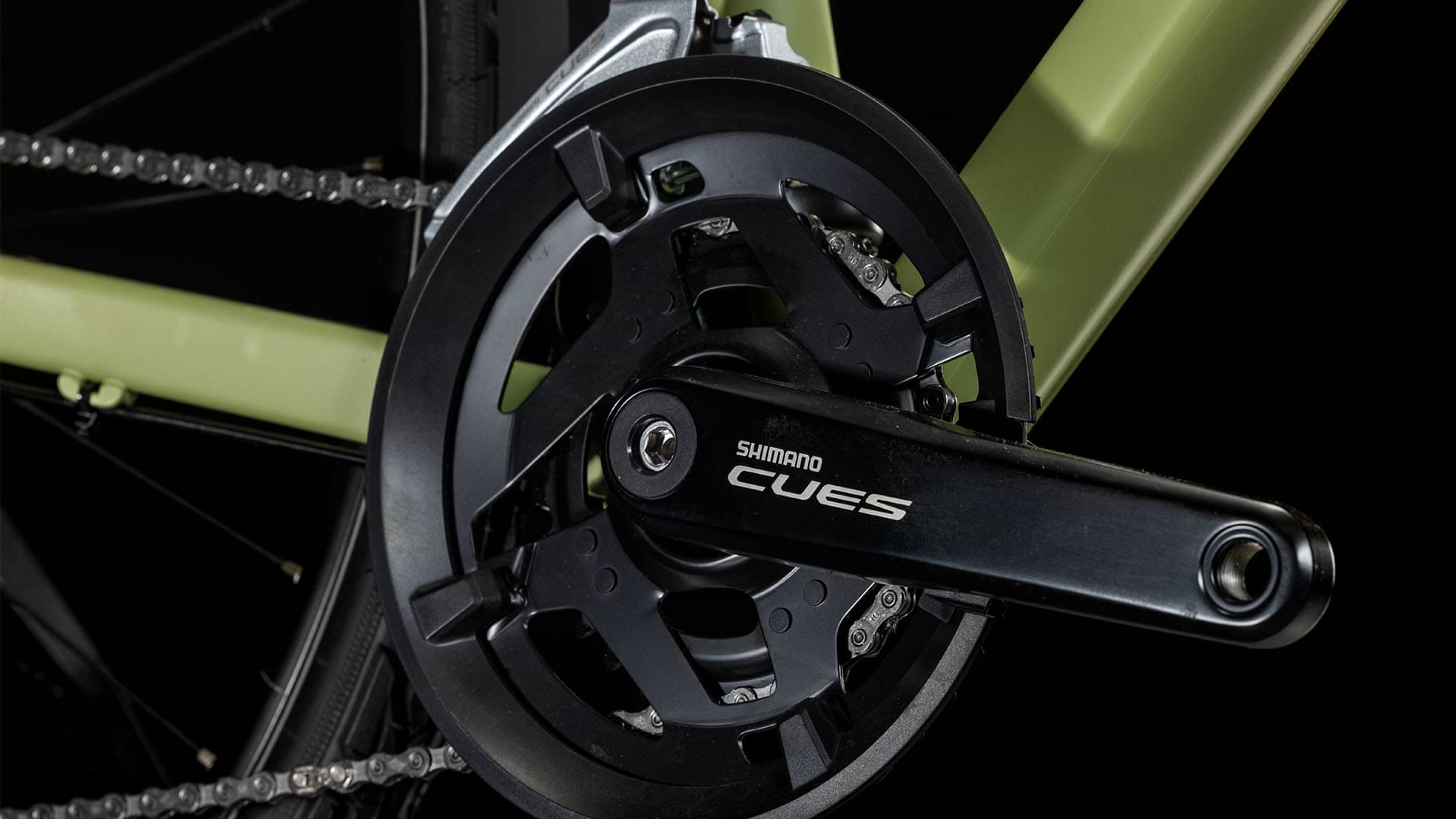

Crank
Shimano Cues FC-U4010, Hollowtech ll, 46x30T, Chainguard
Bottom Bracket
Shimano BB-MT501, 68mm BSA
Chain
Shimano CN-LG500
Pedals
CUBE PP MTB
Wheels
Front Hub
Shimano DH-3D37, Hub Dynamo, QR, Centerlock
Rear Hub
Shimano FH-MT400, 12mm, Centerlock
Rims
CUBE ZX20, 32H, Disc
Tires
Schwalbe Range Cruiser, Active, 47-622
Brakes
Brakes
Shimano BR-MT200/UR300, Hydr. Disc Brake, PM/FM (160/160)
Cockpit
Stem
CUBE Performance Stem Pro, 31.8mm
Handlebar
CUBE Comfort Trail Bar, 660mm
Grips
ACID Travel Comfort
Headset
VP Integrated, Top 1 1/8", Bottom 1 1/2"
Seat

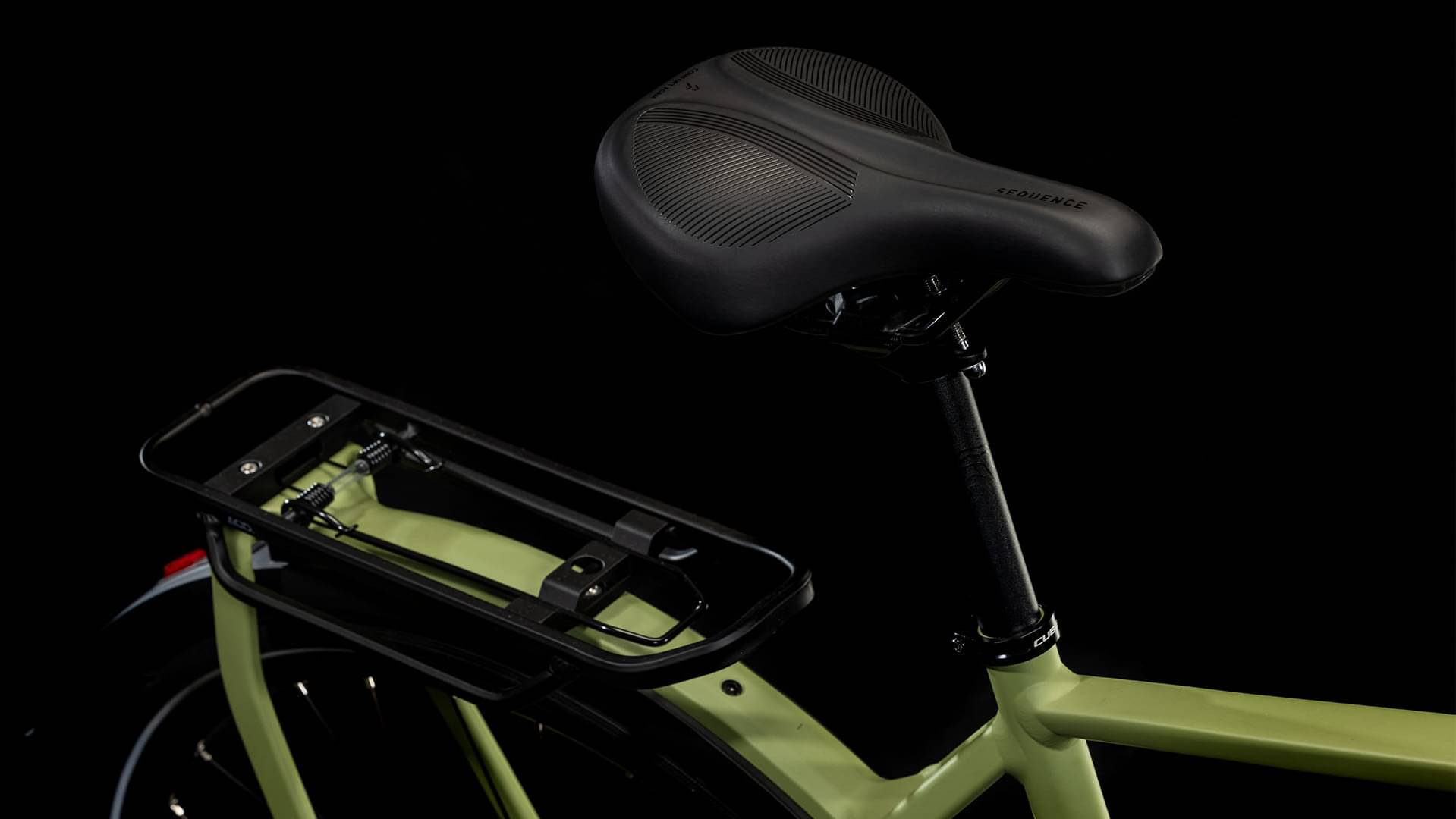

Saddle
Natural Fit Sequence Comfort
Seatpost
CUBE Performance Post, 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 46cm | 50cm | 54cm | 58cm | 62cm |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.607 mm | 1.632 mm | 1.644 mm | 1.655 mm | 1.681 mm |
| Front Center | 619 mm | 631 mm | 646 mm | 662 mm | 666 mm |
| Rake | 42 mm | 41 mm | 42 mm | 42 mm | 42 mm |
| Trail | 92 mm | 93 mm | 92 mm | 92 mm | 85 mm |
| Stack | 601 mm | 620 mm | 638 mm | 657 mm | 681 mm |
| Reach | 374 mm | 380 mm | 388 mm | 397 mm | 405 mm |
| Top Tube Length | 558 mm | 569 mm | 583 mm | 598 mm | 613 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 460 mm | 500 mm | 540 mm | 580 mm | 620 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° | 71 ° |
| Head Tube Length | 113 mm | 133 mm | 153 mm | 173 mm | 193 mm |
| Chainstay Length | 455 mm | 455 mm | 455 mm | 455 mm | 455 mm |
| Wheelbase | 1067 mm | 1079 mm | 1094 mm | 1110 mm | 1114 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm | 60 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
