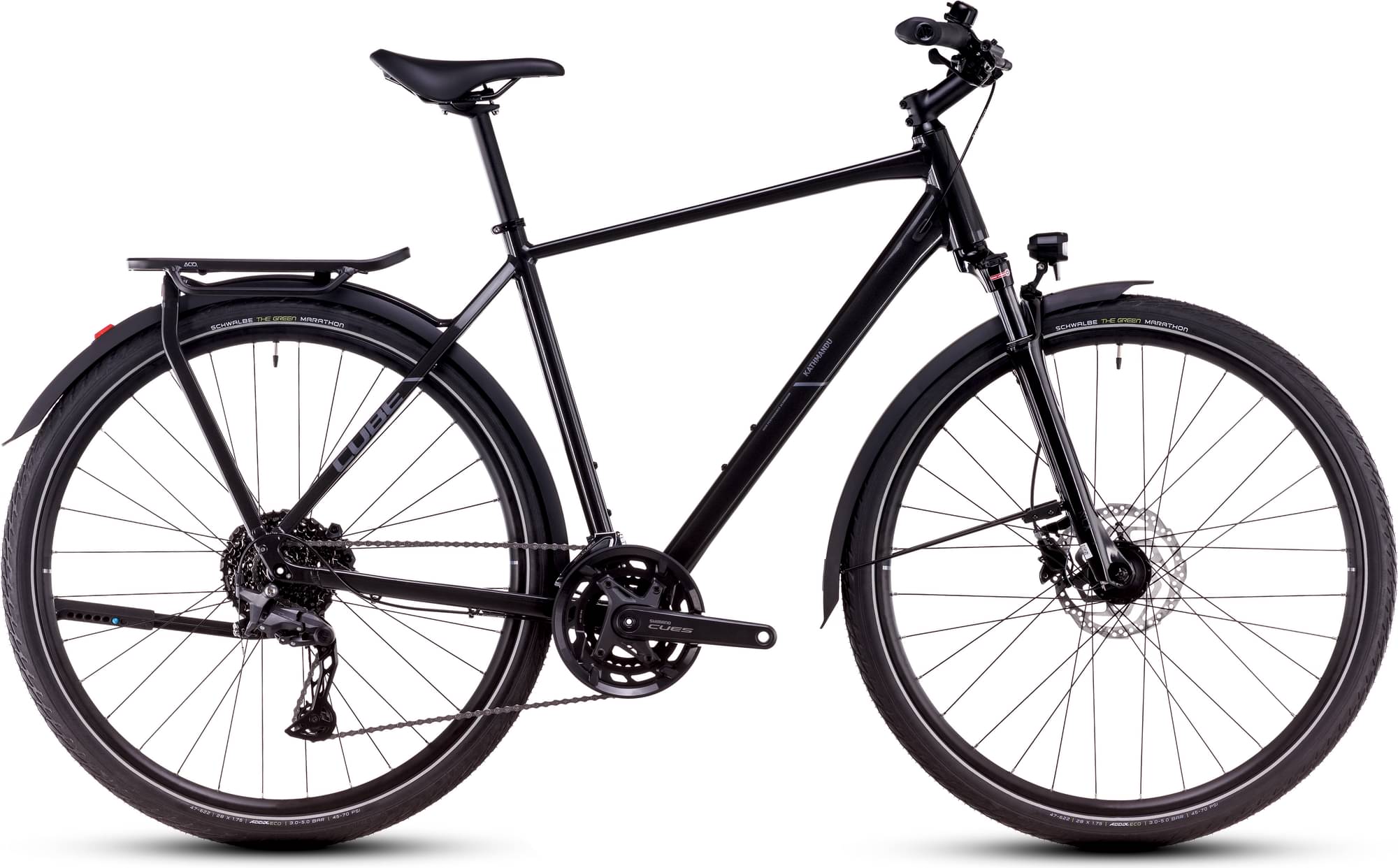

CUBE KATHMANDU, PRO 2025
2025 Mountain
Estimate price |
1,162$
Weight | 17 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Travel Front 63mm -
Fork Suntour NCX
-
Groupset CUES -
Suspension Hardtail -
Drivetrain 2 × 10 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium Superlite, Trekking Comfort, Integrated Carrier 3.0, Double Butted
Suspension Fork
SR Suntour NCX D LO Air, 63mm, Lockout
Drivetrain
Rear Derailleur
Shimano Cues RD-U6020-SGS, 10-Speed
Front Derailleur
Shimano Cues FD-U6010, Top-Swing, 31.8mm
Shift Levers
Shimano Cues SL-U6000, Rapidfire-Plus
Cassette
Shimano Cues CS-LG400, 11-39T
Crank
Shimano Cues FC-U6000, Hollowtech ll, 46x30T, Chainguard
Bottom Bracket
Shimano BB-MT501, 68mm BSA
Chain
KMC xGlide
Pedals
CUBE PP MTB
Wheels
Front Hub
Shimano DH-3D37, Hub Dynamo, QR, Centerlock
Rear Hub
Shimano FH-TC500-HM, 12mm Through Axle, Centerlock
Rims
CUBE EX25, 32H, Disc, Tubeless Ready
Tires
Schwalbe Marathon Green, Perf, 47-622
Brakes
Brakes
Shimano BR-MT200/UR300, Hydr. Disc Brake, PM/FM (160/180)
Cockpit
Stem
CUBE Performance Stem Pro, 31.8mm
Handlebar
CUBE Comfort Trail Bar, 680mm
Grips
ACID Travel Comfort
Headset
VP Integrated, Top 1 1/8", Bottom 1 1/2"
Seat
Saddle
ACID Sequence Pro 160
Seatpost
CUBE Performance Post, 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 46cm | 50cm | 54cm | 58cm | 62cm |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.607 mm | 1.632 mm | 1.644 mm | 1.655 mm | 1.681 mm |
| Front Center | 619 mm | 631 mm | 646 mm | 662 mm | 666 mm |
| Rake | 42 mm | 41 mm | 42 mm | 42 mm | 42 mm |
| Trail | 92 mm | 93 mm | 92 mm | 92 mm | 85 mm |
| Stack | 601 mm | 620 mm | 638 mm | 657 mm | 681 mm |
| Reach | 374 mm | 380 mm | 388 mm | 397 mm | 405 mm |
| Top Tube Length | 558 mm | 569 mm | 583 mm | 598 mm | 613 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 460 mm | 500 mm | 540 mm | 580 mm | 620 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° | 71 ° |
| Head Tube Length | 113 mm | 133 mm | 153 mm | 173 mm | 193 mm |
| Chainstay Length | 455 mm | 455 mm | 455 mm | 455 mm | 455 mm |
| Wheelbase | 1067 mm | 1079 mm | 1094 mm | 1110 mm | 1114 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm | 60 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
