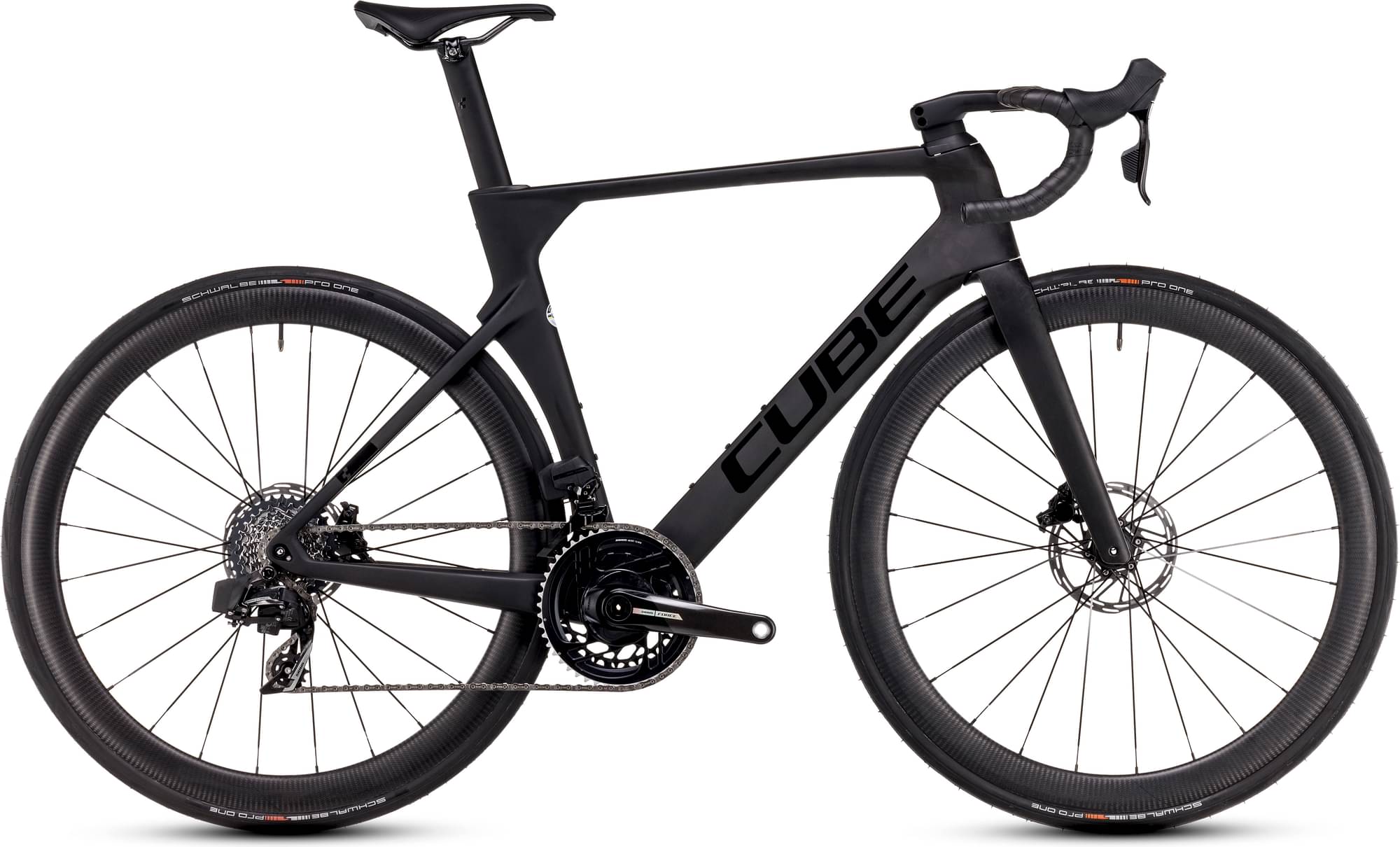

CUBE LITENING AERO C:68X PRO 2024
2024 Road
Estimate price |
5,390$
Weight | 7.7 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Groupset Force, Force eTap -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components

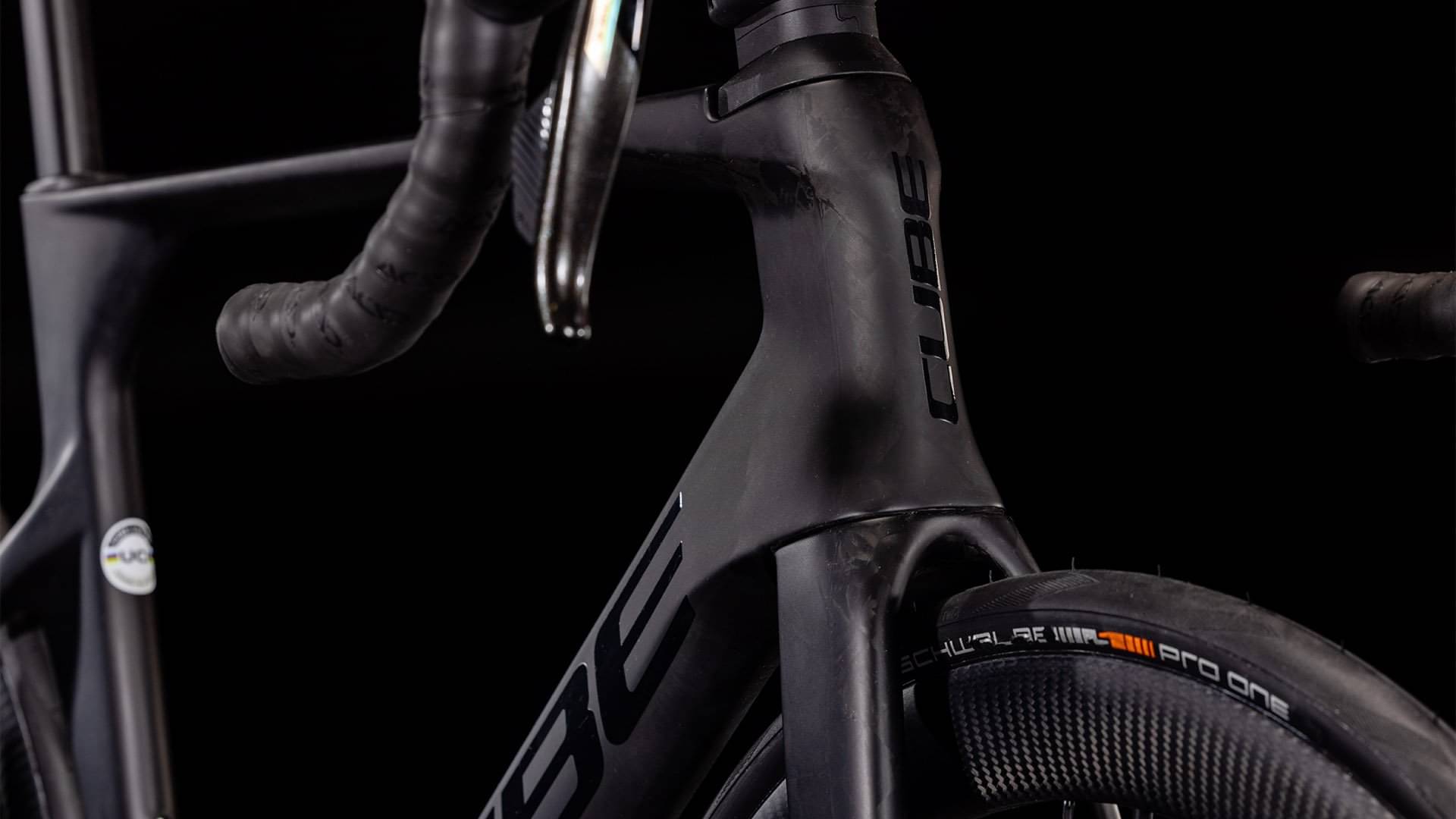

Frame

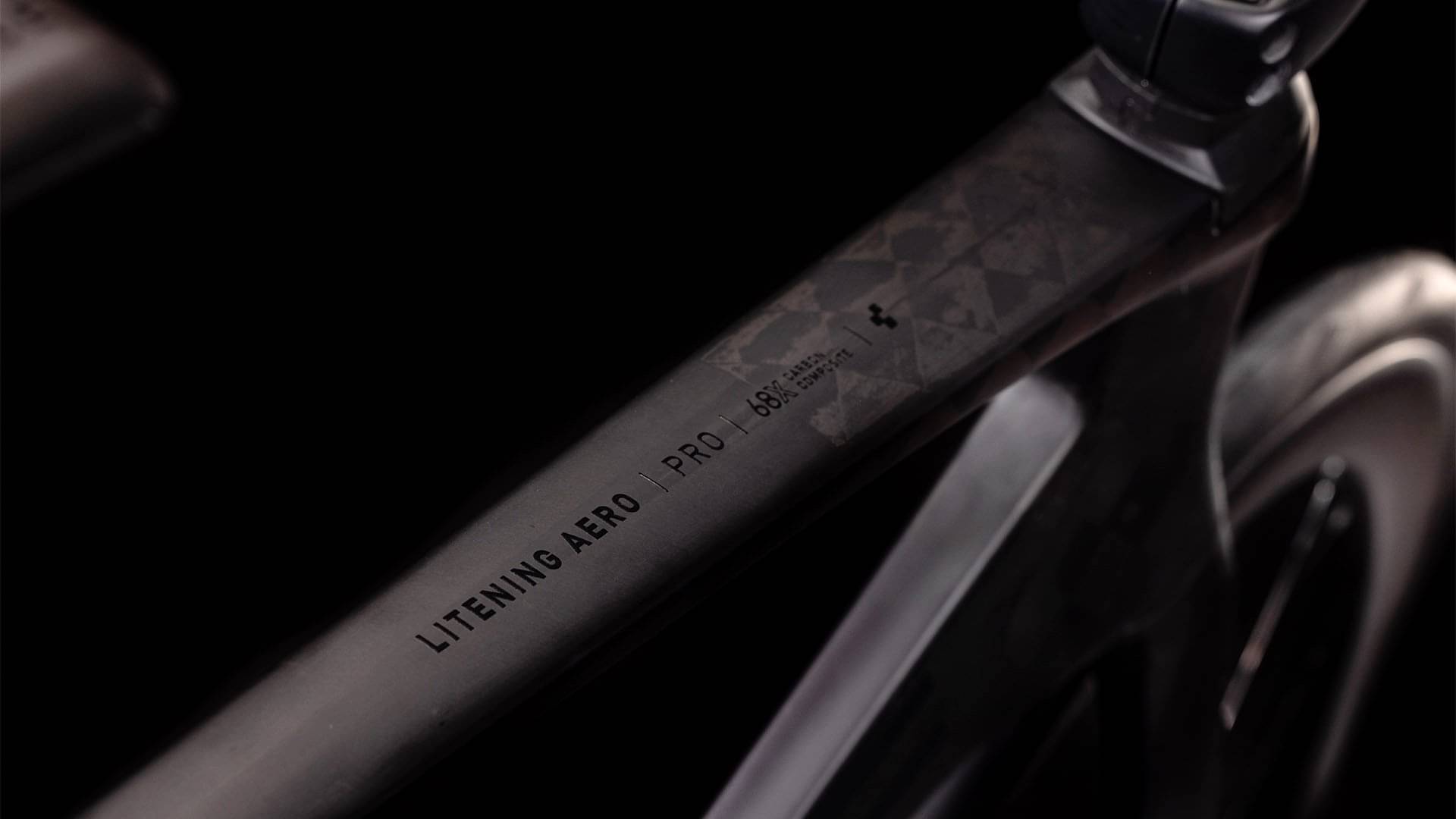

Frame
Litening C:68X® Aero Monocoque Advanced Twin Mold Technology, Aero Optimized Tubes, Full Internal Cable Routing, Flat Mount Disc
Suspension Fork
Litening C:68X® Aero, Integrated Cable Routing, Flat Mount Disc
Drivetrain

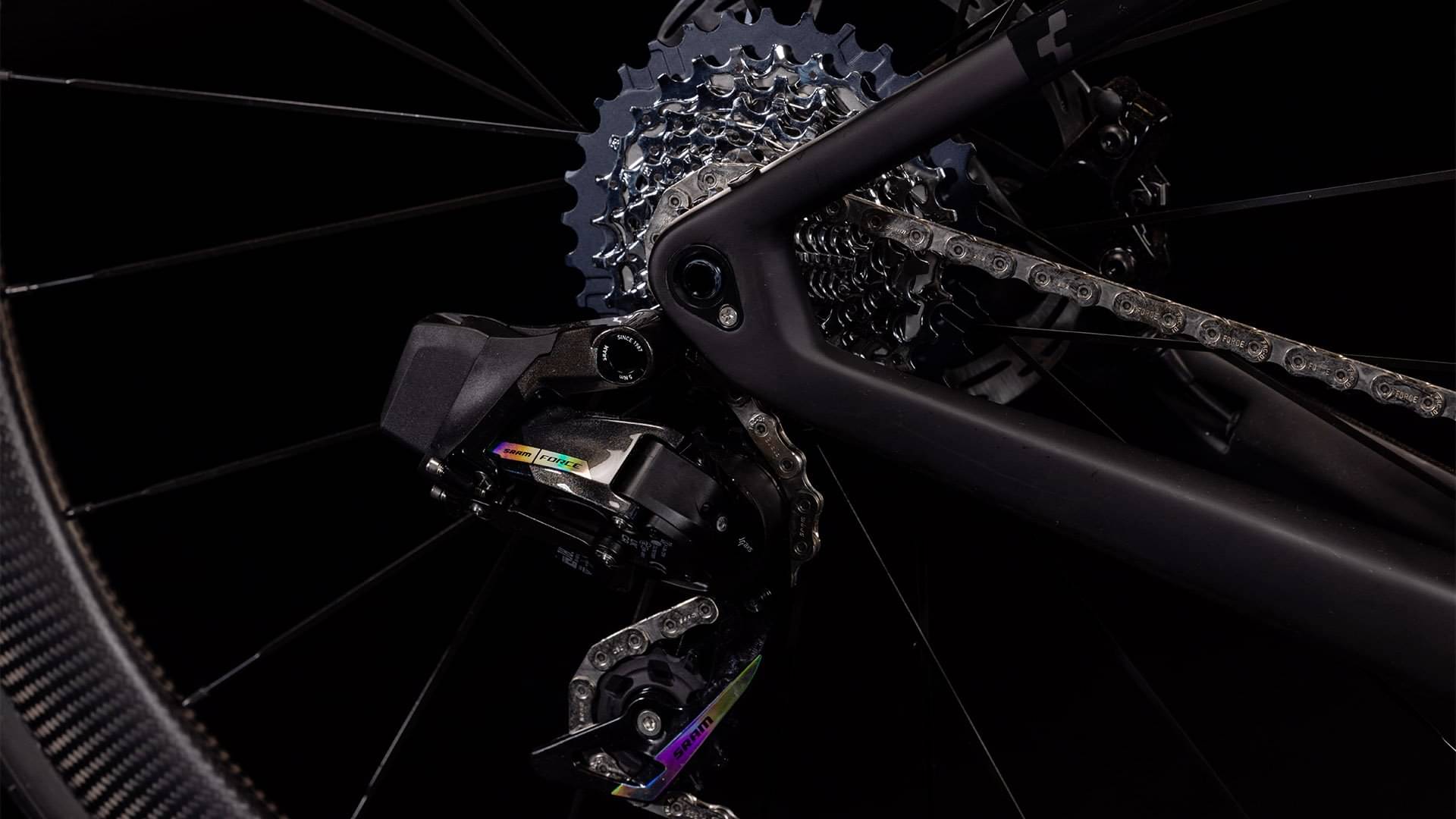

Rear Derailleur
SRAM Force AXS™, 12-Speed
Front Derailleur
SRAM Force AXS™

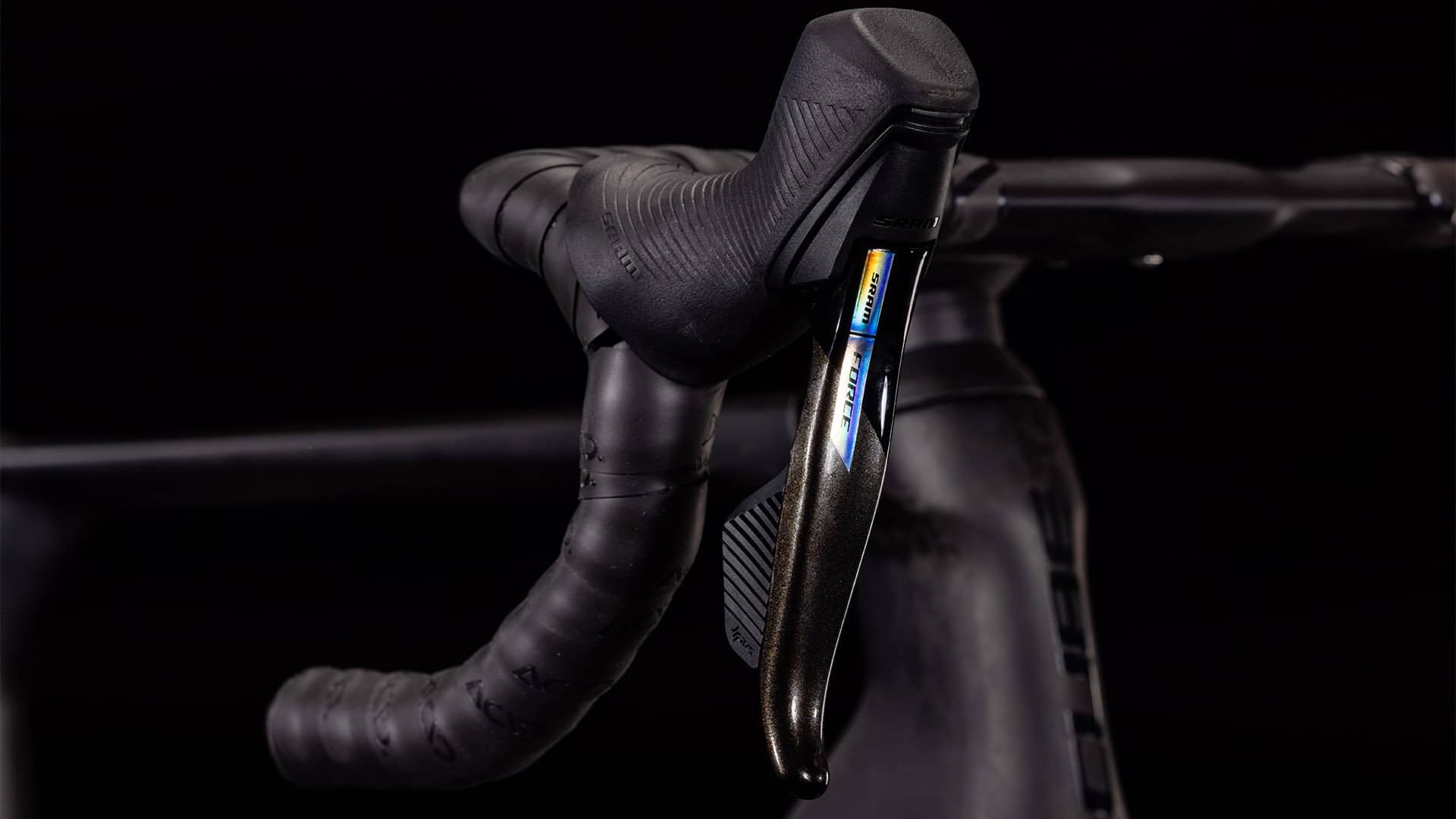

Shift Levers
SRAM Force AXS™
Cassette
SRAM Force XG-1270, 10-33T

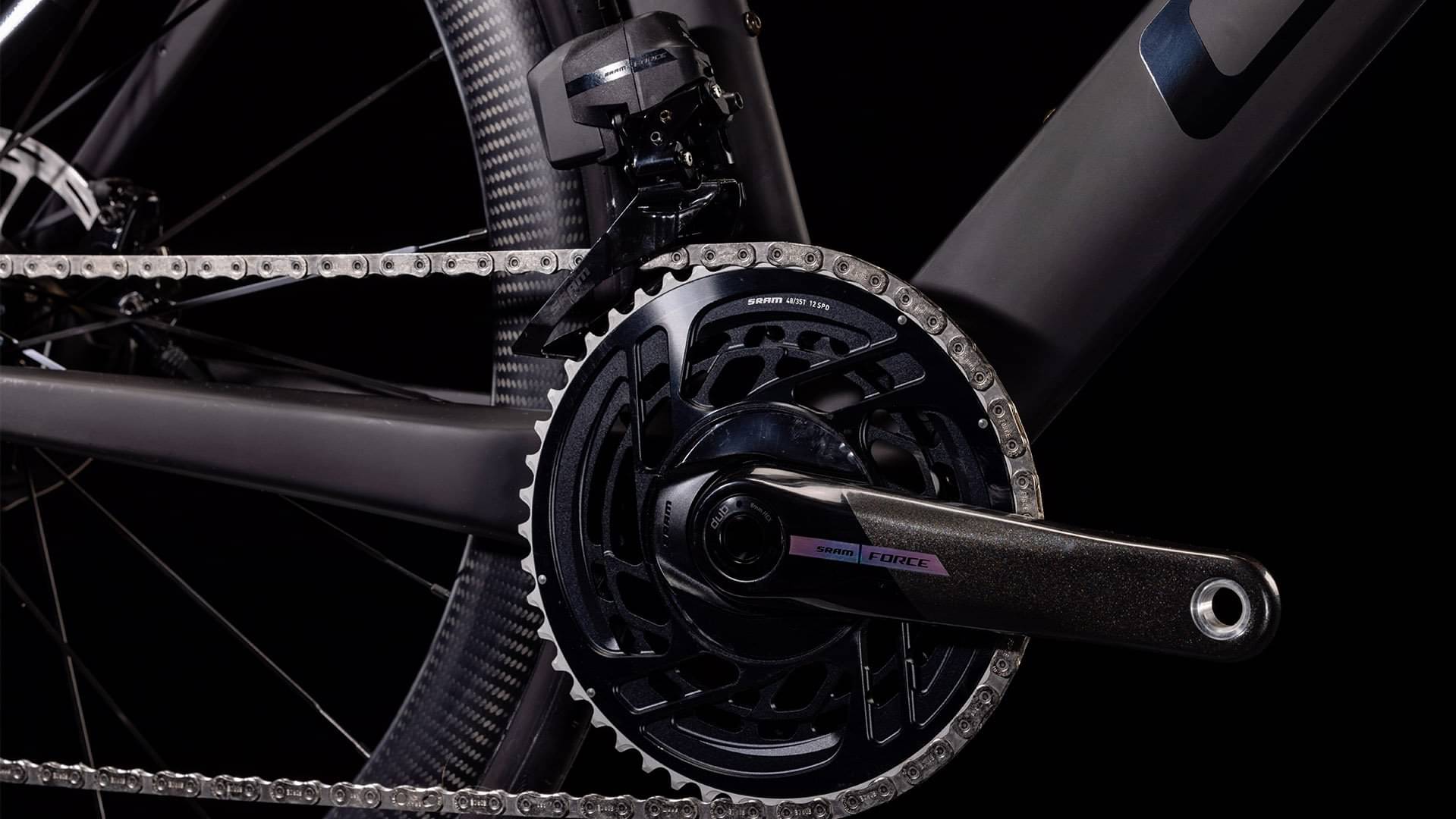

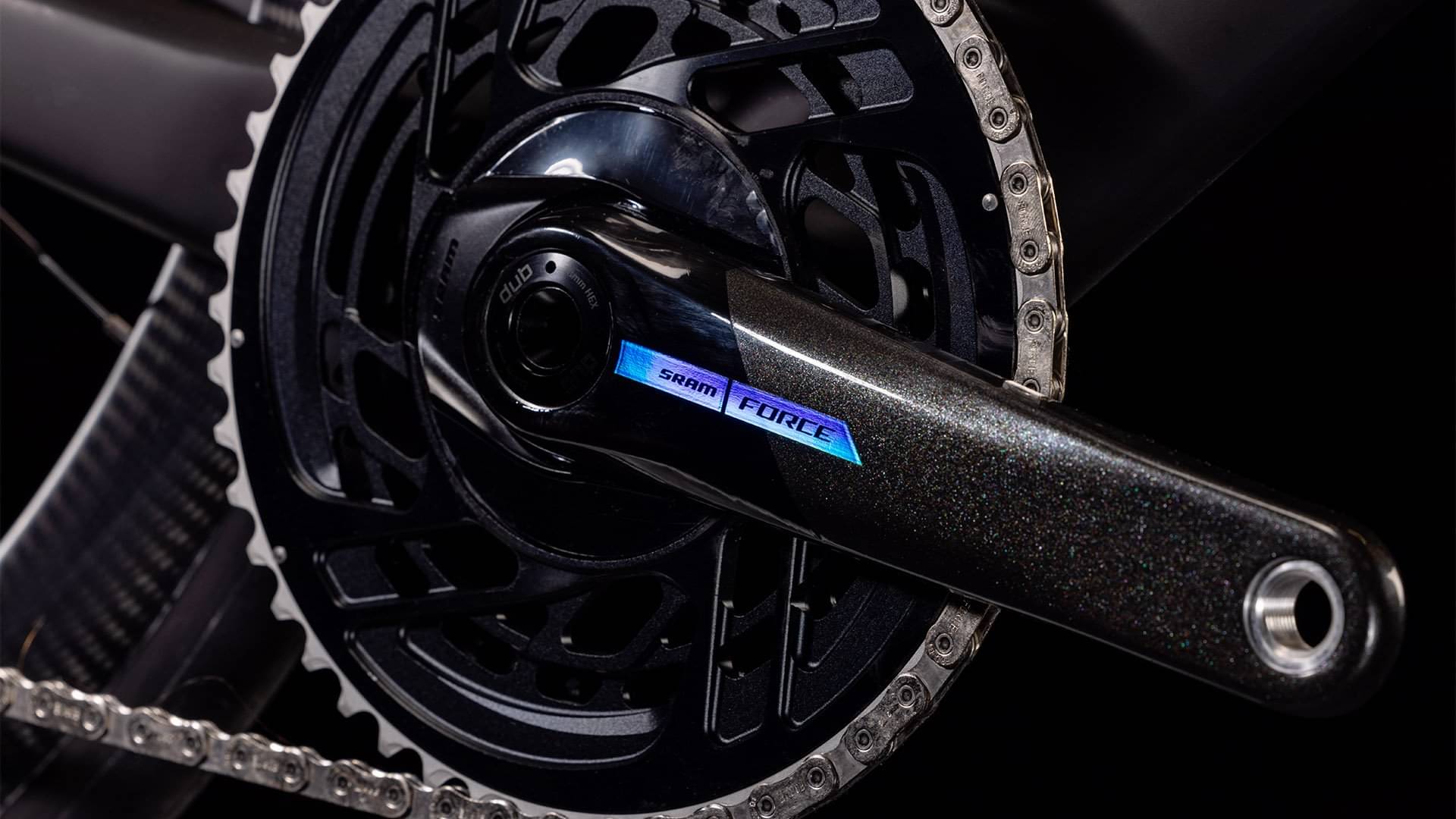

Crank
SRAM Force DUB Carbon, 48x35T
Bottom Bracket
SRAM DUB Road, 86mm Pressfit
Chain
SRAM Force D1
Wheels
Rims
Mavic Cosmic SL 45
Tires
Schwalbe Pro One, Tubeless Easy, 28-622
Brakes
Brakes
SRAM Force AXS™ (160/160)
Cockpit
Handlebar
ICR Aero Cockpit System, Integrated Cable Routing, Aero Spacer System, Garmin/Wahoo Mount Interface
Headset
ACROS, Top Integrated 1 1/8", Bottom Integrated 1 1/4"
Seat
Saddle
Natural Fit Nuance SLT Road Carbon
Seatpost
Litening C:68X® Aero, Comfort Flex
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 50cm | 52cm | 54cm | 56cm | 58cm | 60cm |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.321 mm | 1.347 mm | 1.393 mm | 1.415 mm | 1.439 mm | 1.467 mm |
| Bottom Bracket Height | 264 mm | 264 mm | 267 mm | 267 mm | 269 mm | 269 mm |
| Front Center | 582 mm | 582 mm | 584 mm | 595 mm | 604 mm | 610 mm |
| Rake | 45 mm | 44 mm | 44 mm | 45 mm | 44 mm | 44 mm |
| Trail | 60 mm | 60 mm | 57 mm | 53 mm | 54 mm | 54 mm |
| Stack | 514 mm | 524 mm | 542 mm | 563 mm | 580 mm | 594 mm |
| Reach | 389 mm | 389 mm | 389 mm | 398 mm | 403 mm | 405 mm |
| Top Tube Length | 527 mm | 537 mm | 550 mm | 565 mm | 580 mm | 592 mm |
| Seat Tube Angle | 75 ° | 74.2 ° | 73.5 ° | 73.5 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 460 mm | 480 mm | 500 mm | 520 mm | 540 mm | 560 mm |
| Head Tube Angle | 72.3 ° | 72.5 ° | 73 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Head Tube Length | 95 mm | 105 mm | 125 mm | 145 mm | 165 mm | 180 mm |
| Chainstay Length | 410 mm | 410 mm | 410 mm | 410 mm | 410 mm | 410 mm |
| Wheelbase | 981 mm | 981 mm | 984 mm | 995 mm | 1005 mm | 1011 mm |
| Bottom Bracket Drop | 72 mm | 72 mm | 69 mm | 69 mm | 67 mm | 67 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
