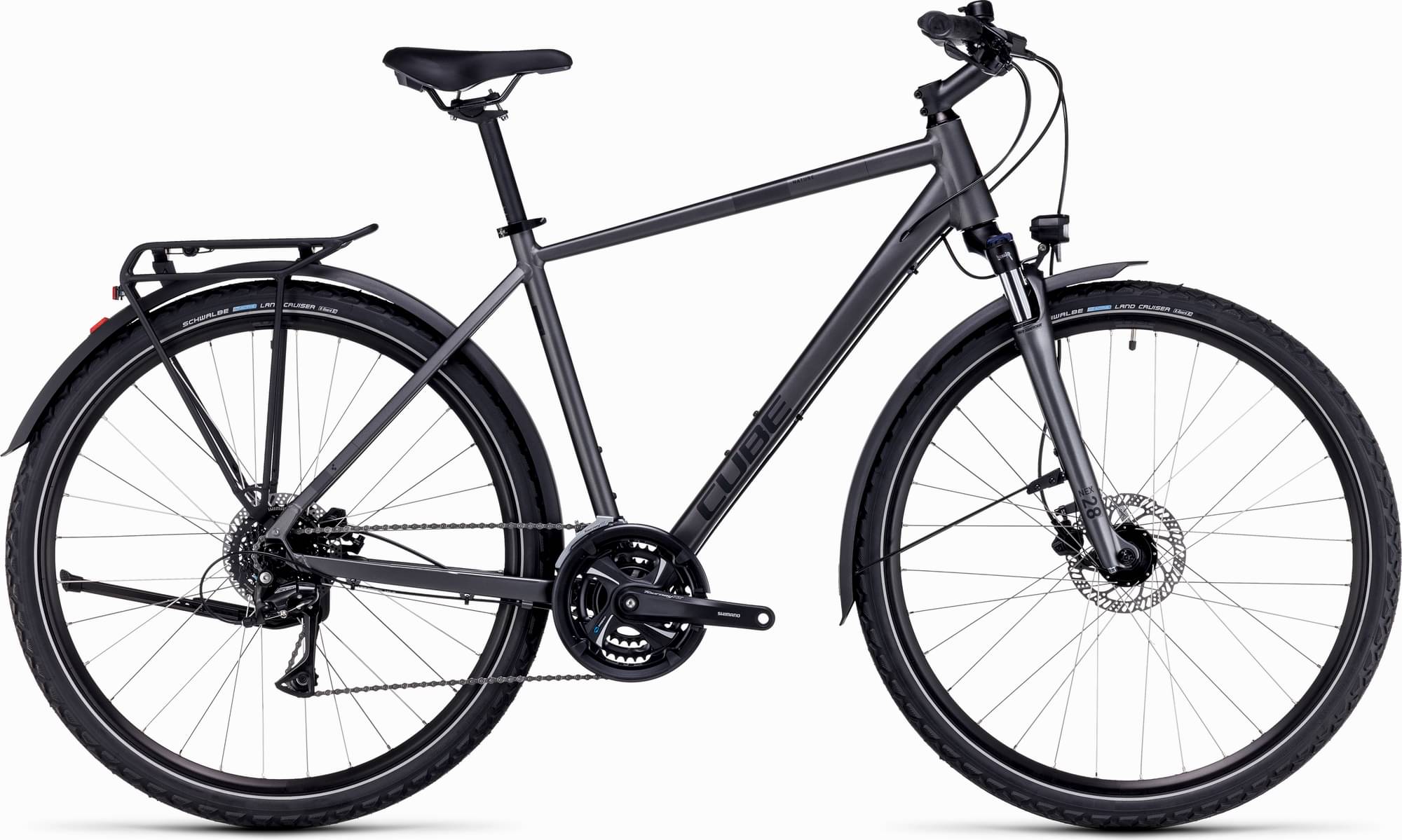

CUBE NATURE, ALLROAD 2024
2024 Urban
Estimate price |
930$
Weight | 16.8 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 63mm -
Fork Suntour NEX
-
Groupset Tourney, Acera -
Suspension Hardtail -
Drivetrain 3 × 8 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame

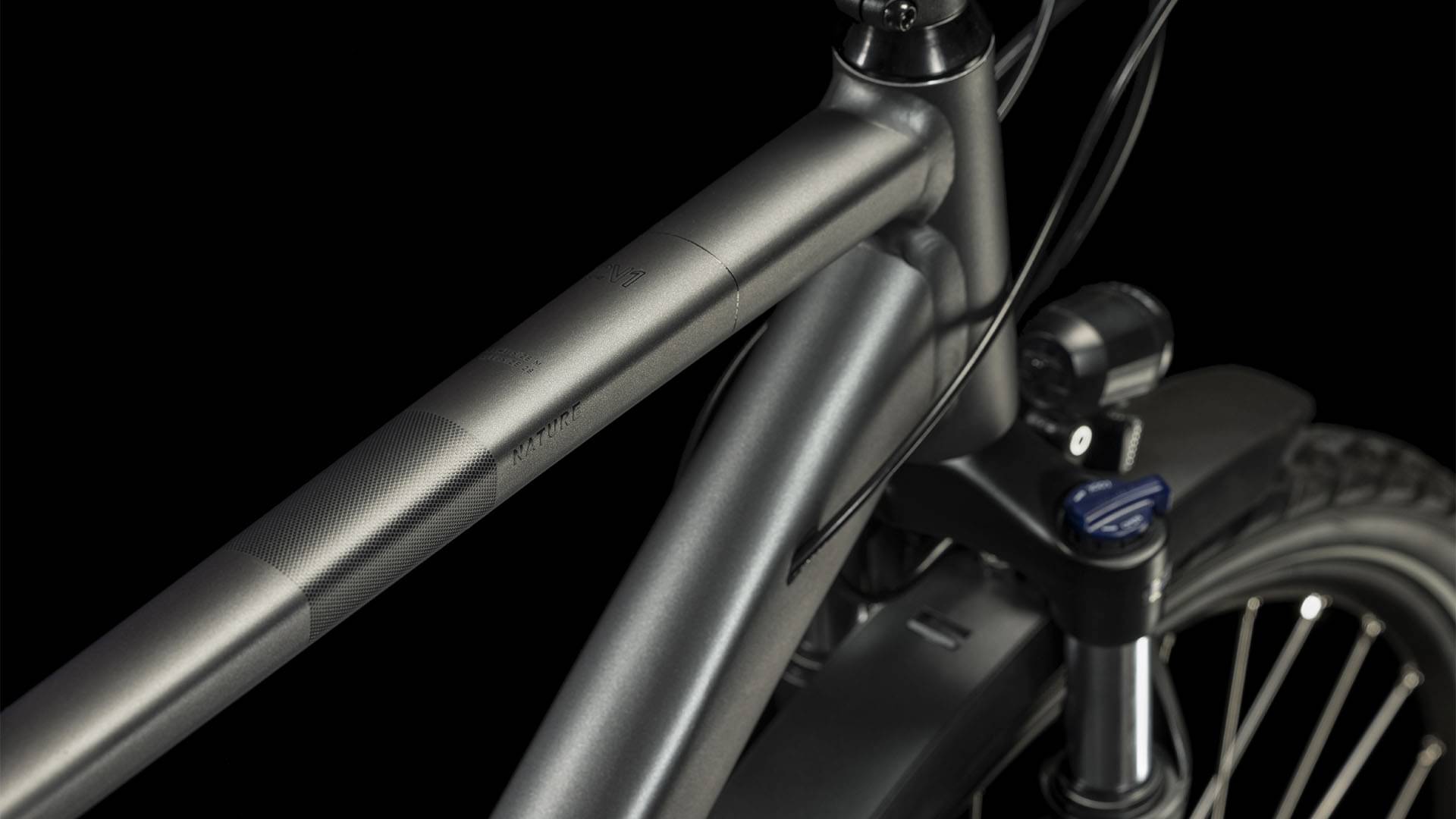

Aluminium Superlite, Trekking Cross, Taper, Double Butted
Suspension Fork
SR Suntour NEX HLO, 63mm, Lockout
Drivetrain
Rear Derailleur
Shimano RD-M3020, 8-Speed
Front Derailleur
Shimano FD-TX800, Topswing, 31.8mm
Shift Levers
Shimano SL-M315, Rapidfire-Plus
Cassette
Shimano CS-HG31, 11-34T
Crank
Shimano Tourney FC-T801, 48x36x26T, 175mm, Chainguard
Bottom Bracket
Thun Paso-ML, 68mm BSA
Chain
KMC Z51
Pedals
ACID PP MTB
Wheels
Front Hub
Shimano DH-3D32, Hub Dynamo, QR
Rear Hub
CUBE Alloy Light, QR, 6-Bolt
Rims
CUBE ZX20, 32H, Disc
Tires
Schwalbe Land Cruiser, Active, 50-622
Brakes
Brakes
Tektro HD-M275, Hydr. Disc Brake (160/160)
Cockpit
Stem
CUBE Performance Stem Pro, 31.8mm
Handlebar
CUBE Comfort Trail Bar, 660mm
Grips
ACID Travel
Headset
VP Integrated, Top 1 1/8", Bottom 1 1/2"
Seat

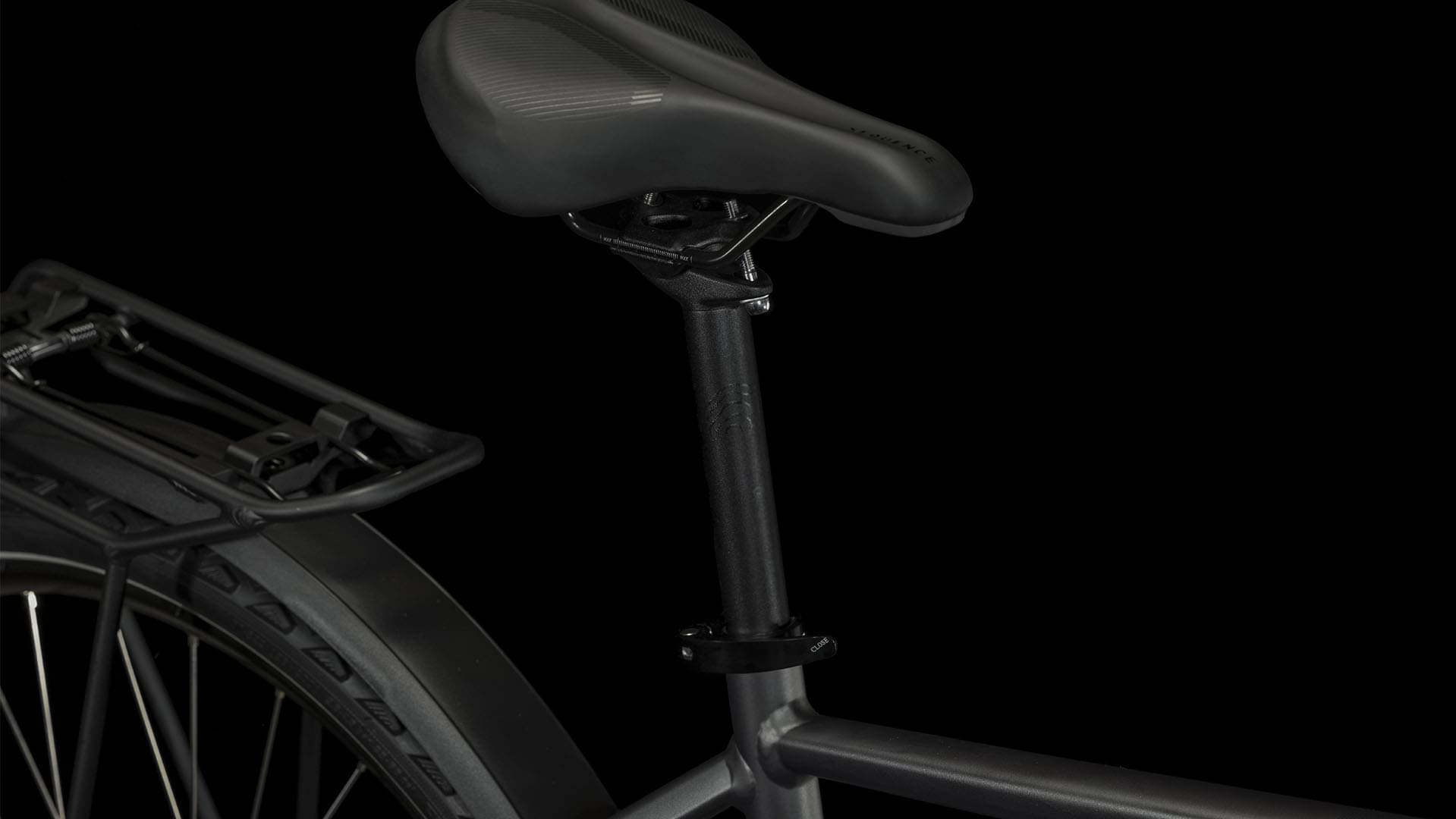

Saddle
Natural Fit Sequence
Seatpost
CUBE Performance Post, 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 46cm | 50cm | 54cm | 58cm | 62cm |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.469 mm | 1.515 mm | 1.548 mm | 1.543 mm | 1.565 mm |
| Front Center | 642 mm | 641 mm | 651 mm | 667 mm | 674 mm |
| Rake | 42 mm | 41 mm | 42 mm | 42 mm | 41 mm |
| Trail | 79 mm | 77 mm | 76 mm | 76 mm | 77 mm |
| Stack | 595 mm | 612 mm | 630 mm | 645 mm | 659 mm |
| Reach | 405 mm | 404 mm | 407 mm | 418 mm | 421 mm |
| Top Tube Length | 570 mm | 585 mm | 600 mm | 615 mm | 622 mm |
| Seat Tube Angle | 74.5 ° | 73.5 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 440 mm | 480 mm | 520 mm | 560 mm | 600 mm |
| Head Tube Angle | 70.5 ° | 71 ° | 71 ° | 71 ° | 71 ° |
| Head Tube Length | 105 mm | 120 mm | 140 mm | 155 mm | 170 mm |
| Chainstay Length | 470 mm | 470 mm | 470 mm | 470 mm | 470 mm |
| Wheelbase | 1105 mm | 1104 mm | 1114 mm | 1130 mm | 1137 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm | 60 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
