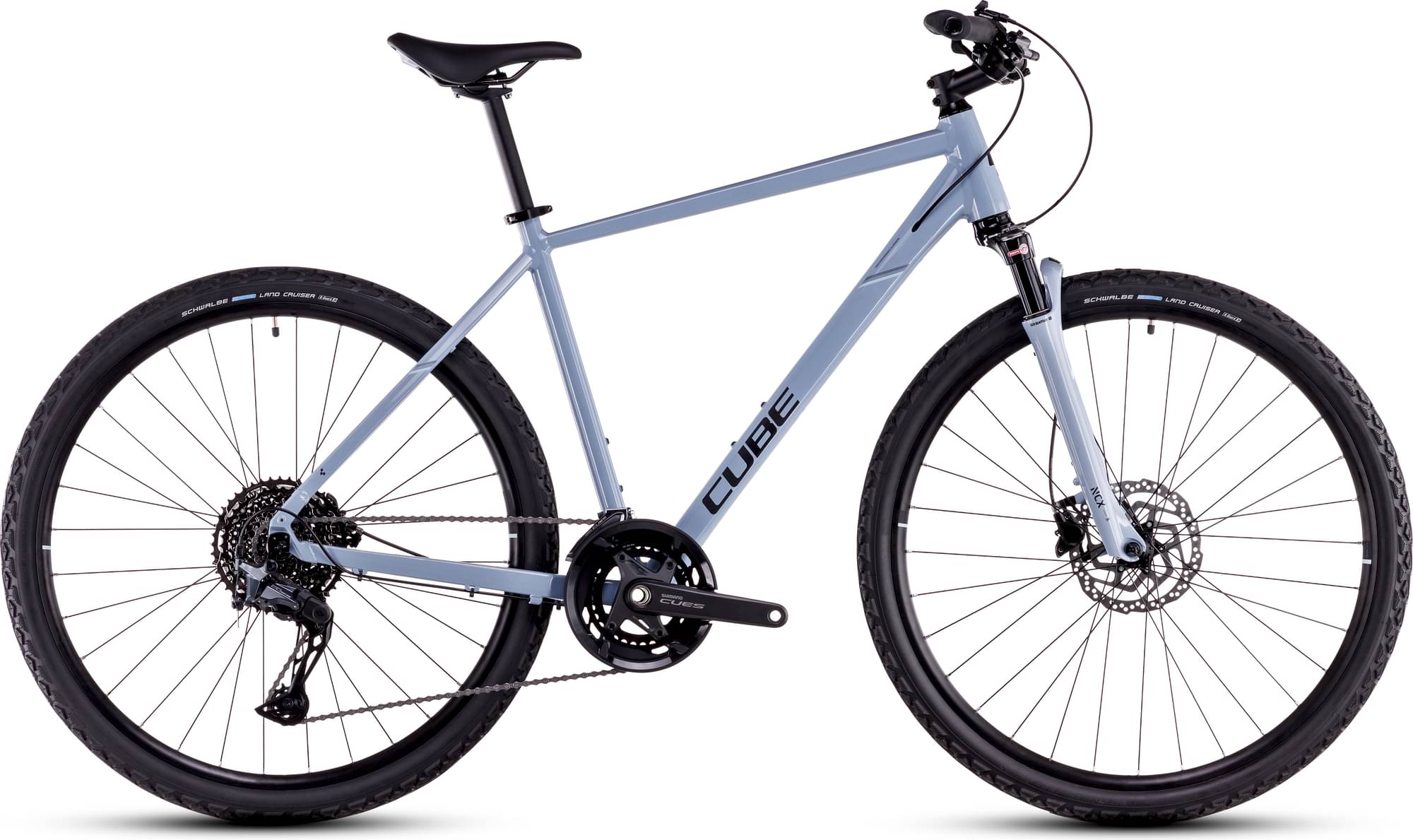

CUBE NATURE, EXC 2025
2025 Urban
Estimate price |
1,162$
Weight | 14.1 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 63mm -
Fork Suntour NCX
-
Groupset CUES -
Suspension Hardtail -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium Superlite, Trekking Cross, Taper, Double Butted

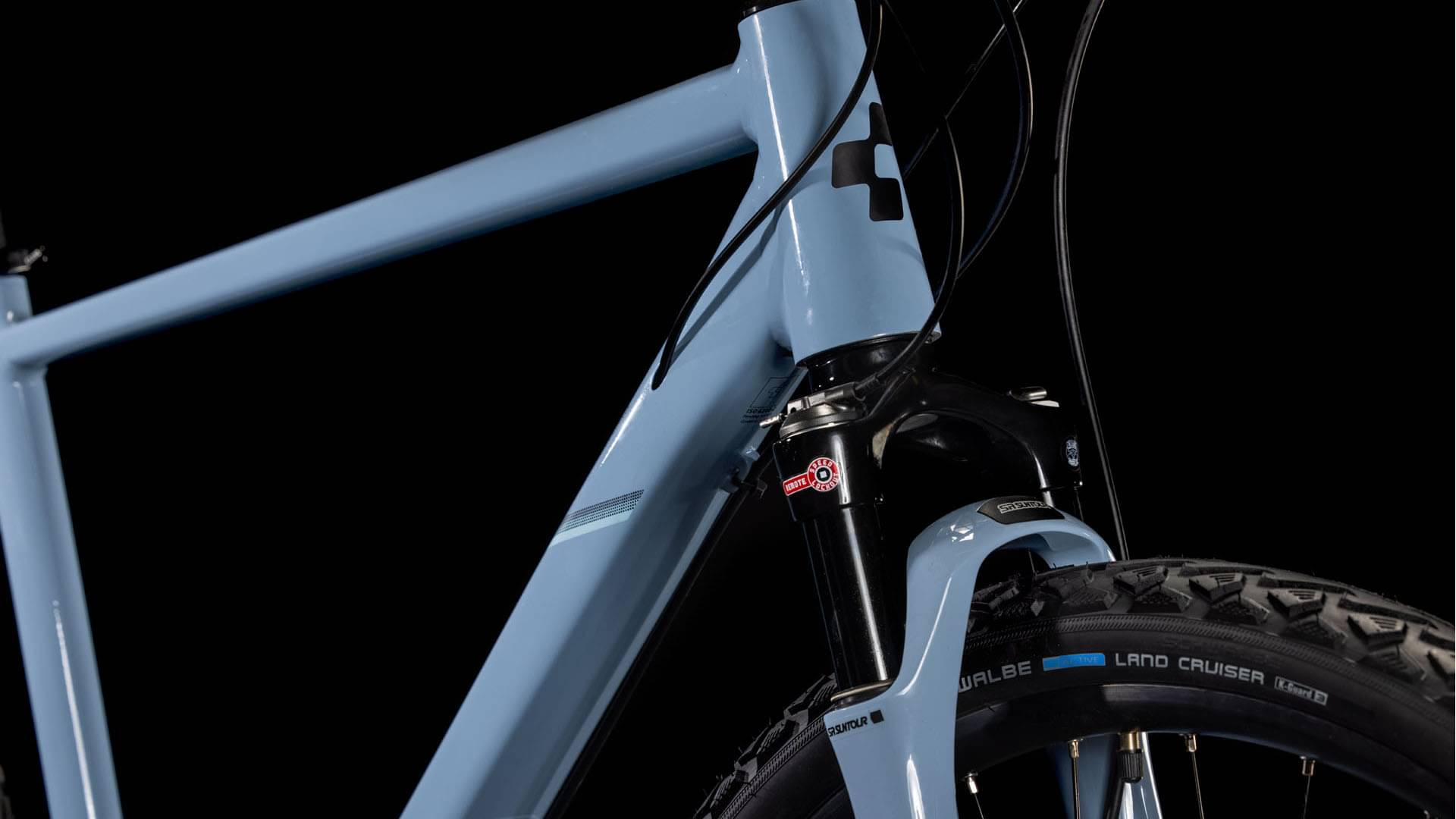

Suspension Fork
SR Suntour NCX E RL Air T, 63mm, Remote Lockout
Drivetrain
Rear Derailleur
Shimano Cues RD-U8020-SGS, 11-Speed
Front Derailleur
Shimano Cues FD-U6010, Top-Swing, 31.8mm
Shift Levers
Shimano Cues SL-U6000, Rapidfire-Plus
Cassette
Shimano Cues CS-LG400, 11-45T
Crank
Shimano Cues FC-U6010, Hollowtech ll, 46x32T, Chainguard
Bottom Bracket
Shimano BB-MT501, 68mm BSA
Pedals
CUBE PP MTB
Wheels
Front Hub
Shimano HB-QC300, QR, Centerlock
Rear Hub
Shimano FH-QC300-HM, QR, Centerlock
Rims
CUBE EX25, 32H, Disc, Tubeless Ready
Tires
Schwalbe Land Cruiser, Active, 50-622
Brakes
Brakes
Shimano BR-MT200, Hydr. Disc Brake (160/180)
Cockpit
Stem
CUBE Performance Stem Pro, 31.8mm
Handlebar
CUBE Comfort Trail Bar, 700mm
Grips
ACID Travel Comfort
Headset
VP Integrated, Top 1 1/8", Bottom 1 1/2"
Seat
Saddle
ACID Sequence Pro 160
Seatpost
CUBE Performance Post, 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 46cm | 50cm | 54cm | 58cm | 62cm |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.469 mm | 1.515 mm | 1.548 mm | 1.543 mm | 1.565 mm |
| Front Center | 642 mm | 641 mm | 651 mm | 667 mm | 674 mm |
| Rake | 42 mm | 41 mm | 42 mm | 42 mm | 41 mm |
| Trail | 79 mm | 77 mm | 76 mm | 76 mm | 77 mm |
| Stack | 595 mm | 612 mm | 630 mm | 645 mm | 659 mm |
| Reach | 405 mm | 404 mm | 407 mm | 418 mm | 421 mm |
| Top Tube Length | 570 mm | 585 mm | 600 mm | 615 mm | 622 mm |
| Seat Tube Angle | 74.5 ° | 73.5 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 440 mm | 480 mm | 520 mm | 560 mm | 600 mm |
| Head Tube Angle | 70.5 ° | 71 ° | 71 ° | 71 ° | 71 ° |
| Head Tube Length | 105 mm | 120 mm | 140 mm | 155 mm | 170 mm |
| Chainstay Length | 470 mm | 470 mm | 470 mm | 470 mm | 470 mm |
| Wheelbase | 1105 mm | 1104 mm | 1114 mm | 1130 mm | 1137 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm | 60 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
