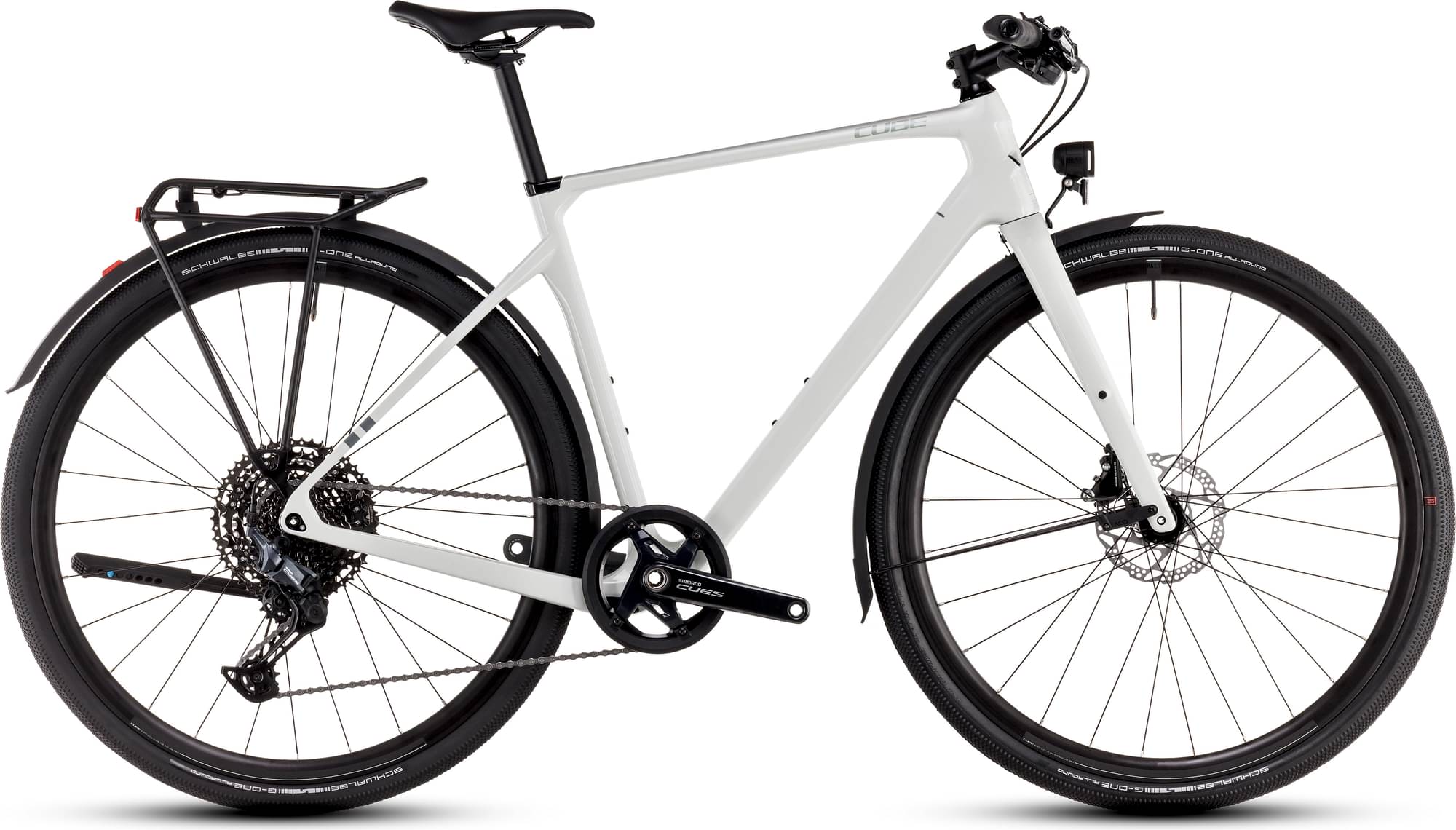

CUBE NULANE C:62 SLX FE 2025
2025 Road
Estimate price |
2,093$
Weight | 11.4 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Groupset CUES -
Suspension Rigid -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
C:62® Advanced Twin Mold, Internal Cable Routing, Flat Mount Disc, Fender/Rack & Kickstand Option, 12x142mm, AXH
Suspension Fork
CUBE TS Disc, Full Carbon, Taper, Flat Mount, 12x100mm
Drivetrain
Rear Derailleur
Shimano Cues RD-U8000, 11-Speed
Shift Levers
Shimano Cues SL-U6000, Rapidfire Plus
Cassette
Shimano Cues CS-LG400, 11-50T

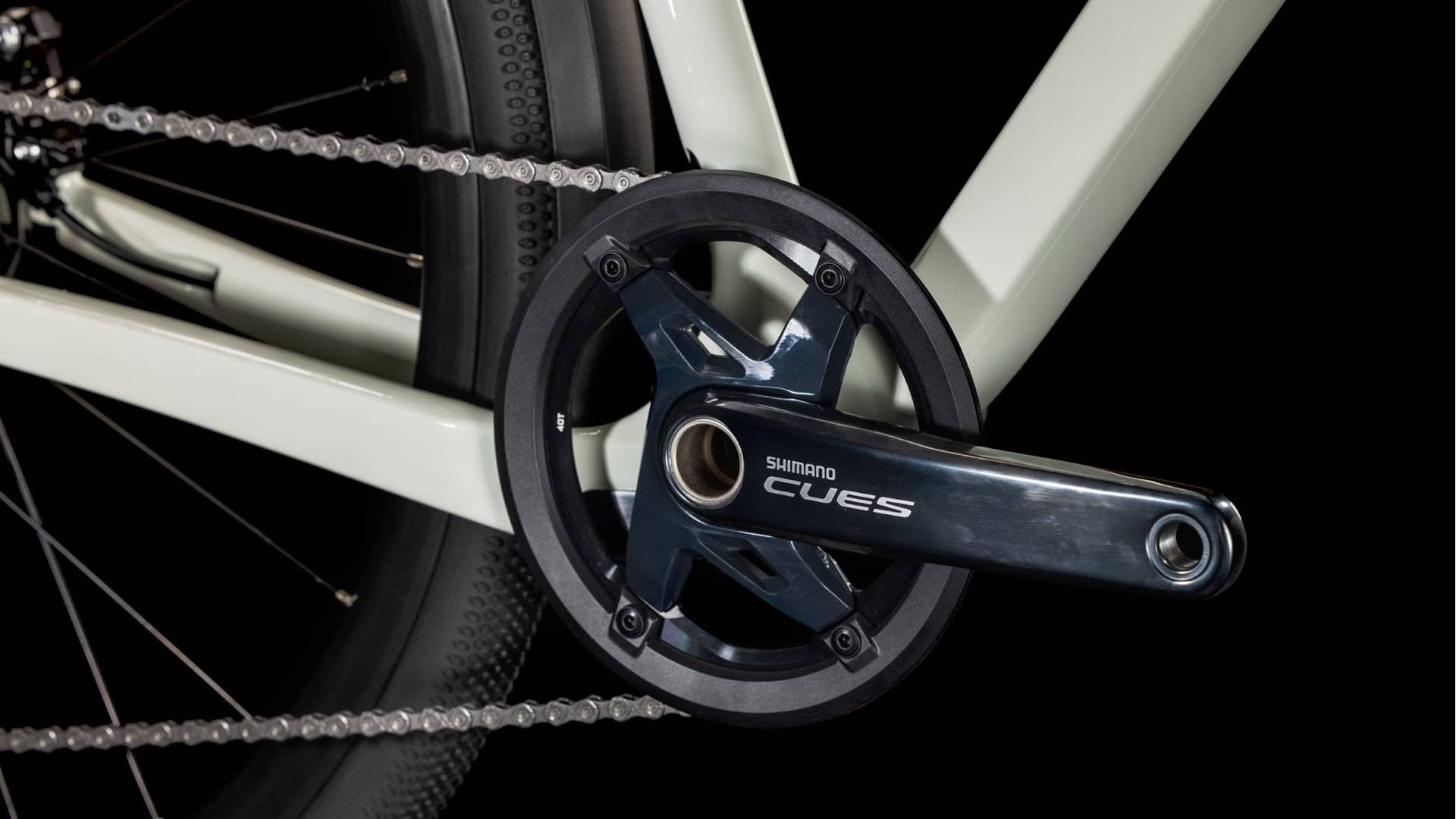

Crank
Shimano Cues FC-U8000. 40T
Bottom Bracket
Shimano BB-MT500PA, 92mm Pressfit
Chain
KMC xGlide
Pedals
CUBE PP MTB
Wheels
Rims
CUBE OR 2.5 Disc, Tubeless Ready, Shutter Precision PL-7, Hub Dynamo, 12x100, Centerlock
Tires
Schwalbe G-One Allround, Kevlar, 40-622
Brakes
Brakes
Shimano BL-RS600/405, Hydr. Disc Brake, FM (160/160)
Cockpit
Stem
CUBE Performance Stem Pro, 31.8mm
Handlebar
CUBE Flat Race Bar, 660mm
Grips
ACID Travel
Headset
VP Top Integrated 1 1/8", Bottom Integrated, 1 1/4"
Seat
Saddle
ACID Nuance Lite
Seatpost
CUBE Performance Post, 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 50cm | 53cm | 56cm | 58cm | 61cm |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.345 mm | 1.409 mm | 1.486 mm | 1.528 mm | 1.55 mm |
| Bottom Bracket Height | 279 mm | 279 mm | 279 mm | 279 mm | 279 mm |
| Front Center | 611 mm | 612 mm | 611 mm | 616 mm | 628 mm |
| Rake | 45 mm | 46 mm | 45 mm | 45 mm | 45 mm |
| Trail | 86 mm | 78 mm | 69 mm | 66 mm | 63 mm |
| Stack | 519 mm | 544 mm | 578 mm | 599 mm | 623 mm |
| Reach | 386 mm | 386 mm | 389 mm | 392 mm | 402 mm |
| Top Tube Length | 522 mm | 537 mm | 560 mm | 575 mm | 592 mm |
| Seat Tube Angle | 75.3 ° | 74.5 ° | 73.5 ° | 73 ° | 73 ° |
| Seat Tube Length | 434 mm | 464 mm | 494 mm | 514 mm | 544 mm |
| Head Tube Angle | 69 ° | 70 ° | 71.5 ° | 72 ° | 72.5 ° |
| Head Tube Length | 102 mm | 124 mm | 154 mm | 174 mm | 197 mm |
| Chainstay Length | 440 mm | 440 mm | 440 mm | 440 mm | 440 mm |
| Wheelbase | 1041 mm | 1042 mm | 1041 mm | 1046 mm | 1058 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
