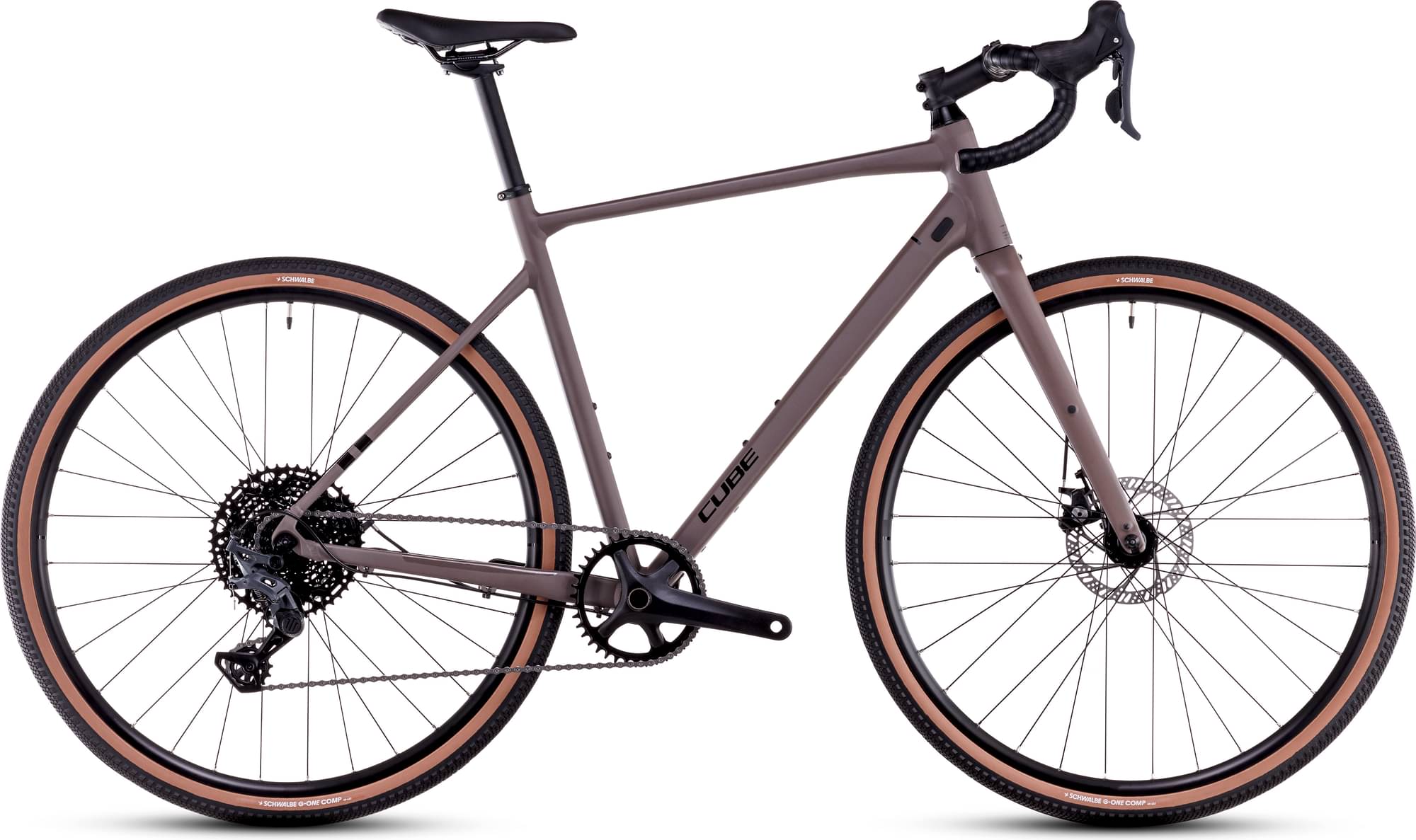

CUBE NUROAD ONE 2025
2025 Road
Estimate price |
1,046$
Weight | 11.3 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset microSHIFT Sword -
Suspension Rigid -
Drivetrain 1 × 10 -
Brakes Mechanical Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium 6061 T6 Superlite, Gravel Comfort Geometry, Flat Mount Disc, Fender & Rack Option, 12x142mm, AXH
Suspension Fork
CUBE Nuroad Flat Mount Disc, Full Carbon, 1 1/8" - 1 1/4" Tapered, Fender & Lowrider Mounts, 12x100mm
Drivetrain
Rear Derailleur
Microshift Sword RD-G7005M, 10-Speed
Shift Levers
Microshift Sword SB-G7000
Cassette
Microshift CS-H104, 11-48T

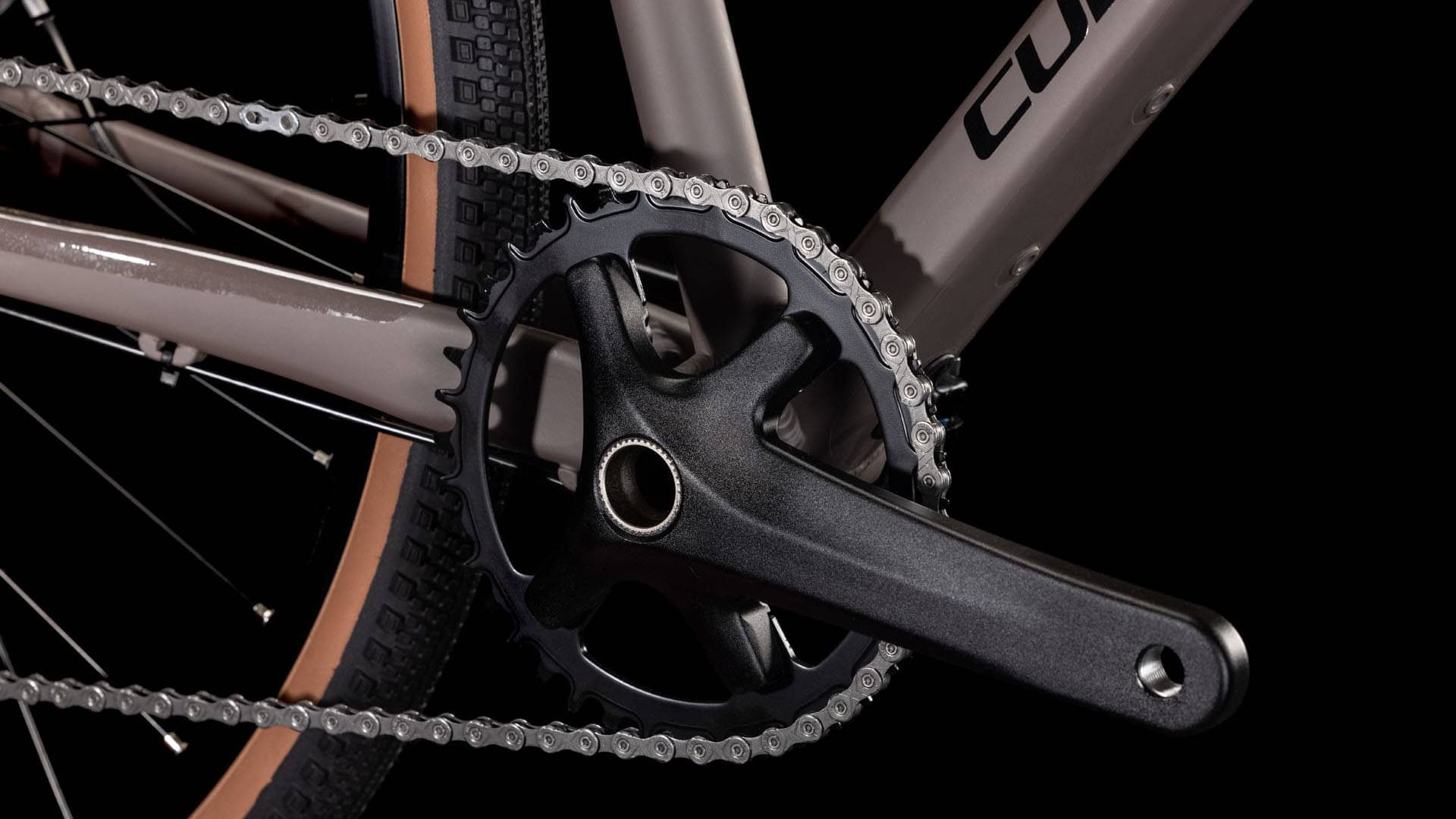

Crank
ACID Gravel Pro, 40T
Bottom Bracket
Shimano BB-RS500PB, Pressfit
Chain
KMC xGlide
Wheels
Rims
CUBE GR 2.3 Disc, Tubeless Ready
Tires
Schwalbe G-One Comp, 40-622
Brakes
Brakes
Tektro MD-C510, Flat Mount (160/160)
Cockpit
Stem
CUBE Performance Stem, 31.8mm
Handlebar
CUBE Gravel Race Bar
Headset
VP Z-t, Top Zero-Stack 1 1/8" (OD 44mm), Bottom Integrated 1 1/4"
Seat
Saddle
Natural Fit Venec Lite
Seatpost
CUBE Performance Post, 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.38 mm | 1.435 mm | 1.514 mm | 1.568 mm | 1.59 mm |
| Bottom Bracket Height | 279 mm | 279 mm | 279 mm | 279 mm | 279 mm |
| Front Center | 614 mm | 615 mm | 614 mm | 616 mm | 628 mm |
| Rake | 46 mm | 46 mm | 44 mm | 45 mm | 46 mm |
| Trail | 85 mm | 78 mm | 71 mm | 66 mm | 62 mm |
| Stack | 530 mm | 554 mm | 589 mm | 610 mm | 633 mm |
| Reach | 384 mm | 386 mm | 389 mm | 389 mm | 398 mm |
| Top Tube Length | 518 mm | 537 mm | 560 mm | 575 mm | 592 mm |
| Seat Tube Angle | 75.8 ° | 74.7 ° | 73.8 ° | 73 ° | 73 ° |
| Seat Tube Length | 470 mm | 500 mm | 530 mm | 550 mm | 580 mm |
| Head Tube Angle | 69 ° | 70 ° | 71.4 ° | 72 ° | 72.5 ° |
| Head Tube Length | 113 mm | 135 mm | 165 mm | 185 mm | 208 mm |
| Chainstay Length | 440 mm | 440 mm | 440 mm | 440 mm | 440 mm |
| Wheelbase | 1044 mm | 1045 mm | 1044 mm | 1046 mm | 1058 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
