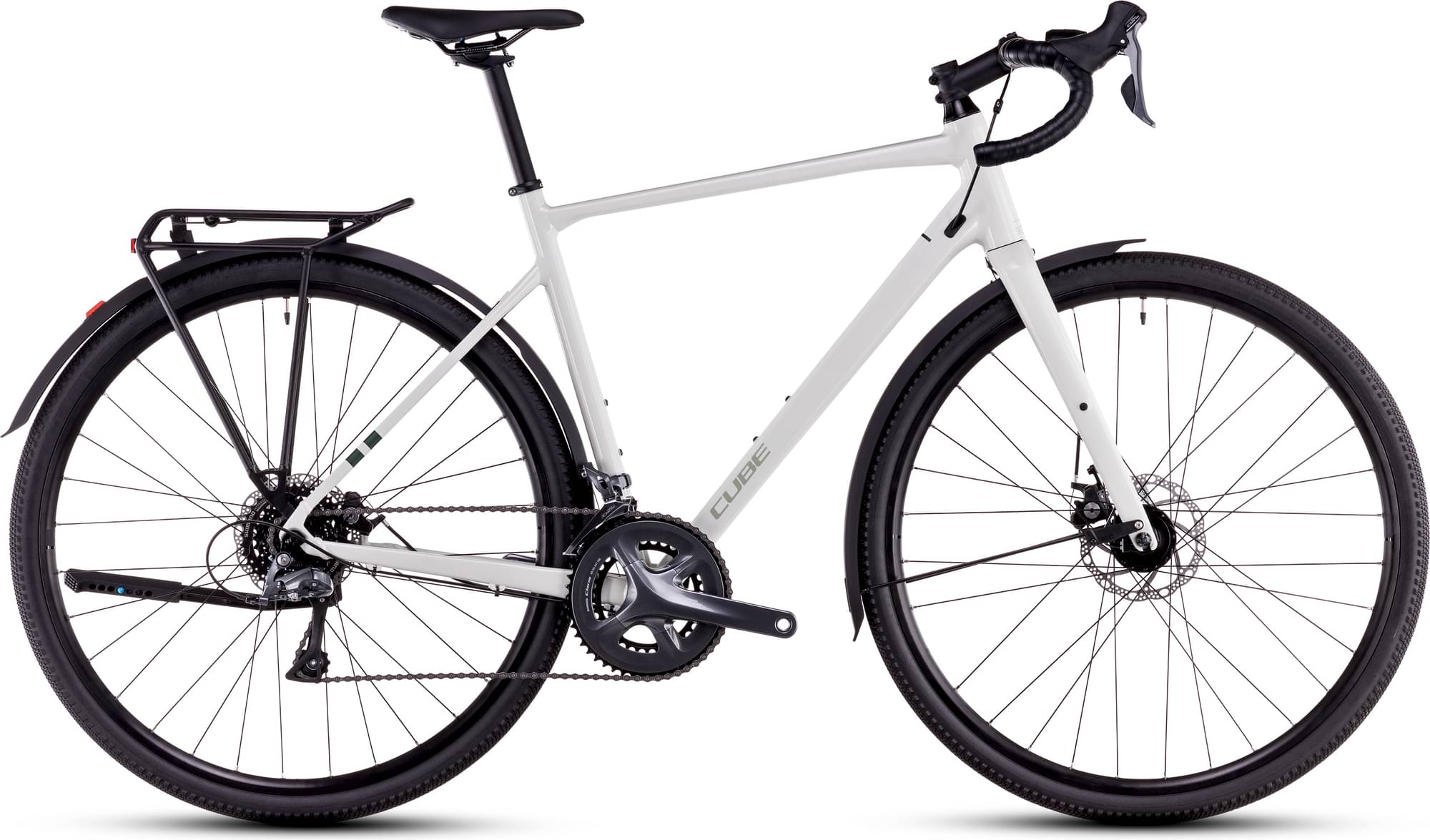

CUBE NUROAD ONE FE 2025
2025 Road
Estimate price |
1,162$
Weight | 13.6 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset Claris -
Suspension Rigid -
Drivetrain 2 × 8 -
Brakes Mechanical Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium 6061 T6 Superlite, Gravel Comfort Geometry, Flat Mount Disc
Suspension Fork
CUBE Nuroad Flat Mount Disc, Full Carbon, 1 1/8" - 1 1/4" Tapered, Fender & Lowrider Mounts, QR
Drivetrain
Rear Derailleur
Shimano Claris RD-R2000-GS, 8-Speed
Front Derailleur
Shimano Claris FD-R2000-BM, 31.8mm
Shift Levers
Shimano Claris ST-R2000
Cassette
Shimano CS-HG31, 11-34T

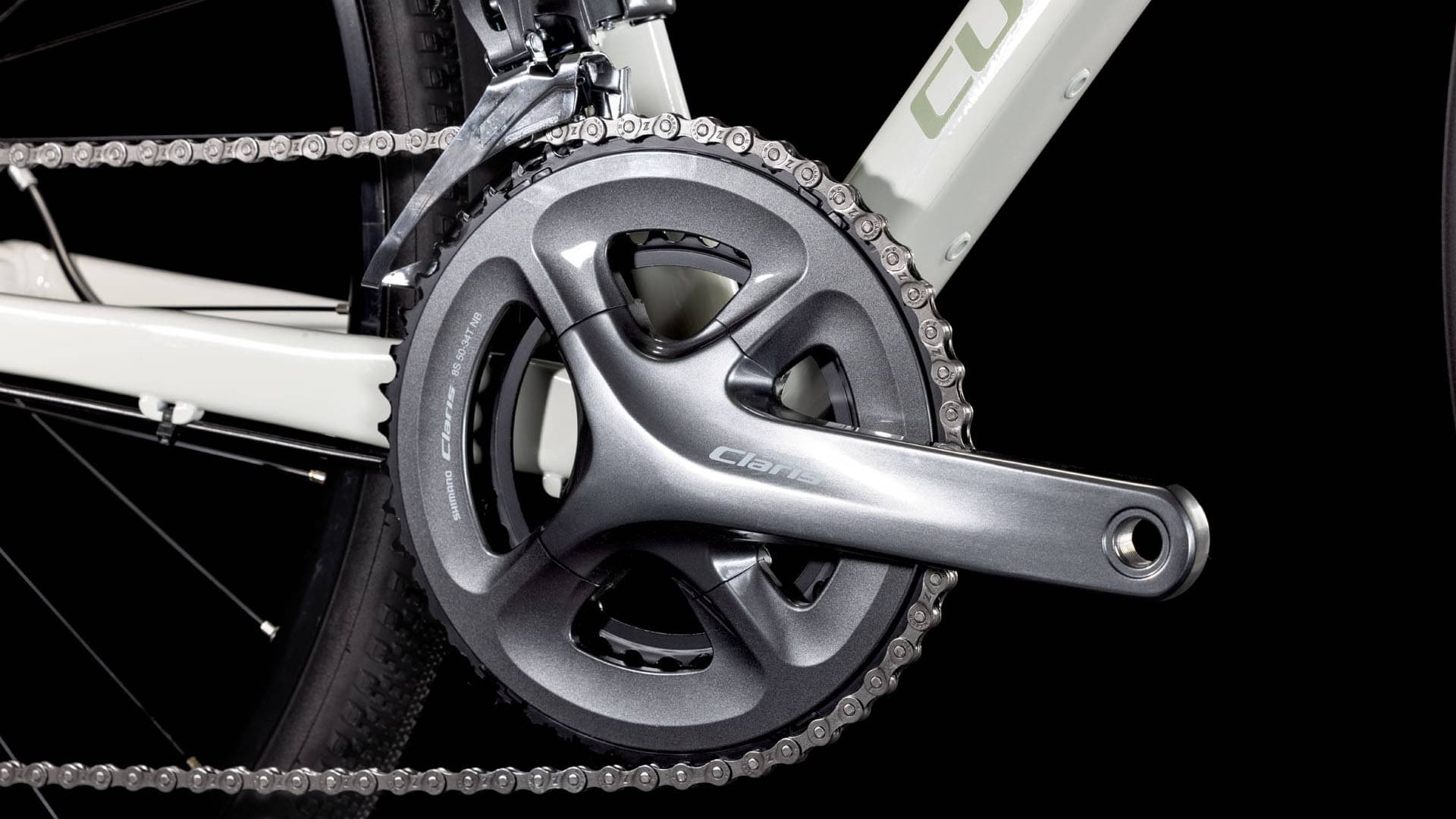

Crank
Shimano Claris FC-R2000, 50x34T
Bottom Bracket
Shimano BB-RS500PB, Pressfit
Chain
KMC Z8.3
Wheels
Front Hub
Shimano DH-3D32, Hub Dynamo, QR
Rear Hub
Shimano FH-QB400-HM, QR, 6-Bolt
Rims
CUBE GR 2.5 Disc
Tires
Schwalbe G-One Comp, ActiveLine, K-Guard, 40-622
Brakes
Brakes
Tektro MD-C510, Flat Mount (160/160)
Cockpit
Stem
CUBE Performance Stem, 31.8mm
Handlebar
CUBE Gravel Race Bar
Headset
VP Z-t, Top Zero-Stack 1 1/8" (OD 44mm), Bottom Integrated 1 1/4"
Seat
Saddle
Natural Fit Venec Lite
Seatpost
CUBE Performance Post, 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.38 mm | 1.435 mm | 1.514 mm | 1.568 mm | 1.59 mm |
| Bottom Bracket Height | 279 mm | 279 mm | 279 mm | 279 mm | 279 mm |
| Front Center | 614 mm | 615 mm | 614 mm | 616 mm | 628 mm |
| Rake | 46 mm | 46 mm | 44 mm | 45 mm | 46 mm |
| Trail | 85 mm | 78 mm | 71 mm | 66 mm | 62 mm |
| Stack | 530 mm | 554 mm | 589 mm | 610 mm | 633 mm |
| Reach | 384 mm | 386 mm | 389 mm | 389 mm | 398 mm |
| Top Tube Length | 518 mm | 537 mm | 560 mm | 575 mm | 592 mm |
| Seat Tube Angle | 75.8 ° | 74.7 ° | 73.8 ° | 73 ° | 73 ° |
| Seat Tube Length | 470 mm | 500 mm | 530 mm | 550 mm | 580 mm |
| Head Tube Angle | 69 ° | 70 ° | 71.4 ° | 72 ° | 72.5 ° |
| Head Tube Length | 113 mm | 135 mm | 165 mm | 185 mm | 208 mm |
| Chainstay Length | 440 mm | 440 mm | 440 mm | 440 mm | 440 mm |
| Wheelbase | 1044 mm | 1045 mm | 1044 mm | 1046 mm | 1058 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
