Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 26" -
Travel Front 100mm -
Fork RockShox Bluto RL
-
Groupset XT -
Suspension Hardtail -
Motor Bosch 250W 75Nm mid-drive -
Battery Bosch PowerPack 500 -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium Superlite, Double Butted, Tapered, Disc Only, X12
Suspension Fork
Rock Shox Bluto RL Solo Air, 100mm
Drivetrain
Rear Derailleur
Shimano XT RD-M8000-GS, 11-Speed
Shift Levers
Shimano XT SL-M8000, 11-Speed
Cassette
Shimano XT CS-M8000, 11-46T
Crank
CUBE Fat Crank, 16T
Chain
KMC X11e, EcoProTeQ
Wheels
Rims
Answer Fat Atac 80SL, HR 12x177mm, VR 15x150mm
Tires
Schwalbe Jumbo Jim, Kevlar, 4.0"
Brakes
Brakes
Magura MT5, Hydr. Disc Brake (180/180)
Cockpit
Stem
CUBE Performance Stem Pro, 31.8mm
Handlebar
CUBE Rise Trail Bar Pro, 740mm
Grips
CUBE Race Grip, 1-Clamp
Headset
FSA 1.5E ZS, Tapered, Top Zero-Stack 1 1/8" (OD 44mm), Bottom Zero-Stack 1 1/2" (OD 56mm)
Seat
Saddle
Selle Italia SC1
Seatpost
CUBE 120mm Adjustable Seatpost, Handlebar Lever, Internal Cable Routing, 30.9x420mm
Motor & Battery
Motor
Bosch Drive Unit Performance CX (75Nm) Cruise (250Watt)
Battery
Bosch PowerPack 500
Remote
Bosch Purion
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 17" | 19" | 21" |
|---|---|---|---|
| Stack Reach Ratio | 1.57 mm | 1.52 mm | 1.49 mm |
| Bottom Bracket Height | 278 mm | 278 mm | 278 mm |
| Front Center | 670 mm | 691 mm | 711 mm |
| Rake | 51 mm | 51 mm | 52 mm |
| Trail | 77 mm | 77 mm | 76 mm |
| Stack | 630 mm | 639 mm | 648 mm |
| Reach | 402 mm | 420 mm | 436 mm |
| Top Tube Length | 592.5 mm | 614 mm | 633 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 405 mm | 450 mm | 495 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 105 mm | 115 mm | 125 mm |
| Chainstay Length | 489 mm | 489 mm | 489 mm |
| Wheelbase | 1151 mm | 1173 mm | 1193 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm |
| Wheels | 26" | 26" | 26" |
About this model

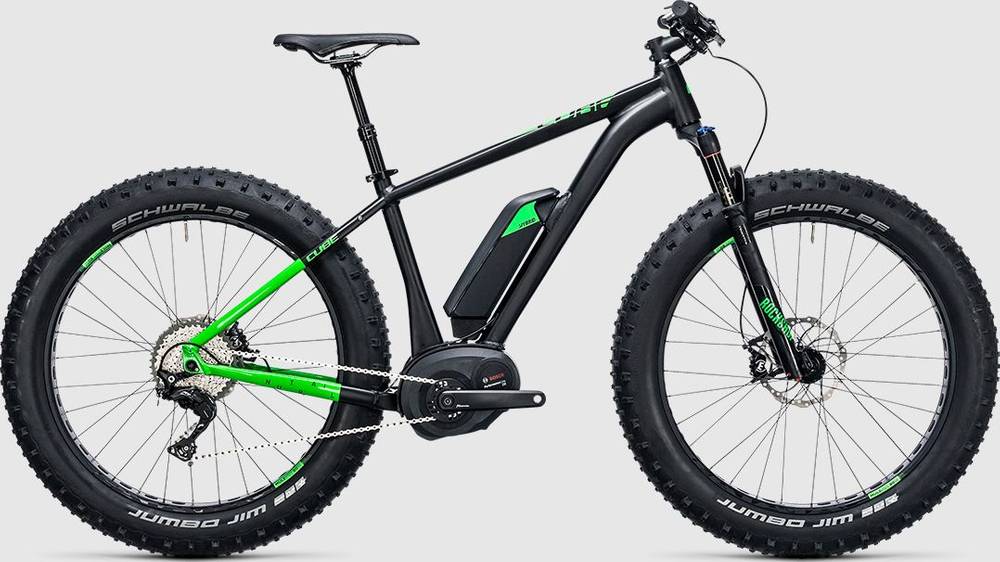

NUTRAIL HYBRID 500 is part of the Cube E Nutrail model. CUBE released 4 e-bikes variations of this model so far.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Fatbike e-bikes
If you want an acceptable Fatbike e-bike you should know that the average price is 2033$. However, this doesn’t mean that if you spend less money on a Fatbike e-bike, you couldn’t get a decent one. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
Fatbike e-bikes average weight
The average weight for Fatbike e-bikes is 31.21 kg (68.81 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
CUBE NUTRAIL HYBRID 500 it’s weighing 22.4 kg (49.38 lbs). At this weight, is much lighter than average. To sum up, it’s 39.33% lighter than the average weight of Fatbike e-bikes.
Overview of components
Fork
This e-bike has the RockShox Bluto RL fork installed. The fork’s travel is 100mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels size
When leaving the production line, the NUTRAIL HYBRID 500 model has 26″ aluminum wheels. The 26″ wheels are lighter than the 27.5 or 29″ wheels. However, they are less forgiving when riding over obstacles such as bumps and roots.
Brakes
When you want to stop the bike in time, the brakes are vital. The NUTRAIL HYBRID 500 has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
