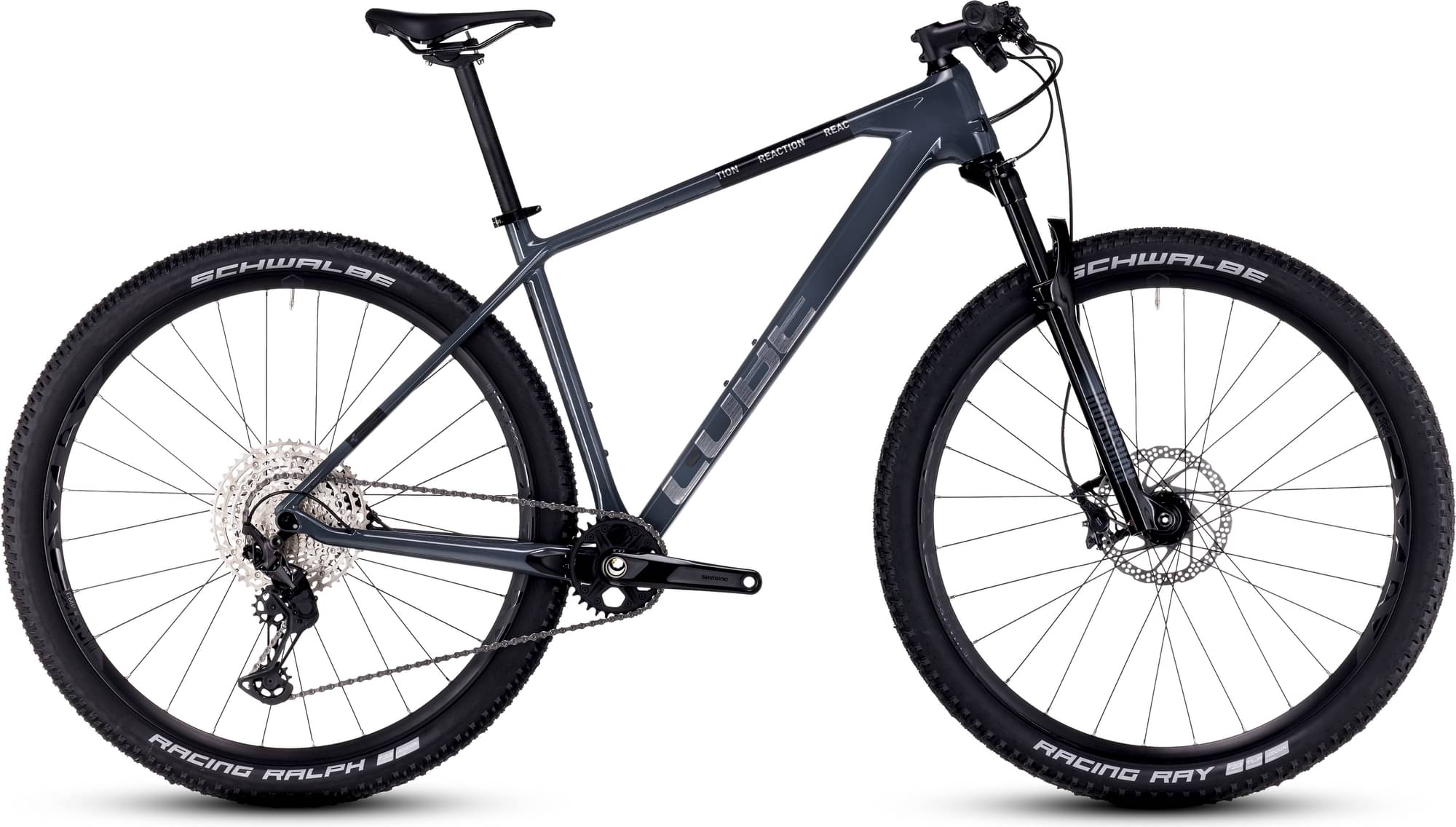

CUBE REACTION C:62 PRO 2024
2024 Mountain
Estimate price |
2,293$
Weight | 11.5 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Travel Front 100mm -
Fork RockShox Judy Gold RL
-
Groupset XT, Deore -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
C:62® Monocoque Advanced Twin Mold Technology, ARG2, Tapered Headtube, PressFit BB, Boost 12x148mm, Internal Cable Routing, Dropper Post Ready

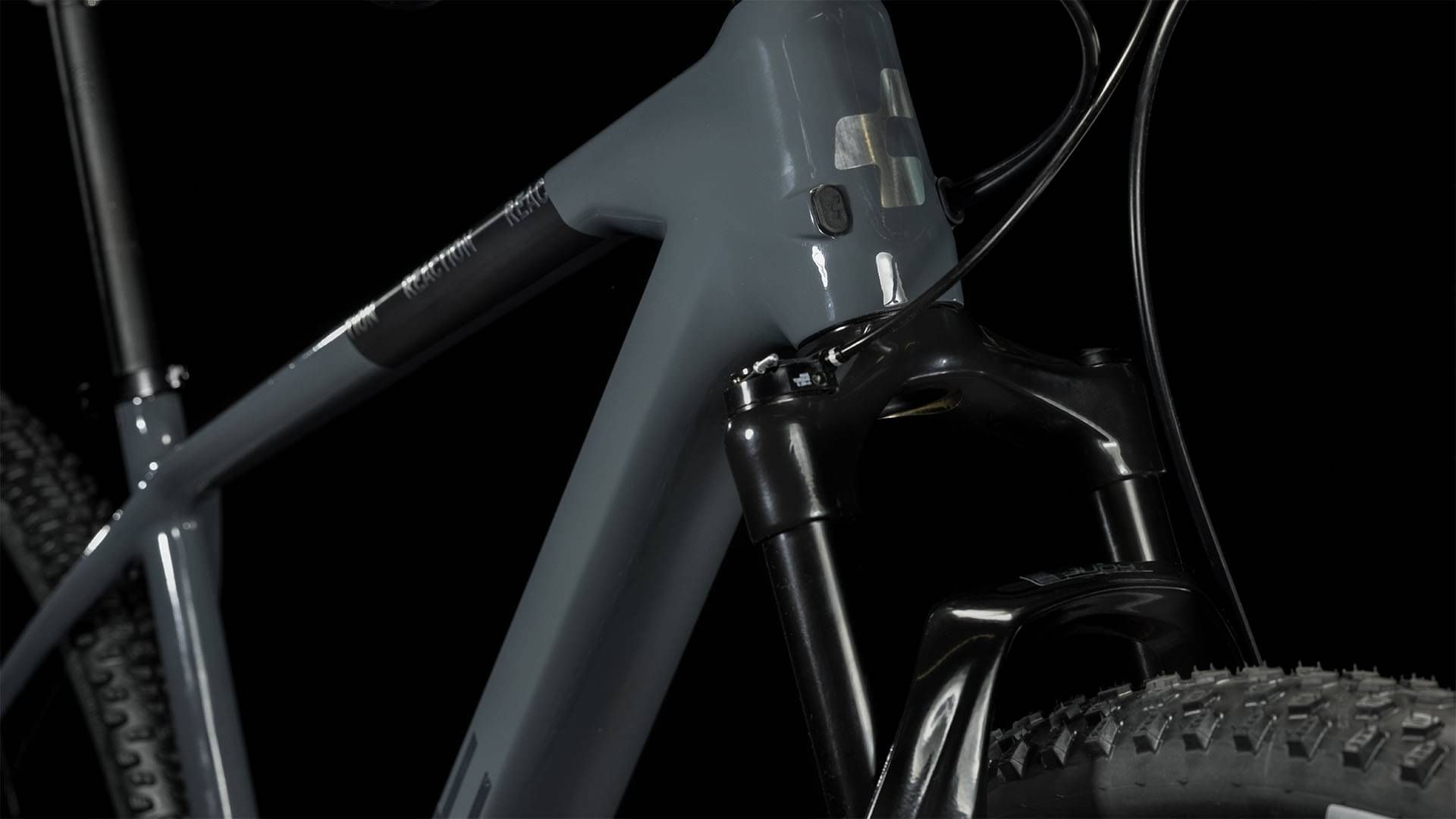

Suspension Fork
RockShox Judy Gold RL Air, 15x110mm, 100mm, OneLoc
Drivetrain
Rear Derailleur
Shimano XT RD-M8100-SGS, ShadowPlus, 12-Speed
Shift Levers
Shimano Deore SL-M6100-IR, Direct Attach, Rapidfire-Plus
Cassette
Shimano Deore CS-M6100, 10-51T

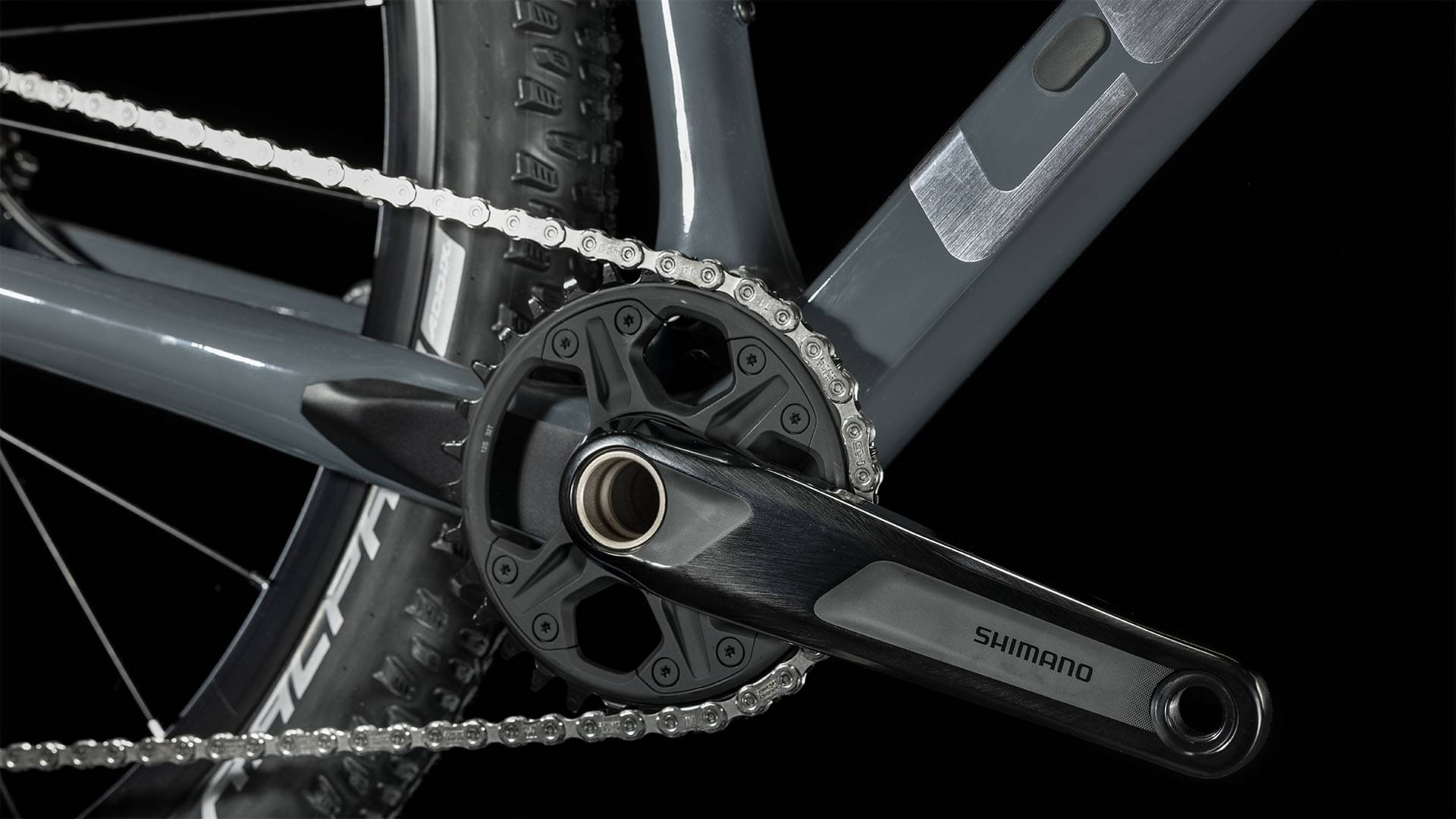

Crank
Shimano FC-MT611, 32T, Boost
Bottom Bracket
Shimano BB-MT500PA, 92mm Pressfit
Chain
Shimano CN-M6100
Wheels
Rims
Answer Atac AM, 15x110mm/12x148mm, Tubeless-Ready
Tires
Front: Schwalbe Racing Ray, Addix Performance, Kevlar, 2.25, Rear: Schwalbe Racing Ralph, Addix Performance, Kevlar, 2.25
Brakes
Brakes
Shimano XT BR-M8100, Hydr. Disc Brake (180/160)
Cockpit
Stem
CUBE Performance Stem SLX, 31.8mm
Handlebar
CUBE Flat Race Bar, 720mm
Grips
ACID React Pro
Headset
VP Integrated, Top 1 1/8", Bottom 1 1/2"
Seat
Saddle
Natural Fit Venec
Seatpost
CUBE Performance Post, 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.566 mm | 1.522 mm | 1.475 mm | 1.444 mm | 1.428 mm |
| Bottom Bracket Height | 309 mm | 309 mm | 309 mm | 309 mm | 309 mm |
| Front Center | 655 mm | 676 mm | 698 mm | 723 mm | 739 mm |
| Rake | 51 mm | 51 mm | 51 mm | 56 mm | 51 mm |
| Trail | 89 mm | 89 mm | 89 mm | 84 mm | 89 mm |
| Stack | 609 mm | 618 mm | 627 mm | 637 mm | 651 mm |
| Reach | 389 mm | 406 mm | 425 mm | 441 mm | 456 mm |
| Top Tube Length | 567 mm | 588 mm | 609 mm | 628 mm | 648 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 370 mm | 420 mm | 470 mm | 515 mm | 565 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm | 130 mm | 145 mm |
| Chainstay Length | 423 mm | 423 mm | 423 mm | 423 mm | 423 mm |
| Wheelbase | 1070 mm | 1091 mm | 1113 mm | 1138 mm | 1154 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm | 65 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
