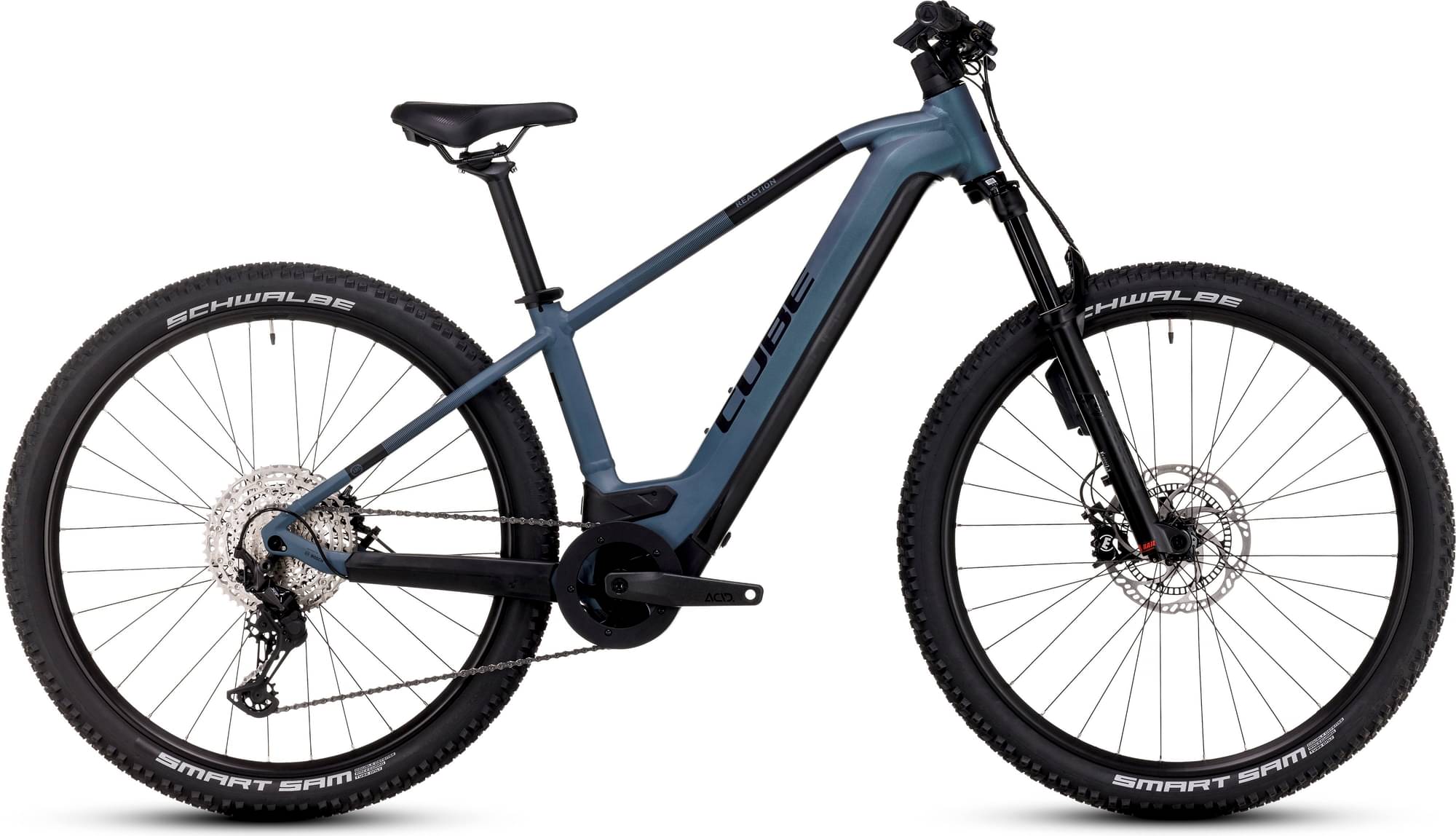

CUBE REACTION HYBRID, ABS 750 2024
2024 E-bike
Estimate price |
5,275$
Weight | 25.9 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 120mm -
Fork Fox AWL
-
Groupset XT, Deore -
Suspension Hardtail -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch PowerTube 750 -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium Superlite, Gravity Casting, Agile Ride Geometry, 1.5 Headtube, Boost 148, Fully Integrated Battery, Advanced Internal Cable Routing, Kickstand/Fender/Carrier Mounting Points
Suspension Fork
Fox 34 Float AWL, 2-Position Sweep-Adjust RAIL Damper, Tapered, 15x110mm, E-Bike Optimized, 120mm (EE: 100mm)
Drivetrain
Rear Derailleur
Shimano XT RD-M8100-SGS, ShadowPlus, 12-Speed
Shift Levers
Shimano Deore SL-M6100-IR, Direct Attach, Rapidfire-Plus
Cassette
Shimano Deore CS-M6100, 10-51T
Crank
ACID E-Crank, 175mm, 38T
Chain
Shimano CN-M6100
Pedals
ACID PP MTB
Wheels
Front Hub
Shimano HB-MT400-B, 15mm, Boost, Centerlock
Rear Hub
Shimano FH-MT410-B, 12mm, Boost, Centerlock
Rims
CUBE EX30, 32H, Disc, Tubeless Ready
Tires
Schwalbe Smart Sam, Performance, Double Defense, 2.6, Next Gen
Brakes
Brakes
Magura MT C ABS, Hydr. Disc Brake (203/203)
Cockpit
Stem
CUBE Performance Stem E-MTB, 31.8mm
Handlebar
CUBE Rise Trail Bar Pro, 740mm
Grips
ACID React Pro
Headset
ACROS AZF-1035, ICR (Integrated Cable Routing), BlockLock 120°, Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm)
Seat
Saddle
Natural Fit Sequence
Seatpost
CUBE Performance Post, 30.9mm
Motor & Battery
Motor
Bosch Drive Unit Performance CX Generation 4 (85Nm) Cruise (250Watt), Smart System
Battery
Bosch PowerTube 750
Remote
Bosch LED Remote
Charger
Bosch 4A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.535 mm | 1.455 mm | 1.473 mm | 1.452 mm | 1.418 mm |
| Bottom Bracket Height | 310 mm | 309 mm | 309 mm | 309 mm | 309 mm |
| Front Center | 692 mm | 743 mm | 743 mm | 755 mm | 783 mm |
| Rake | 45 mm | 52 mm | 52 mm | 51 mm | 51 mm |
| Trail | 102 mm | 99 mm | 99 mm | 96 mm | 96 mm |
| Stack | 614 mm | 646 mm | 651 mm | 662 mm | 678 mm |
| Reach | 400 mm | 444 mm | 442 mm | 456 mm | 478 mm |
| Top Tube Length | 565 mm | 628 mm | 628 mm | 645 mm | 672 mm |
| Seat Tube Angle | 75 ° | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 380 mm | 405 mm | 450 mm | 495 mm | 545 mm |
| Head Tube Angle | 67 ° | 67.5 ° | 67.5 ° | 68 ° | 68 ° |
| Head Tube Length | 120 mm | 122 mm | 122 mm | 132 mm | 149 mm |
| Chainstay Length | 447 mm | 460 mm | 460 mm | 460 mm | 460 mm |
| Wheelbase | 1135 mm | 1196 mm | 1196 mm | 1208 mm | 1236 mm |
| Bottom Bracket Drop | 45 mm | 65 mm | 65 mm | 65 mm | 65 mm |
| Wheels | 27" | 29" | 29" | 29" | 29" |
