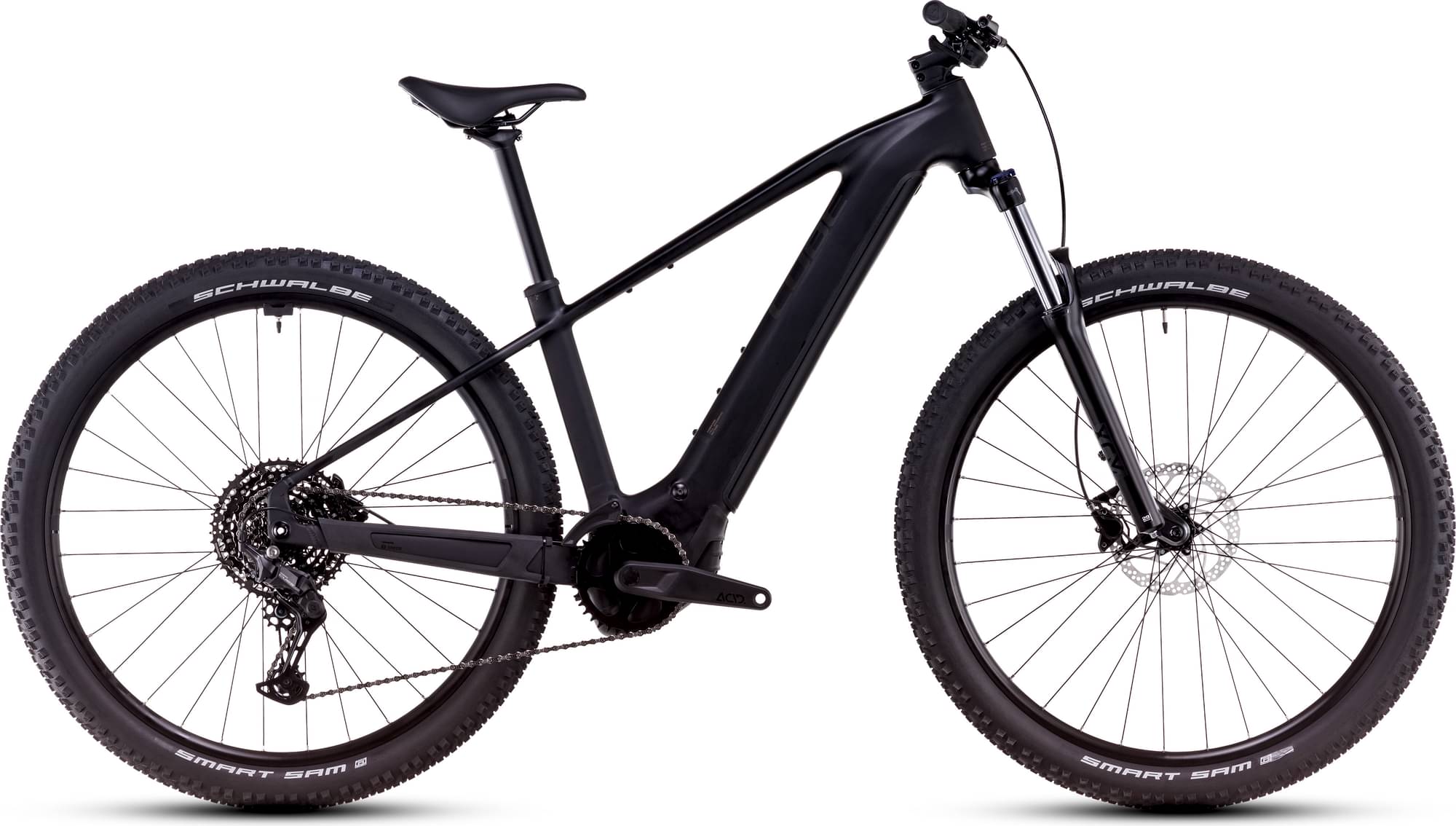

CUBE REACTION HYBRID, ONE 800 2025
2025 E-bike
Estimate price |
3,373$
Weight | 25 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 120mm -
Fork Suntour XCM
-
Groupset CUES -
Suspension Hardtail -
Motor Bosch 600W 85Nm mid-drive -
Battery Bosch PowerTube 800 -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum Superlite, Gravity Casting Technology, Agile Ride Geometry, Boost 148, UDH™, Full Integrated Battery, Advanced Internal Cable Routing, Kickstand/Fender/Carrier Mounting Points, Integrated Seatclamp
Suspension Fork
SR Suntour XCM32 NLO Coil, Tapered, 15x110mm, 120mm (27,5: 100mm)
Drivetrain
Rear Derailleur
Shimano Cues RD-U6000-GS, 10-Speed
Shift Levers
Shimano Cues SL-U6000, Rapidfire-Plus
Cassette
Shimano Cues CS-LG400, 11-48T
Crank
ACID MTB Hybrid Pro
Chain Guide
Reverse Flip-Guide E-Chain Guide, Direct Mount, I-Plate
Pedals
ACID PP MTB
Wheels
Front Hub
CUBE Engineered By Newmen, 15mm, Boost, Centerlock
Rear Hub
CUBE Engineered By Newmen, 12mm, Boost, Centerlock
Rims
CUBE EX25, 32H, Disc, Tubeless Ready
Tires
Schwalbe Smart Sam, Active, 2.6
Brakes
Brakes
Shimano BR-MT200, Hydr. Disc Brake (180)
Cockpit
Stem
CUBE Performance Stem E-MTB 35, FPI-Link
Handlebar
CUBE Rise Trail Bar 35
Grips
ACID React Pro
Headset
ACROS AZF-1034, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm)
Seat
Saddle
ACID Sequence Pro 160
Seatpost
CUBE Performance Post, 31.6mm
Motor & Battery
Motor
Bosch Drive Unit Performance Line CX 85Nm (BDU38), Smart System
Battery
Bosch PowerTube 800
Remote
Bosch Purion 200 w/ Integrated Display
Charger
Bosch 2A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.579 mm | 1.555 mm | 1.515 mm | 1.481 mm | 1.454 mm |
| Bottom Bracket Height | 309 mm | 290 mm | 290 mm | 290 mm | 309 mm |
| Front Center | 705 mm | 713 mm | 735 mm | 755 mm | 777 mm |
| Rake | 42 mm | 43 mm | 45 mm | 42 mm | 43 mm |
| Trail | 102 mm | 101 mm | 99 mm | 102 mm | 109 mm |
| Stack | 646 mm | 653 mm | 662 mm | 674 mm | 685 mm |
| Reach | 409 mm | 420 mm | 437 mm | 455 mm | 471 mm |
| Top Tube Length | 587 mm | 607 mm | 627 mm | 647 mm | 667 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 370 mm | 405 mm | 450 mm | 495 mm | 545 mm |
| Head Tube Angle | 67.5 ° | 67.5 ° | 67.5 ° | 67.5 ° | 67.5 ° |
| Head Tube Length | 159 mm | 110 mm | 120 mm | 130 mm | 145 mm |
| Chainstay Length | 456 mm | 470 mm | 470 mm | 470 mm | 470 mm |
| Wheelbase | 1157 mm | 1176 mm | 1198 mm | 1218 mm | 1240 mm |
| Bottom Bracket Drop | 46 mm | 65 mm | 65 mm | 65 mm | 65 mm |
| Wheels | 27" | 27" | 27" | 27" | 29" |
