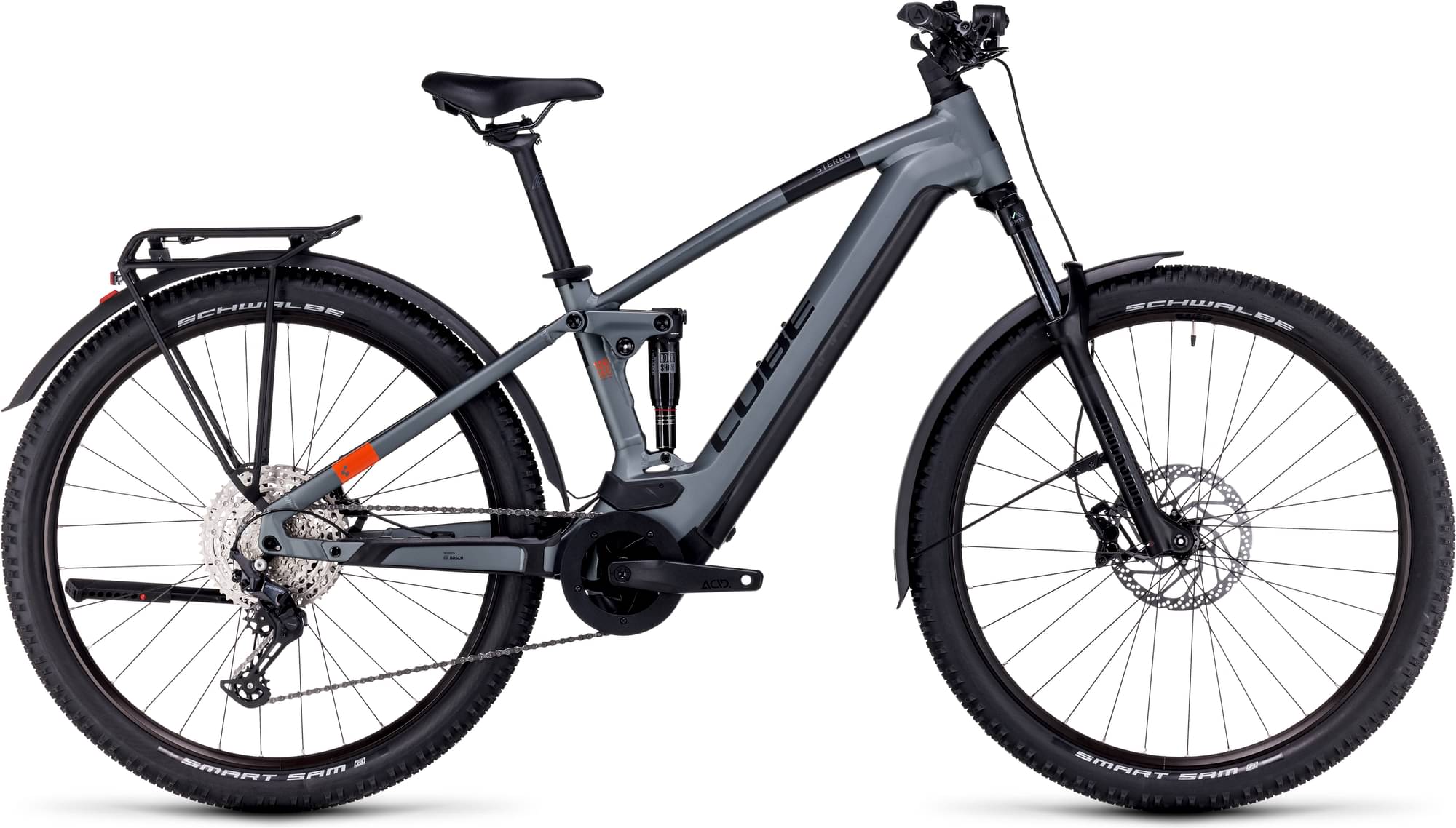

CUBE STEREO HYBRID 120, PRO 750 ALLROAD 2024
2024 E-bike
Estimate price |
4,931$
Weight | 27.5 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 130mm -
Travel Rear 120mm -
Fork RockShox Recon Silver RL
-
Groupset Deore -
Suspension Full -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch PowerTube 750 -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame

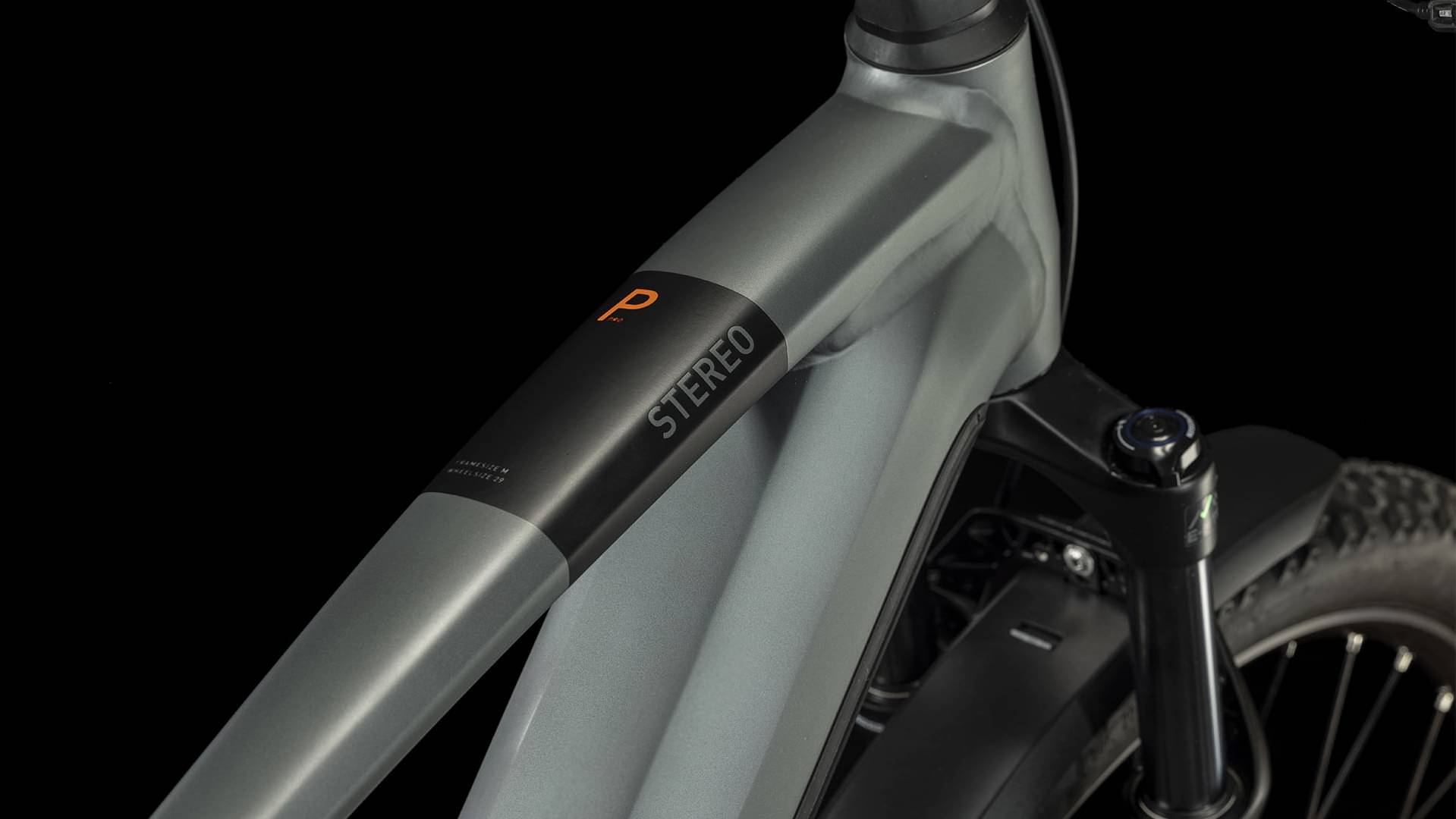

Frame
Aluminum Superlite, Gravity Casting Technology, Efficient Comfort Control, FSP 4-Link, Agile Comfort Geometry, Boost 148, Fully Integrated Battery, Advanced Internal Cable Routing

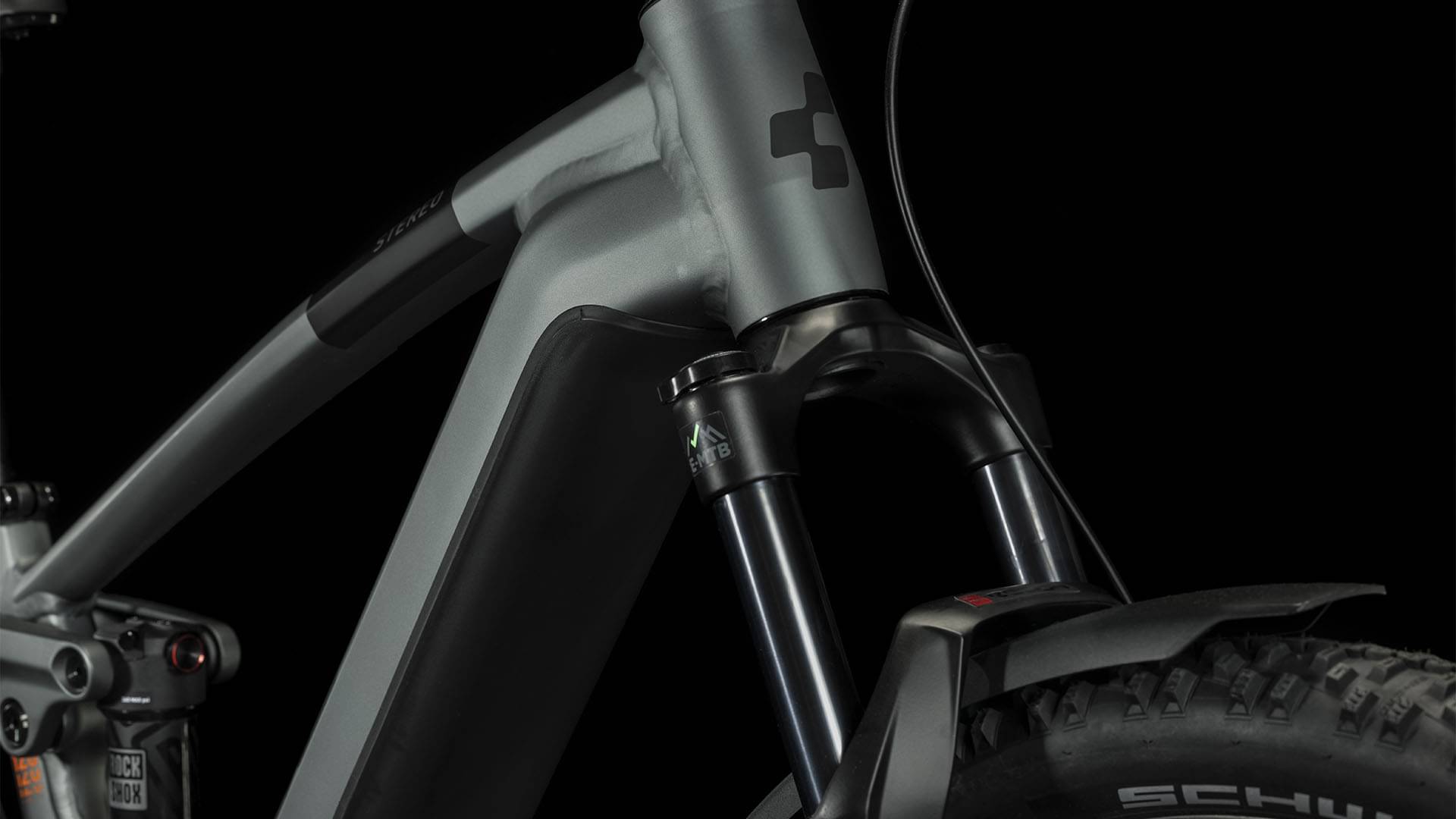

Suspension Fork
RockShox Recon Silver RL Air, Tapered, 15x110mm, eMTB Approved, 130mm, Lockout

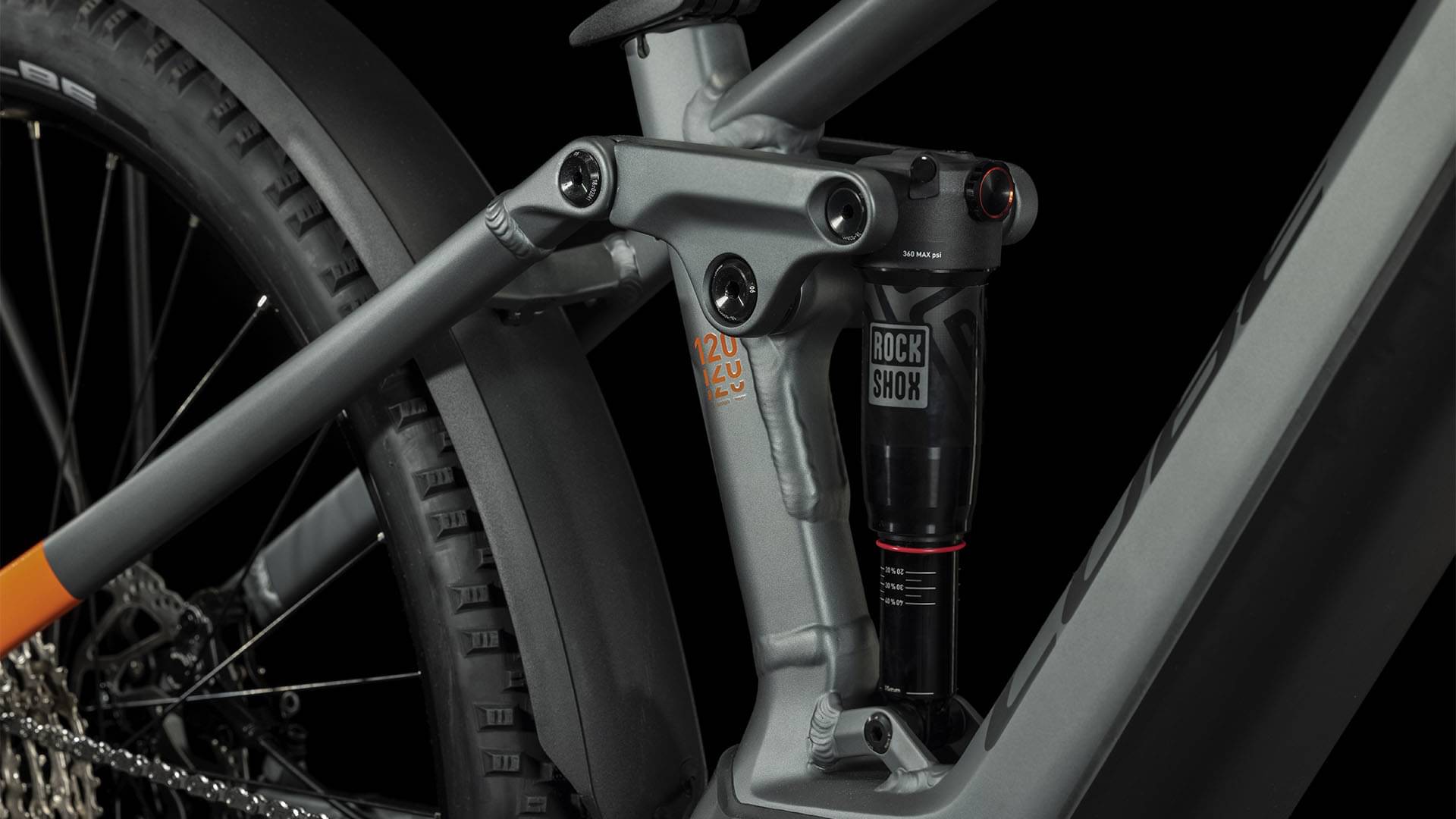

Rear Shock
RockShox Deluxe Select, 185x55mm (27.5: 165x45mm), Rebound Adjust, Trunnion Mount
Drivetrain
Rear Derailleur
Shimano Deore RD-M6100-SGS, ShadowPlus, 12-Speed
Shift Levers
Shimano Deore SL-M6100-IR, Direct Attach, Rapidfire-Plus
Cassette
Sunrace CSMZ600, 11-51T
Crank
ACID E-Crank, 38T, 170mm
Chain
Shimano CN-M6100
Pedals
ACID PP MTB
Wheels
Front Hub
CUBE Engineered By Newmen, 15mm, Boost, Centerlock
Rear Hub
CUBE Engineered By Newmen, 12mm, Boost, Centerlock
Rims
Rodi Tryp 30, 32H, Disc, Tubeless Ready
Tires
Schwalbe Smart Sam, Active, 2.6
Brakes
Brakes
Shimano BR-MT420, Hydr. Disc Brake (203/203)
Cockpit
Stem
CUBE Performance Stem E-MTB, 31.8mm
Handlebar
Newmen Evolution SL 318.25, 760mm
Grips
ACID Hybrid Perform
Headset
ACROS AZF-1035, ICR (Integrated Cable Routing), BlockLock 120°, Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm)
Seat
Saddle
Natural Fit Sequence
Seatpost
CUBE Performance Post, 30.9mm
Motor & Battery
Motor
Bosch Drive Unit Performance CX Generation 4 (85Nm) Cruise (250Watt), Smart System
Battery
Bosch PowerTube 750
Remote
Bosch LED Remote
Charger
Bosch 2A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.406 mm | 1.425 mm | 1.378 mm | 1.348 mm |
| Bottom Bracket Height | 331 mm | 312 mm | 312 mm | 331 mm |
| Front Center | 734 mm | 767 mm | 793 mm | 820 mm |
| Rake | 43 mm | 51 mm | 51 mm | 51 mm |
| Trail | 106 mm | 95 mm | 95 mm | 104 mm |
| Stack | 610 mm | 647 mm | 656 mm | 670 mm |
| Reach | 434 mm | 454 mm | 476 mm | 497 mm |
| Top Tube Length | 578 mm | 610 mm | 635 mm | 660 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 370 mm | 420 mm | 465 mm | 515 mm |
| Head Tube Angle | 66.7 ° | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 130 mm | 135 mm | 145 mm | 160 mm |
| Chainstay Length | 466 mm | 480 mm | 480 mm | 480 mm |
| Wheelbase | 1199 mm | 1244 mm | 1270 mm | 1297 mm |
| Bottom Bracket Drop | 24 mm | 43 mm | 43 mm | 43 mm |
| Rear Travel | 120 mm | 120 mm | 120 mm | 120 mm |
| Wheels | 27" | 27" | 27" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
