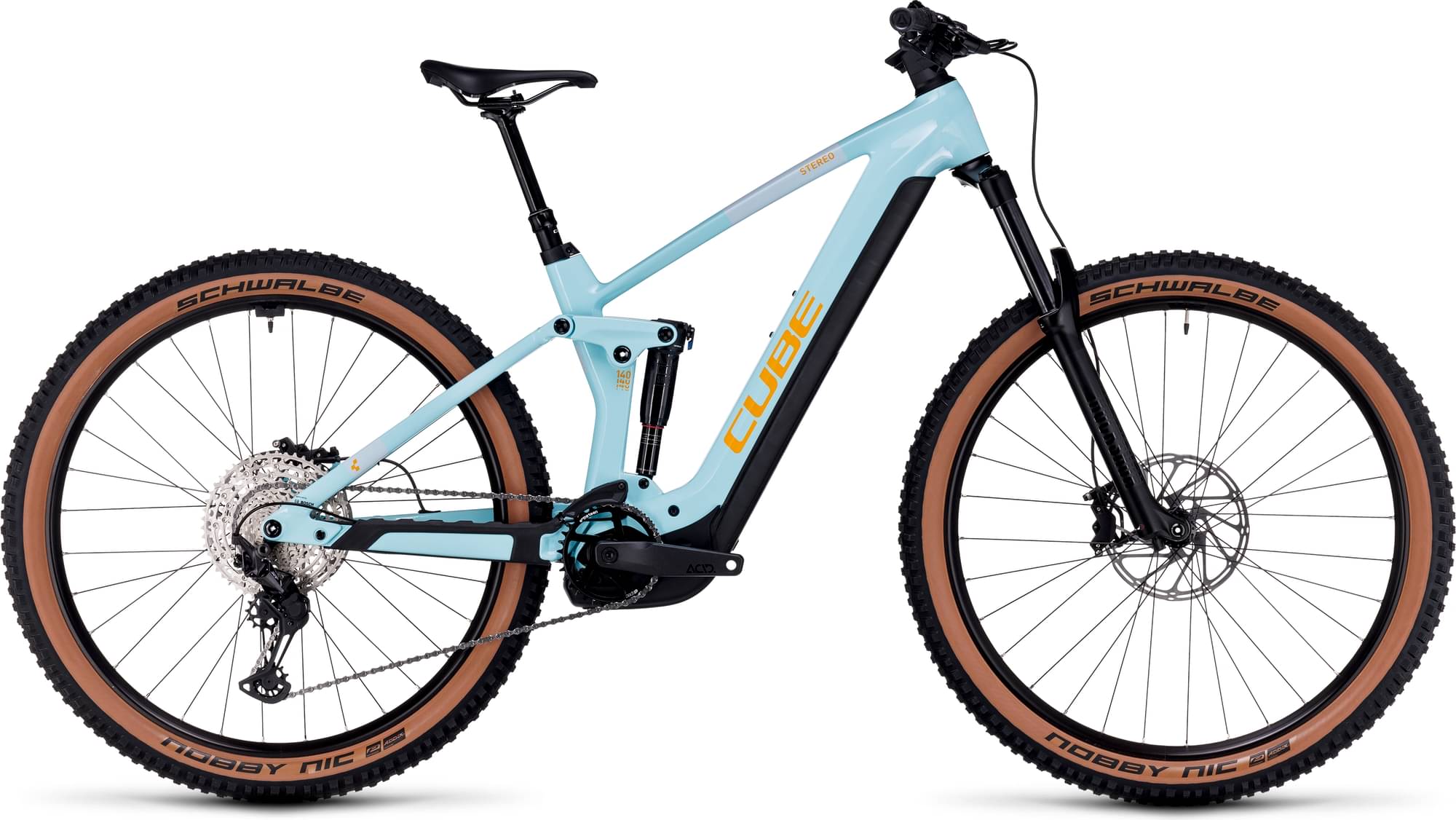

CUBE STEREO HYBRID 140 HPC, RACE 625 2024
2024 E-bike
Estimate price |
5,350$
Weight | 24.1 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 150mm -
Fork RockShox 35 Silver
-
Groupset XT, Deore -
Suspension Full -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch PowerTube 625 -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame

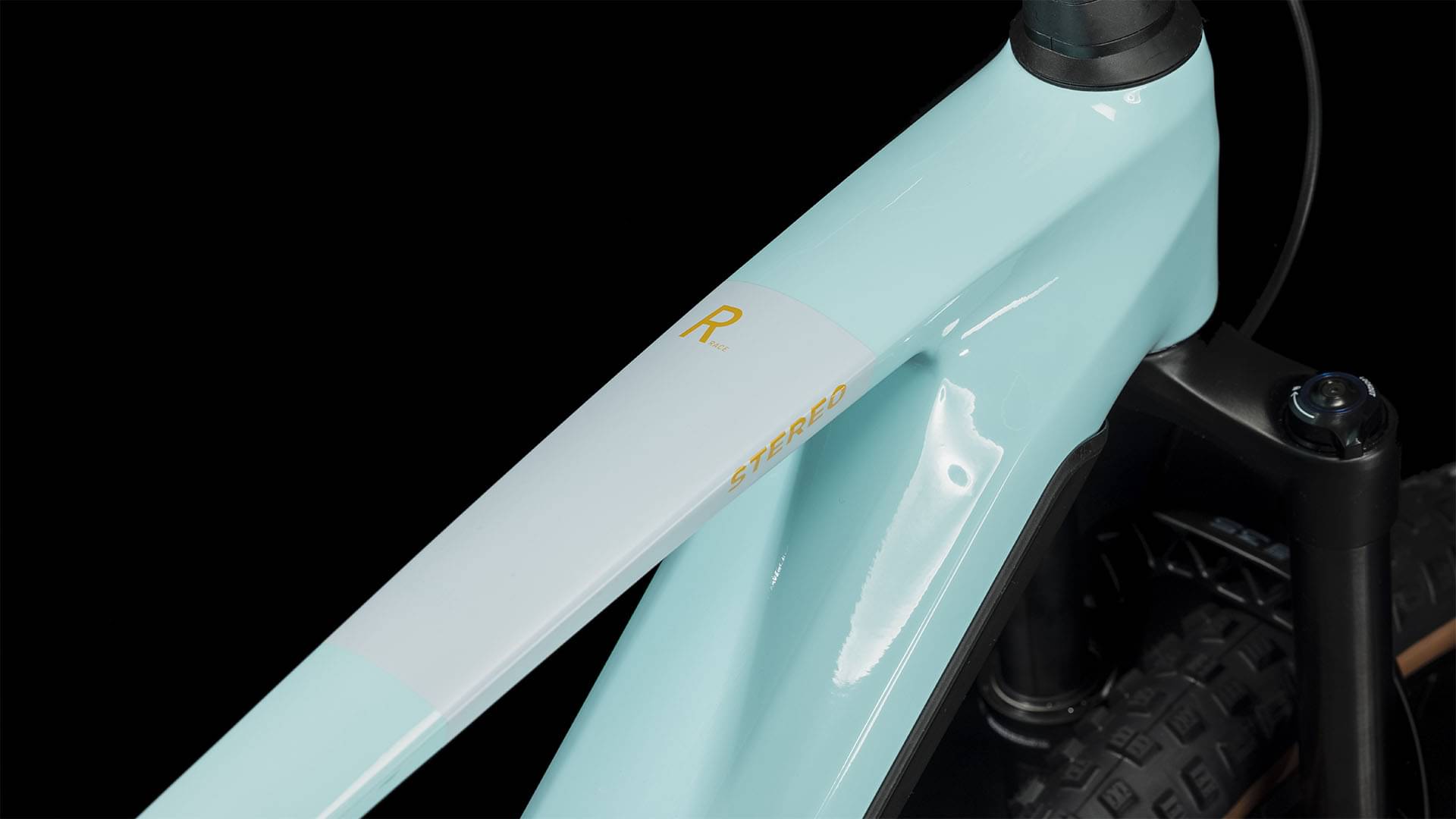

Frame
C:62® Monocoque Advanced Twin Mold Technology, Aluminium 6061 T6 Rear Triangle, Efficient Trail Control, FSP 4-Link, Agile Trail Geometry, Boost 148, UDH™, Fully Integrated Battery, Advanced Internal Cable Routing

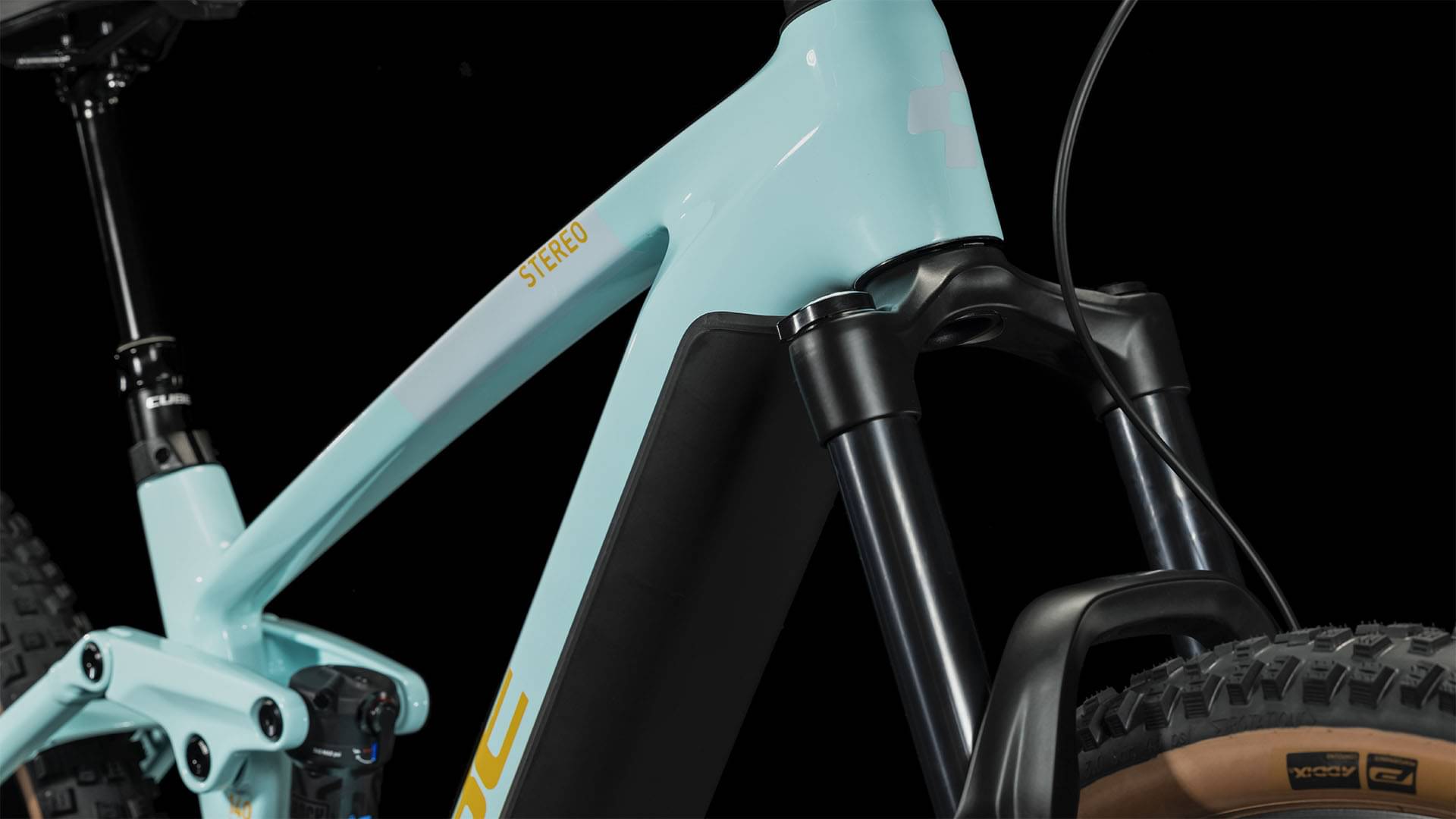

Suspension Fork
RockShox 35 Silver TK Air, Tapered, 15x110mm, eMTB Approved, 150mm, Lockout
Rear Shock
RockShox Deluxe Select+, 205x60mm (27.5: 185x55mm), Rebound Adjust, Trunnion Mount, Lockout
Drivetrain

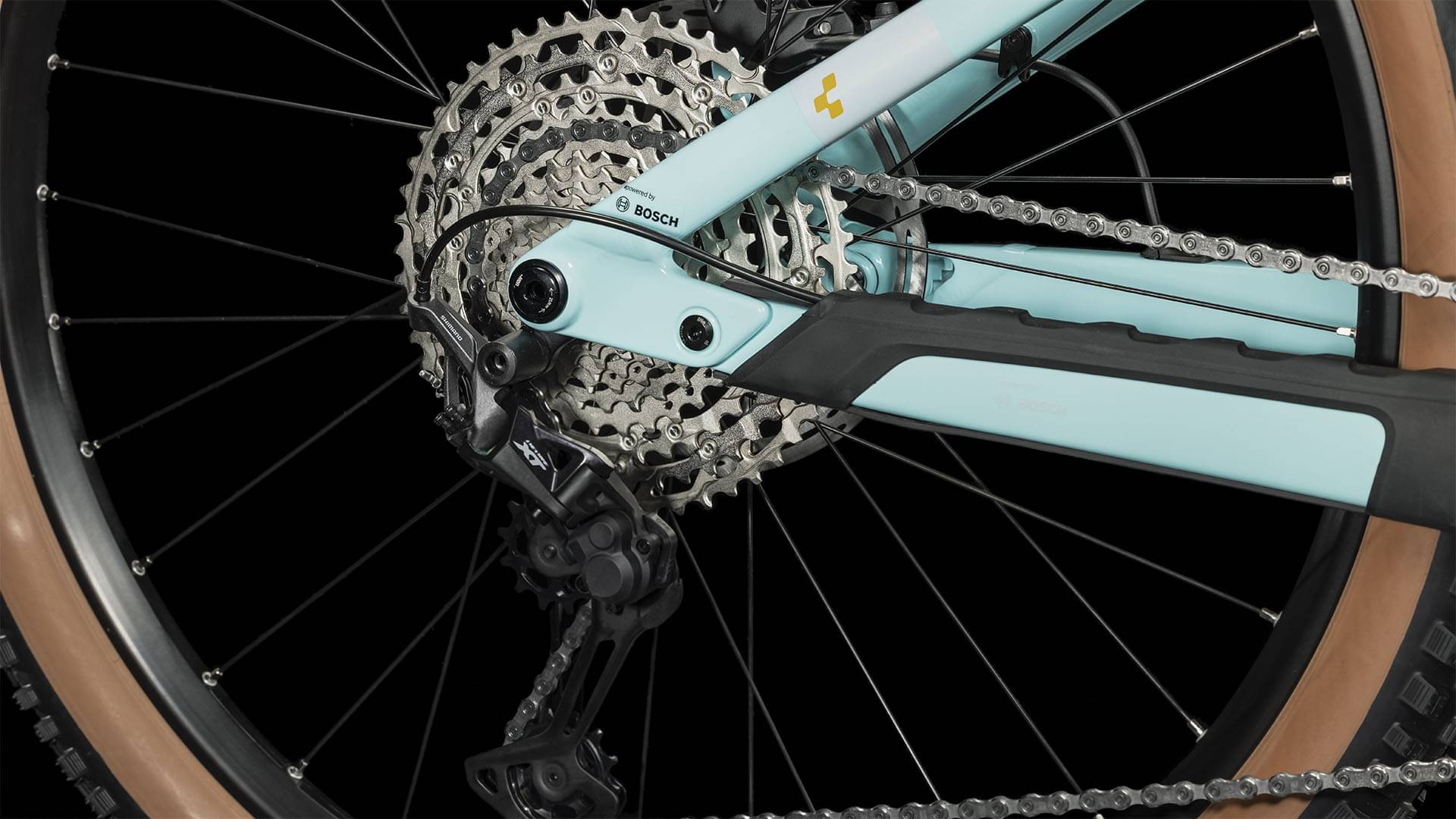

Rear Derailleur
Shimano XT RD-M8100-SGS, ShadowPlus, 12-Speed
Shift Levers
Shimano Deore SL-M6100, Rapidfire-Plus
Cassette
Shimano Deore CS-M6100, 10-51T

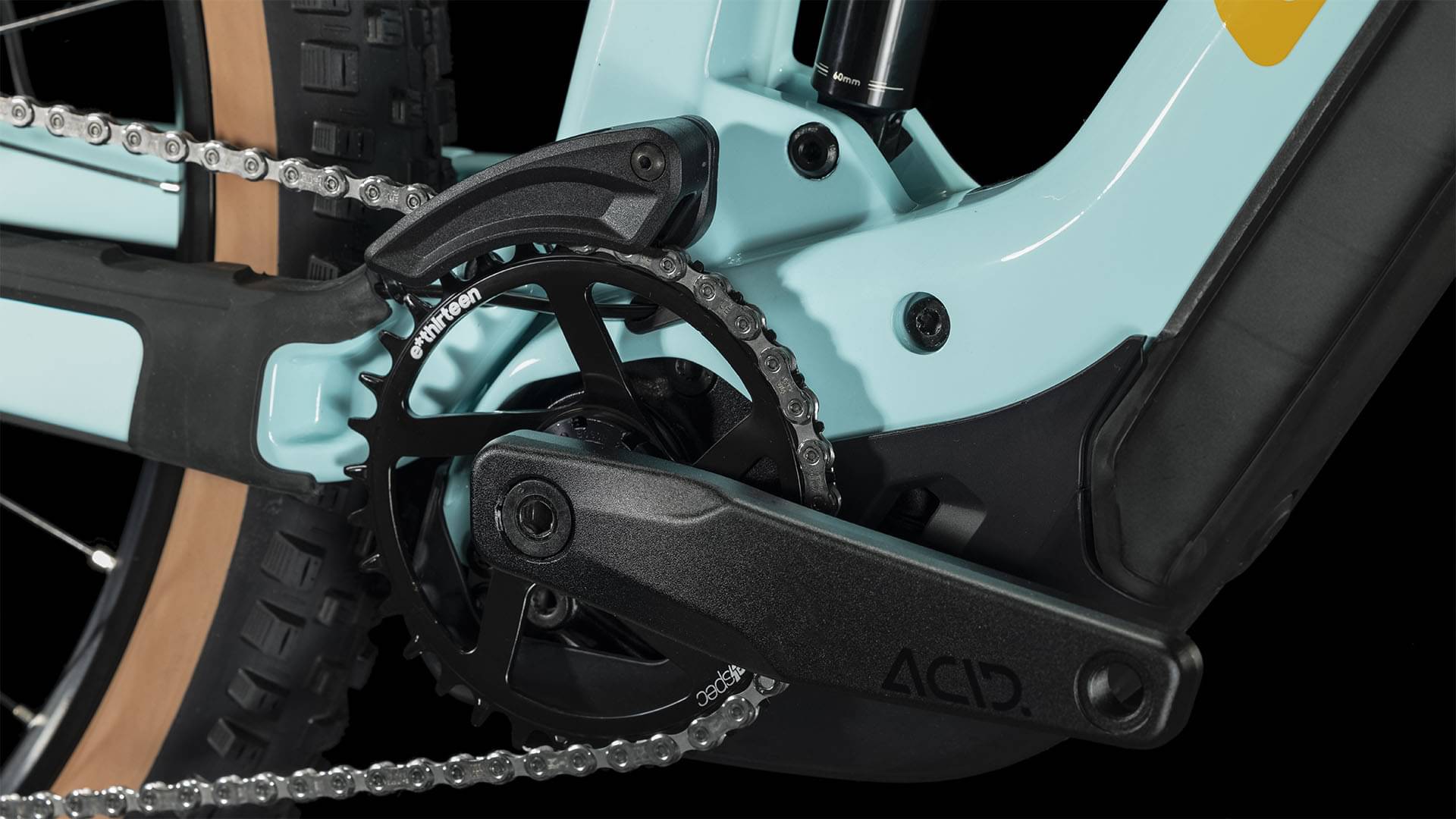

Crank
ACID E-Crank, 165mm (27.5: 36T // 29: 34T)
Chain
Shimano CN-M6100
Chain Guide
Reverse Flip-Guide E-Chain Guide, Direct Mount, GEN4
Wheels
Front Hub
CUBE Engineered By Newmen, 15mm, Boost, Centerlock
Rear Hub
CUBE Engineered By Newmen, 12mm, Boost, Centerlock
Rims
CUBE EX30, 32H, Disc, Tubeless Ready
Tires
Schwalbe Nobby Nic, PerfL, 2.6
Brakes
Brakes
SRAM DB8, Hydr. Disc Brake (203/203)
Cockpit
Stem
CUBE Performance Stem E-MTB, 31.8mm
Handlebar
Newmen Evolution SL 318.25, 760mm
Grips
ACID React Pro
Headset
ACROS AZF-1035, ICR (Integrated Cable Routing), BlockLock 120°, Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm)
Seat
Saddle
Natural Fit Venec
Seatpost
CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm
Motor & Battery
Motor
Bosch Drive Unit Performance CX Generation 4 (85Nm) Cruise (250Watt), Smart System
Battery
Bosch PowerTube 625
Remote
Bosch LED Remote
Charger
Bosch 4A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.425 mm | 1.4 mm | 1.347 mm | 1.314 mm |
| Bottom Bracket Height | 339 mm | 338 mm | 338 mm | 338 mm |
| Front Center | 737 mm | 766 mm | 797 mm | 828 mm |
| Rake | 44 mm | 51 mm | 51 mm | 51 mm |
| Trail | 110 mm | 111 mm | 111 mm | 111 mm |
| Stack | 607 mm | 626 mm | 637 mm | 653 mm |
| Reach | 426 mm | 447 mm | 473 mm | 497 mm |
| Top Tube Length | 570 mm | 600 mm | 630 mm | 660 mm |
| Seat Tube Angle | 76 ° | 75.5 ° | 75.5 ° | 75.5 ° |
| Seat Tube Length | 370 mm | 420 mm | 460 mm | 490 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 120 mm | 108 mm | 120 mm | 138 mm |
| Chainstay Length | 450 mm | 457 mm | 457 mm | 457 mm |
| Wheelbase | 1187 mm | 1221 mm | 1252 mm | 1283 mm |
| Bottom Bracket Drop | 16 mm | 36 mm | 36 mm | 36 mm |
| Wheels | 27" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
