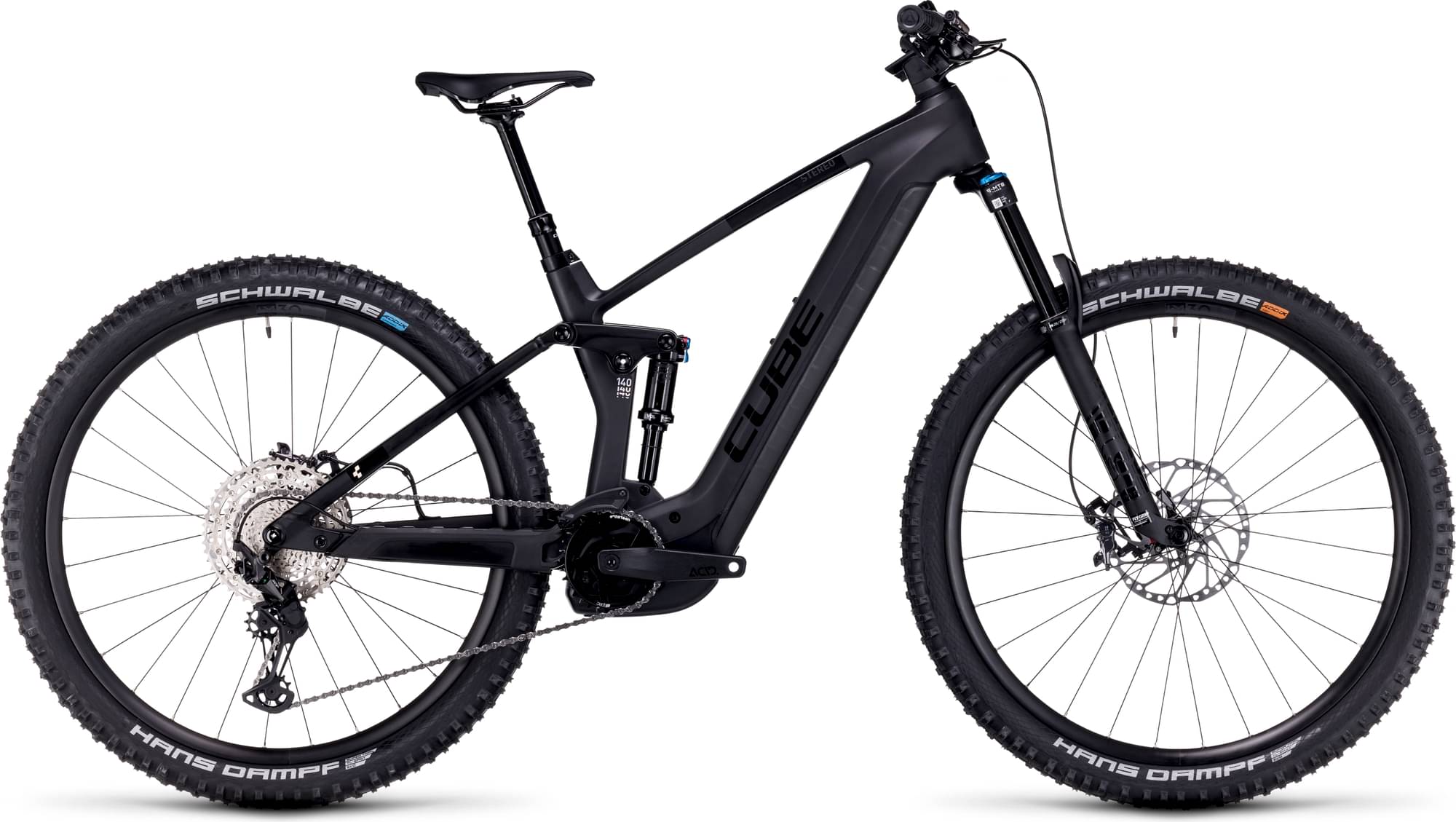

CUBE STEREO HYBRID 140 HPC, SLX 750 2024
2024 E-bike
Estimate price |
6,078$
Weight | 24.1 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 150mm -
Travel Rear 140mm -
Fork Fox Rhythm Float 34
-
Groupset XT, Deore -
Suspension Full -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch PowerTube 750 -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
C:62® Monocoque Advanced Twin Mold Technology, Aluminium 6061 T6 Rear Triangle, Efficient Trail Control, FSP 4-Link, Agile Trail Geometry, Boost 148, UDH™, Fully Integrated Battery, Advanced Internal Cable Routing
Suspension Fork
Fox 34 Float Rhythm, 2-Position Sweep-Adjust GRIP Damper, Tapered, 15x110mm, E-Bike Tune, 150mm
Rear Shock
Fox Float DPS EVOL, 205x60mm (27.5: 185x55mm), Open/Medium/Firm Mode, Trunnion Mount
Drivetrain
Rear Derailleur
Shimano XT RD-M8100-SGS, ShadowPlus, 12-Speed
Shift Levers
Shimano Deore SL-M6100-IR, Direct Attach, Rapidfire-Plus
Cassette
Shimano Deore CS-M6100, 10-51T
Crank
ACID E-Crank, 165mm (27.5: 36T // 29: 34T)
Chain
Shimano CN-M6100
Chain Guide
Reverse Flip-Guide E-Chain Guide, Direct Mount, GEN4
Wheels
Rims
Newmen Performance 30, 28/28 Spokes, 15x110mm/12x148mm, Tubeless Ready
Tires
Front: Schwalbe Hans Dampf, Addix Soft, Super Trail, Tubeless Easy, 2.6, Rear: Schwalbe Hans Dampf, Addix Speedgrip, Super Trail, Tubeless Easy, 2.6
Brakes
Brakes
Shimano XT BR-M8120, Hydr. Disc Brake (203/203)
Cockpit
Stem
CUBE Performance Stem E-MTB, 31.8mm
Handlebar
Newmen Evolution SL 318.25, 780mm
Grips
ACID Disrupt, Soft Compound
Headset
ACROS AZF-1035, ICR (Integrated Cable Routing), BlockLock 120°, Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm)
Seat
Saddle
Natural Fit Venec
Seatpost
CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm
Motor & Battery
Motor
Bosch Drive Unit Performance CX Generation 4 (85Nm) Cruise (250Watt), Smart System
Battery
Bosch PowerTube 750
Remote
Bosch LED Remote
Charger
Bosch 4A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.425 mm | 1.4 mm | 1.347 mm | 1.314 mm |
| Bottom Bracket Height | 339 mm | 319 mm | 319 mm | 338 mm |
| Front Center | 737 mm | 766 mm | 797 mm | 828 mm |
| Rake | 44 mm | 51 mm | 51 mm | 51 mm |
| Trail | 110 mm | 102 mm | 102 mm | 111 mm |
| Stack | 607 mm | 626 mm | 637 mm | 653 mm |
| Reach | 426 mm | 447 mm | 473 mm | 497 mm |
| Top Tube Length | 570 mm | 600 mm | 630 mm | 660 mm |
| Seat Tube Angle | 76 ° | 75.5 ° | 75.5 ° | 75.5 ° |
| Seat Tube Length | 370 mm | 420 mm | 460 mm | 490 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 120 mm | 108 mm | 120 mm | 138 mm |
| Chainstay Length | 450 mm | 457 mm | 457 mm | 457 mm |
| Wheelbase | 1187 mm | 1221 mm | 1252 mm | 1283 mm |
| Bottom Bracket Drop | 16 mm | 36 mm | 36 mm | 36 mm |
| Rear Travel | 140 mm | 140 mm | 140 mm | 140 mm |
| Wheels | 27" | 27" | 27" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
