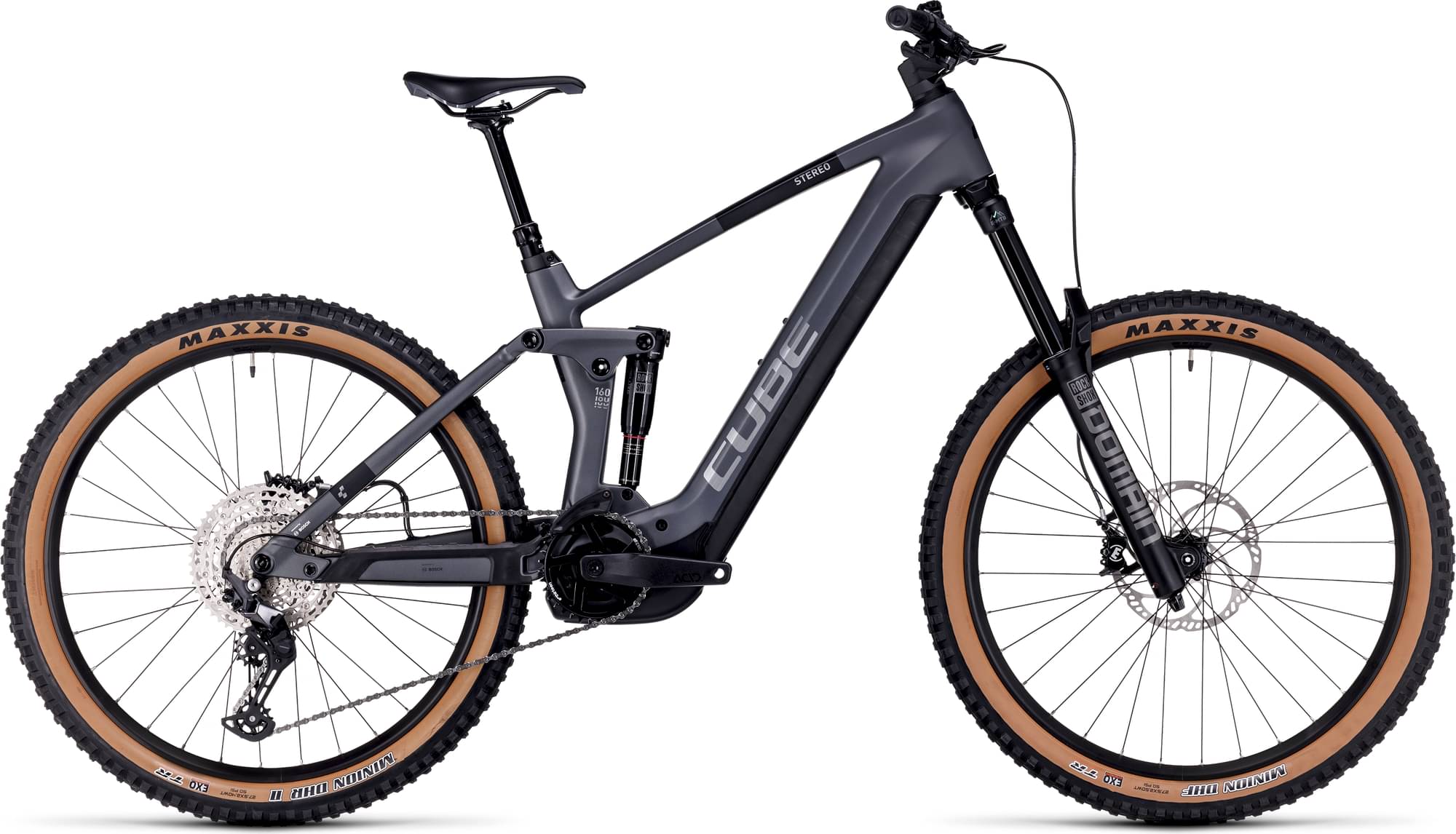

CUBE STEREO HYBRID 160 HPC, RACE 625 27.5 2024
2024 E-bike
Estimate price |
5,350$
Weight | 23.9 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 170mm -
Travel Rear 160mm -
Fork RockShox Domain
-
Groupset Deore -
Suspension Full -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch PowerTube 625 -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
C:62® Monocoque Advanced Twin Mold Technology, Aluminium 6061 T6 Rear Triangle, Efficient Trail Control, FSP 4-Link, Agile Trail Geometry, Boost 148, UDH™, Fully Integrated Battery, Advanced Internal Cable Routing
Suspension Fork
RockShox Domain R, Tapered, 15x110mm, eMTB Approved, 170mm

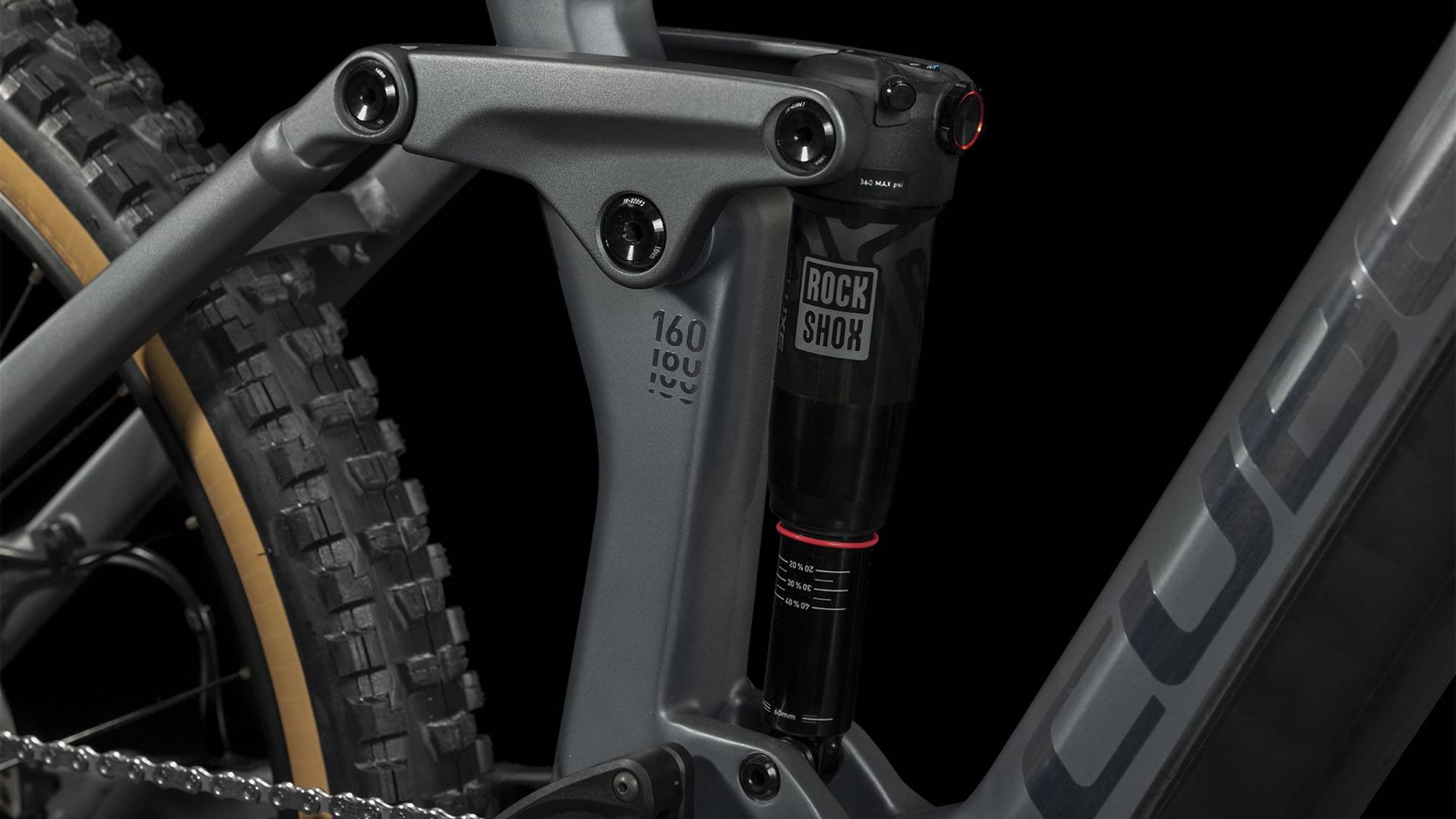

Rear Shock
RockShox Deluxe Select, 205x65mm, Rebound Adjust, Trunnion Mount
Drivetrain
Rear Derailleur
Shimano Deore RD-M6100-SGS, ShadowPlus, 12-Speed
Shift Levers
Shimano Deore SL-M6100, Rapidfire-Plus
Cassette
Shimano Deore CS-M6100, 10-51T
Crank
ACID E-Crank, 165mm, 36T
Chain
Shimano CN-M6100
Chain Guide
Reverse Flip-Guide E-Chain Guide, Direct Mount, GEN4
Wheels
Front Hub
Shimano HB-MT400-B, 15mm, Boost, Centerlock
Rear Hub
Shimano FH-MT410-B, 12mm, Boost, Centerlock
Rims
CUBE EX30, 32H, Disc, Tubeless Ready
Tires
Front: Maxxis Minion DHF, Dual/EXO, Tubeless Ready, 2.5 WT, Rear: Maxxis Minion DHR II, Dual/EXO, Tubeless Ready, 2.4 WT
Brakes
Brakes
Magura MT Thirty, Front 4-Piston/Rear 4-Piston, Hydr. Disc Brake (203/203)
Cockpit
Stem
CUBE Performance Stem E-MTB, 31.8mm
Handlebar
Newmen Evolution SL 318.25, 780mm
Grips
ACID React Pro
Headset
ACROS AZF-1035, ICR (Integrated Cable Routing), BlockLock 120°, Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm)
Seat

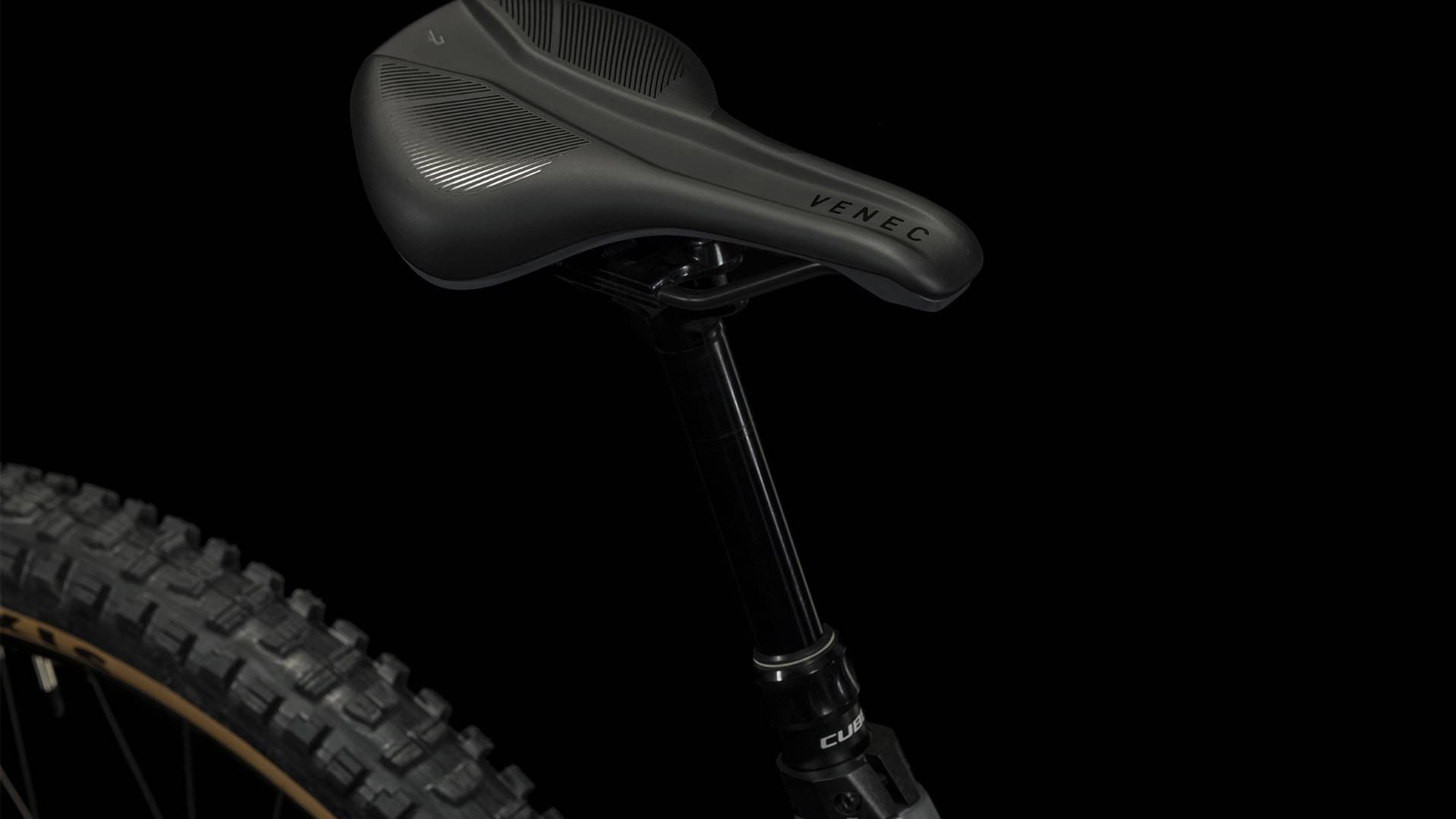

Saddle
Natural Fit Venec
Seatpost
CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm
Motor & Battery
Motor
Bosch Drive Unit Performance CX Generation 4 (85Nm) Cruise (250Watt), Smart System
Battery
Bosch PowerTube 625

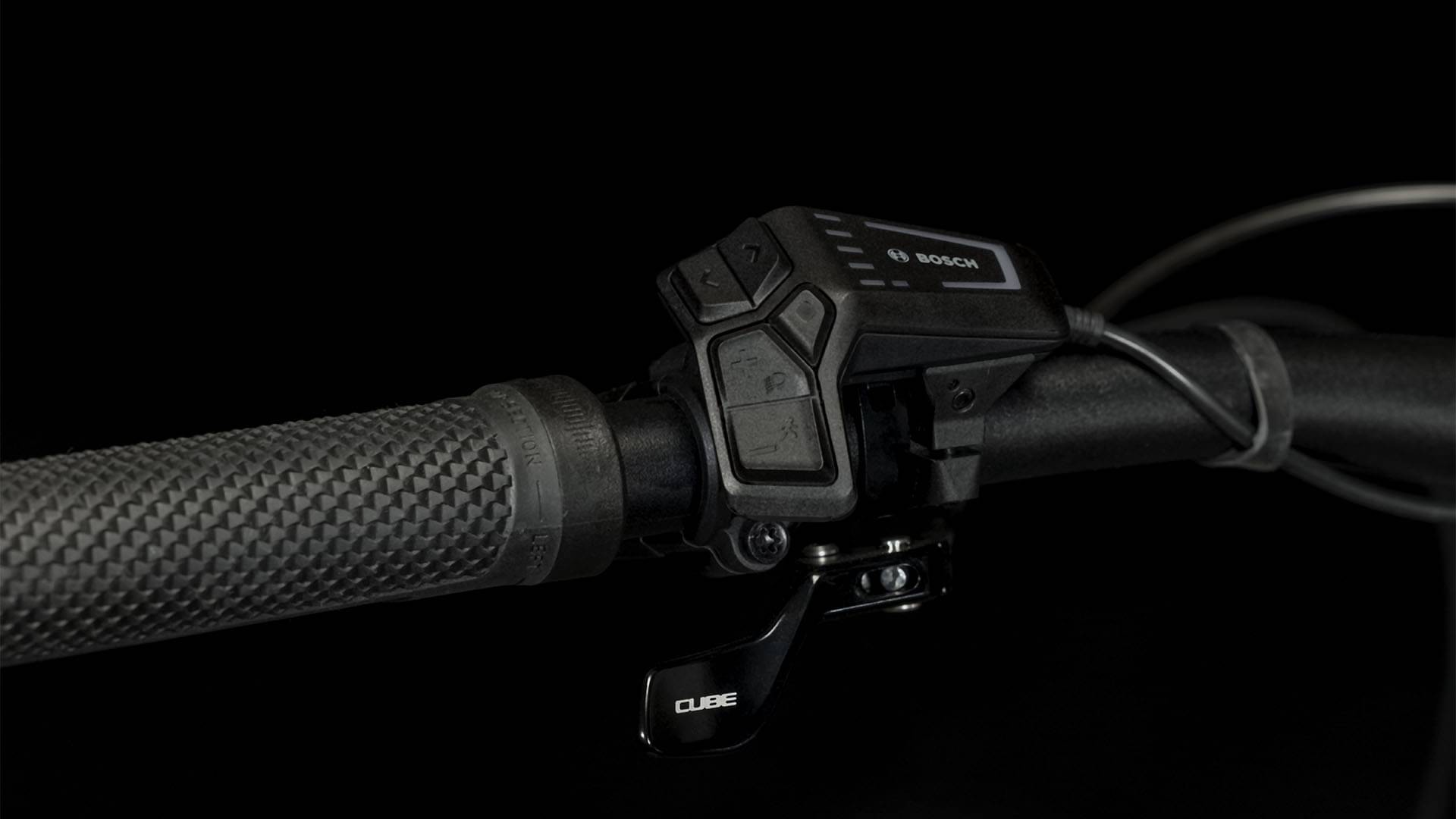

Remote
Bosch LED Remote
Charger
Bosch 2A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.417 mm | 1.36 mm | 1.306 mm | 1.273 mm |
| Bottom Bracket Height | 342 mm | 342 mm | 342 mm | 342 mm |
| Front Center | 751 mm | 783 mm | 814 mm | 847 mm |
| Rake | 44 mm | 44 mm | 43 mm | 44 mm |
| Trail | 117 mm | 117 mm | 118 mm | 117 mm |
| Stack | 605 mm | 616 mm | 627 mm | 643 mm |
| Reach | 427 mm | 453 mm | 480 mm | 505 mm |
| Top Tube Length | 570 mm | 600 mm | 630 mm | 660 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 370 mm | 420 mm | 460 mm | 490 mm |
| Head Tube Angle | 65 ° | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 108 mm | 120 mm | 132 mm | 150 mm |
| Chainstay Length | 442 mm | 442 mm | 442 mm | 442 mm |
| Wheelbase | 1193 mm | 1225 mm | 1256 mm | 1289 mm |
| Bottom Bracket Drop | 13 mm | 13 mm | 13 mm | 13 mm |
| Rear Travel | 160 mm | 160 mm | 160 mm | 160 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
