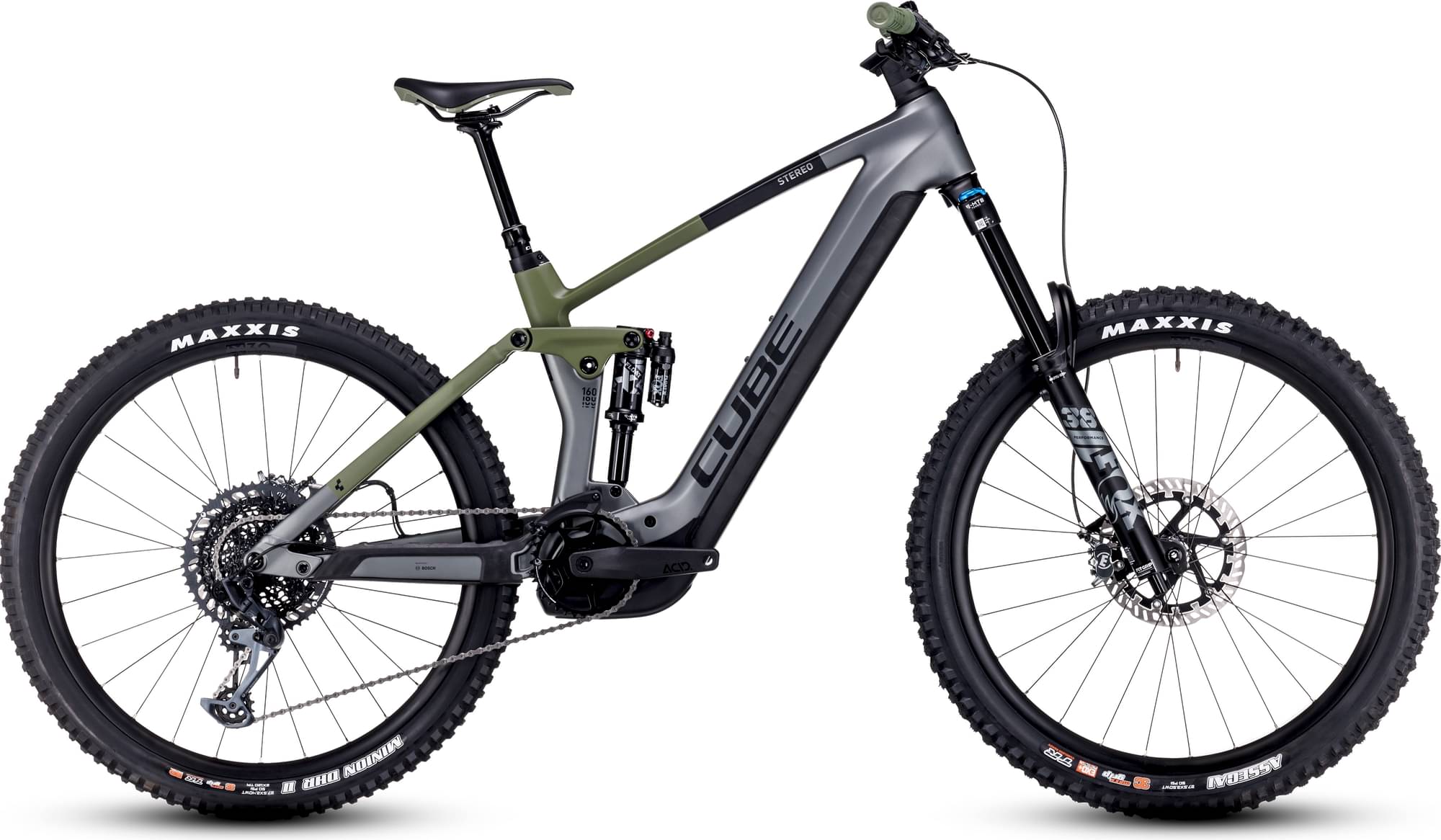

CUBE STEREO HYBRID 160 HPC, TM 750 27.5 2024
2024 E-bike
Estimate price |
6,766$
Weight | 24.4 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 170mm -
Travel Rear 160mm -
Fork Fox Performance Float 38
-
Groupset GX Eagle -
Suspension Full -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch PowerTube 750 -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
C:62® Monocoque Advanced Twin Mold Technology, Aluminium 6061 T6 Rear Triangle, Efficient Trail Control, FSP 4-Link, Agile Trail Geometry, Boost 148, UDH™, Fully Integrated Battery, Advanced Internal Cable Routing
Suspension Fork
Fox 38 Float Performance GRIP, 3-Position w/ Micro Adjust, Tapered, 15x110mm, E-Bike Tune, 170mm

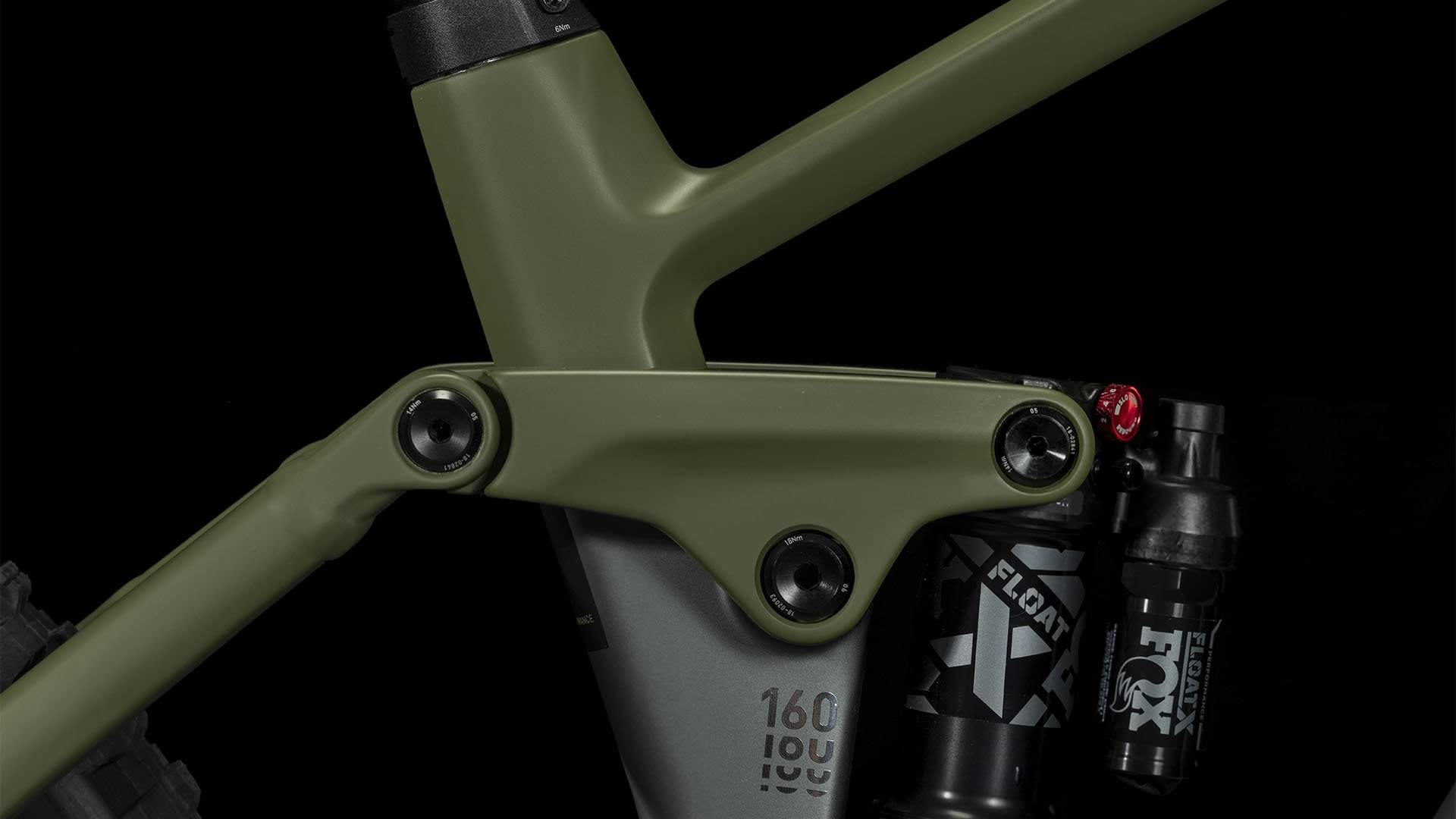

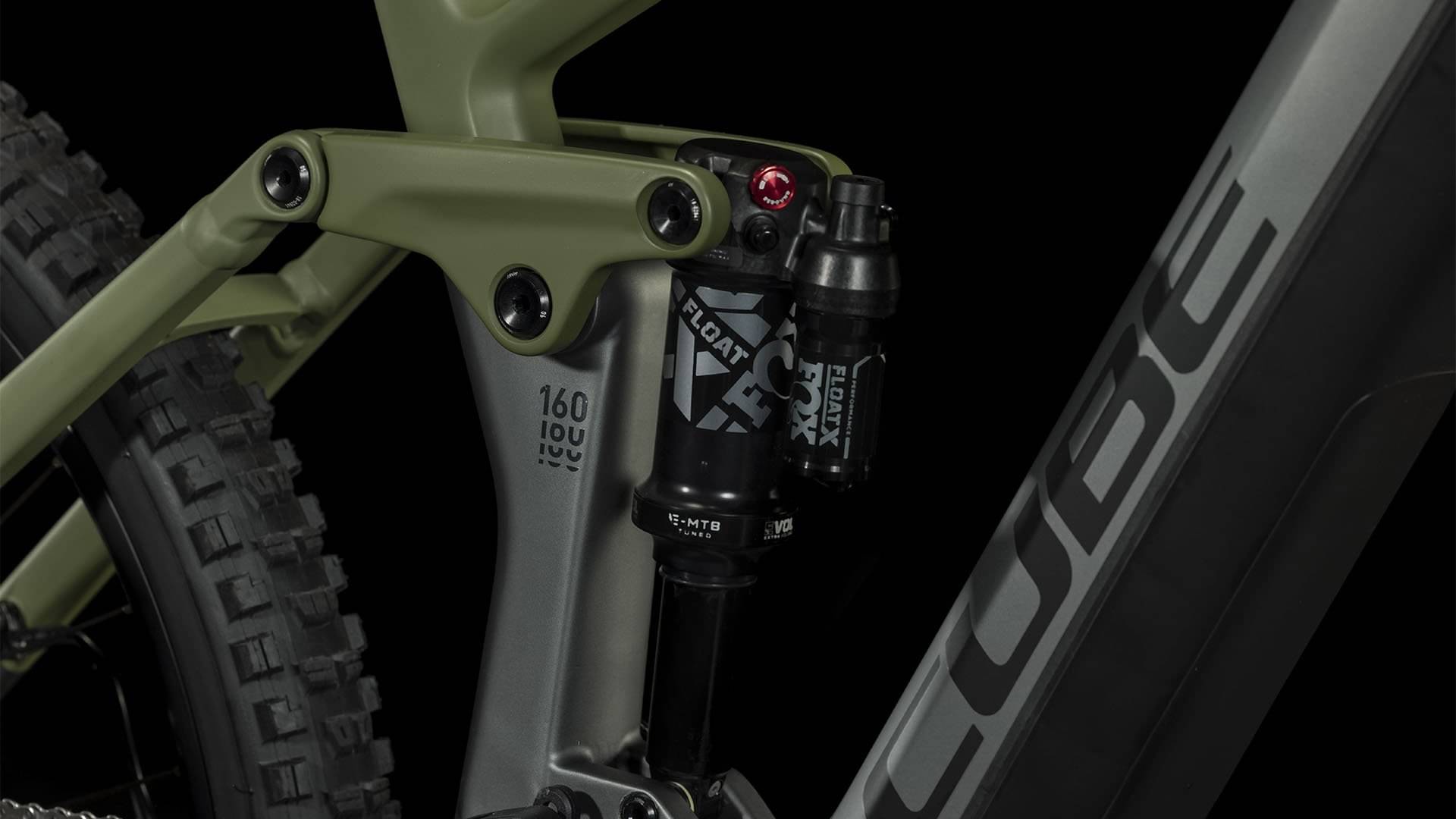

Rear Shock
Fox Float X Performance, 205x65mm, Trunnion Mount, Adjustable LSR w/ 2-Pos. Lever
Drivetrain
Rear Derailleur
SRAM GX Eagle™, 12-Speed
Shift Levers
SRAM GX Eagle™ Trigger, Single Click
Cassette
SRAM XG-1275 Eagle™, 10-52T
Crank
ACID E-Crank, 165mm, 36T
Chain
SRAM NX Eagle™
Chain Guide
Reverse Flip-Guide E-Chain Guide, Direct Mount, GEN4
Wheels
Rims
Newmen Performance 30, 28/28 Spokes, 15x110mm/12x148mm, Tubeless Ready
Tires
Front: Maxxis Assegai, MaxxGrip/EXO+, Tubeless Ready, 2.5 WT, Rear: Maxxis Minion DHR II, MaxxGrip/DoubleDown, Tubeless Ready, 2.4 WT
Brakes
Brakes
Magura MT7, Hydr. Disc Brake (203/203)

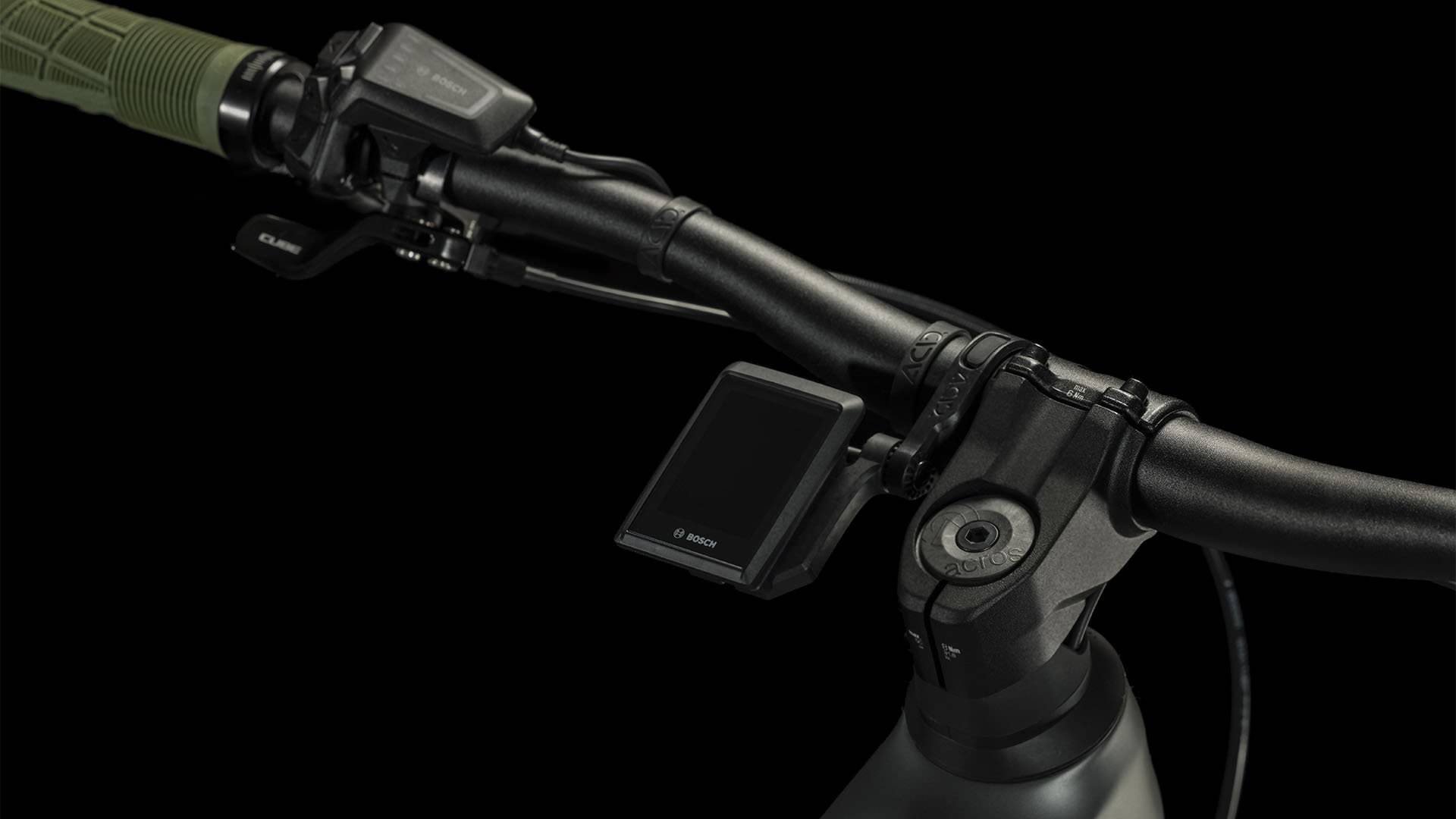

Cockpit
Stem
CUBE Performance Stem E-MTB, 31.8mm
Handlebar
Newmen Evolution SL 318.25, 800mm
Grips
ACID Disrupt, Soft Compound
Headset
ACROS AZF-1035, ICR (Integrated Cable Routing), BlockLock 120°, Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm)
Seat
Saddle
Natural Fit Venec
Seatpost
CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm
Motor & Battery
Motor
Bosch Drive Unit Performance CX Generation 4 (85Nm) Cruise (250Watt), Smart System
Battery
Bosch PowerTube 750
Remote
Bosch LED Remote
Charger
Bosch 4A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.417 mm | 1.36 mm | 1.306 mm | 1.273 mm |
| Bottom Bracket Height | 342 mm | 342 mm | 342 mm | 342 mm |
| Front Center | 751 mm | 783 mm | 814 mm | 847 mm |
| Rake | 44 mm | 44 mm | 43 mm | 44 mm |
| Trail | 117 mm | 117 mm | 118 mm | 117 mm |
| Stack | 605 mm | 616 mm | 627 mm | 643 mm |
| Reach | 427 mm | 453 mm | 480 mm | 505 mm |
| Top Tube Length | 570 mm | 600 mm | 630 mm | 660 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 370 mm | 420 mm | 460 mm | 490 mm |
| Head Tube Angle | 65 ° | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 108 mm | 120 mm | 132 mm | 150 mm |
| Chainstay Length | 442 mm | 442 mm | 442 mm | 442 mm |
| Wheelbase | 1193 mm | 1225 mm | 1256 mm | 1289 mm |
| Bottom Bracket Drop | 13 mm | 13 mm | 13 mm | 13 mm |
| Rear Travel | 160 mm | 160 mm | 160 mm | 160 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
