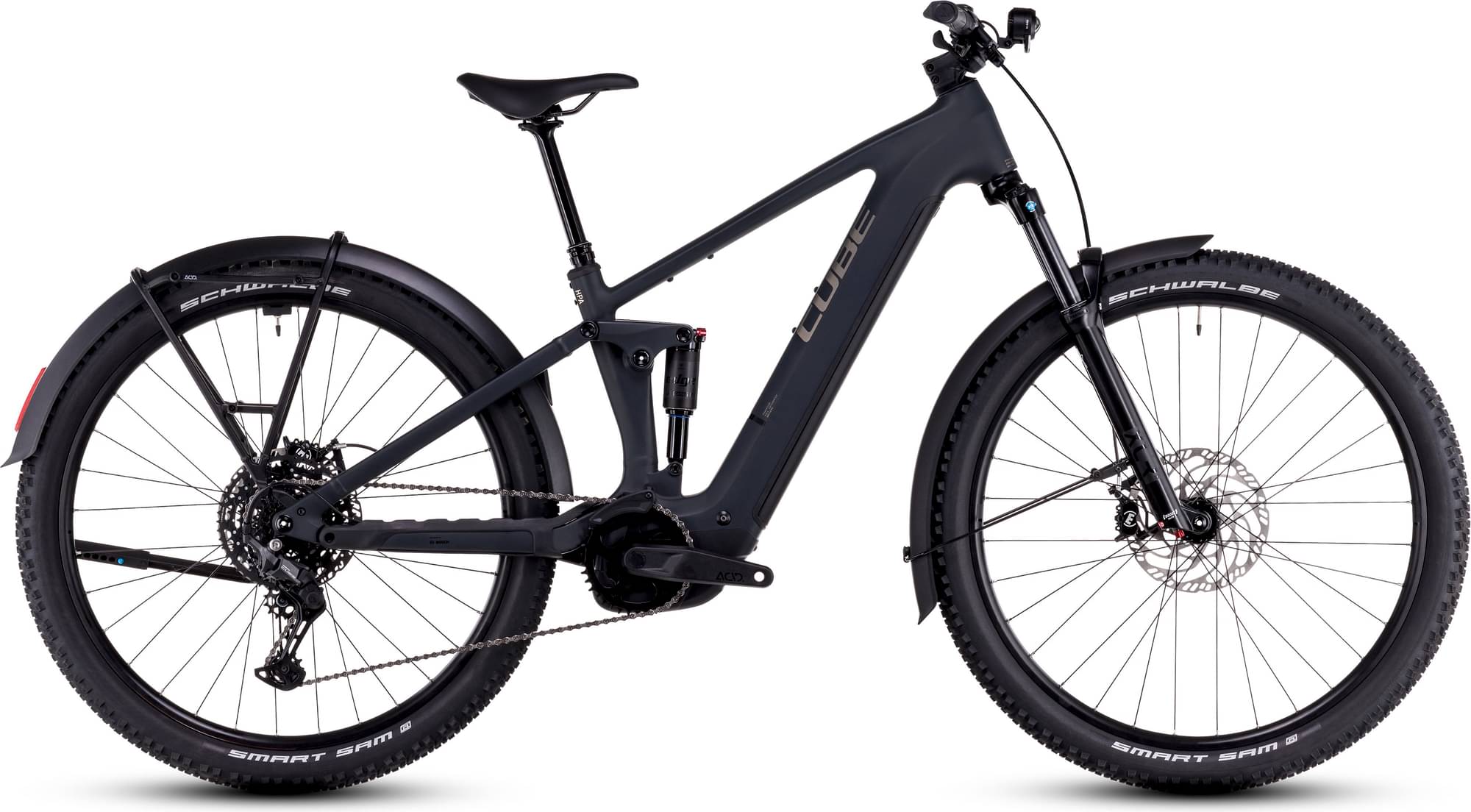

CUBE STEREO HYBRID ONE22, PRO 800 ALLROAD 2025
2025 E-bike
Estimate price |
4,536$
Weight | 28 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 120mm -
Travel Rear 120mm -
Fork Suntour XCR Air
-
Groupset CUES -
Suspension Full -
Motor Bosch 600W 85Nm mid-drive -
Battery Bosch PowerTube 800 -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum Superlite, Gravity Casting Technology, Efficient Comfort Control, FSP 4-Link, Agile Comfort Geometry, Boost 148, UDH™, Full Integrated Battery, Advanced Internal Cable Routing, Kickstand/Fender/Carrier Mounting Points, Integrated Seatclamp

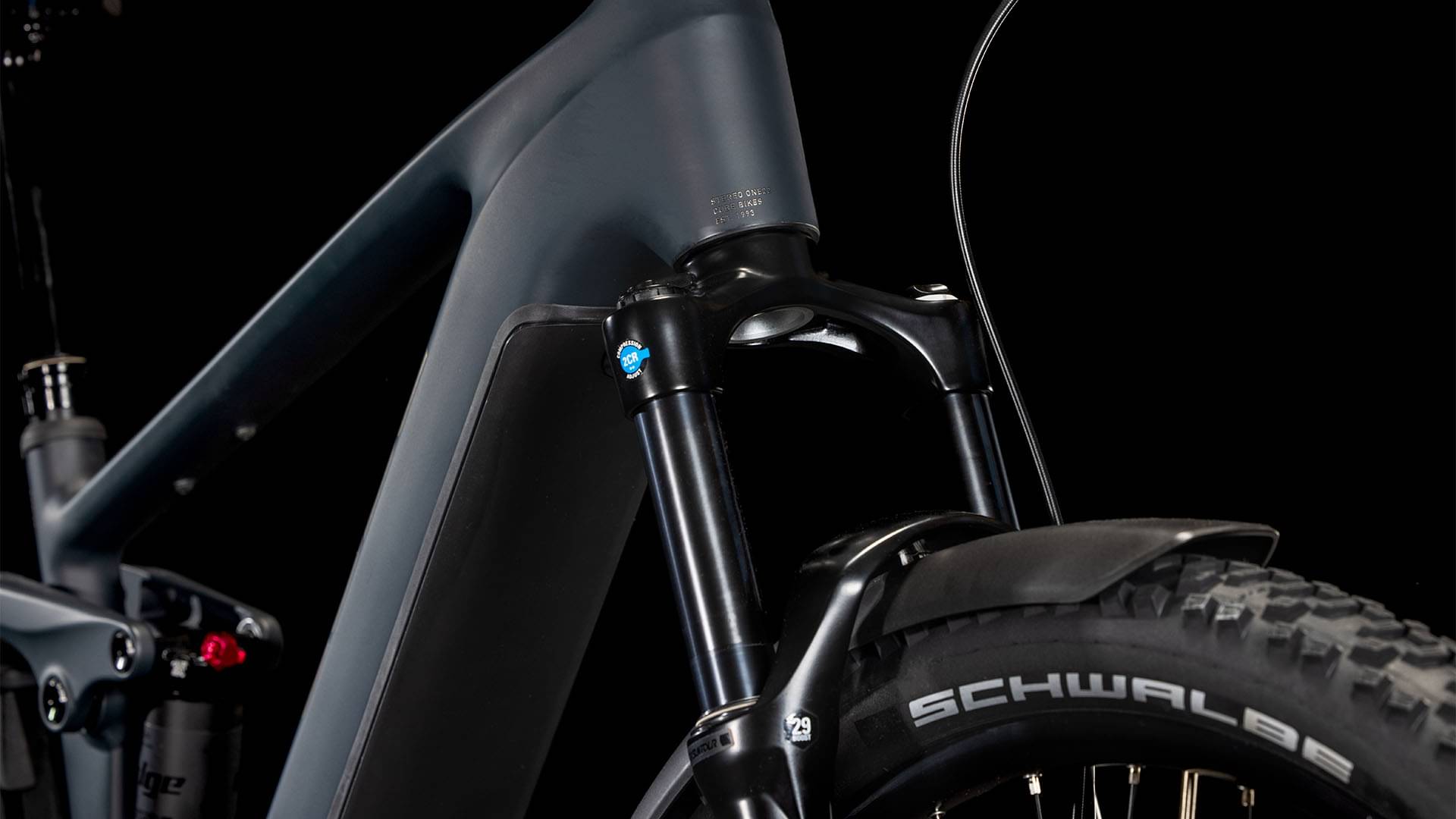

Suspension Fork
SR Suntour XCR34X 2CR Air, Tapered, 15x110mm, 120mm

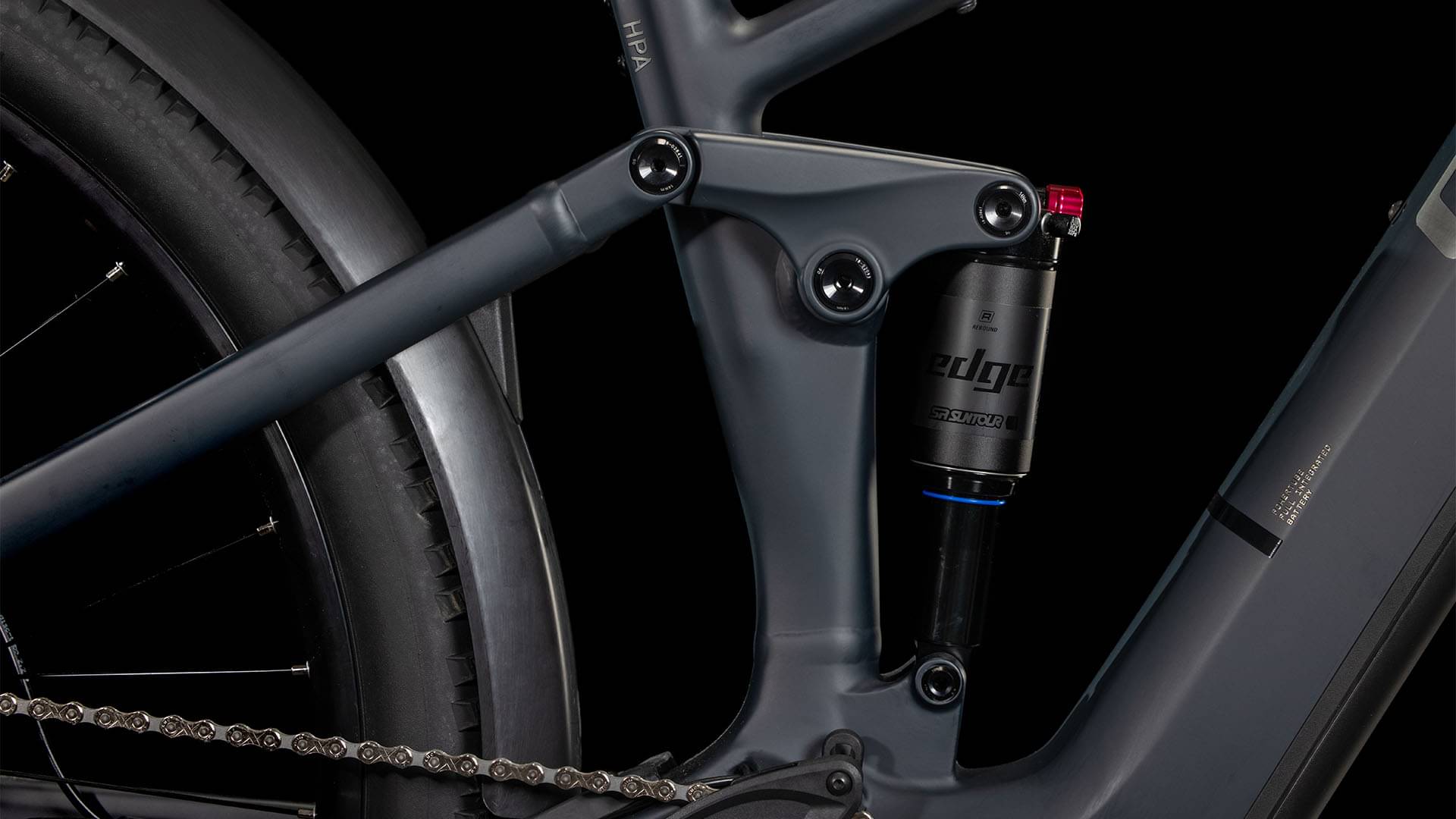

Rear Shock
SR Suntour EdgeX R 185x52,5mm, Rebound Adjust, Trunnion Mount
Drivetrain
Rear Derailleur
Shimano Cues RD-U6000-GS, 10-Speed
Shift Levers
Shimano Cues SL-U6000, Rapidfire-Plus
Cassette
Shimano Cues CS-LG300, 11-48T
Crank
ACID MTB Hybrid Pro, 38T
Chain
KMC eGlide
Chain Guide
Reverse Flip-Guide E-Chain Guide, Direct Mount, I-Plate
Pedals
ACID PP MTB
Wheels
Front Hub
CUBE Engineered By Newmen, 15mm, Boost, 6-Bolt
Rear Hub
CUBE Engineered By Newmen, 12mm, Boost, 6-Bolt
Rims
CUBE EX30, 32H, Disc, Tubeless Ready
Tires
Schwalbe Smart Sam, Active, 2.6
Brakes
Brakes
Magura MT Thirty, Front 4-Piston/Rear 4-Piston, Hydr. Disc Brake (203/203)
Cockpit
Stem
CUBE Performance Stem E-MTB 35, FPI-Link
Handlebar
CUBE Rise Trail Bar 35
Grips
ACID Hybrid Perform
Seat
Saddle
ACID Sequence Pro 160
Seatpost
CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm
Motor & Battery
Motor
Bosch Drive Unit Performance Line CX 85Nm (BDU38), Smart System
Battery
Bosch PowerTube 800
Remote
Bosch Purion 200 w/ Integrated Display
Charger
Bosch 2A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.53 mm | 1.457 mm | 1.393 mm | 1.351 mm |
| Bottom Bracket Height | 332 mm | 312 mm | 312 mm | 331 mm |
| Front Center | 732 mm | 755 mm | 786 mm | 818 mm |
| Rake | 43 mm | 43 mm | 43 mm | 44 mm |
| Trail | 108 mm | 108 mm | 108 mm | 115 mm |
| Stack | 638 mm | 647 mm | 656 mm | 670 mm |
| Reach | 417 mm | 444 mm | 471 mm | 496 mm |
| Top Tube Length | 570 mm | 600 mm | 630 mm | 660 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 370 mm | 405 mm | 420 mm | 480 mm |
| Head Tube Angle | 66.5 ° | 66.5 ° | 66.5 ° | 66.5 ° |
| Head Tube Length | 163 mm | 132 mm | 142 mm | 157 mm |
| Chainstay Length | 455 mm | 488 mm | 488 mm | 488 mm |
| Wheelbase | 1186 mm | 1240 mm | 1271 mm | 1303 mm |
| Bottom Bracket Drop | 23 mm | 43 mm | 43 mm | 43 mm |
| Rear Travel | 120 mm | 120 mm | 120 mm | 120 mm |
| Wheels | 27" | 27" | 27" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
