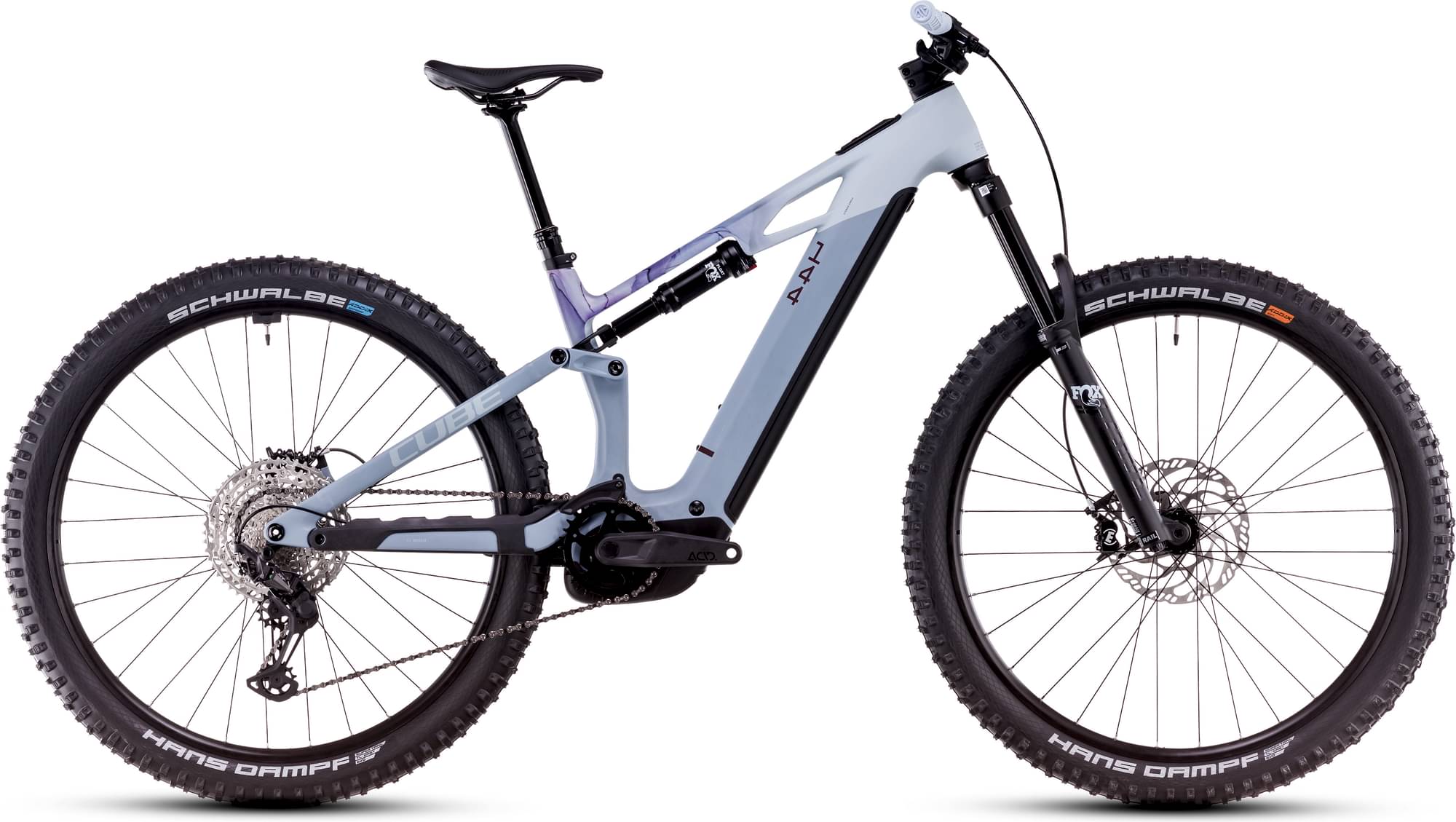

CUBE STEREO HYBRID ONE44 HPC RACE 800 2025
2025 E-bike
Estimate price |
5,160$
Weight | 24.3 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 150mm -
Travel Rear 140mm -
Fork Fox AWL
-
Groupset XT, Deore -
Suspension Full -
Motor Bosch 600W 85Nm mid-drive -
Battery Bosch PowerTube 800 -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
C:62® Monocoque Advanced Twin Mold Technology, Aluminium 6061 T6 Rear Triangle, Efficient Trail Control, FSP 4-Link, Agile Trail Geometry, Boost 148, UDH™, Full Integrated Battery, Advanced Internal Cable Routing
Suspension Fork
Fox 36 Float AWL, RAIL Damper, Tapered, 15x110mm, E-Bike Optimized, 150mm

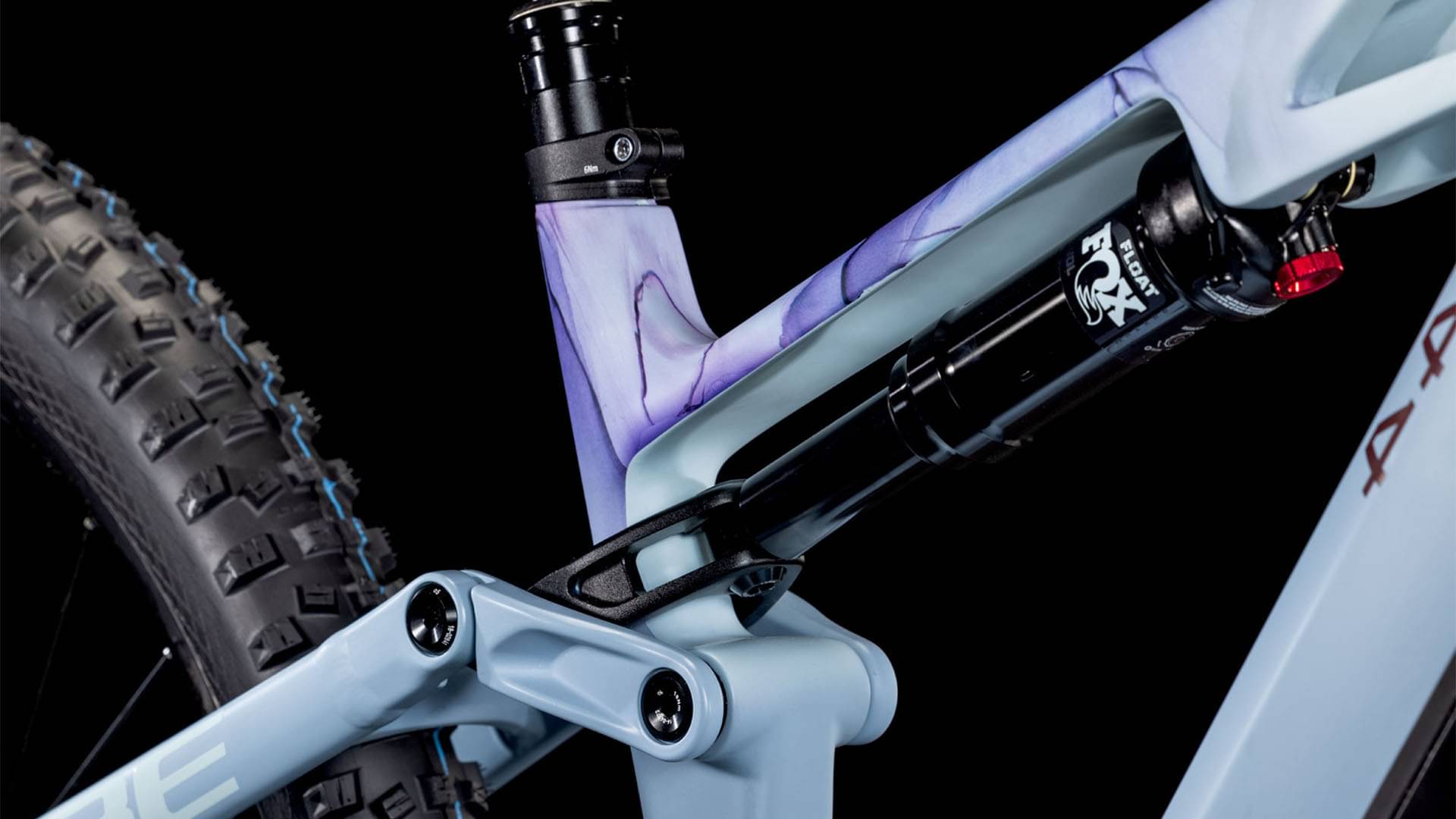

Rear Shock
Fox Float Rhythm R, 230x60mm (27.5: 210x55mm), Rebound Adjust
Drivetrain
Rear Derailleur
Shimano XT RD-M8100-SGS, ShadowPlus, 12-Speed
Shift Levers
Shimano Deore SL-M6100, Rapidfire-Plus
Cassette
Shimano Deore CS-M6100, 10-51T
Crank
ACID MTB Hybrid Pro, 27.5: 36T // 29: 34T
Chain
KMC e12
Chain Guide
Reverse Flip-Guide E-Chain Guide, Direct Mount, I-Plate
Wheels
Front Hub
CUBE Engineered By Newmen, 15mm, Boost, 6-Bolt
Rear Hub
CUBE Engineered By Newmen, 12mm, Boost, 6-Bolt
Rims
CUBE EX30, 32H, Disc, Tubeless Ready
Tires
Front: Schwalbe Hans Dampf, Addix Soft, Super Trail, Tubeless Easy, 2.6, Rear: Schwalbe Hans Dampf, Addix Speedgrip, Super Trail, Tubeless Easy, 2.6
Brakes
Brakes
Magura MT Thirty, Front 4-Piston/Rear 4-Piston, Hydr. Disc Brake (203/203)
Cockpit
Stem
CUBE Performance Stem E-MTB 35, FPI-Link
Handlebar
CUBE Rise Trail Bar 35
Grips
ACID Disrupt
Headset
ACROS AZF-675, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm), Fiber Inserts for Angle Adjustment
Seat
Saddle
ACID Venec EMTB Trail 140
Seatpost
CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm
Motor & Battery
Motor
Bosch Drive Unit Performance Line CX 85Nm (BDU38), Smart System
Battery
Bosch PowerTube 800
Remote
Bosch System Control, incl. Mini Remote
Charger
Bosch 2A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.426 mm | 1.372 mm | 1.325 mm | 1.285 mm |
| Bottom Bracket Height | 344 mm | 325 mm | 325 mm | 344 mm |
| Front Center | 751 mm | 778 mm | 809 mm | 856 mm |
| Rake | 44 mm | 43 mm | 43 mm | 43 mm |
| Trail | 117 mm | 120 mm | 120 mm | 129 mm |
| Stack | 606 mm | 620 mm | 632 mm | 658 mm |
| Reach | 425 mm | 452 mm | 477 mm | 512 mm |
| Top Tube Length | 567 mm | 596 mm | 626 mm | 669 mm |
| Seat Tube Angle | 76 ° | 76.2 ° | 76.2 ° | 76.2 ° |
| Seat Tube Length | 370 mm | 405 mm | 420 mm | 480 mm |
| Head Tube Angle | 65 ° | 64.8 ° | 64.8 ° | 64.8 ° |
| Head Tube Length | 128 mm | 106 mm | 120 mm | 148 mm |
| Chainstay Length | 450 mm | 457 mm | 457 mm | 457 mm |
| Wheelbase | 1201 mm | 1233 mm | 1264 mm | 1311 mm |
| Bottom Bracket Drop | 11 mm | 30 mm | 30 mm | 30 mm |
| Rear Travel | 143 mm | 140 mm | 140 mm | 140 mm |
| Wheels | 27" | 27" | 27" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
