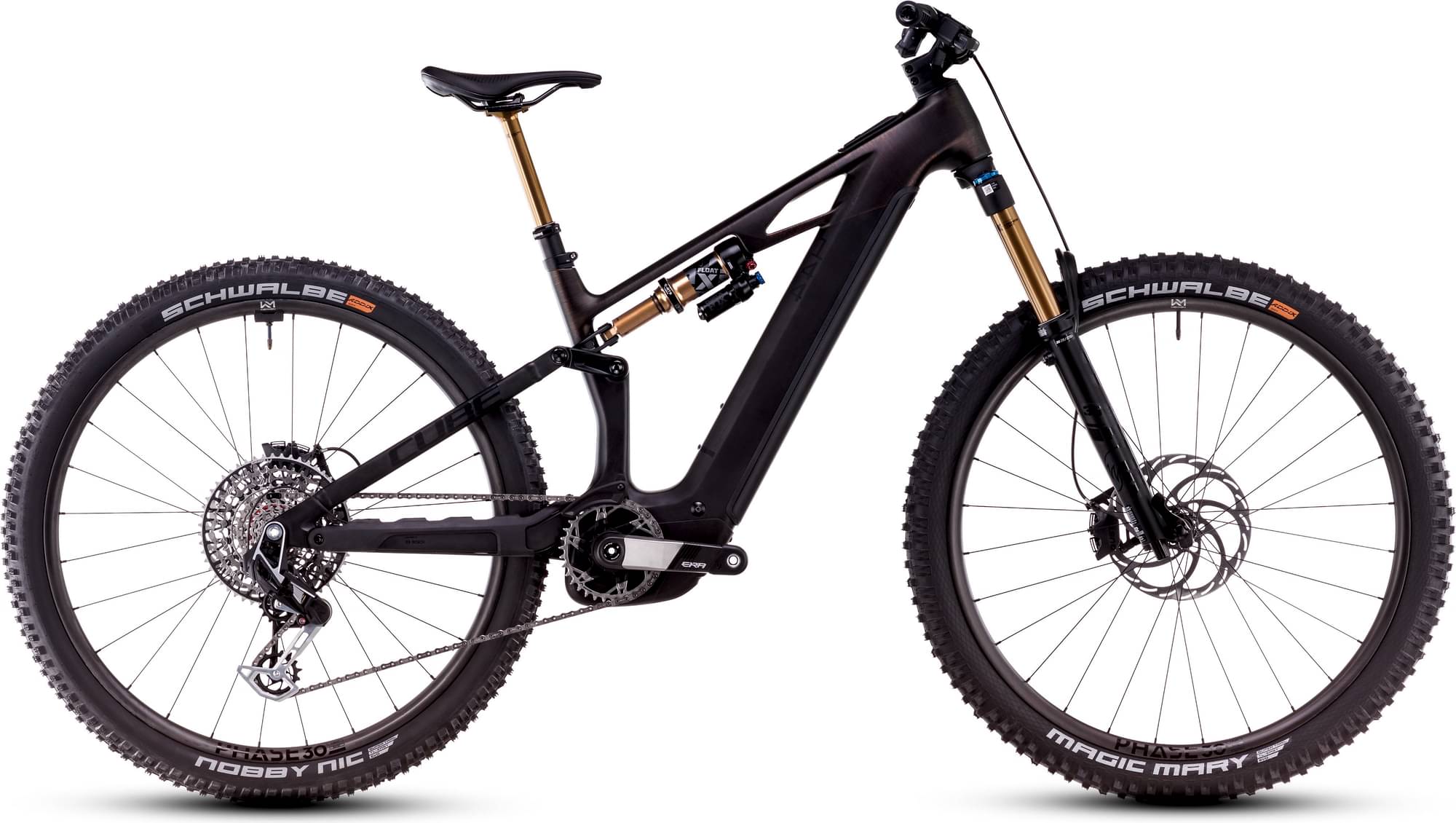

CUBE STEREO HYBRID ONE44 HPC SLT 2025
2025 E-bike
Estimate price |
9,887$
Weight | 23 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 150mm -
Travel Rear 140mm -
Fork Fox Factory Float 36
-
Groupset XX Eagle Transmission, X01 Eagle AXS -
Suspension Full -
Motor Bosch 600W 85Nm mid-drive -
Battery Bosch PowerTube -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
C:62® Monocoque Advanced Twin Mold Technology, Aluminium 6061 T6 Rear Triangle, Efficient Trail Control, FSP 4-Link, Agile Trail Geometry, Boost 148, UDH™, Full Integrated Battery, Advanced Internal Cable Routing

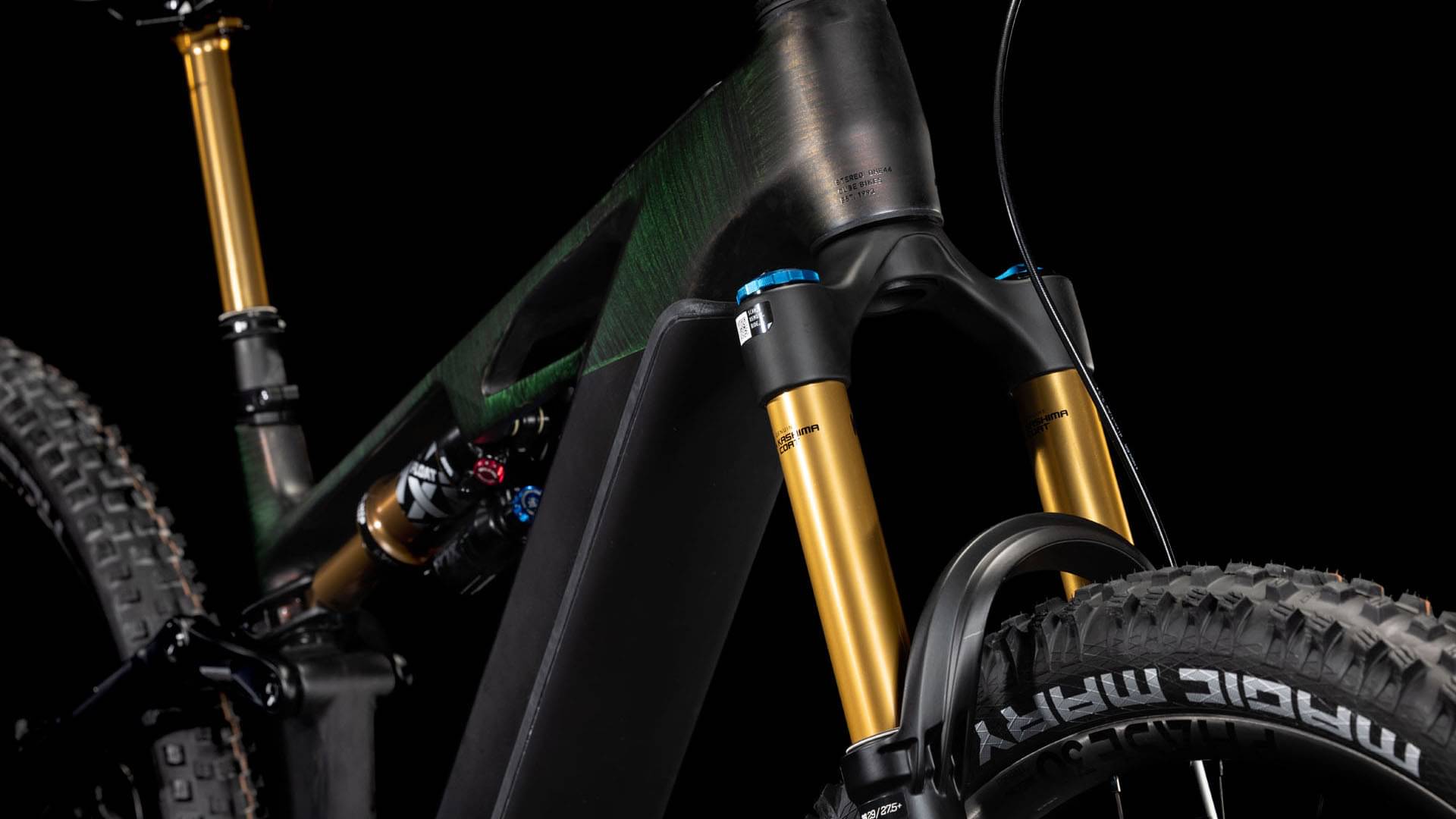

Suspension Fork
Fox 36 Float Factory GRIPX2, Tapered, 15x110mm, E-Bike Optimized, 150mm, Kashima Coated

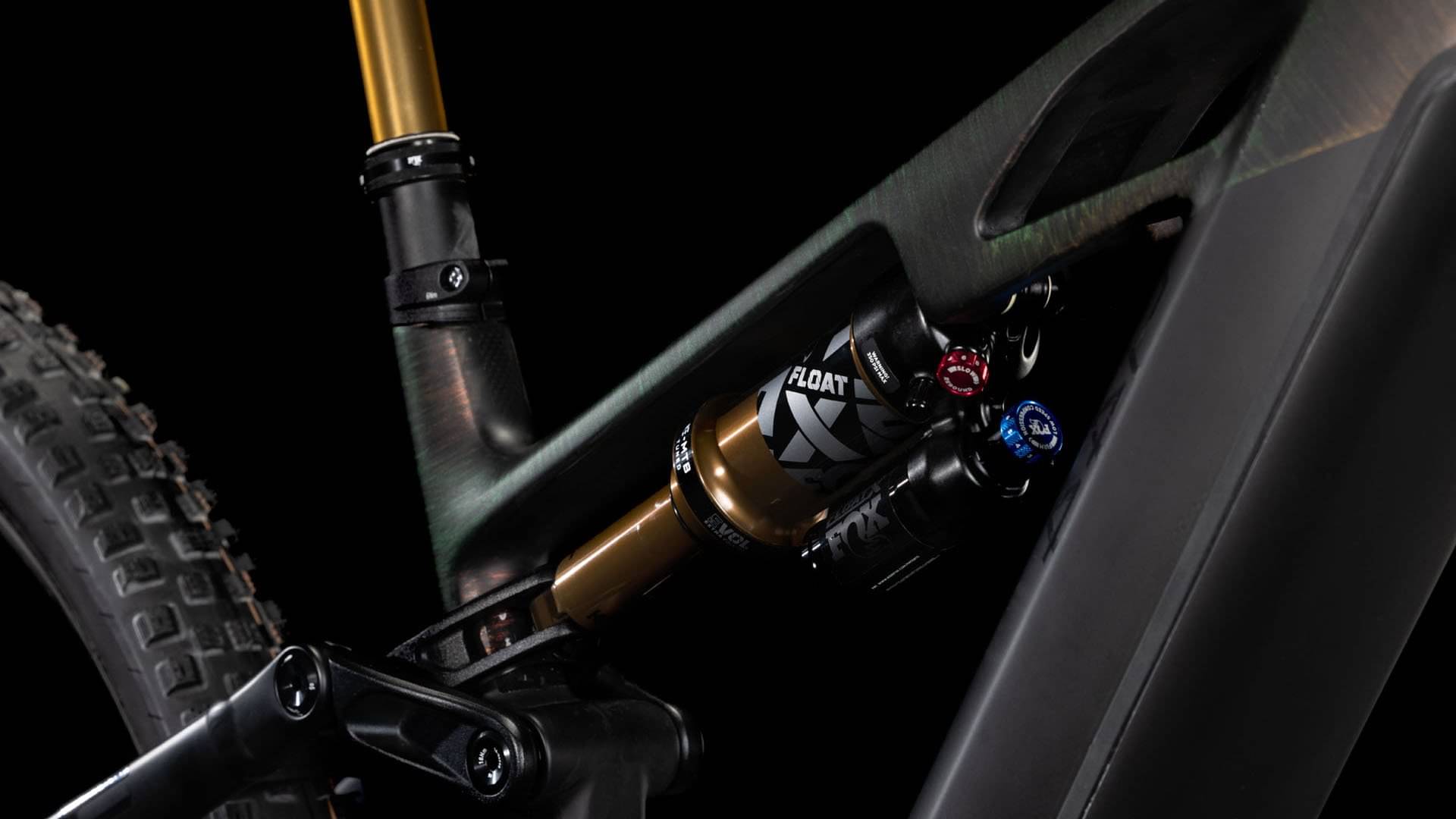

Rear Shock
Fox Float X Factory, 230x60mm (27.5: 210x55mm), Adjustable LSC w/ 2-Pos. Lever, Kashima Coated
Drivetrain
Rear Derailleur
SRAM XX Eagle AXS™ Transmission, 12-Speed
Shift Levers
SRAM AXS™ Pod Ultimate Controller
Cassette
SRAM XS-1297, 10-52T

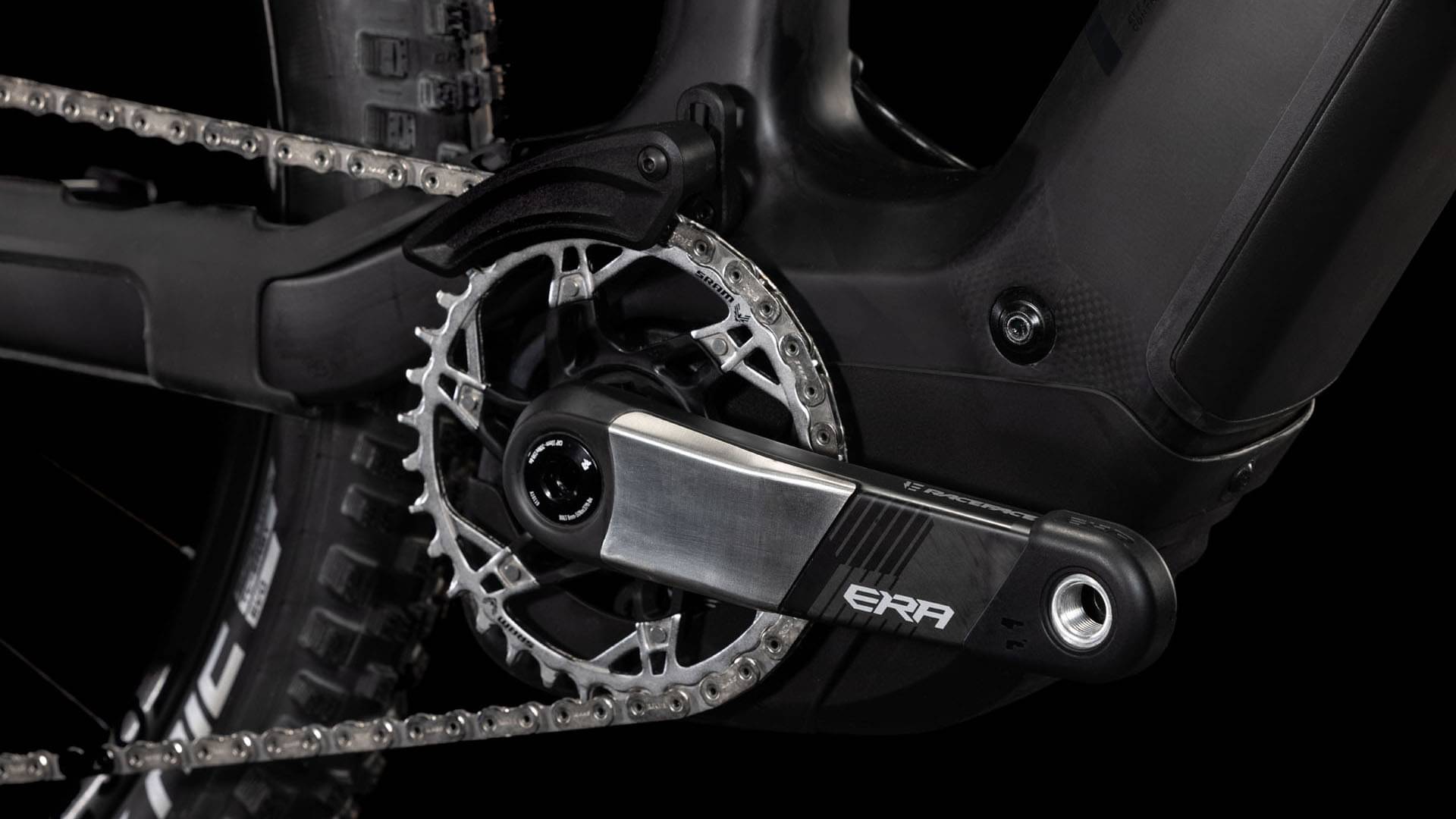

Crank
Race Face ERA E-MTB, 27.5: 36T // 29: 34T
Chain
SRAM XX Eagle™ Transmission
Chain Guide
Reverse Flip-Guide E-Chain Guide, Direct Mount, I-Plate
Wheels
Rims
Newmen Phase 30, 28/28 Spokes (Base/Strong), 15x110mm / 12x148mm, Tubeless Ready
Tires
Front: Schwalbe Magic Mary, Addix Soft, Super Trail, Kevlar, 2.4, Rear: Schwalbe Big Betty, Addix Soft, Super Gravity, Kevlar, 2.4

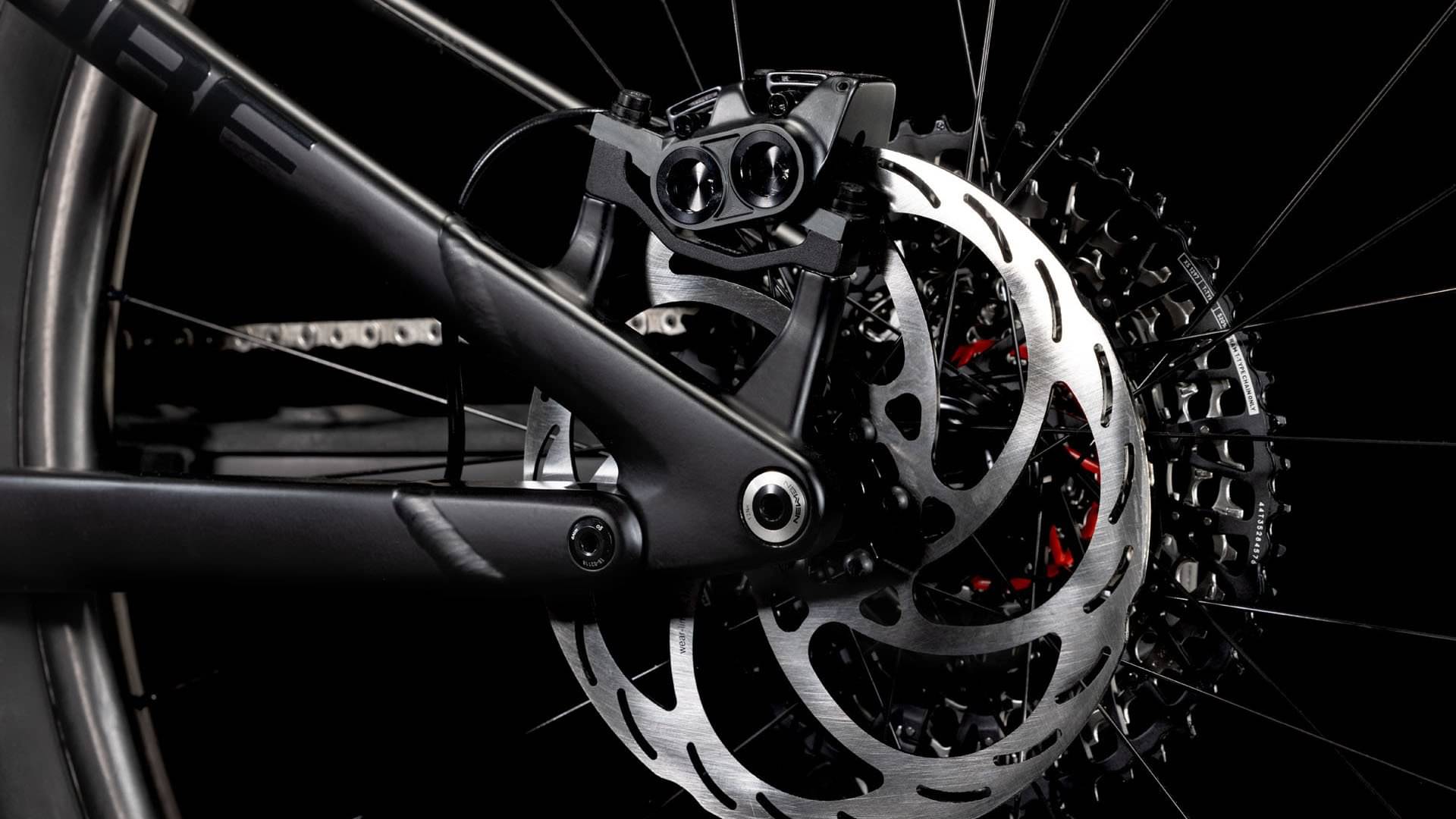

Brakes
Brakes
Magura Gustav PRO, Front 4-Piston/Rear 4-Piston, Hydr. Disc Brake (203/203)
Cockpit
Stem
CUBE Performance Stem E-MTB 35, FPI-Link
Handlebar
Race Face ERA 35
Grips
ACID Disrupt
Headset
ACROS AZF-675, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm), Fiber Inserts for Angle Adjustment, X-Connect Interface
Seat
Saddle
ACID Venec EMTB Trail 140
Seatpost
Fox Transfer Factory 31.6mm, Kashima Coated
Motor & Battery
Motor
Bosch Drive Unit Performance Line CX, Smart System
Battery
Bosch PowerTube
Remote
Bosch System Control incl. Mini Remote
Charger
Bosch 4A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.426 mm | 1.372 mm | 1.325 mm | 1.285 mm |
| Bottom Bracket Height | 344 mm | 325 mm | 325 mm | 344 mm |
| Front Center | 751 mm | 778 mm | 809 mm | 856 mm |
| Rake | 44 mm | 43 mm | 43 mm | 43 mm |
| Trail | 117 mm | 120 mm | 120 mm | 129 mm |
| Stack | 606 mm | 620 mm | 632 mm | 658 mm |
| Reach | 425 mm | 452 mm | 477 mm | 512 mm |
| Top Tube Length | 567 mm | 596 mm | 626 mm | 669 mm |
| Seat Tube Angle | 76 ° | 76.2 ° | 76.2 ° | 76.2 ° |
| Seat Tube Length | 370 mm | 405 mm | 420 mm | 480 mm |
| Head Tube Angle | 65 ° | 64.8 ° | 64.8 ° | 64.8 ° |
| Head Tube Length | 128 mm | 106 mm | 120 mm | 148 mm |
| Chainstay Length | 450 mm | 457 mm | 457 mm | 457 mm |
| Wheelbase | 1201 mm | 1233 mm | 1264 mm | 1311 mm |
| Bottom Bracket Drop | 11 mm | 30 mm | 30 mm | 30 mm |
| Rear Travel | 143 mm | 140 mm | 140 mm | 140 mm |
| Wheels | 27" | 27" | 27" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
