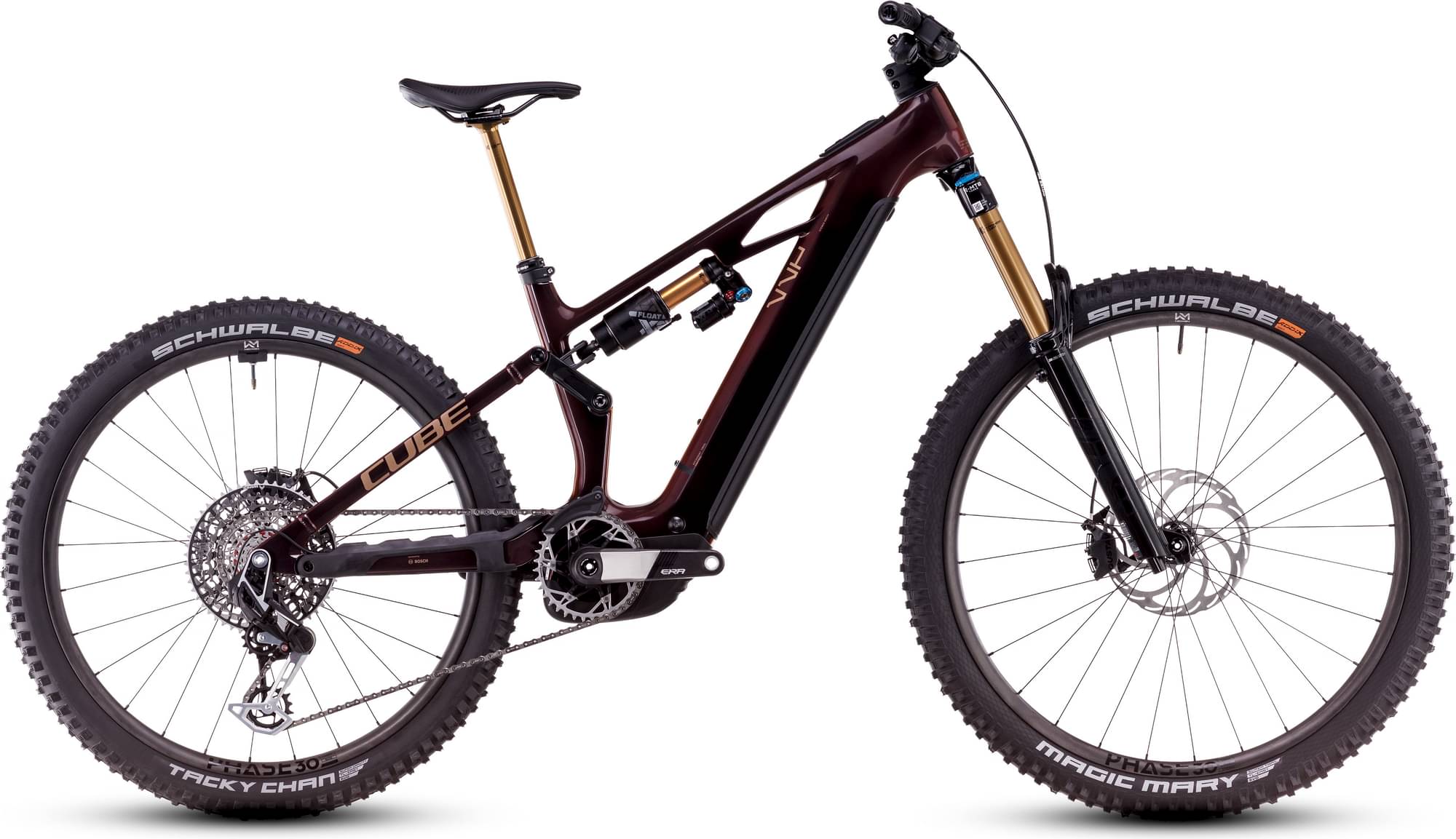

CUBE STEREO HYBRID ONE77 HPC, SLT 2025
2025 E-bike
Estimate price |
10,120$
Weight | 23.5 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 170mm -
Travel Rear 172mm -
Fork Fox Factory Float 38
-
Groupset XX Eagle Transmission, X01 Eagle AXS -
Suspension Full -
Motor Bosch 600W 85Nm mid-drive -
Battery Bosch PowerTube -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame

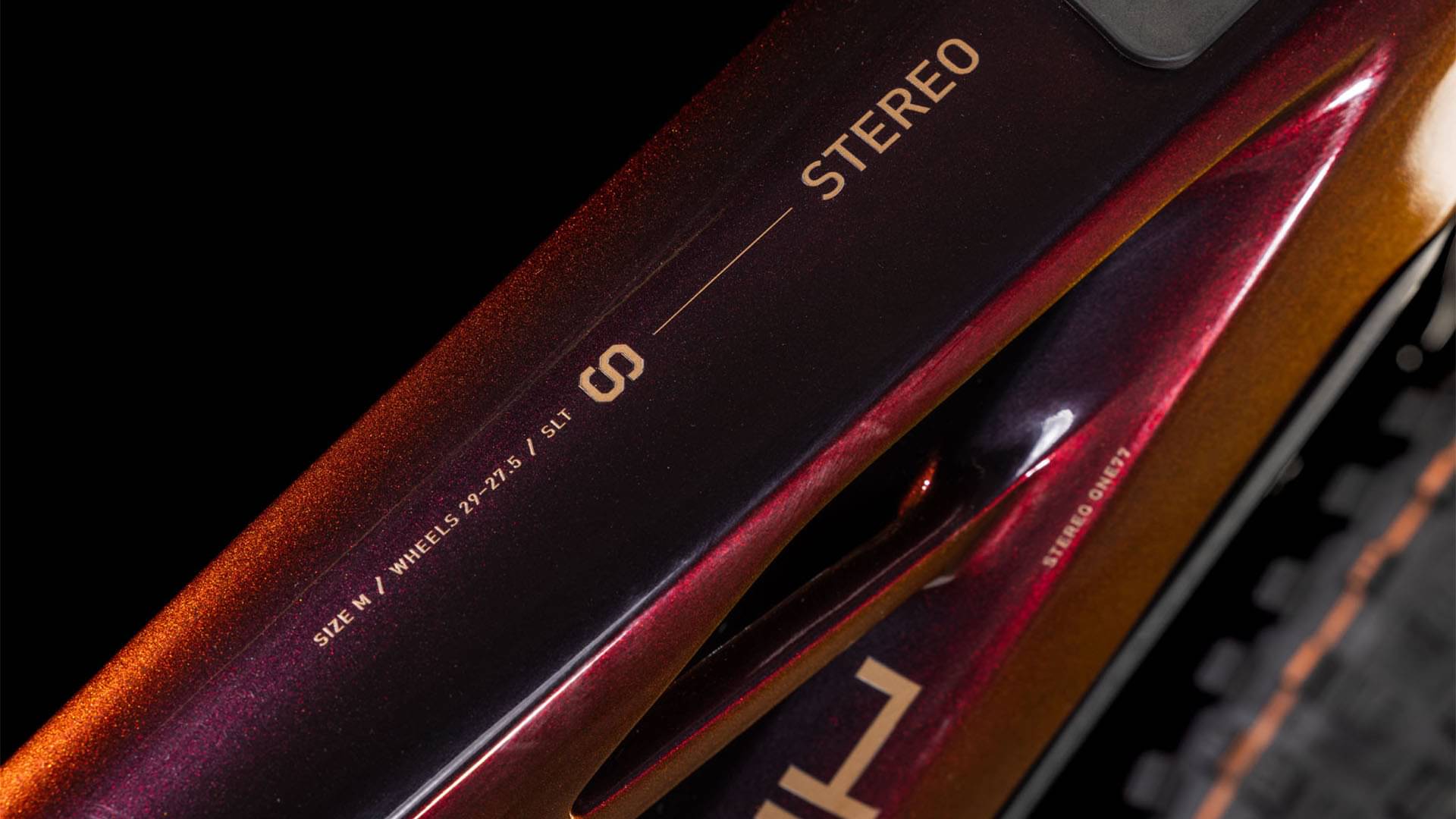

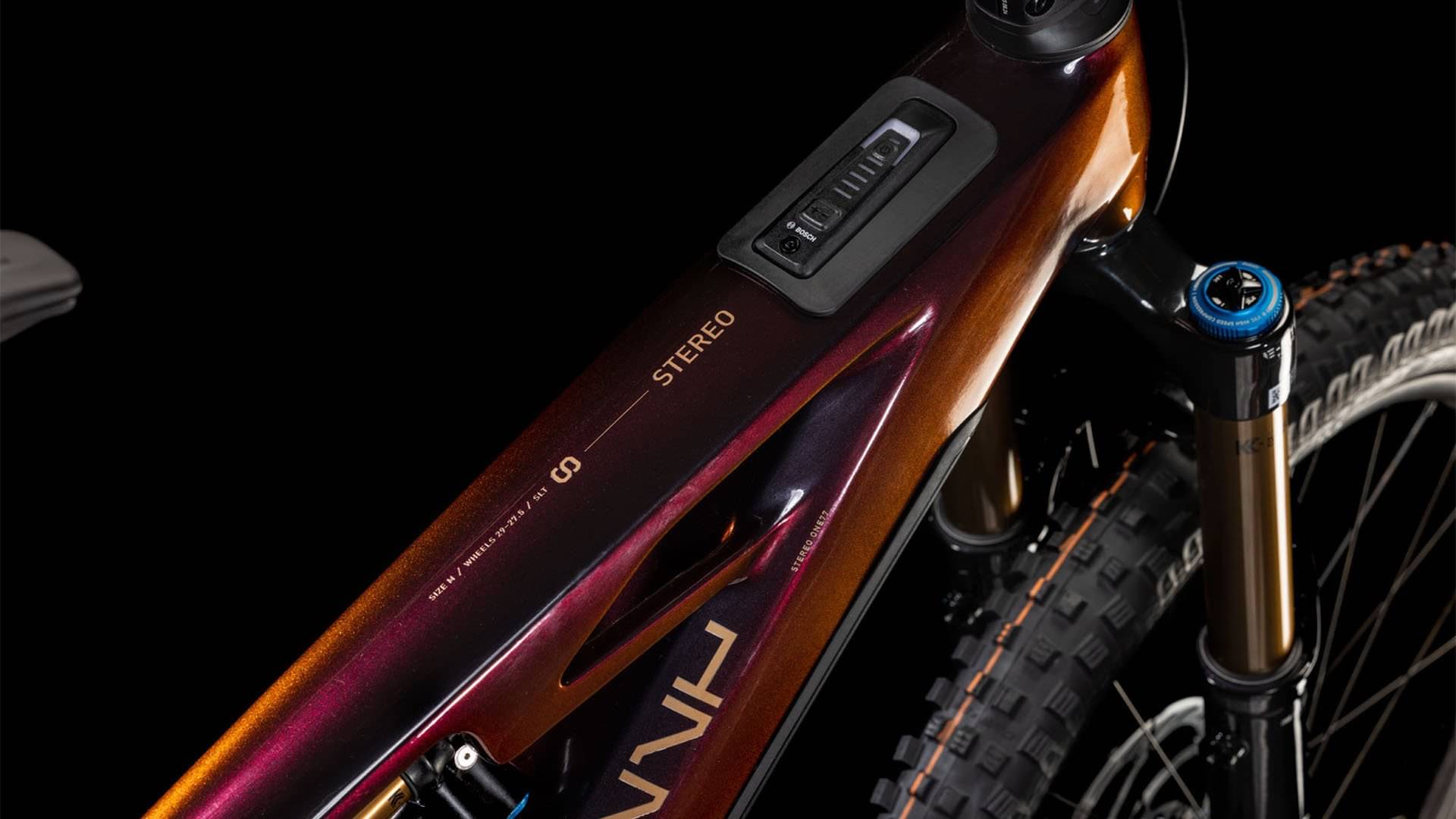

Frame
C:62® Monocoque Advanced Twin Mold Technology, Aluminium 6061 T6 Rear Triangle, Efficient Trail Control, FSP 4-Link, Agile Trail Geometry, Boost 148, UDH™, Full Integrated Battery, Advanced Internal Cable Routing

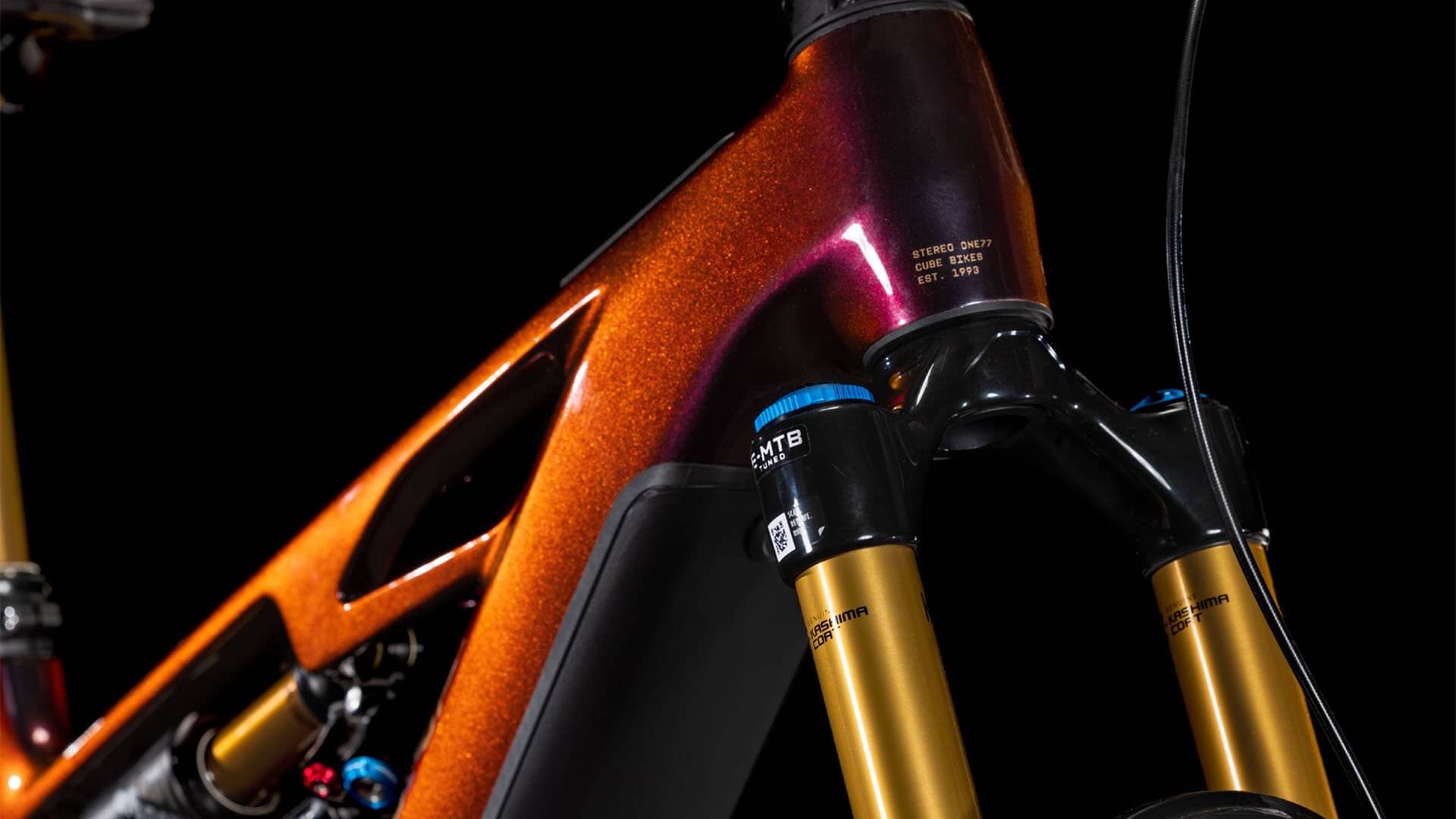

Suspension Fork
Fox 38 Float Factory GRIPX2, Tapered, 15x110mm, E-Bike Optimized, 170mm, Kashima Coated

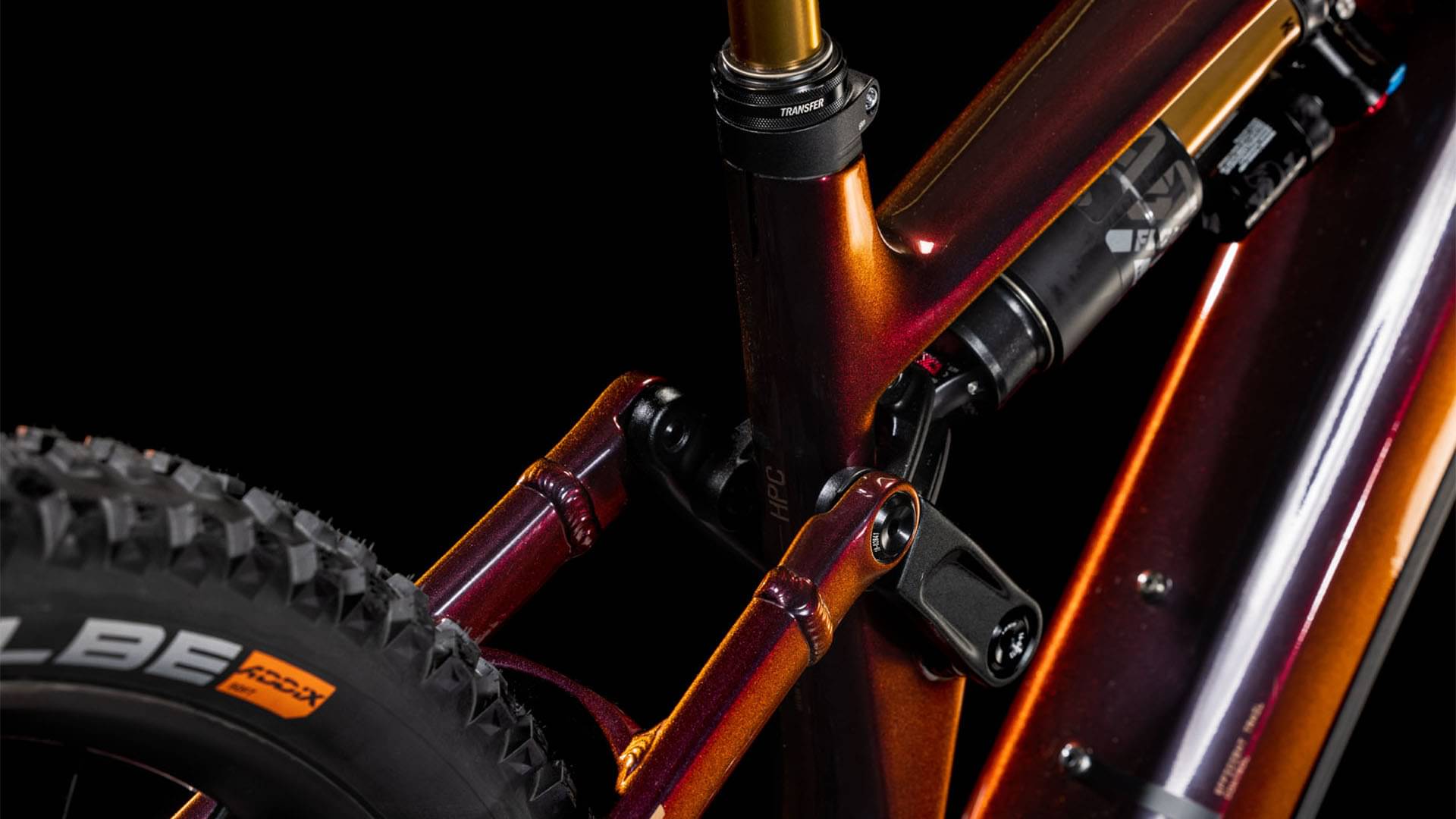

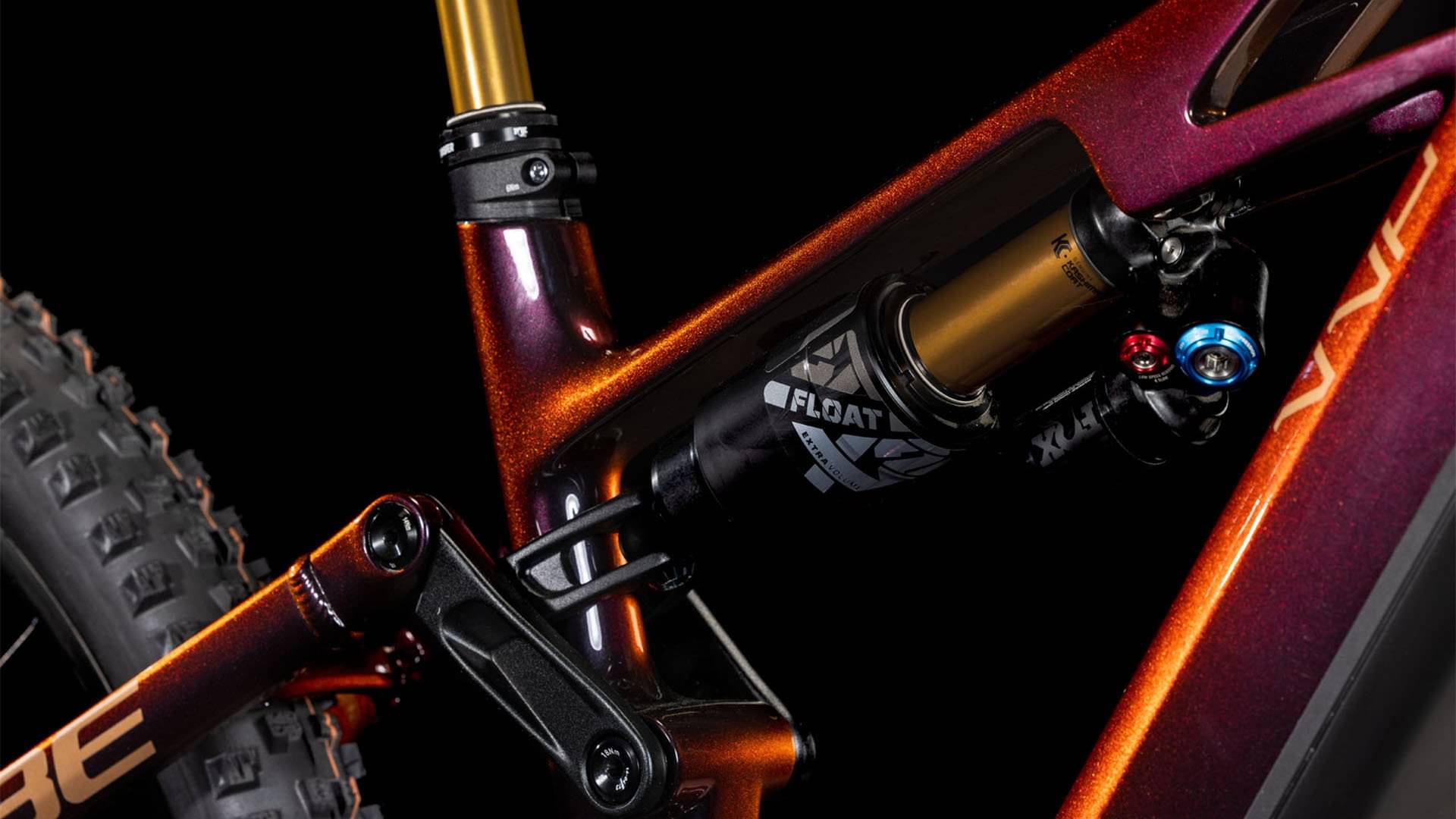

Rear Shock
Fox Float X2 Factory, 230x65mm, High/Low Speed Rebound & Compression w/ 2-Position Lever, Kashima Coated
Drivetrain

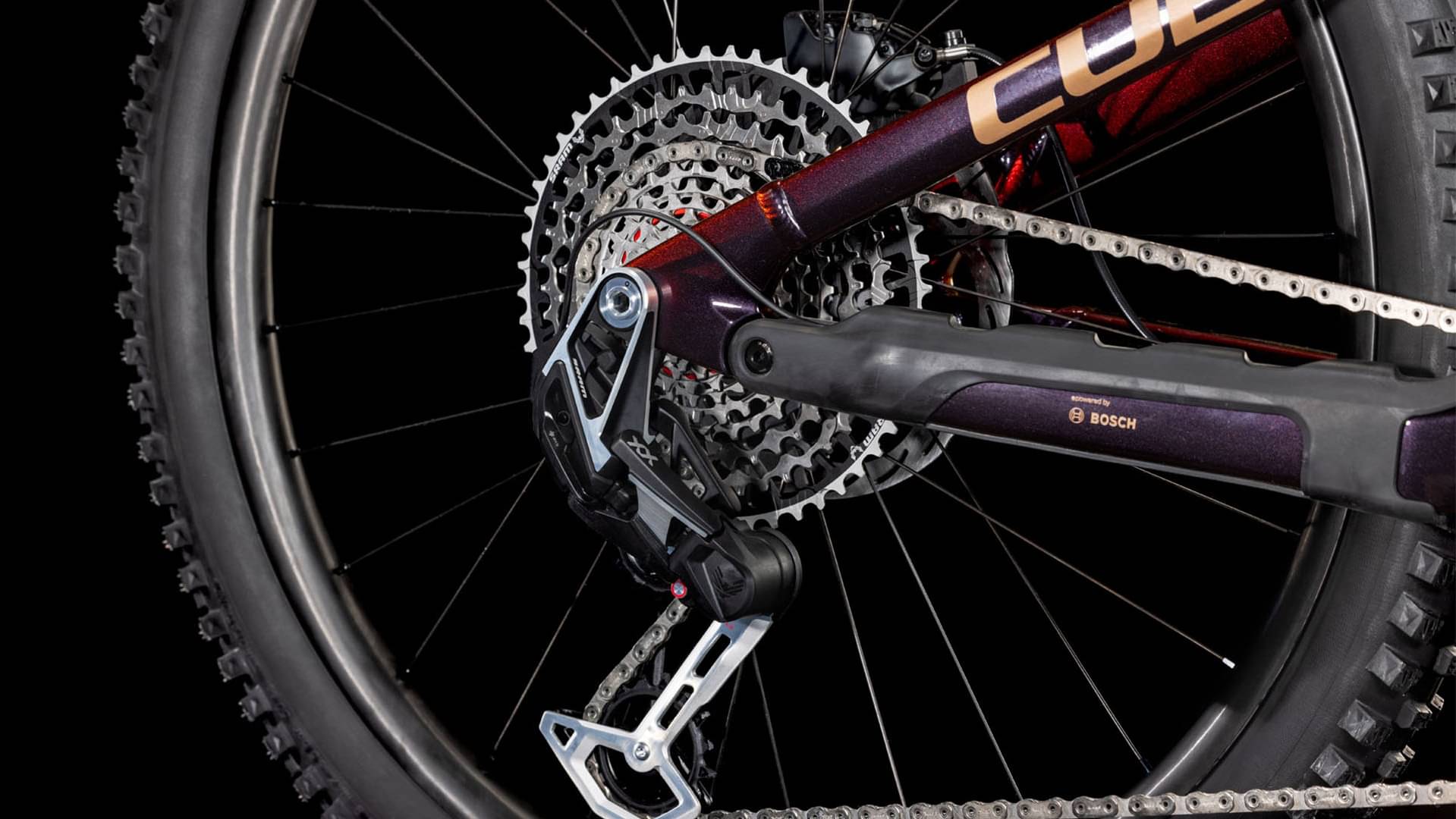

Rear Derailleur
SRAM XX Eagle AXS™ Transmission, 12-Speed
Shift Levers
SRAM AXS™ Pod Ultimate Controller
Cassette
SRAM XS-1297, 10-52T

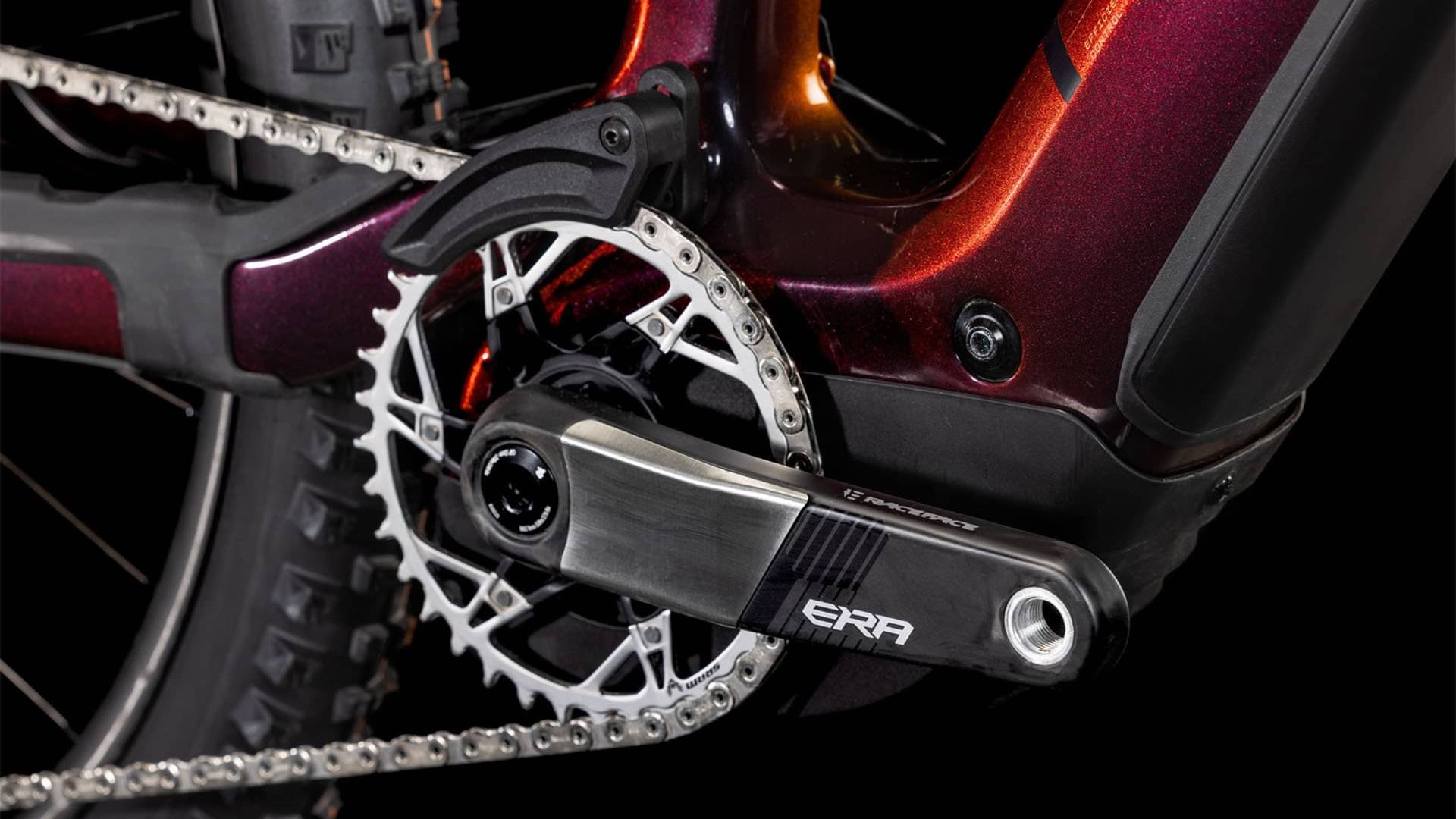

Crank
Race Face ERA E-MTB, 36T
Chain
SRAM XX Eagle™ Transmission
Chain Guide
Reverse Flip-Guide E-Chain Guide, Direct Mount, I-Plate
Wheels
Rims
Newmen Phase 30, 28/28 Spokes (Base/Strong), 15x110mm / 12x148mm, Tubeless Ready
Tires
Front: Schwalbe Magic Mary, Addix Soft, Super Trail, Kevlar, 2.4, Rear: Schwalbe Tacky Chan, Addix Soft, Super Gravity, Kevlar, 2.4
Brakes
Brakes
Magura Gustav PRO, Front 4-Piston/Rear 4-Piston, Hydr. Disc Brake (203/203)
Cockpit
Stem
CUBE Performance Stem E-MTB 35, FPI-Link
Handlebar
Race Face ERA 35
Grips
ACID Disrupt, Soft Compound
Headset
ACROS AZF-675, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm), Fiber Inserts for Angle Adjustment, X-Connect Interface
Seat

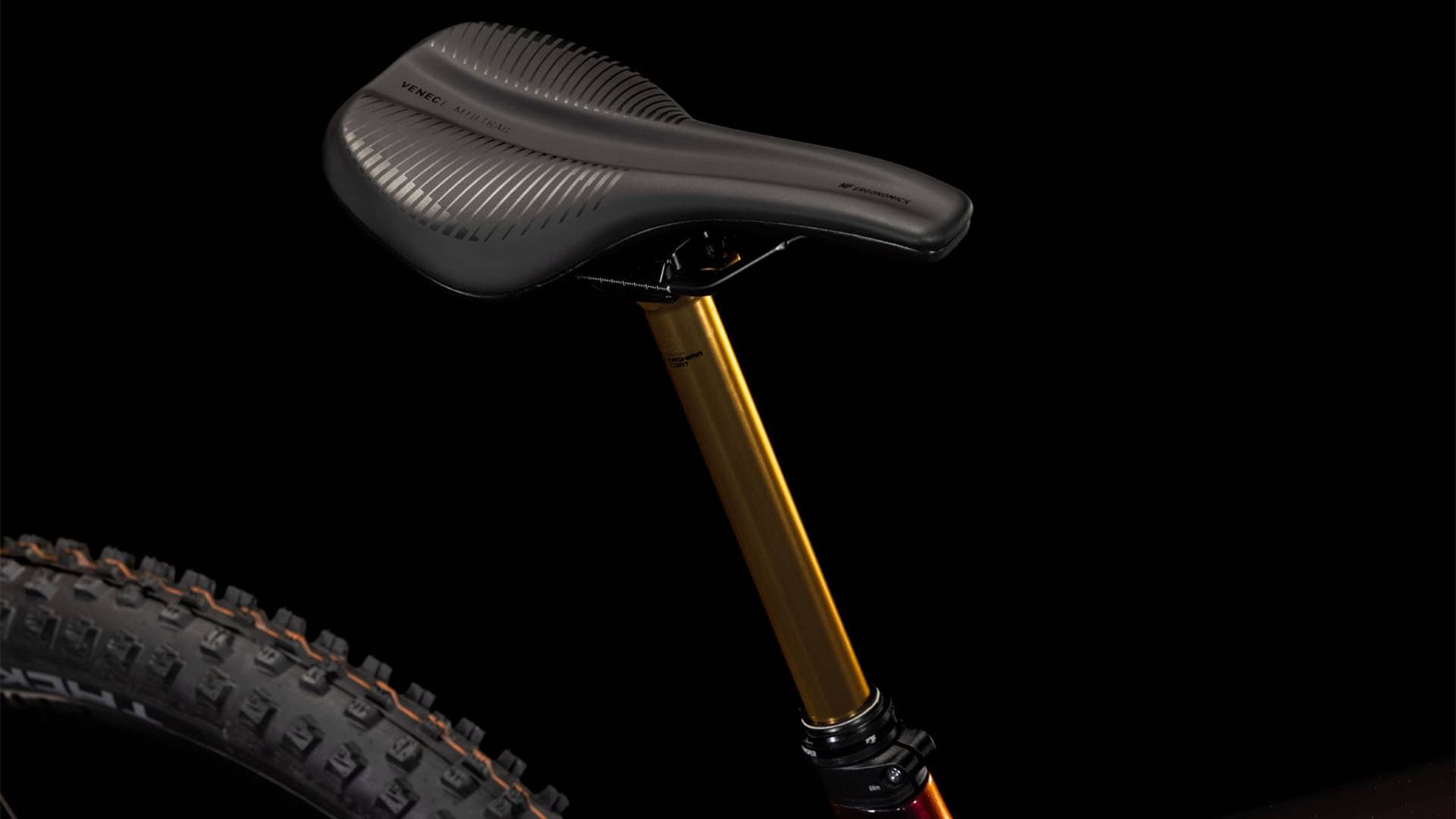

Saddle
ACID Venec EMTB Trail 140
Seatpost
Fox Transfer Factory 31.6mm, Kashima Coated
Motor & Battery
Motor
Bosch Drive Unit Performance Line CX, Smart System
Battery
Bosch PowerTube
Remote
Bosch System Control incl. Mini Remote
Charger
Bosch 4A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.487 mm | 1.405 mm | 1.352 mm | 1.302 mm |
| Front Center | 770 mm | 795 mm | 826 mm | 862 mm |
| Rake | 33 mm | 33 mm | 34 mm | 34 mm |
| Trail | 147 mm | 147 mm | 146 mm | 146 mm |
| Stack | 635 mm | 635 mm | 645 mm | 659 mm |
| Reach | 427 mm | 452 mm | 477 mm | 506 mm |
| Top Tube Length | 572 mm | 597 mm | 625 mm | 659 mm |
| Seat Tube Angle | 76.7 ° | 76.7 ° | 76.7 ° | 76.7 ° |
| Seat Tube Length | 370 mm | 405 mm | 420 mm | 480 mm |
| Head Tube Angle | 63.8 ° | 63.8 ° | 63.8 ° | 63.8 ° |
| Head Tube Length | 103 mm | 103 mm | 115 mm | 130 mm |
| Chainstay Length | 443 mm | 443 mm | 443 mm | 443 mm |
| Wheelbase | 1213 mm | 1238 mm | 1269 mm | 1305 mm |
| Bottom Bracket Drop | 13 mm | 13 mm | 13 mm | 13 mm |
| Rear Travel | 172 mm | 172 mm | 172 mm | 172 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
