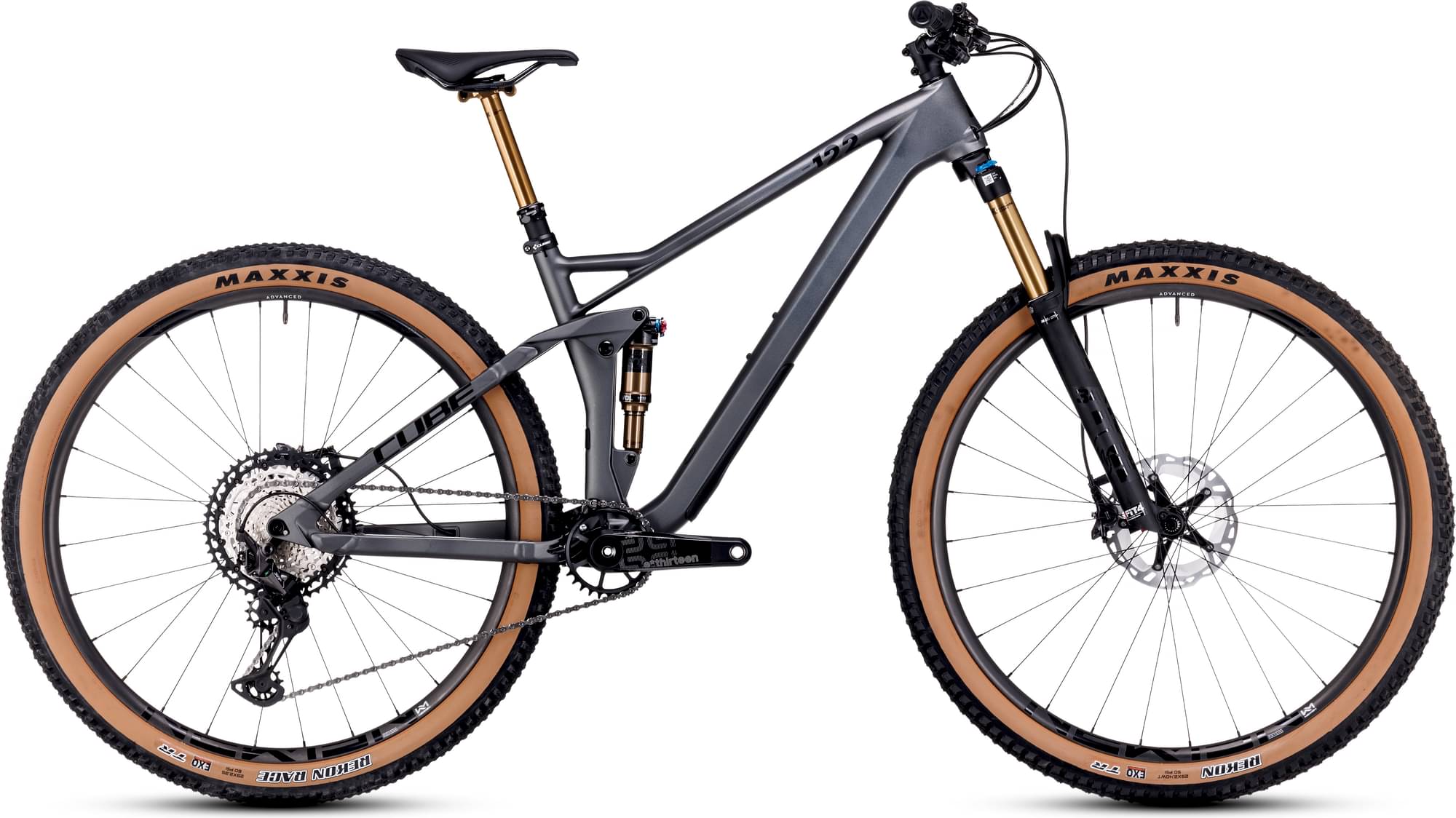

CUBE STEREO ONE22 HPC SLT 29 2024
2024 Mountain
Estimate price |
5,118$
Weight | 11.7 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 130mm -
Travel Rear 120mm -
Fork Fox Factory Float 34
-
Groupset e*thirteen TRS Race, XT -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame

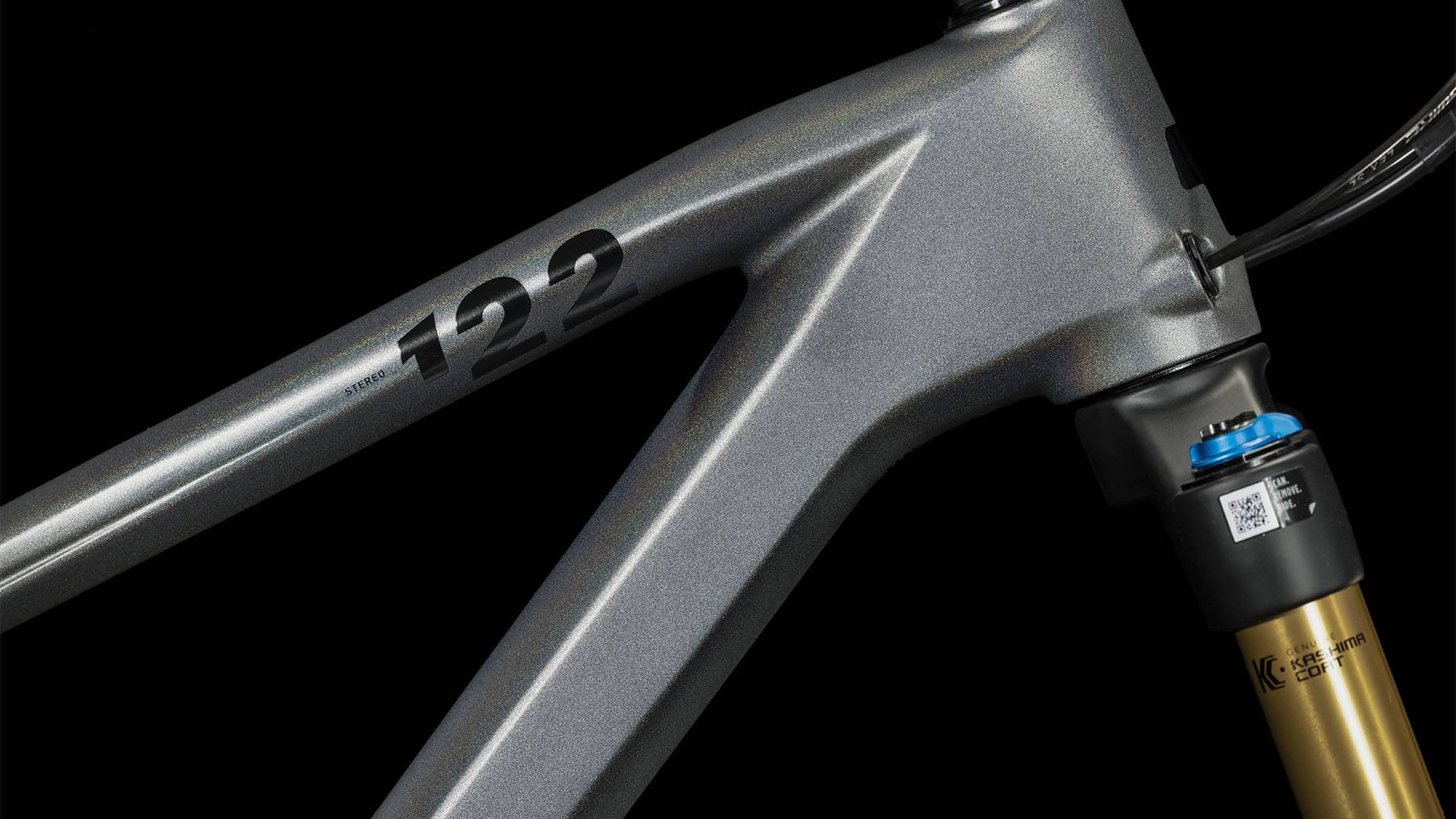

HPC Carbon Monocoque Advanced Twin Mold Technology, Aluminum 6061 T6 Rear Triangle, ATG, ETC 4-Link, Boost 148, AXH
Suspension Fork

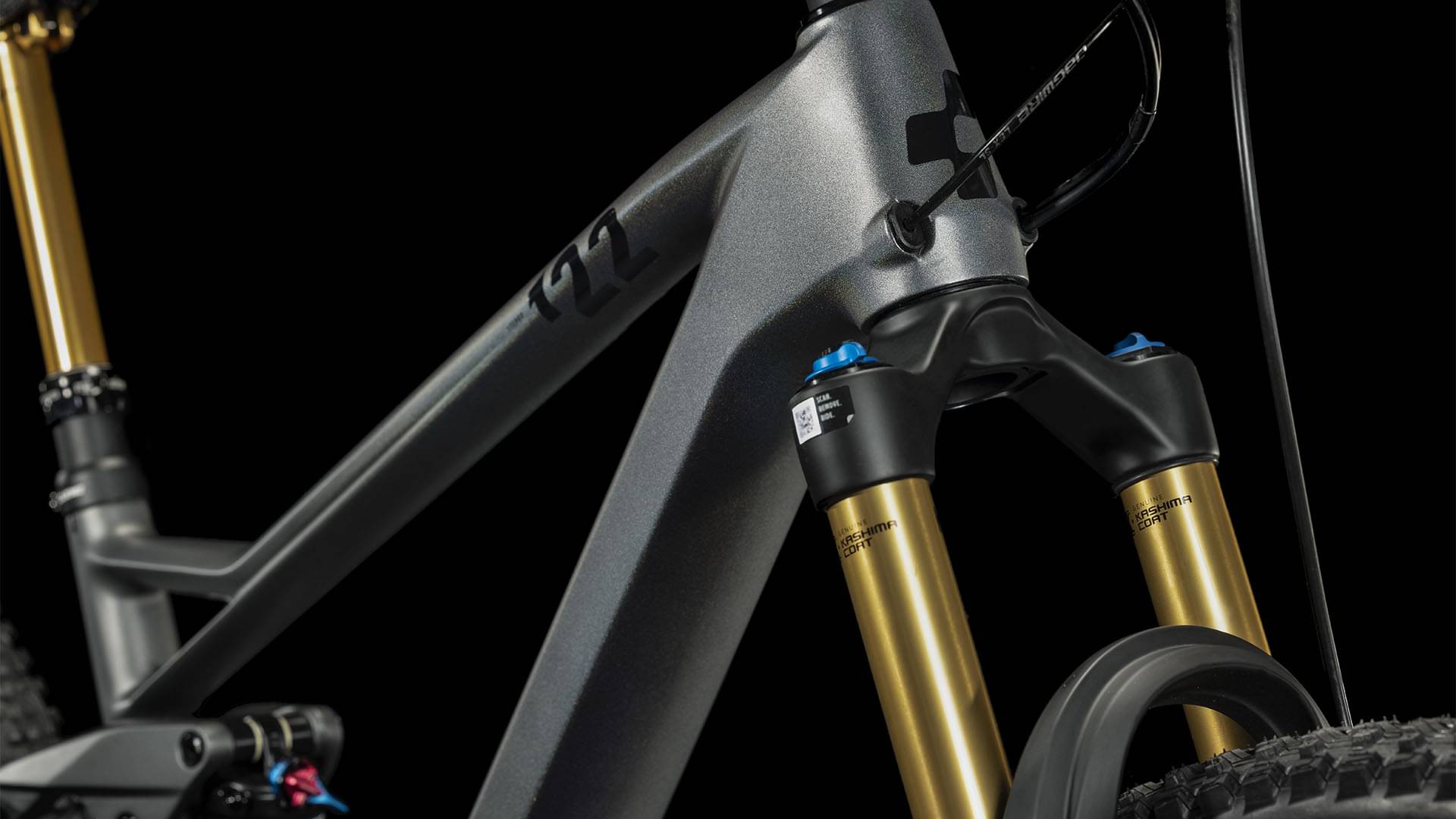

Fox 34 Float Factory FIT4, Open(Adjustable)/Medium/Firm Mode, Tapered, 15x110mm, 130mm, Kashima Coated
Rear Shock

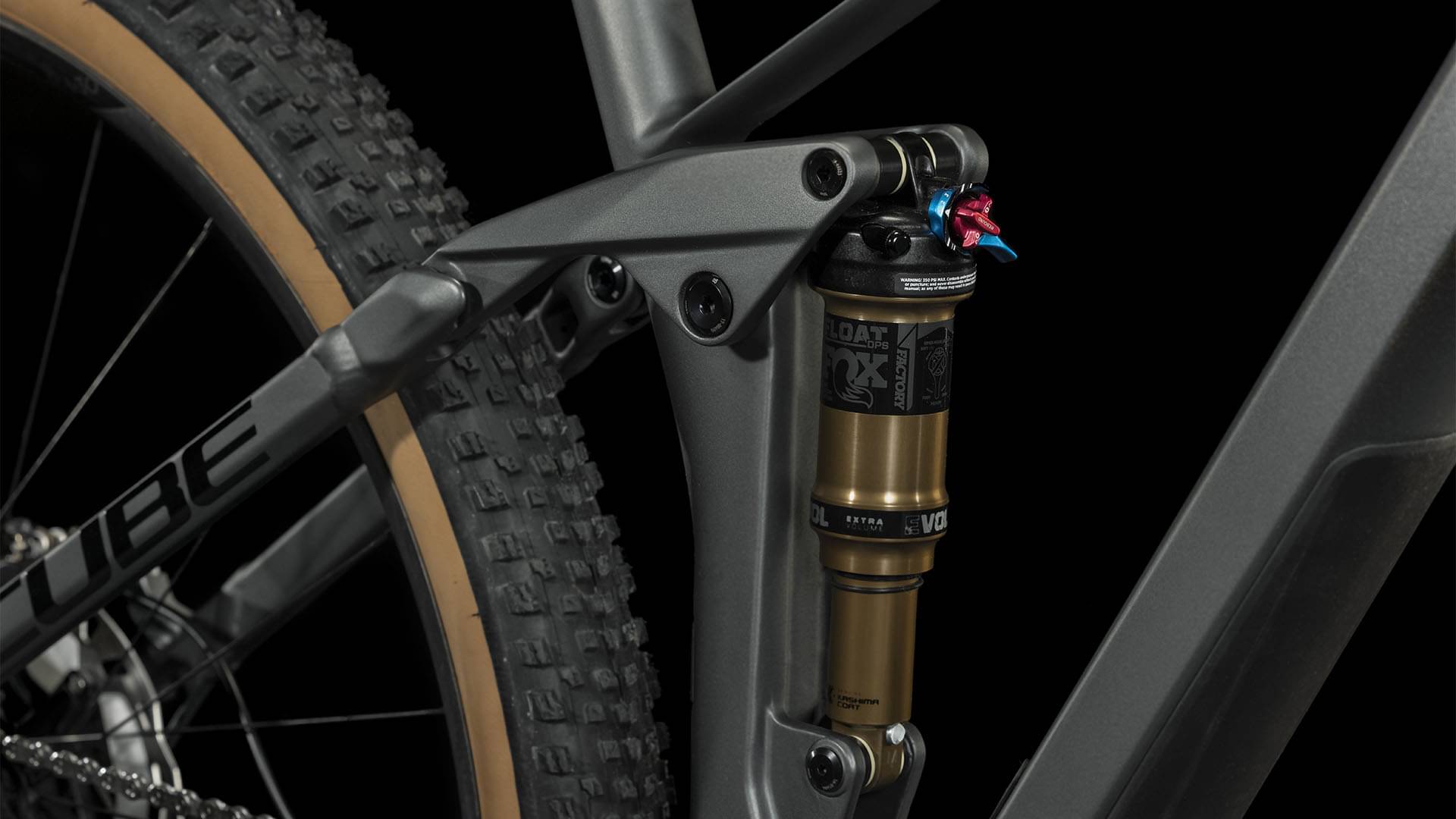

Fox Float DPS Factory, 190x45mm, Open(Adjustable)/Medium/Firm Mode, Kashima Coated
Drivetrain
Rear Derailleur
Shimano XT RD-M8100-SGS, ShadowPlus, 12-Speed
Shift Levers
Shimano XT SL-M8100-IR, Direct Attach
Cassette
Shimano XT CS-M8100, 10-51T
Crank

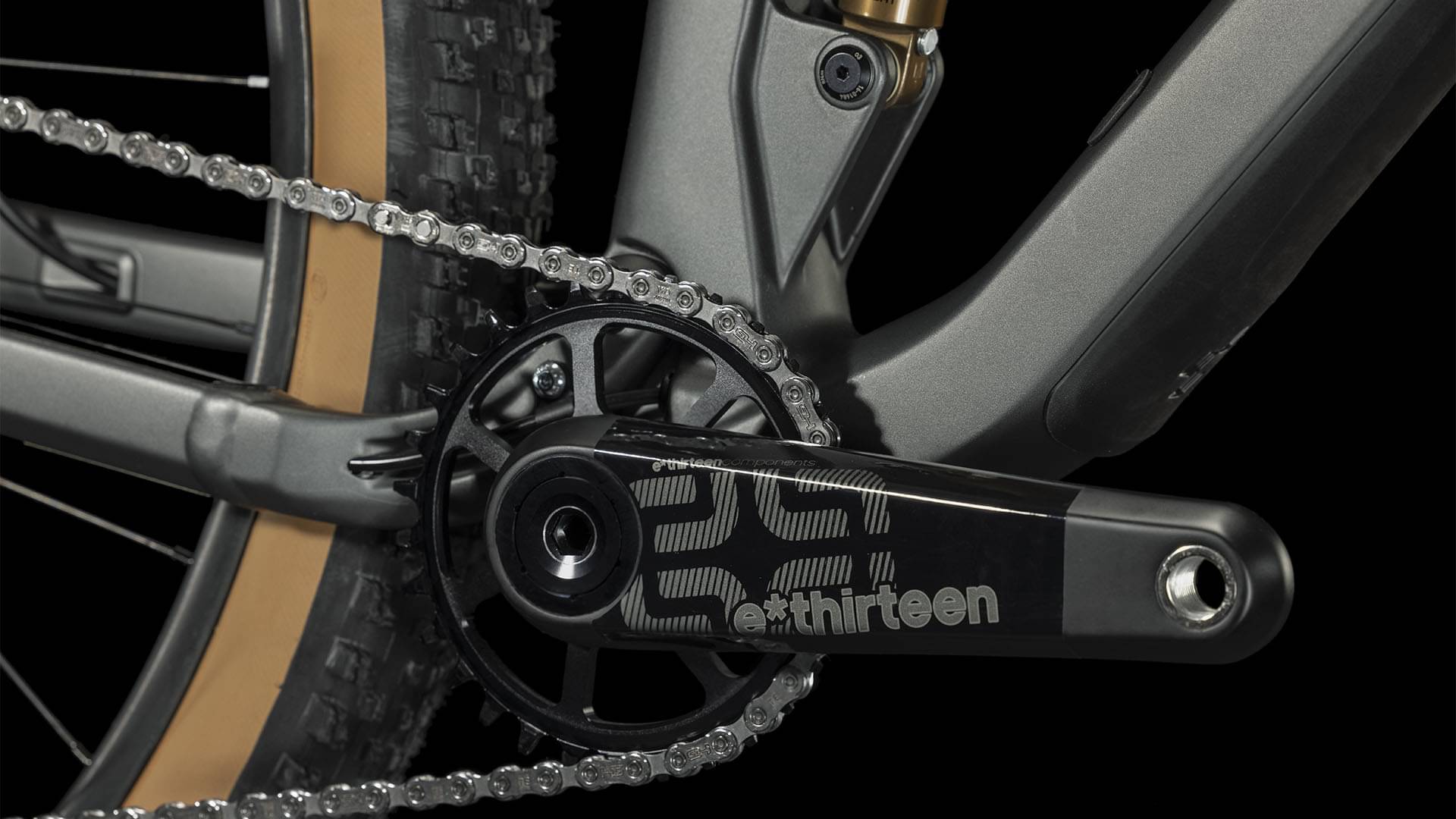

e*thirteen TRS Race Carbon, 30T, Boost
Bottom Bracket
e*thirteen BB20, 92mm Pressfit
Chain
Shimano CN-M6100
Wheels
Rims
Newmen Advanced SL X.A.30 Carbon, 28/28 Spokes, 15x110mm/12x148mm, Tubeless Ready
Tires
Front: Maxxis Rekon, EXO, Tubeless Ready, 2.4, Rear: Maxxis Rekon Race, EXO, Tubeless Ready, 2.35
Brakes
Brakes
Shimano XT BR-M8100, Hydr. Disc Brake (180/180)
Cockpit
Stem
Newmen Evolution SL 318.4, 31.8mm
Handlebar
Newmen Advanced SL 318.20, Carbon, 750mm
Grips
ACID Disrupt, Soft Compound
Headset
VP Integrated, Top 1 1/8", Bottom 1 1/2"
Seat
Saddle

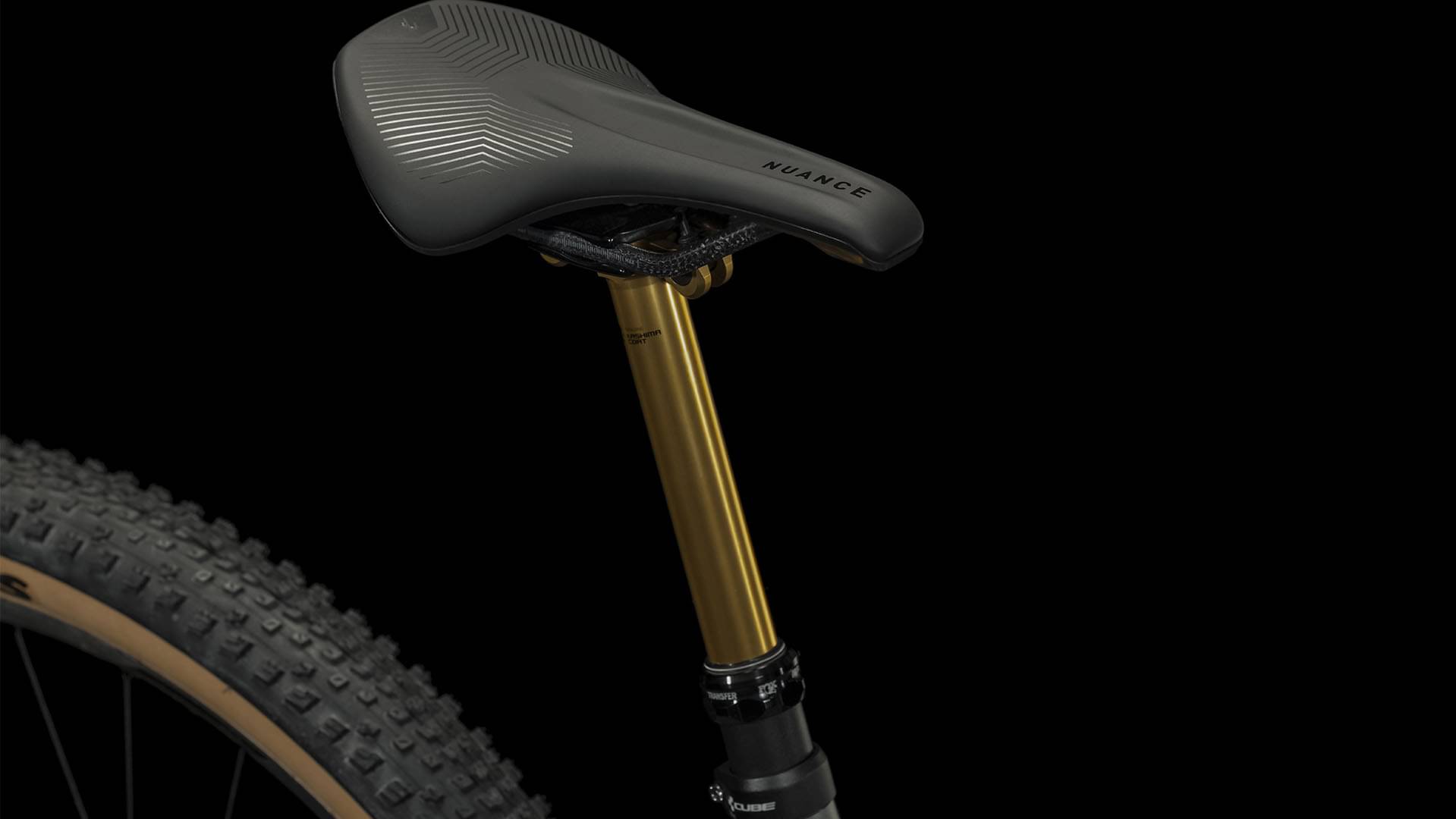

Natural Fit Nuance SLT Carbon
Seatpost
Fox Transfer Factory 31.6mm, Kashima Coated
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.436 mm | 1.377 mm | 1.337 mm | 1.321 mm |
| Bottom Bracket Height | 334 mm | 334 mm | 334 mm | 334 mm |
| Front Center | 715 mm | 736 mm | 760 mm | 788 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm |
| Trail | 105 mm | 105 mm | 105 mm | 105 mm |
| Stack | 603 mm | 606 mm | 615 mm | 634 mm |
| Reach | 420 mm | 440 mm | 460 mm | 480 mm |
| Top Tube Length | 570 mm | 591 mm | 614 mm | 640 mm |
| Seat Tube Angle | 75.3 ° | 75.3 ° | 75.3 ° | 75.3 ° |
| Seat Tube Length | 370 mm | 420 mm | 470 mm | 520 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 102 mm | 105 mm | 115 mm | 135 mm |
| Chainstay Length | 436 mm | 436 mm | 436 mm | 436 mm |
| Wheelbase | 1148 mm | 1169 mm | 1193 mm | 1221 mm |
| Bottom Bracket Drop | 40 mm | 40 mm | 40 mm | 40 mm |
| Rear Travel | 120 mm | 120 mm | 120 mm | 120 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
