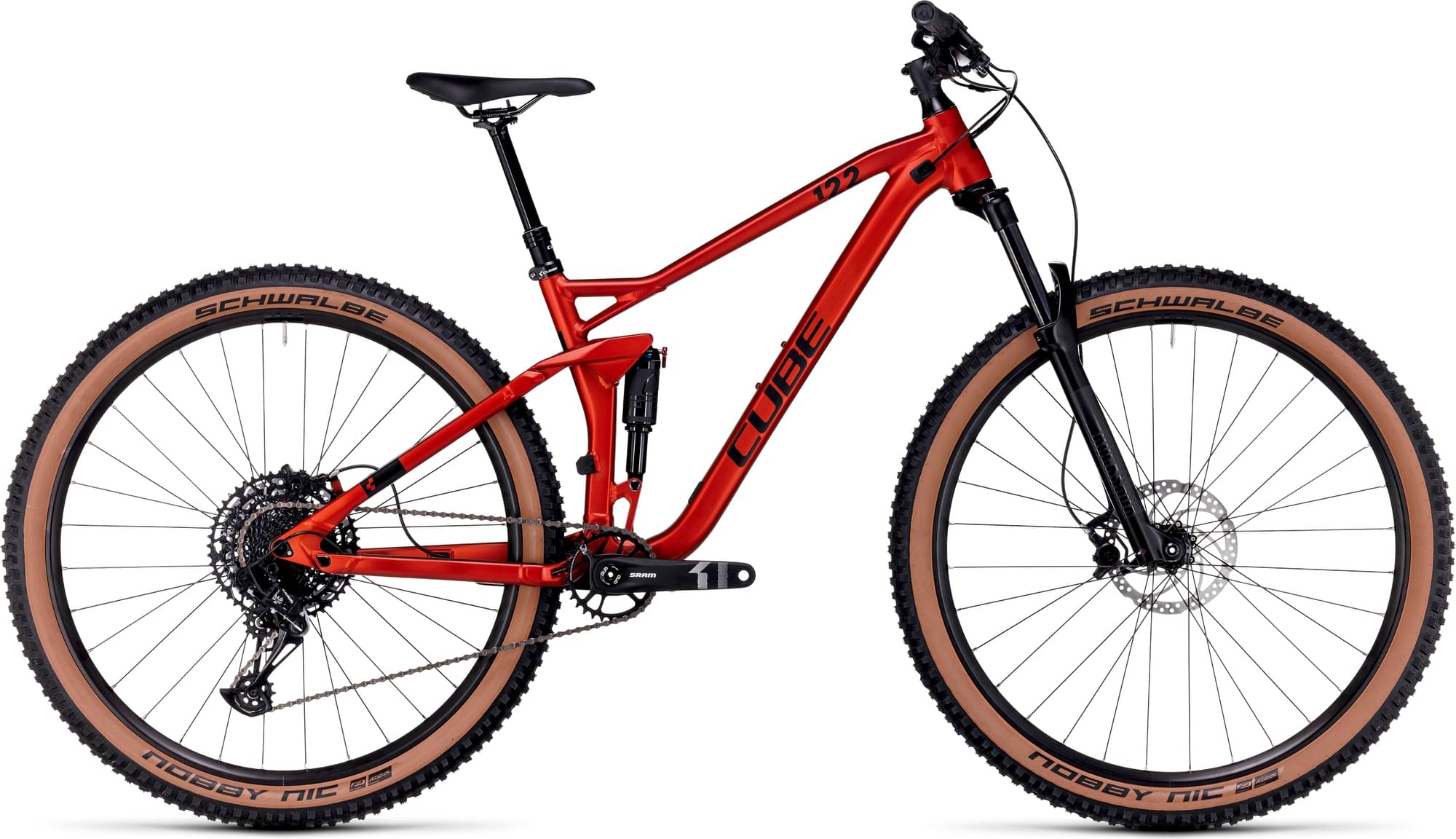

CUBE STEREO ONE22 PRO 2024
2024 Mountain
Estimate price |
2,293$
Weight | 14.9 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 130mm -
Travel Rear 120mm -
Fork RockShox Judy Silver TK
-
Groupset X1, NX Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
HPA Advanced Hydroform, ATG, ETC 4-Link, AXH
Suspension Fork
RockShox Judy Silver TK Air, Tapered, 15x110mm, 130mm

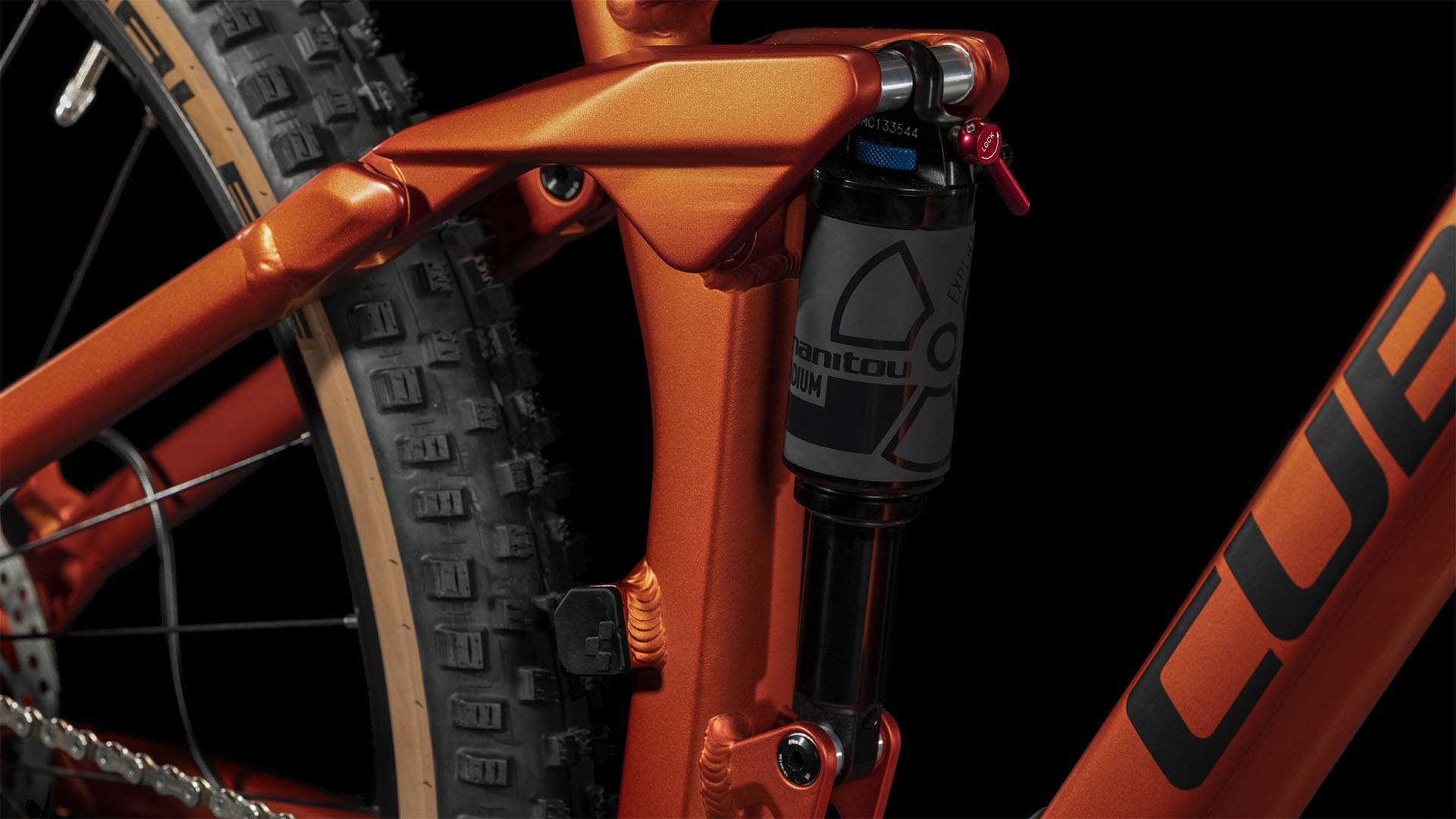

Rear Shock
Manitou Radium Expert RL, 190x45mm, Rebound Adjust, Lockout
Drivetrain
Rear Derailleur
SRAM NX Eagle™, 12-Speed
Shift Levers
SRAM SX Eagle™ Trigger
Cassette
SRAM PG-1210 Eagle™, 11-50T
Crank
SRAM X1 1000 Eagle™ DUB 30T, Boost
Bottom Bracket
SRAM DUB MTB, 92mm Pressfit
Chain
SRAM SX Eagle™
Wheels
Front Hub
Shimano HB-MT400-B, 15mm, Boost, Centerlock
Rear Hub
Shimano FH-MT400-B, 12mm, Boost, Centerlock
Rims
CUBE EX25, 32H, Disc
Tires
Schwalbe Nobby Nic, Addix Performance, Kevlar, 2.4
Brakes
Brakes
Magura MT Thirty, Front/Rear 2-Piston, Hydr. Disc Brake (180/180)
Cockpit
Stem
Newmen Evolution 318.4, 31.8mm
Handlebar
Newmen Evolution SL 318.25, 760mm
Grips
ACID React Pro
Headset
VP Tapered, Top Zero-Stack 1 1/8" (OD 44mm), Bottom Zero-Stack 1 1/2" (OD 56mm)
Seat

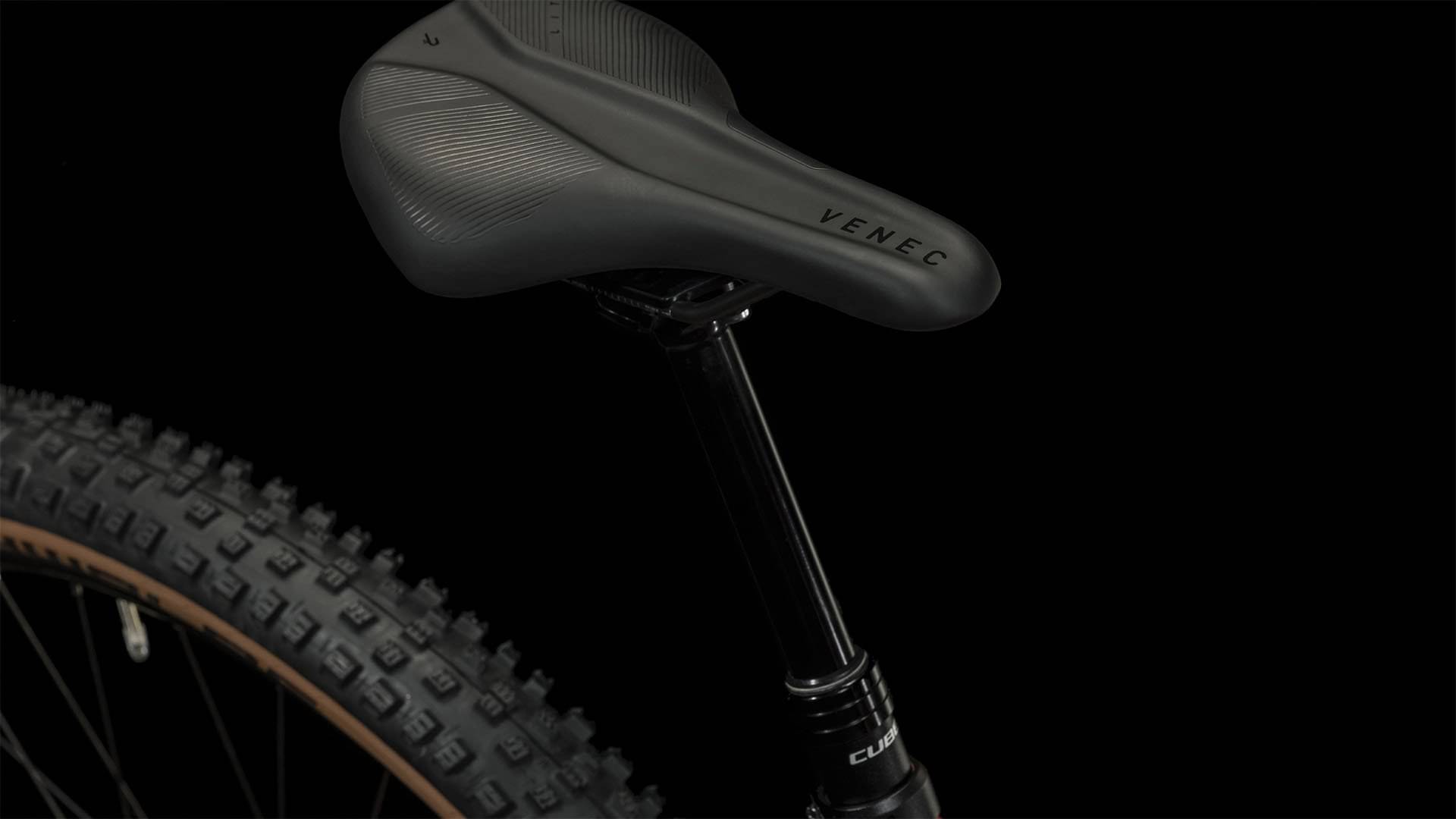

Saddle
Natural Fit Venec Lite
Seatpost
CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.4 mm | 1.438 mm | 1.377 mm | 1.337 mm | 1.321 mm |
| Bottom Bracket Height | 335 mm | 334 mm | 334 mm | 334 mm | 334 mm |
| Front Center | 680 mm | 712 mm | 733 mm | 757 mm | 785 mm |
| Rake | 44 mm | 47 mm | 47 mm | 48 mm | 48 mm |
| Trail | 100 mm | 108 mm | 108 mm | 107 mm | 107 mm |
| Stack | 567 mm | 604 mm | 606 mm | 615 mm | 634 mm |
| Reach | 405 mm | 420 mm | 440 mm | 460 mm | 480 mm |
| Top Tube Length | 547 mm | 570 mm | 591 mm | 614 mm | 640 mm |
| Seat Tube Angle | 75.3 ° | 75.3 ° | 75.3 ° | 75.3 ° | 75.3 ° |
| Seat Tube Length | 350 mm | 370 mm | 420 mm | 470 mm | 520 mm |
| Head Tube Angle | 67.5 ° | 67 ° | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 100 mm | 100 mm | 103 mm | 113 mm | 133 mm |
| Chainstay Length | 417 mm | 436 mm | 436 mm | 436 mm | 436 mm |
| Wheelbase | 1096 mm | 1145 mm | 1166 mm | 1190 mm | 1218 mm |
| Bottom Bracket Drop | 20 mm | 40 mm | 40 mm | 40 mm | 40 mm |
| Rear Travel | 120 mm | 120 mm | 120 mm | 120 mm | 120 mm |
| Wheels | 27" | 29" | 29" | 29" | 29" |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
