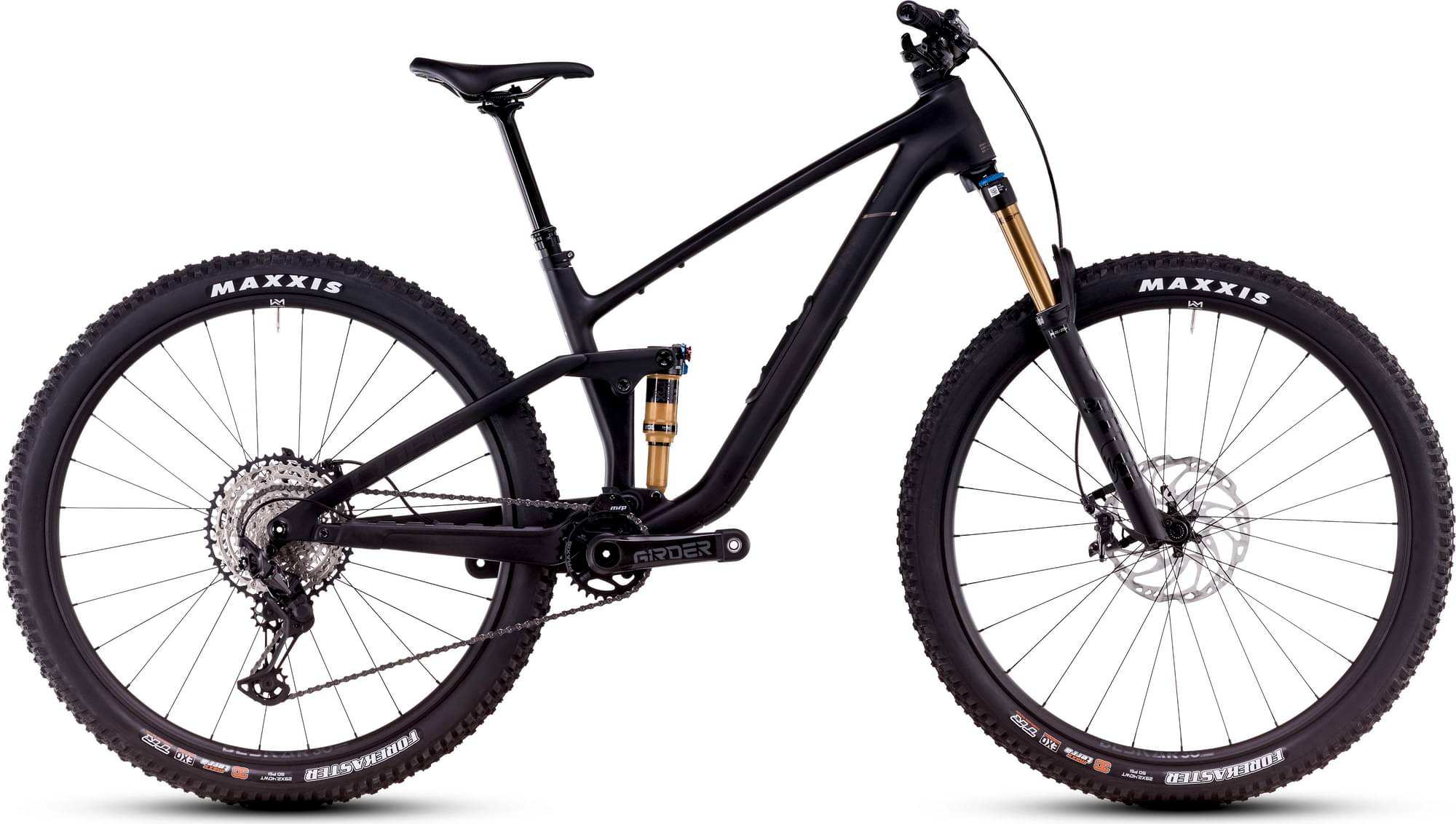

CUBE STEREO ONE44 C:62, RACE 29 2025
2025 Mountain
Estimate price |
4,420$
Weight | 13.3 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 140mm -
Travel Rear 140mm -
Fork Fox Factory Float 34
-
Groupset XT -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Shimano XT Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
C:62® Monocoque Advanced Twin Mold Technology, ISCG05, Boost 148, UDH™, 140mm travel

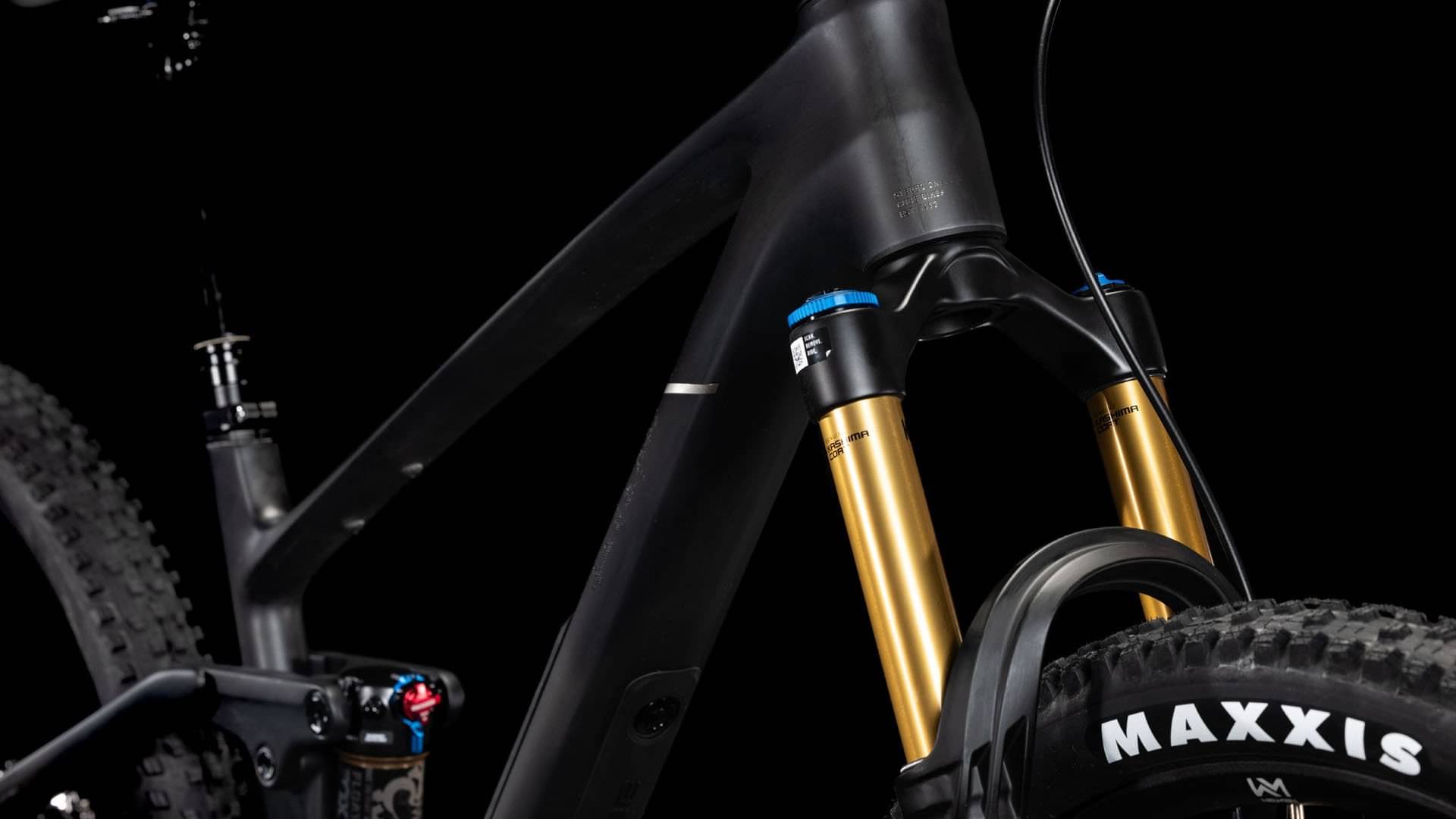

Suspension Fork
Fox 34 Float Factory GRIP X, Tapered, 15x110mm, 140mm, Kashima Coated

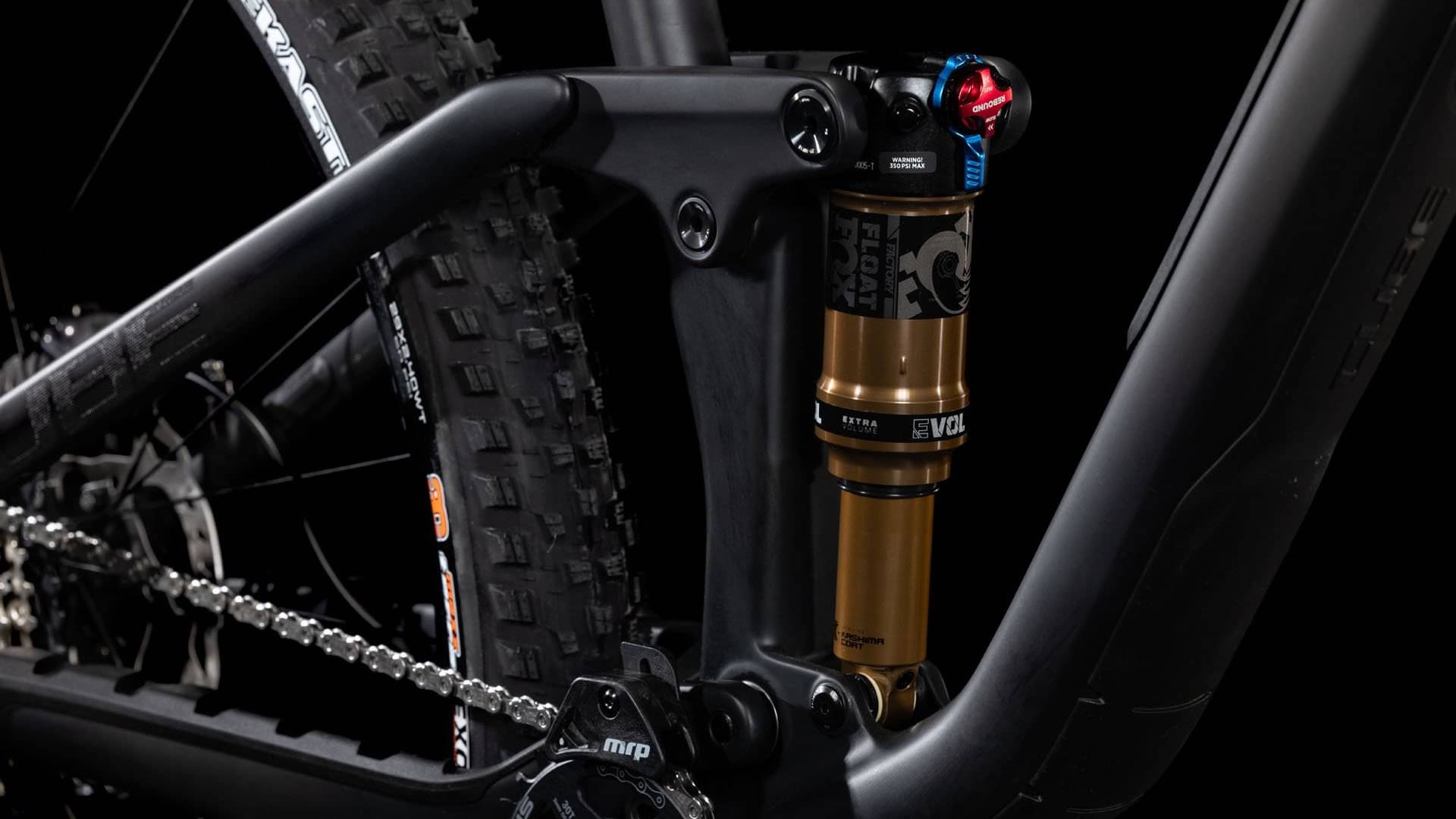

Rear Shock
Fox Float Factory, 185x52.5mm, Open/Firm Mode, Kashima Coated
Drivetrain
Rear Derailleur
Shimano XT RD-M8100-SGS, ShadowPlus, 12-Speed
Shift Levers
Shimano XT SL-M8100-IR, Direct Attach
Cassette
Shimano SLX CS-M7100, 10-51T

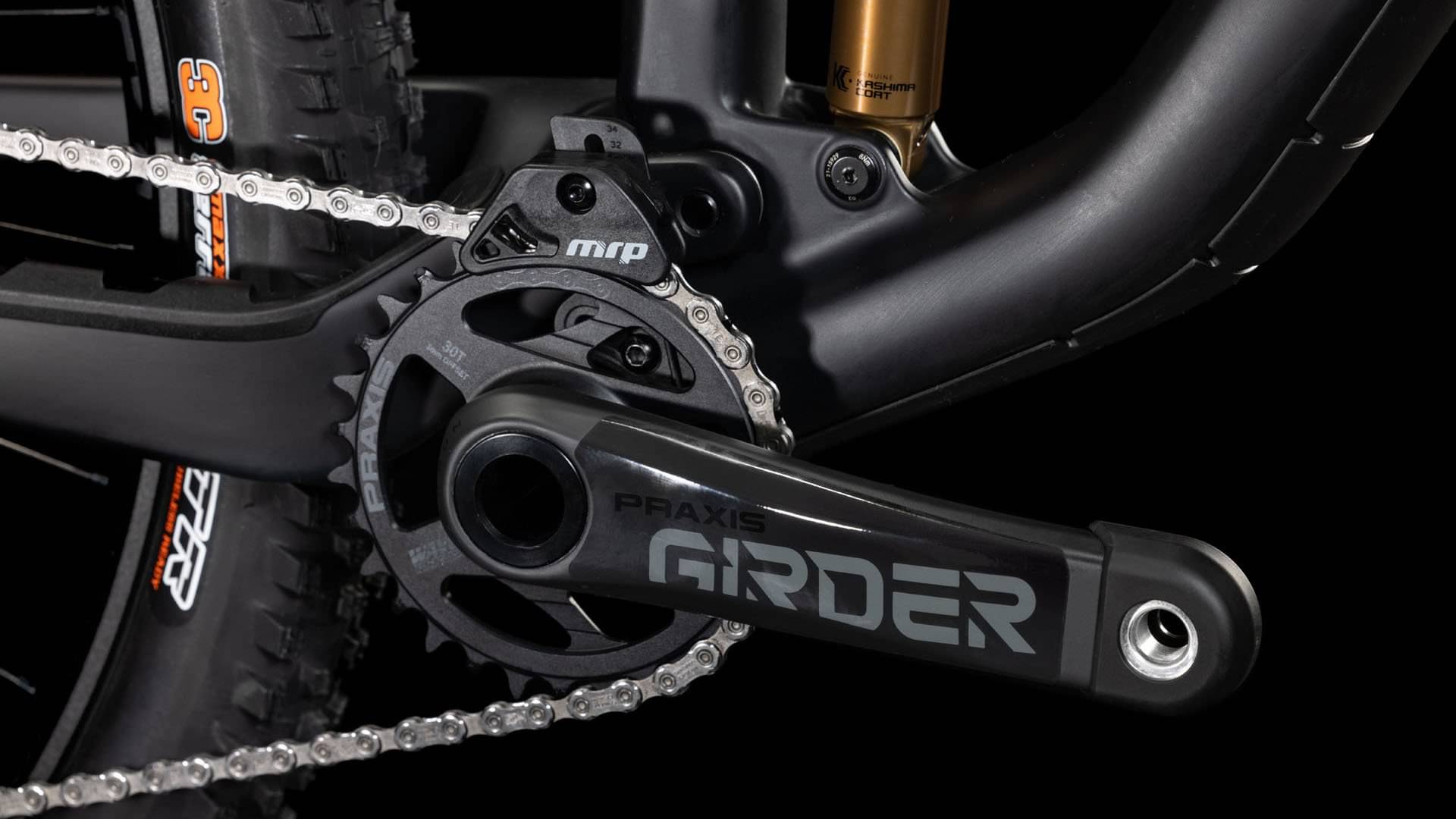

Crank
Praxis Girder Carbon, Boost, 30T, sealed Enduro™ Bearings
Bottom Bracket
Praxis M30, 73mm BSA, sealed Enduro?, Bearings
Chain
Shimano CN-M6100
Chain Guide
MRP 1X Chain Guide
Wheels
Rims
Newmen Beskar 30 light/base, 28/28 Spokes, 15x110mm/12x148mm, Tubeless Ready
Tires
Maxxis Forekaster, MaxxTerra/EXO, Tubeless Ready, 2.4 WT
Brakes
Brakes
Shimano XT BR-M8120, Hydr. Disc Brake (203/180)
Cockpit
Stem
CUBE Stereo Stem w/ Cable Routing
Handlebar
Newmen Evolution SL 318.25, 780mm
Grips
ACID Disrupt, Soft Compound
Headset
ACROS AZF-675, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm), Fiber Inserts for Angle Adjustment
Seat
Saddle
ACID Nuance Lite
Seatpost
CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 30.9mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.434 mm | 1.39 mm | 1.335 mm | 1.297 mm |
| Bottom Bracket Height | 340 mm | 341 mm | 341 mm | 341 mm |
| Front Center | 745 mm | 769 mm | 798 mm | 834 mm |
| Rake | 45 mm | 44 mm | 44 mm | 44 mm |
| Trail | 122 mm | 123 mm | 123 mm | 123 mm |
| Stack | 615 mm | 624 mm | 633 mm | 651 mm |
| Reach | 429 mm | 449 mm | 474 mm | 502 mm |
| Top Tube Length | 575 mm | 599 mm | 627 mm | 660 mm |
| Seat Tube Angle | 75.9 ° | 75.9 ° | 75.9 ° | 75.9 ° |
| Seat Tube Length | 370 mm | 405 mm | 420 mm | 470 mm |
| Head Tube Angle | 65.4 ° | 65.4 ° | 65.4 ° | 65.4 ° |
| Head Tube Length | 103 mm | 113 mm | 123 mm | 143 mm |
| Chainstay Length | 434 mm | 434 mm | 434 mm | 434 mm |
| Wheelbase | 1177 mm | 1201 mm | 1230 mm | 1266 mm |
| Bottom Bracket Drop | 34 mm | 33 mm | 33 mm | 33 mm |
| Rear Travel | 140 mm | 140 mm | 140 mm | 140 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
