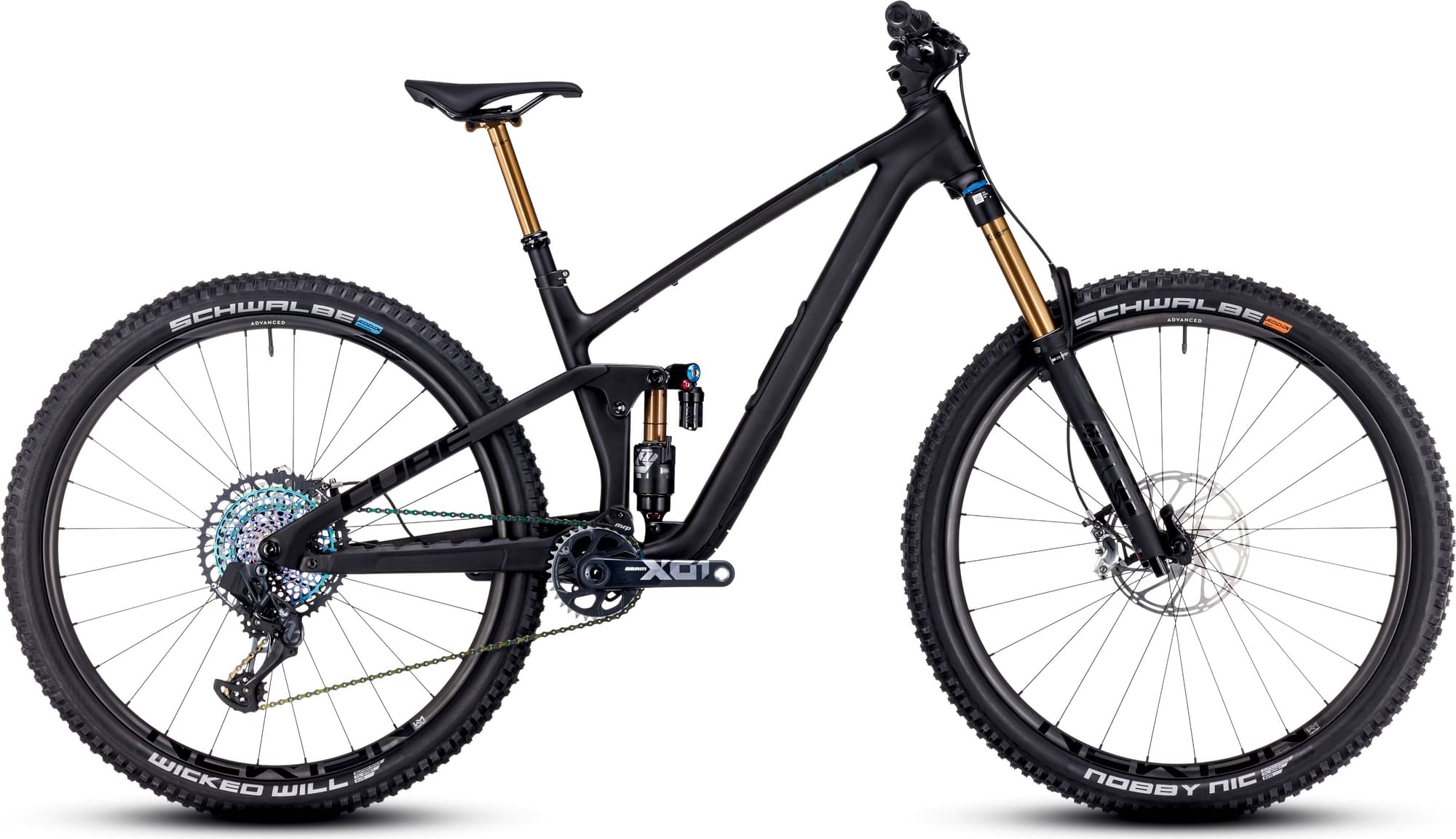

CUBE STEREO ONE55 C:62, SLT 29 2025
2025 Mountain
Estimate price |
8,142$
Weight | 13.1 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 160mm -
Travel Rear 155mm -

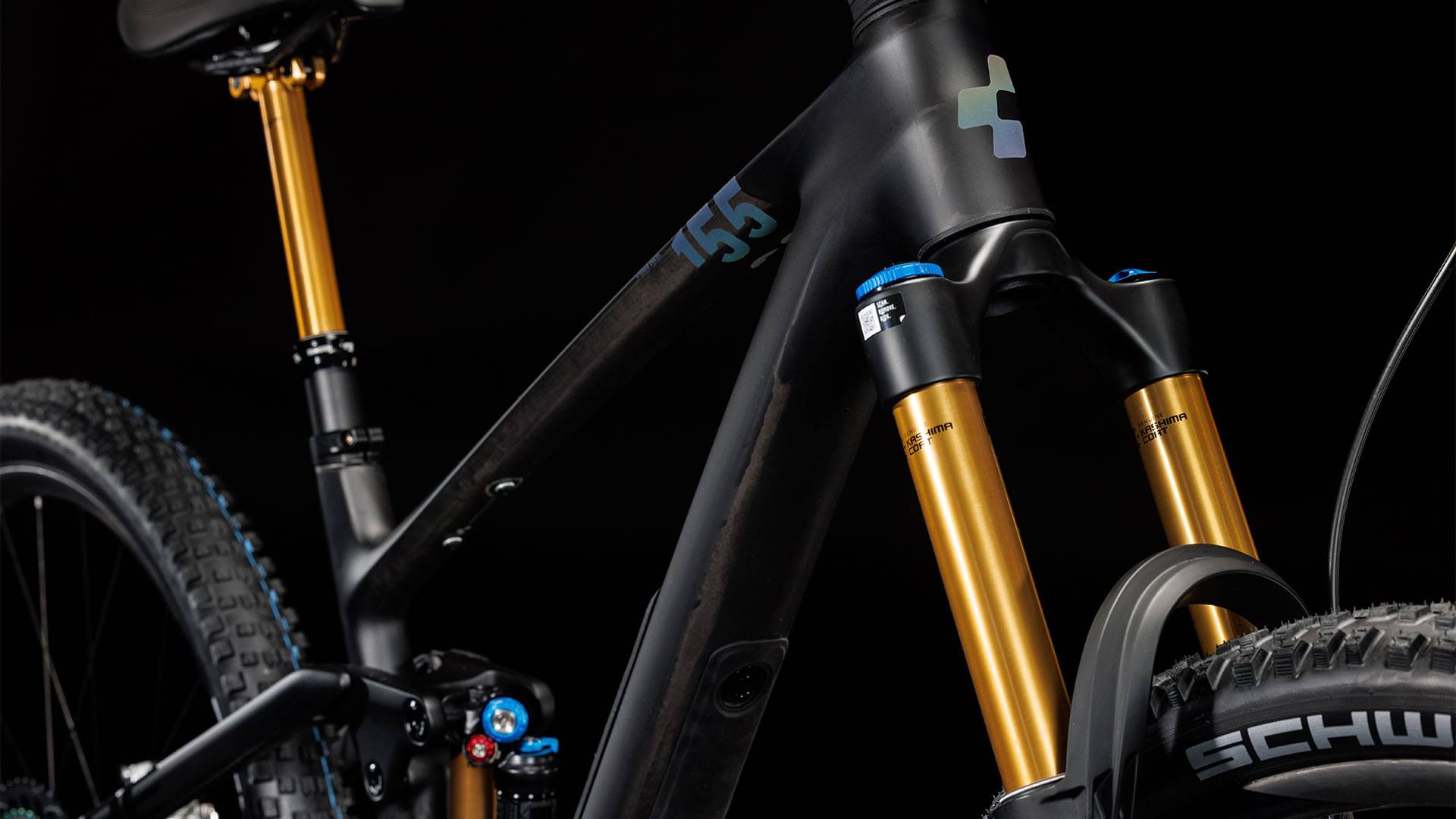

Fork Fox Factory Float 36
-
Groupset XX1 Eagle AXS, X01 Eagle -
Suspension Full -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame

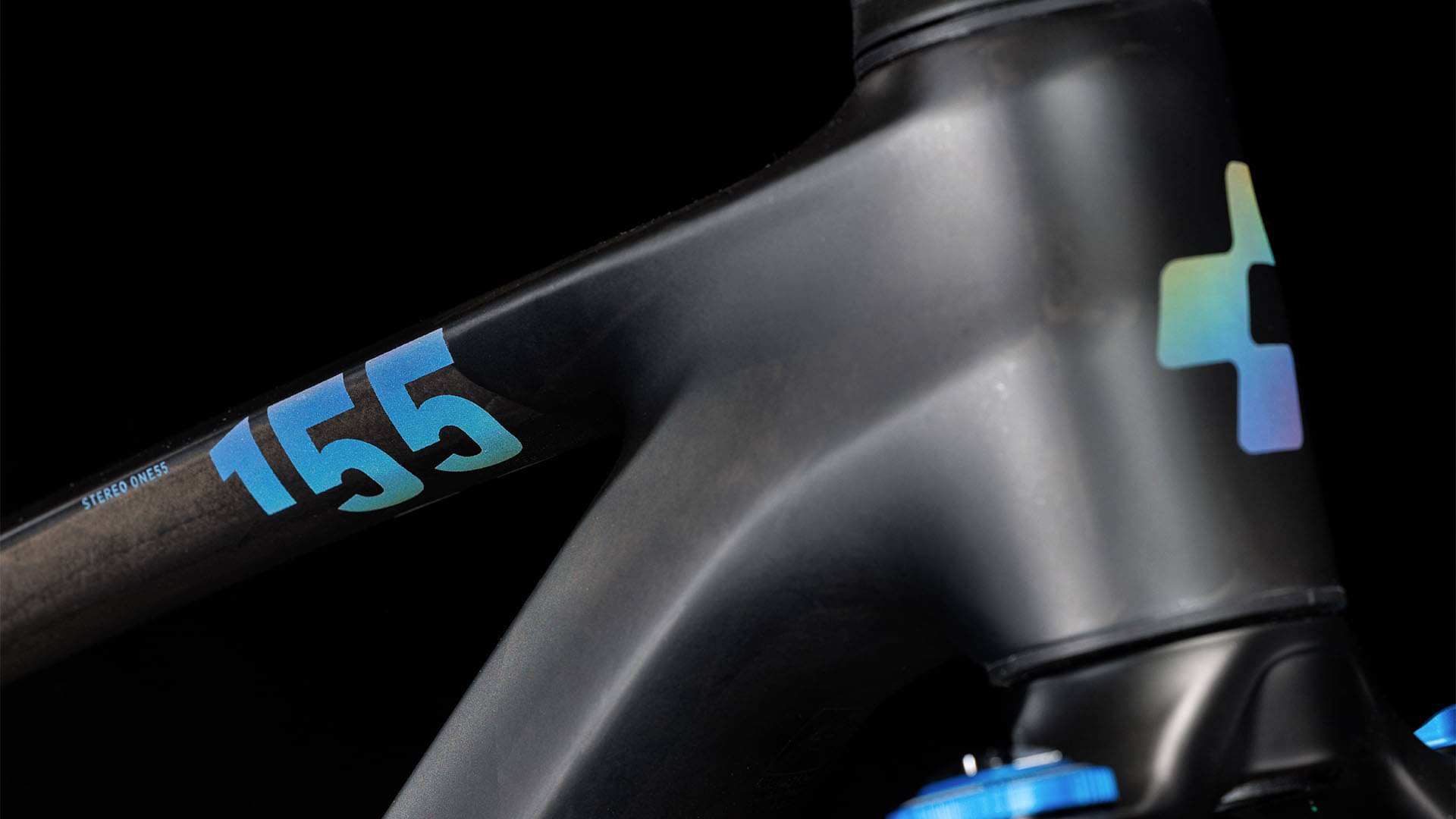

Frame

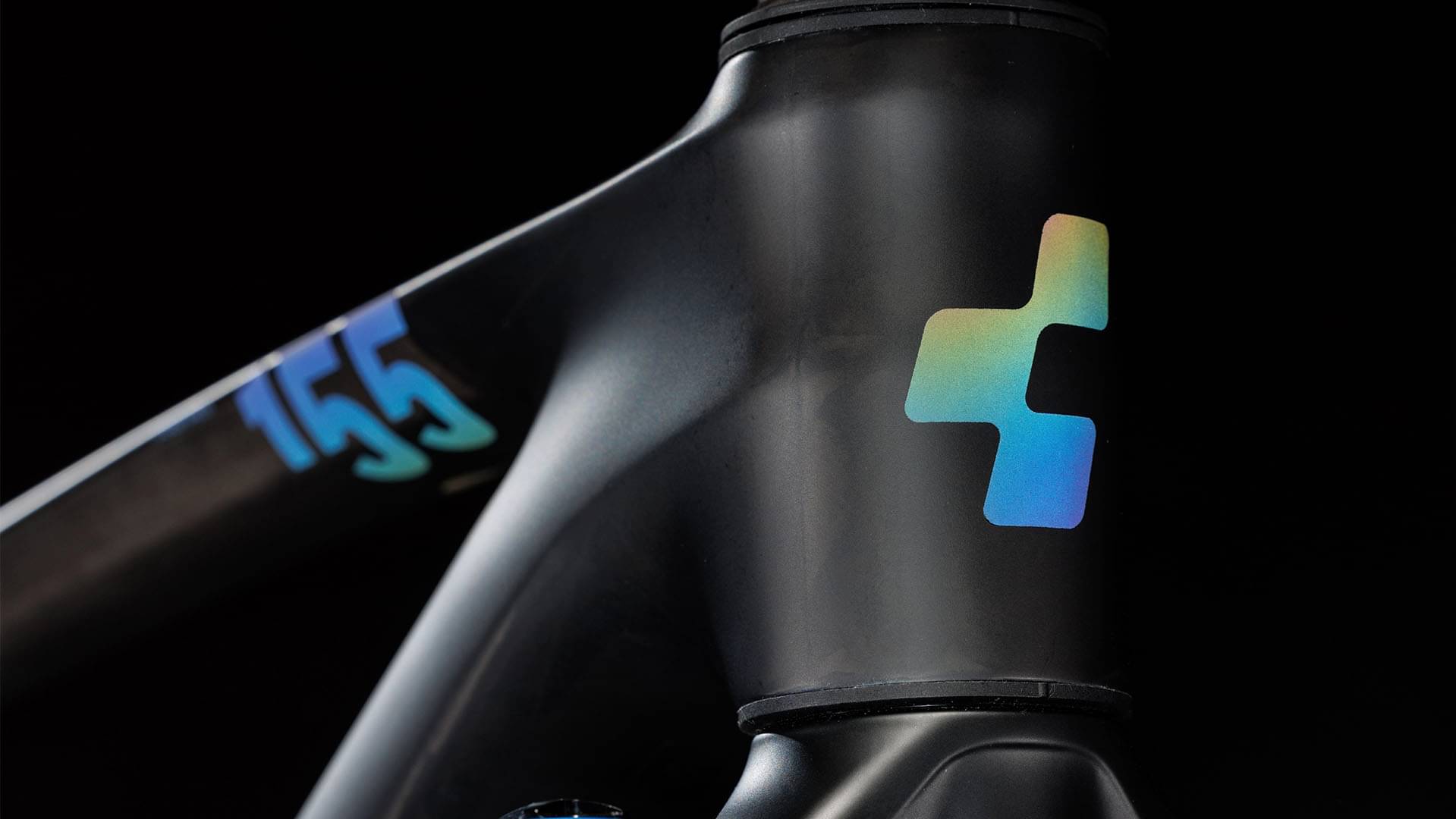

C:62® Monocoque Advanced Twin Mold Technology, ISCG05, Boost 148, UDH™, 155mm travel
Suspension Fork
Fox 36 Float Factory FIT GRIP2, Tapered, 15x110mm, 160mm, Kashima Coated

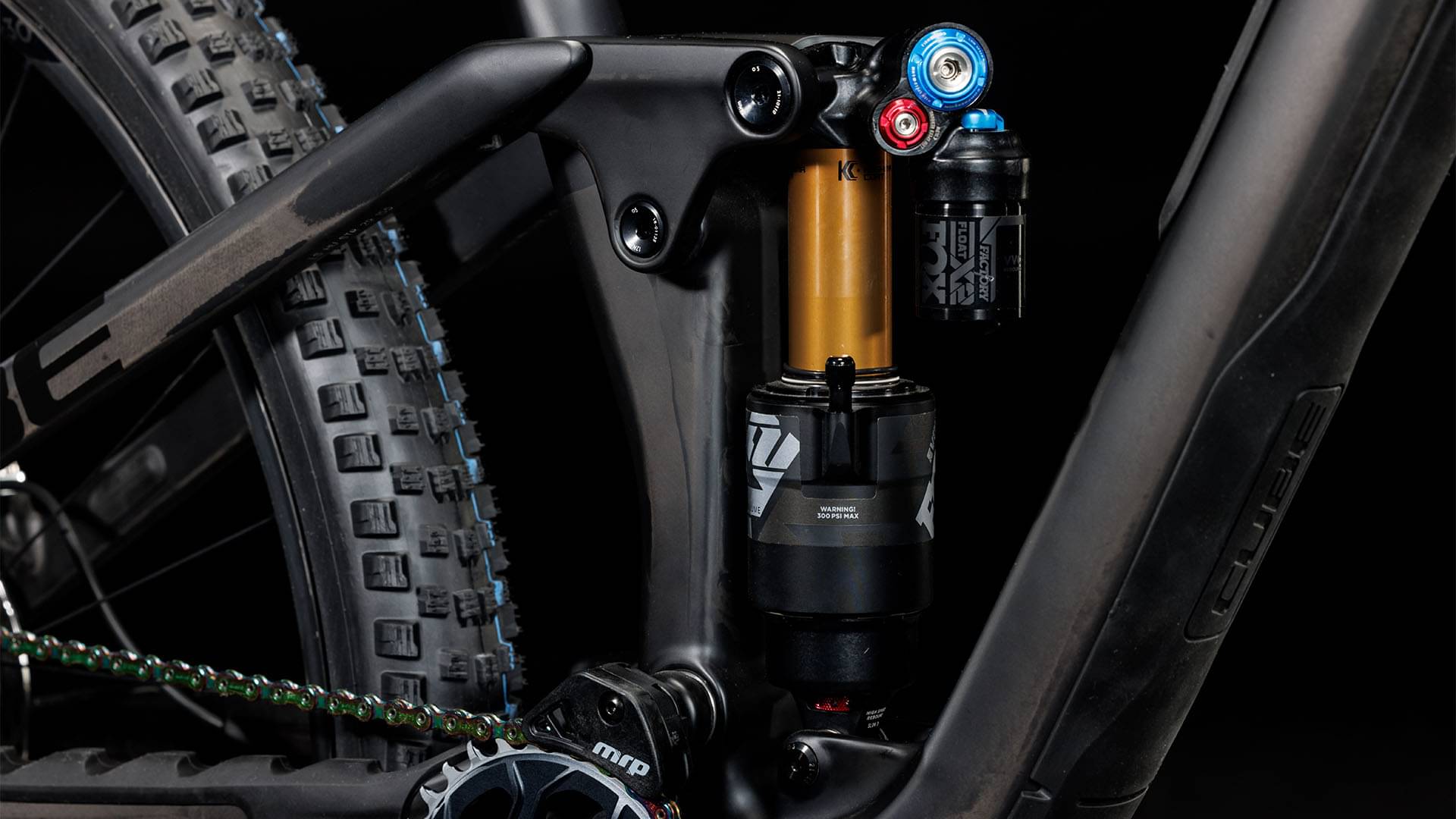

Rear Shock
Fox Float X2 Factory, 205x60mm, High/Low Speed Rebound & Compression w/ 2-Pos. Lever, Kashima Coated
Drivetrain
Rear Derailleur

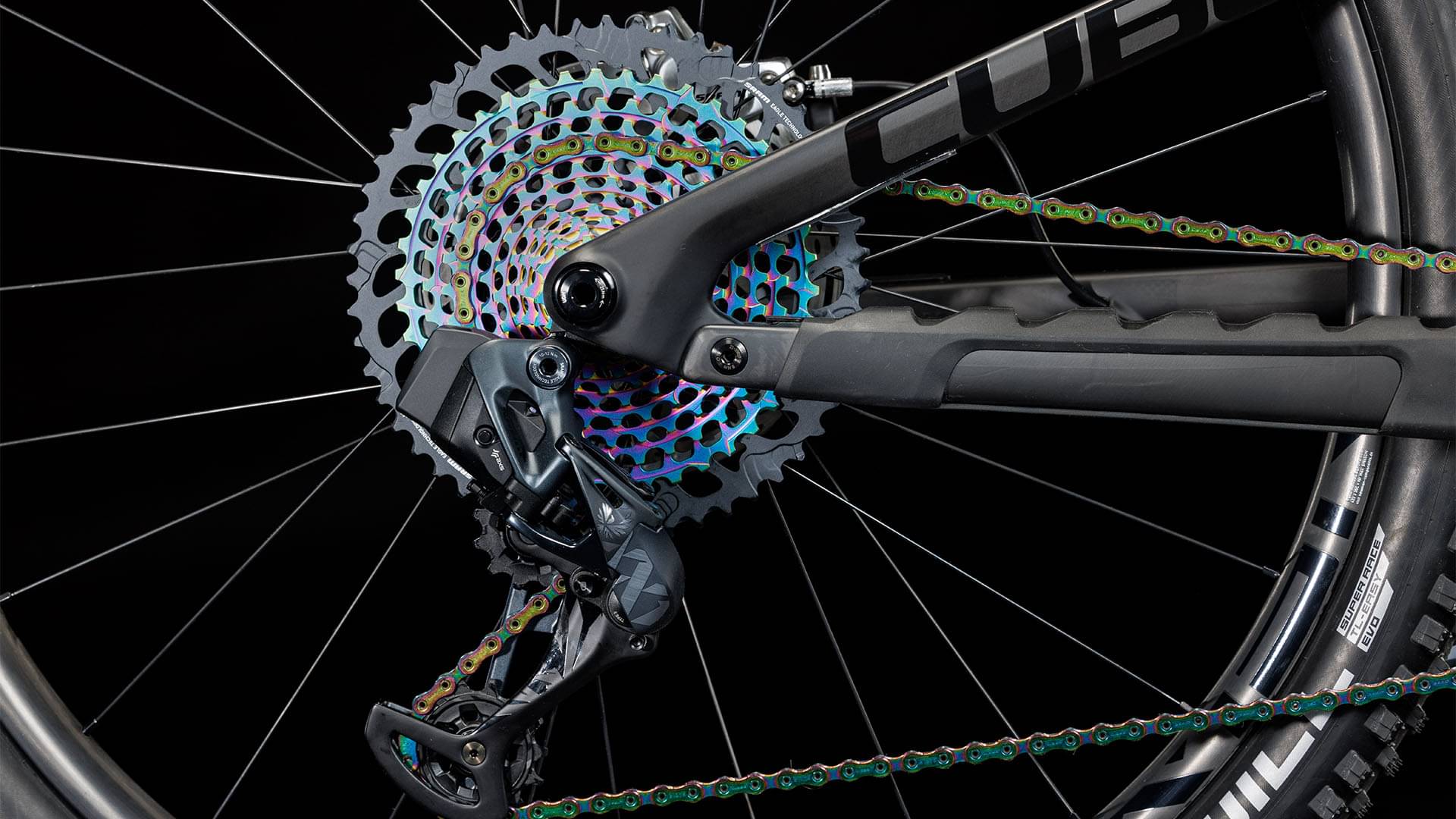

SRAM XX1 Eagle AXS™, 12-Speed
Shift Levers
SRAM Eagle AXS™ Controller
Cassette
SRAM XG-1299 Eagle™ Rainbow, 10-52T
Crank
SRAM X01 Eagle™ Carbon 32T, Boost
Bottom Bracket
SRAM DUB MTB, 73mm BSA
Chain
SRAM PC-XX1 Eagle™ Rainbow
Chain Guide
MRP 1X Chain Guide
Wheels
Rims
Newmen Advanced SL A.30, 28/28 Spokes, 15x110mm/12x148mm, Tubeless Ready
Tires
Front: Schwalbe Nobby Nic, Super Ground, Addix Soft, Kevlar, 2.4, Rear: Schwalbe Wicked Will, Super Ground, Addix Speedgrip, Kevlar, 2.4
Brakes
Brakes
SRAM Code Ultimate Stealth, Hydr. Disc Brake (200/180)
Cockpit
Handlebar

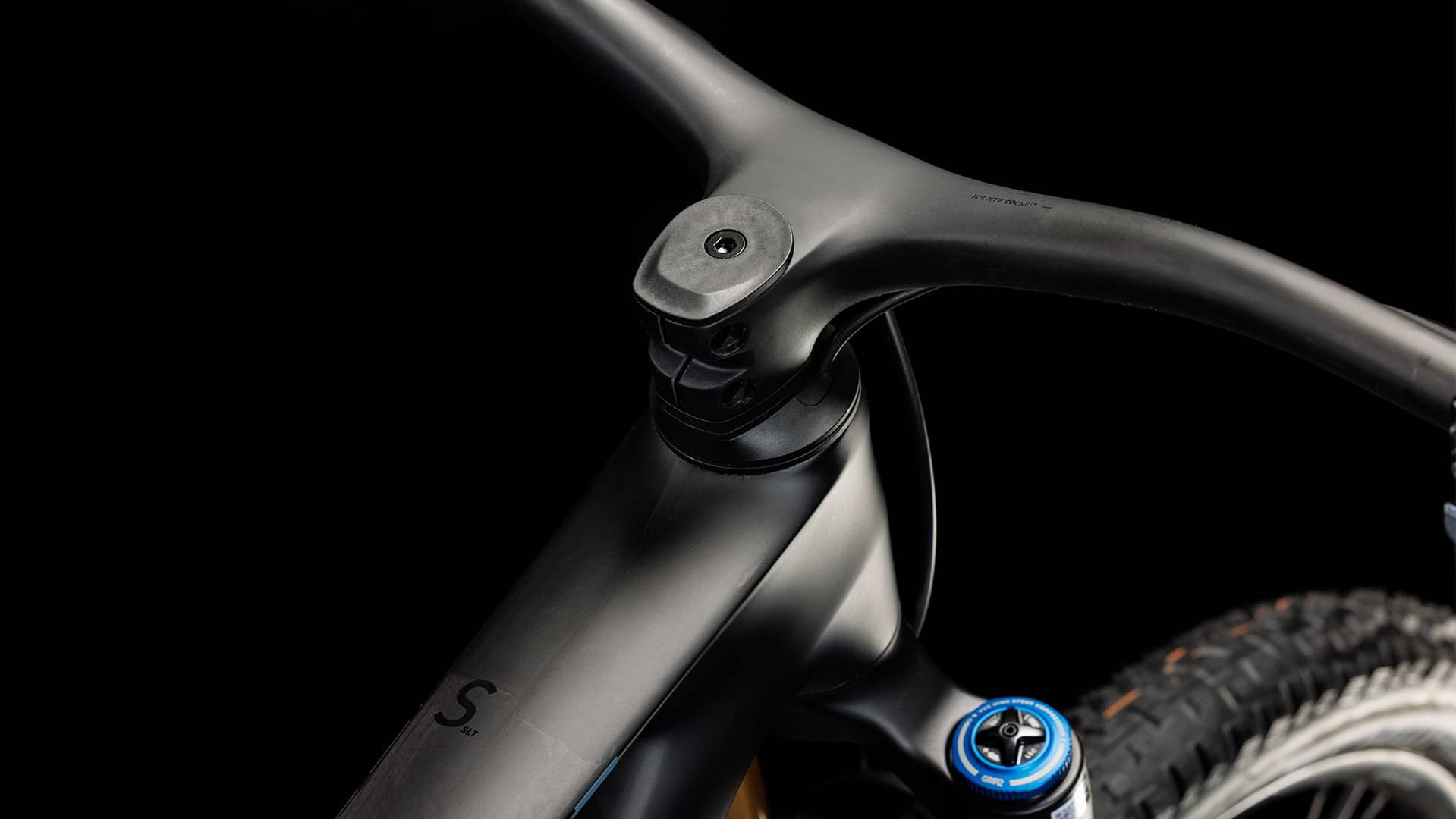

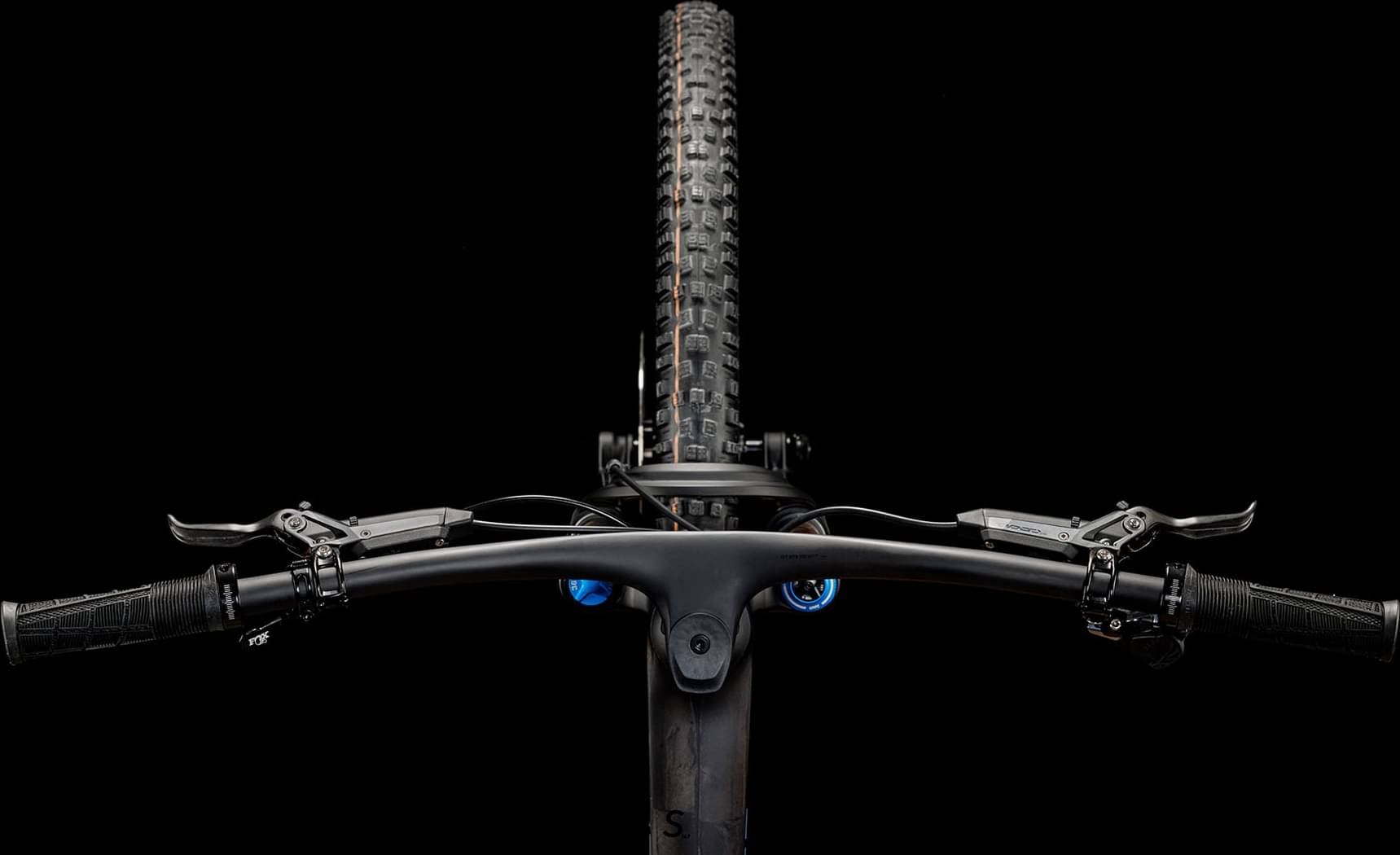

CUBE Stereo Carbon Cockpit System
Grips
ACID Disrupt, Soft Compound
Headset
ACROS AZF-675, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm), Fiber Inserts for Angle Adjustment
Seat
Saddle
Natural Fit Nuance SLT Carbon
Seatpost
Fox Transfer Factory 30.9mm, Kashima Coated
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.459 mm | 1.383 mm | 1.329 mm | 1.299 mm |
| Bottom Bracket Height | 338 mm | 338 mm | 338 mm | 338 mm |
| Front Center | 760 mm | 786 mm | 816 mm | 849 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 132 mm | 132 mm | 132 mm | 132 mm |
| Stack | 623 mm | 625 mm | 634 mm | 652 mm |
| Reach | 427 mm | 452 mm | 477 mm | 502 mm |
| Top Tube Length | 565 mm | 591 mm | 619 mm | 650 |
| Seat Tube Angle | 76.7 ° | 76.5 ° | 76.7 ° | 76.7 ° |
| Seat Tube Length | 370 mm | 405 mm | 420 mm | 470 mm |
| Head Tube Angle | 64.2 ° | 64.2 ° | 64.2 ° | 64.2 ° |
| Head Tube Length | 100 mm | 103 mm | 113 mm | 133 mm |
| Chainstay Length | 438 mm | 438 mm | 438 mm | 438 mm |
| Wheelbase | 1196 mm | 1222 mm | 1252 mm | 1285 mm |
| Bottom Bracket Drop | 36 mm | 36 mm | 36 mm | 36 mm |
| Rear Travel | 155 mm | 155 mm | 155 mm | 155 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
