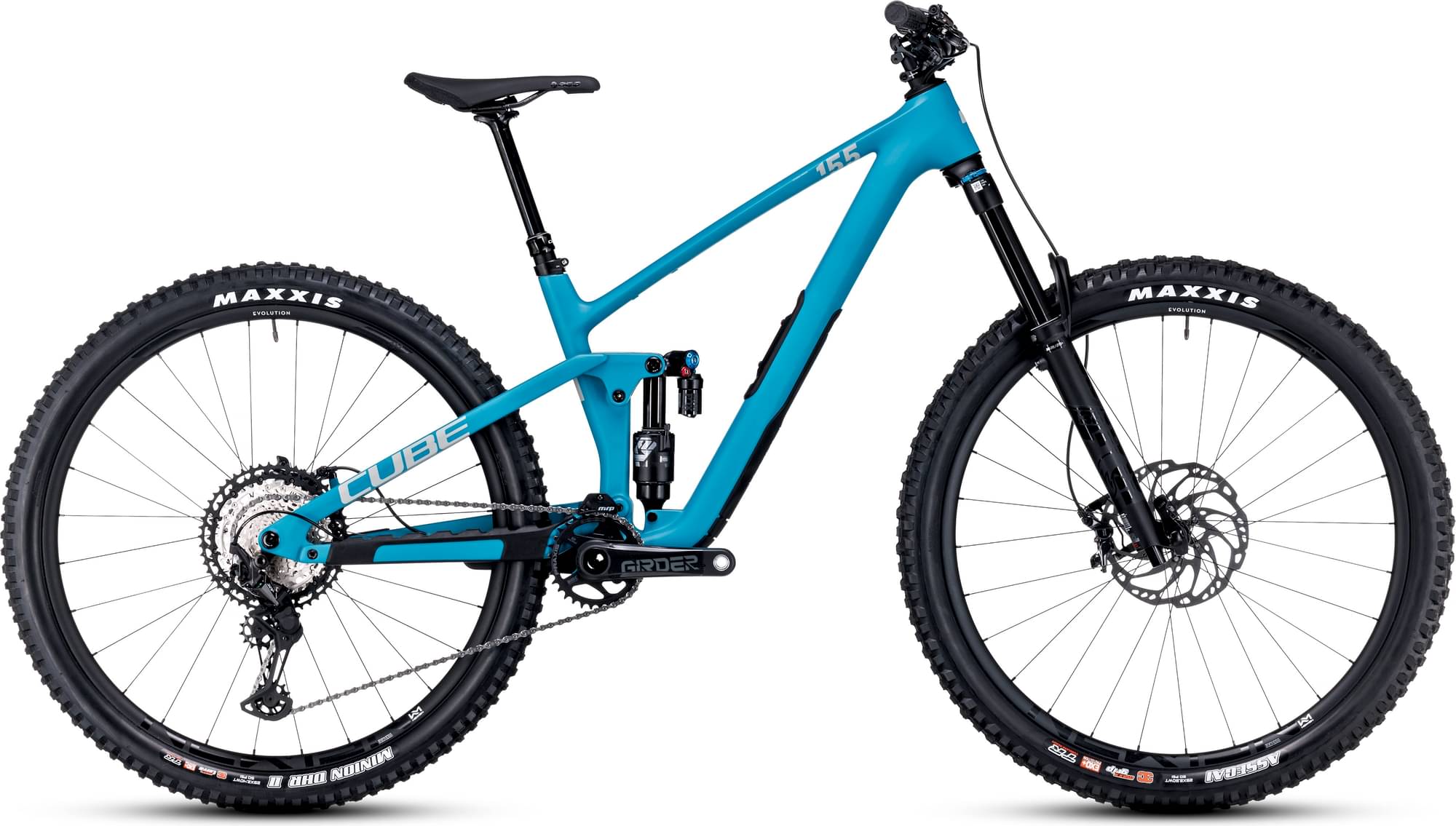

CUBE STEREO ONE55 C:62, SLX 29 2025
2025 Mountain
Estimate price |
4,652$
Weight | 14.5 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 160mm -
Travel Rear 155mm -
Fork Fox Performance Elite Float 36
-
Groupset XT -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
C:62® Monocoque Advanced Twin Mold Technology, ISCG05, Boost 148, UDH™, 155mm travel
Suspension Fork
Fox 36 Float Performance Elite FIT GRIP2, Tapered, 15x110mm, 160mm
Rear Shock

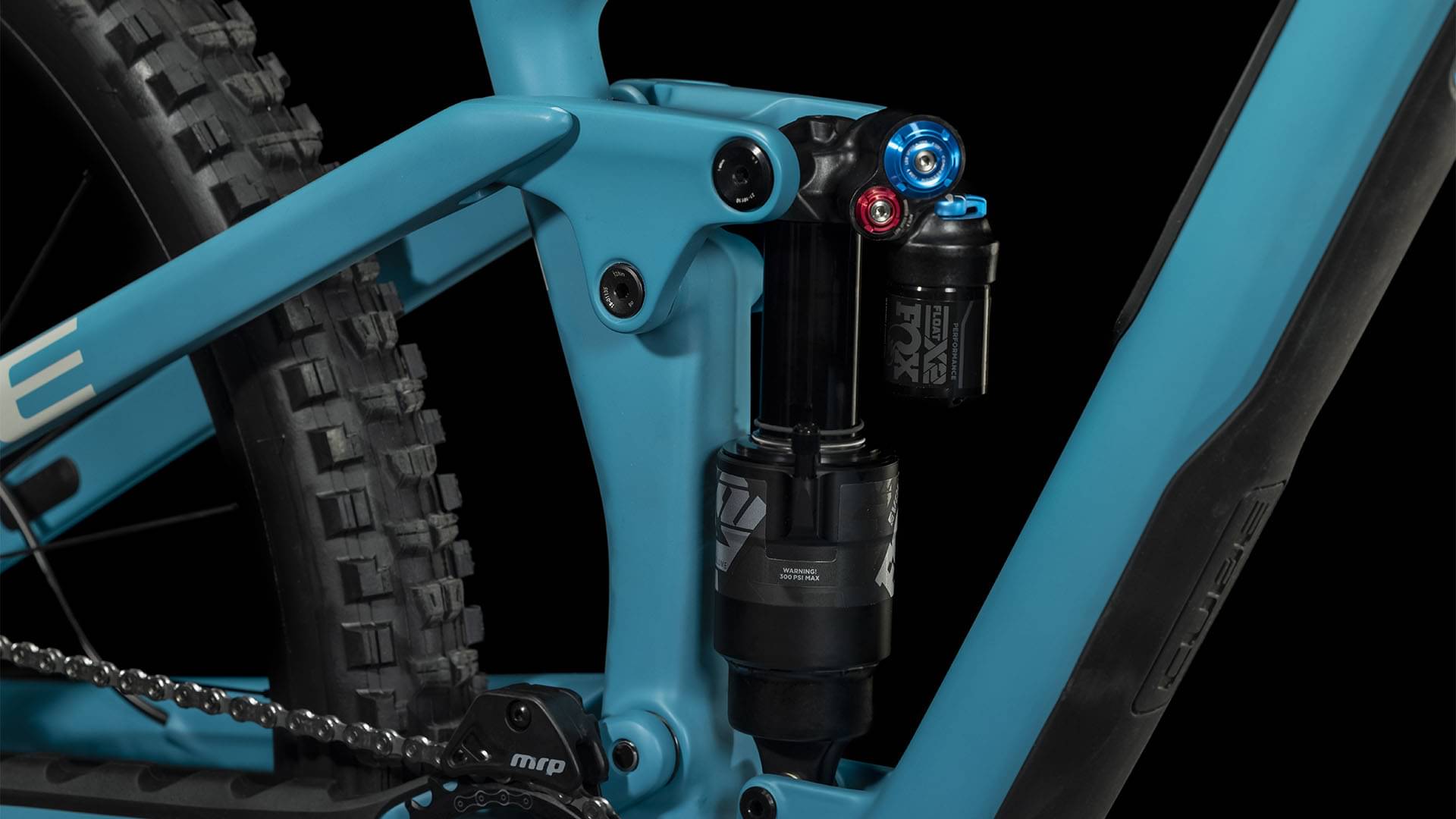

Fox Float X2, 205x60mm, Trunnion Mount, Low Speed Rebound & Compression w/ 2-Position Lever
Drivetrain
Rear Derailleur
Shimano XT RD-M8100-SGS, ShadowPlus, 12-Speed
Shift Levers
Shimano XT SL-M8100-IR, Direct Attach
Cassette
Shimano XT CS-M8100, 10-51T
Crank
Praxis Girder HD Carbon, Boost, 32T
Bottom Bracket
Praxis M30, 73mm BSA, sealed Enduro™, Bearings
Chain
Shimano CN-M6100
Chain Guide
MRP 1X Chain Guide
Wheels
Rims
Newmen Evolution SL A.30, 28/28 Spokes, 15x110mm/12x148mm, Tubeless Ready
Tires
Front: Maxxis Assegai, MaxxGrip/EXO+, Tubeless Ready, 2.5 WT, Rear: Maxxis Minion DHR II, MaxxTerra/EXO+, Tubeless Ready, 2.4 WT
Brakes
Brakes
Shimano XT BR-M8120, Hydr. Disc Brake (203/180)
Cockpit
Stem
Race Face Turbine R 35
Handlebar
Race Face Turbine R 35, 800mm
Grips
SDG Thrice
Headset
ACROS AZF-675, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm), Fiber Inserts for Angle Adjustment
Seat
Saddle
SDG Bel Air V3 Lux Alloy
Seatpost
CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 30.9mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.459 mm | 1.383 mm | 1.329 mm | 1.299 mm |
| Bottom Bracket Height | 338 mm | 338 mm | 338 mm | 338 mm |
| Front Center | 760 mm | 786 mm | 816 mm | 849 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 132 mm | 132 mm | 132 mm | 132 mm |
| Stack | 623 mm | 625 mm | 634 mm | 652 mm |
| Reach | 427 mm | 452 mm | 477 mm | 502 mm |
| Top Tube Length | 565 mm | 591 mm | 619 mm | 650 |
| Seat Tube Angle | 76.7 ° | 76.5 ° | 76.7 ° | 76.7 ° |
| Seat Tube Length | 370 mm | 405 mm | 420 mm | 470 mm |
| Head Tube Angle | 64.2 ° | 64.2 ° | 64.2 ° | 64.2 ° |
| Head Tube Length | 100 mm | 103 mm | 113 mm | 133 mm |
| Chainstay Length | 438 mm | 438 mm | 438 mm | 438 mm |
| Wheelbase | 1196 mm | 1222 mm | 1252 mm | 1285 mm |
| Bottom Bracket Drop | 36 mm | 36 mm | 36 mm | 36 mm |
| Rear Travel | 155 mm | 155 mm | 155 mm | 155 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
