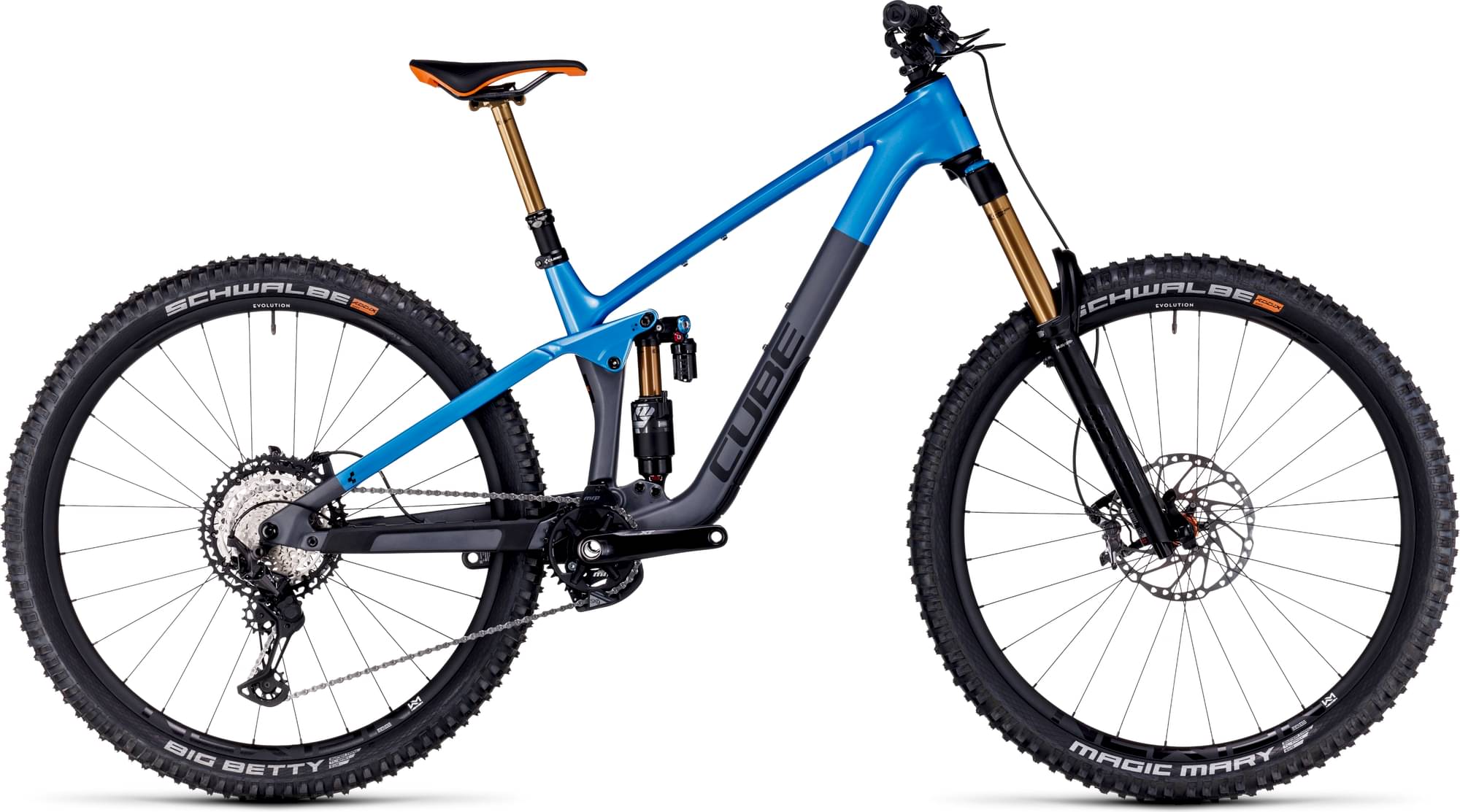

CUBE STEREO ONE77 C:68X SLX 29 2025
2025 Mountain
Estimate price |
6,048$
Weight | 14.7 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 170mm -
Travel Rear 170mm -
Fork Fox Factory Float 38
-
Groupset XT -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
C:68X® Monocoque Advanced Twin Mold Technology, Air/Coil Shock Mount Flip-Chip, ISCG, Boost148, UDH™, 170mm travel

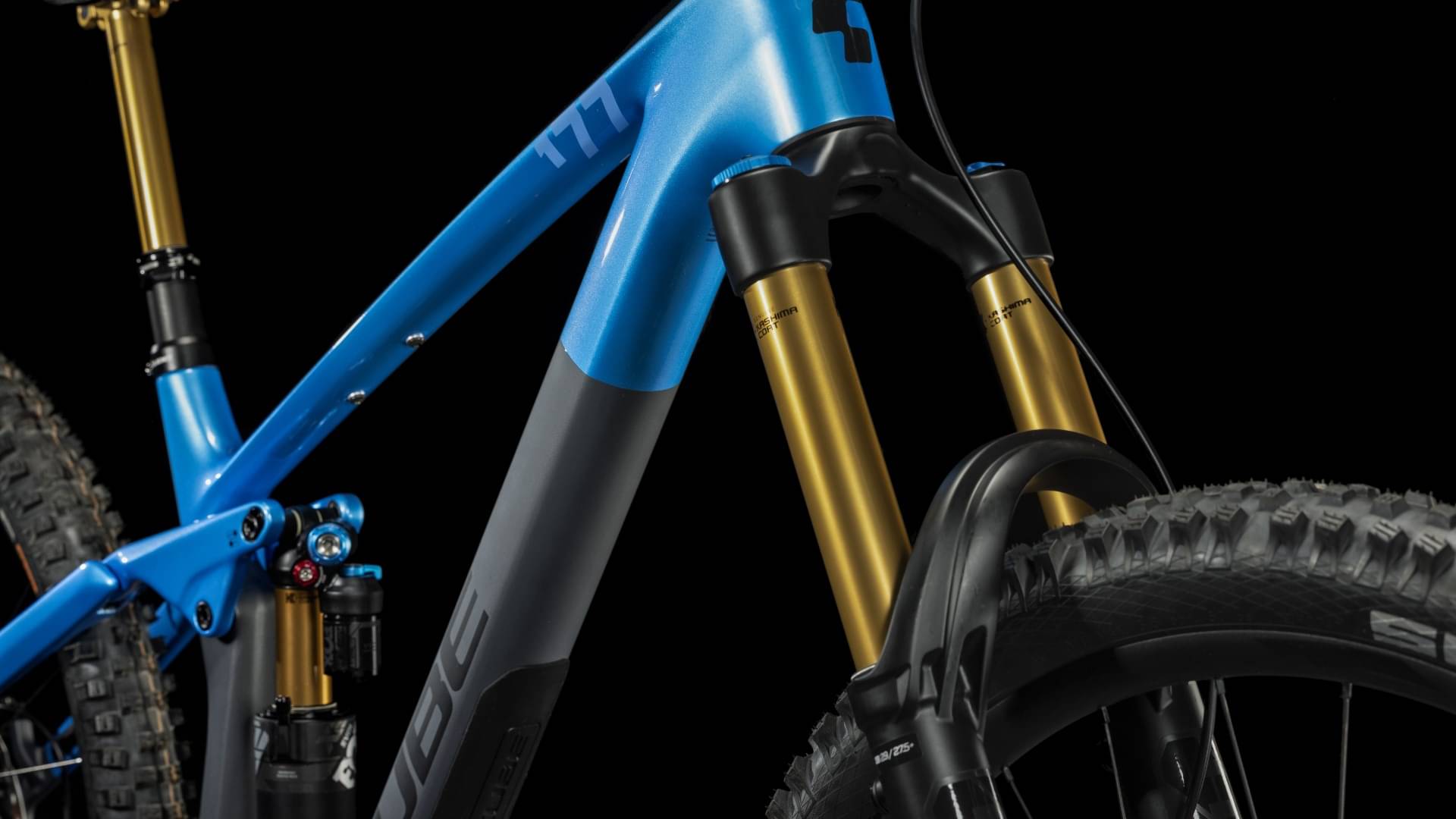

Suspension Fork
Fox 38 Float Factory FIT GRIP2, Tapered, 15x110mm, 170mm, Kashima Coated

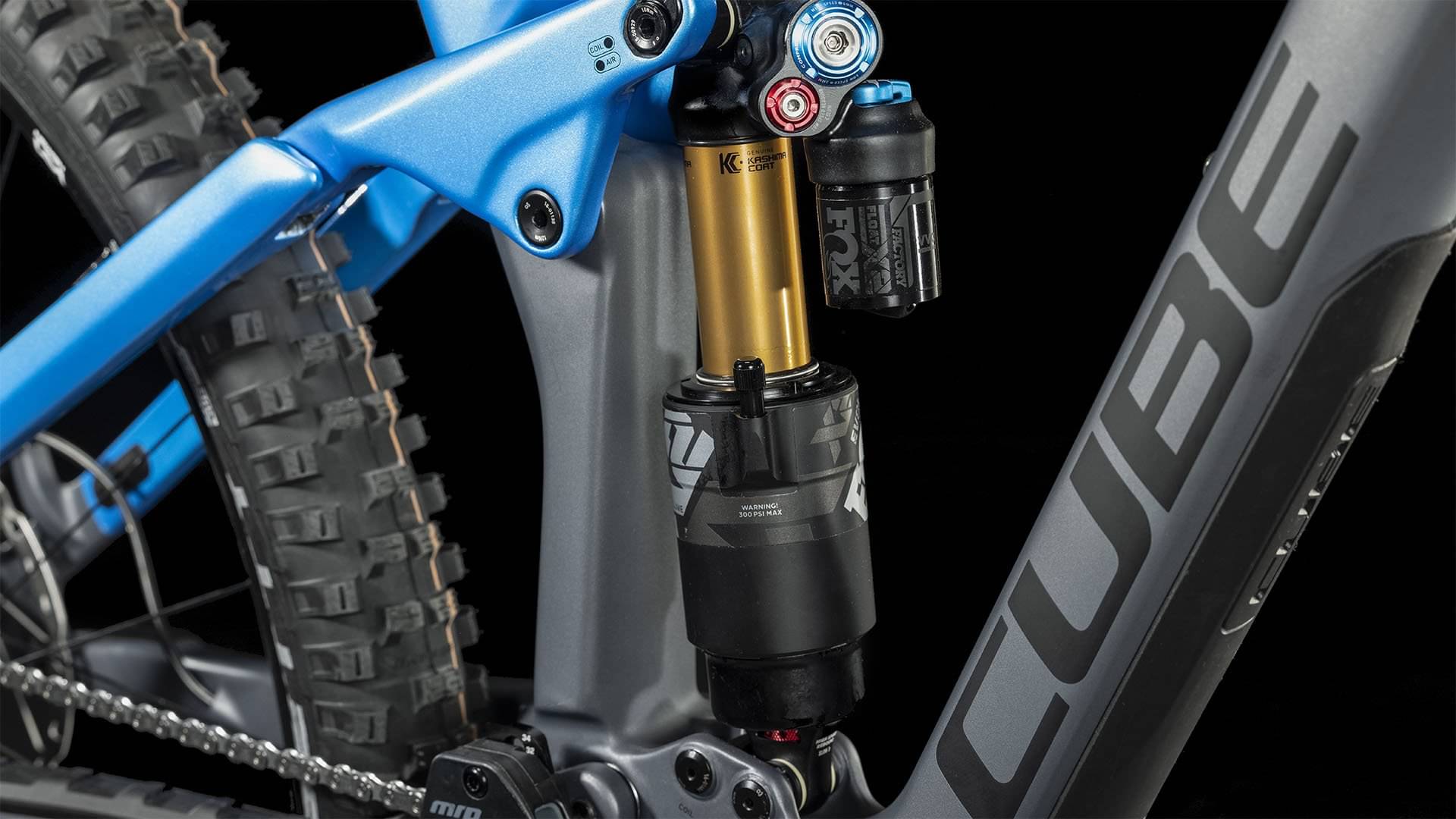

Rear Shock
Fox Float X2 Factory, 230x65mm, High/Low Speed Rebound & Compression w/ 2-Pos. Lever, Kashima Coated
Drivetrain
Rear Derailleur
Shimano XT RD-M8100-SGS, ShadowPlus, 12-Speed
Shift Levers
Shimano XT SL-M8100-IR, Direct Attach
Cassette
Shimano XT CS-M8100, 10-51T

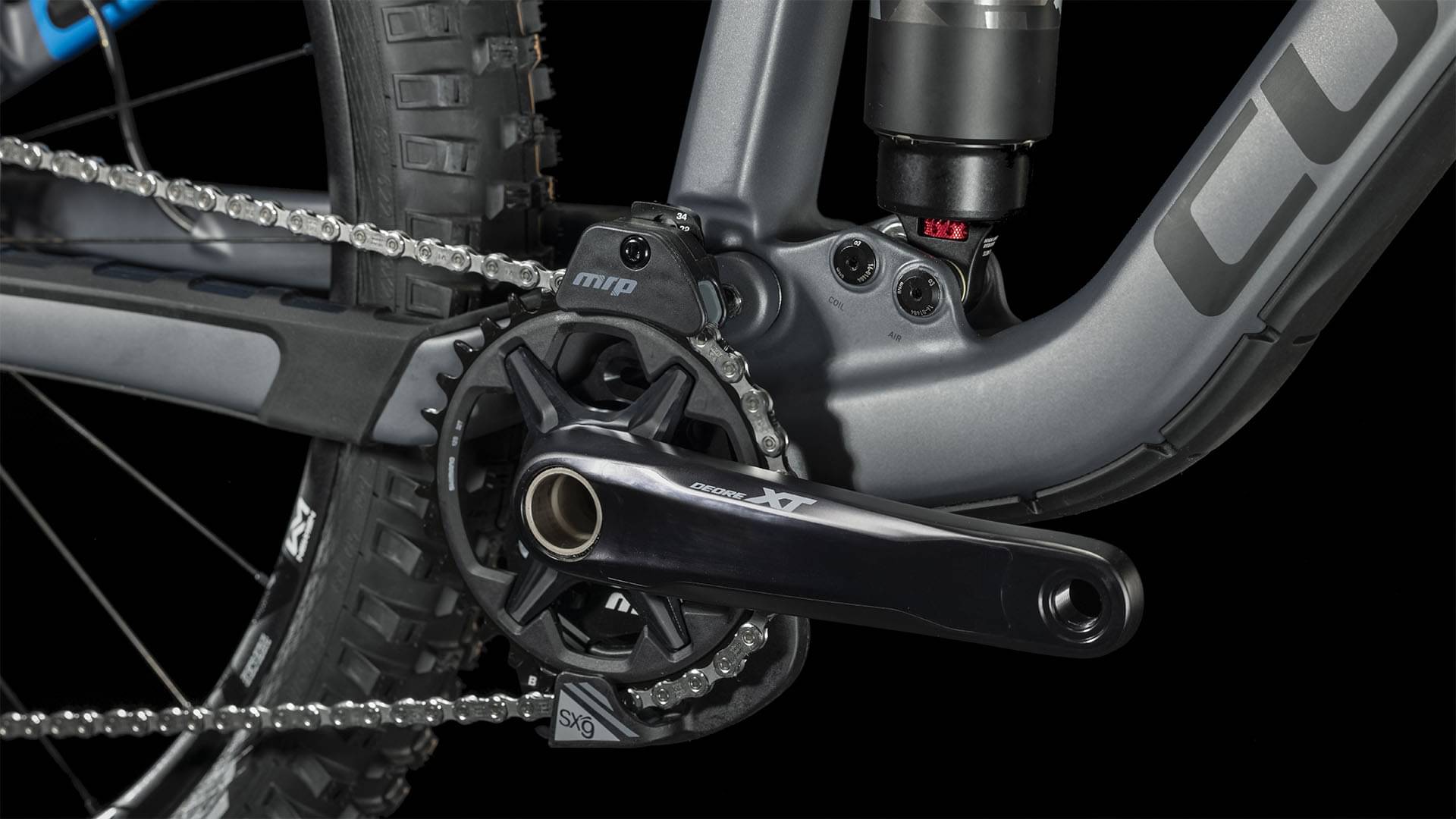

Crank
Shimano XT FC-M8100, 32T, Boost
Bottom Bracket
Shimano SM-BB52 BSA
Chain
Shimano CN-M6100
Chain Guide
MRP SXg Chain Guide
Wheels

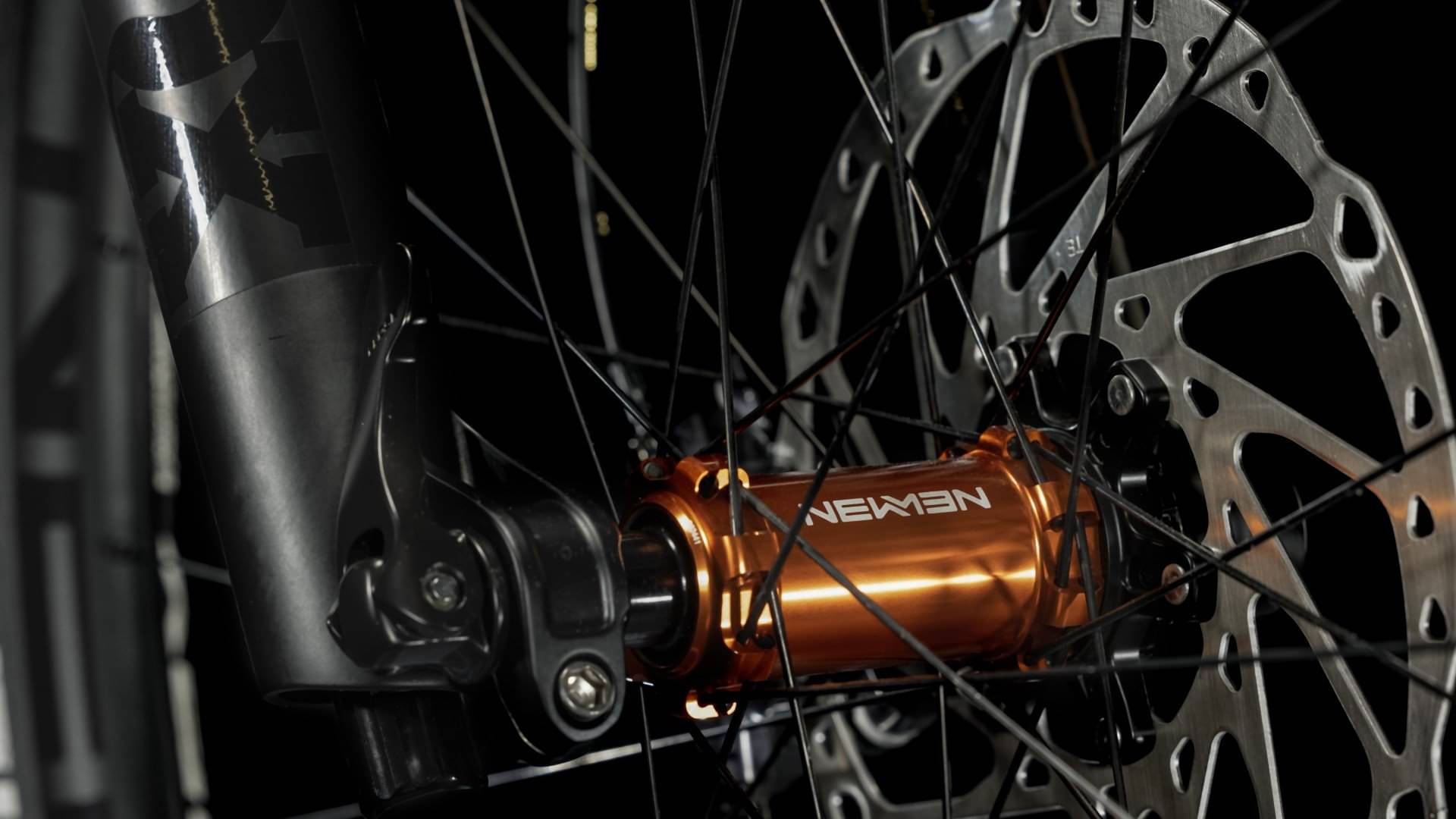

Rims
Newmen Evolution SL A.30, 28/28 Spokes, 15x110mm/12x148mm, Tubeless Ready
Tires
Front: Schwalbe Magic Mary, Super Trail, Addix Soft, Kevlar, 2.4, Rear: Schwalbe Big Betty, Super Trail, Addix Soft, Kevlar, 2.4
Brakes
Brakes
Shimano XT BR-M8120, Hydr. Disc Brake (203/180)
Cockpit

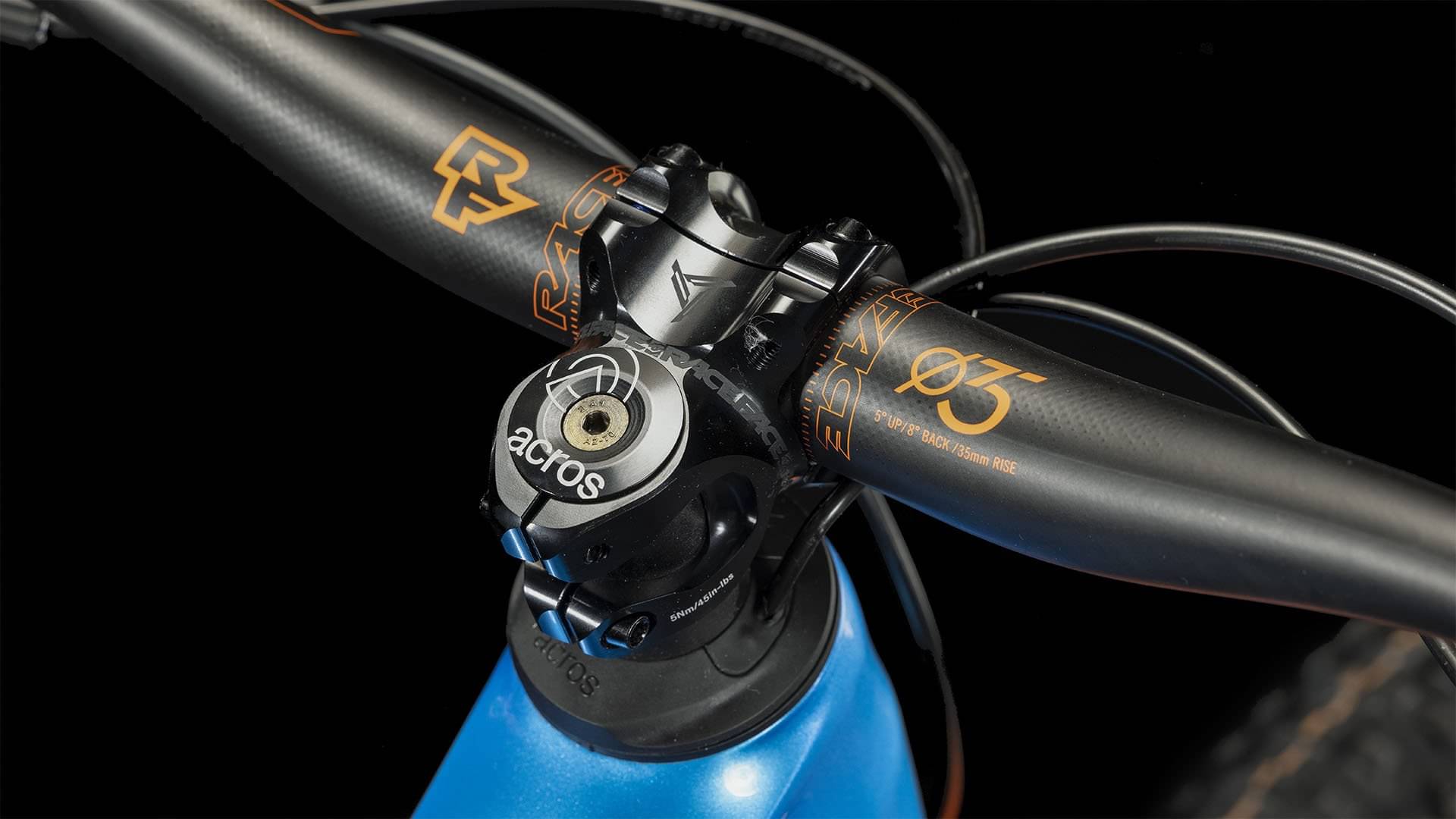

Stem
Race Face Turbine R 35
Handlebar
Race Face Next R 35 Carbon, 800mm
Grips
ACID Disrupt, Soft Compound
Headset
ACROS AZF-675, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm), Fiber Inserts for Angle Adjustment
Seat

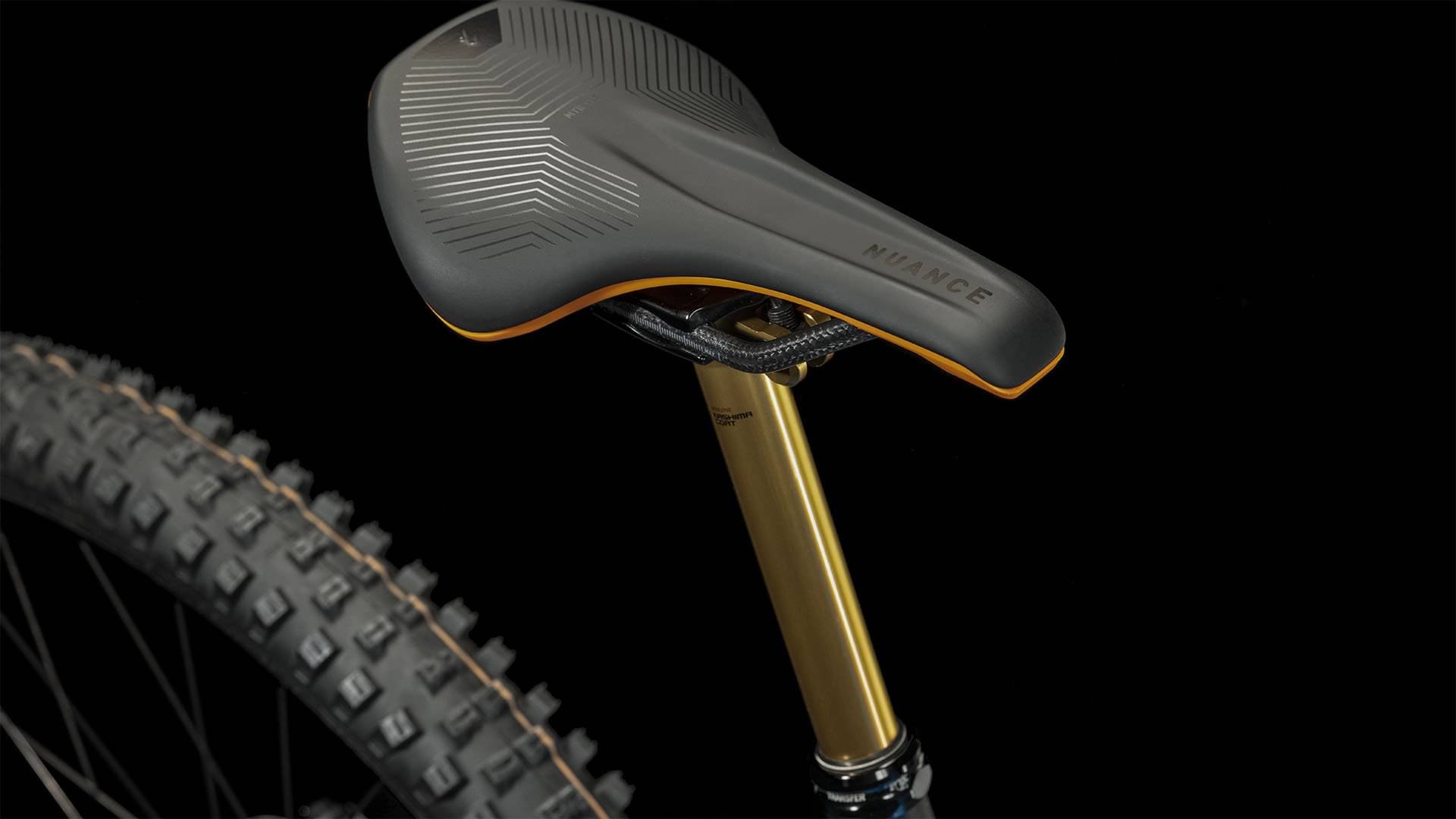

Saddle
Natural Fit Nuance SLT Carbon
Seatpost
Fox Transfer Factory 31.6mm, Kashima coated
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL | XXL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.385 mm | 1.328 mm | 1.293 mm | 1.277 mm |
| Bottom Bracket Height | 347 mm | 347 mm | 347 mm | 347 mm |
| Front Center | 795 mm | 816 mm | 840 mm | 863 mm |
| Rake | 43 mm | 44 mm | 43 mm | 38 mm |
| Trail | 136 mm | 135 mm | 136 mm | 142 mm |
| Stack | 626 mm | 627 mm | 636 mm | 654 mm |
| Reach | 452 mm | 472 mm | 492 mm | 512 mm |
| Top Tube Length | 589 mm | 610 mm | 633 mm | 659 mm |
| Seat Tube Angle | 76.7 ° | 76.7 ° | 76.7 ° | 76.7 ° |
| Seat Tube Length | 405 mm | 420 mm | 470 mm | 470 mm |
| Head Tube Angle | 63.8 ° | 63.8 ° | 63.8 ° | 63.8 ° |
| Head Tube Length | 103 mm | 105 mm | 115 mm | 135 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1229 mm | 1250 mm | 1274 mm | 1297 mm |
| Bottom Bracket Drop | 27 mm | 27 mm | 27 mm | 27 mm |
| Rear Travel | 170 mm | 170 mm | 170 mm | 170 mm |
| Wheels | 29" | 29" | 29" | 29" |
