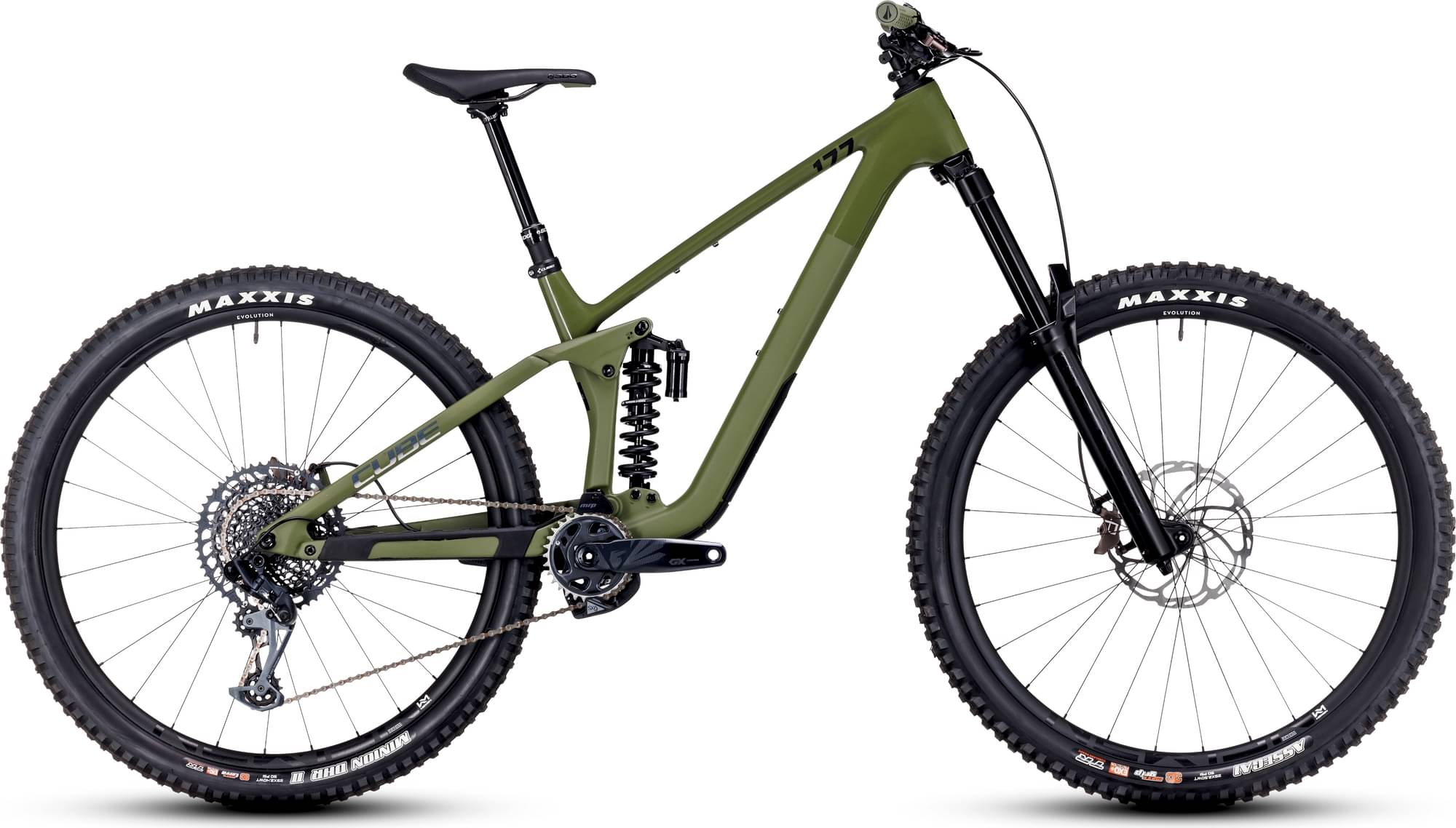

CUBE STEREO ONE77 C:68X TM 29 2025
2025 Mountain
Estimate price |
5,118$
Weight | 15.1 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 170mm -
Travel Rear 170mm -
Fork RockShox ZEB Select+
-
Groupset GX Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame

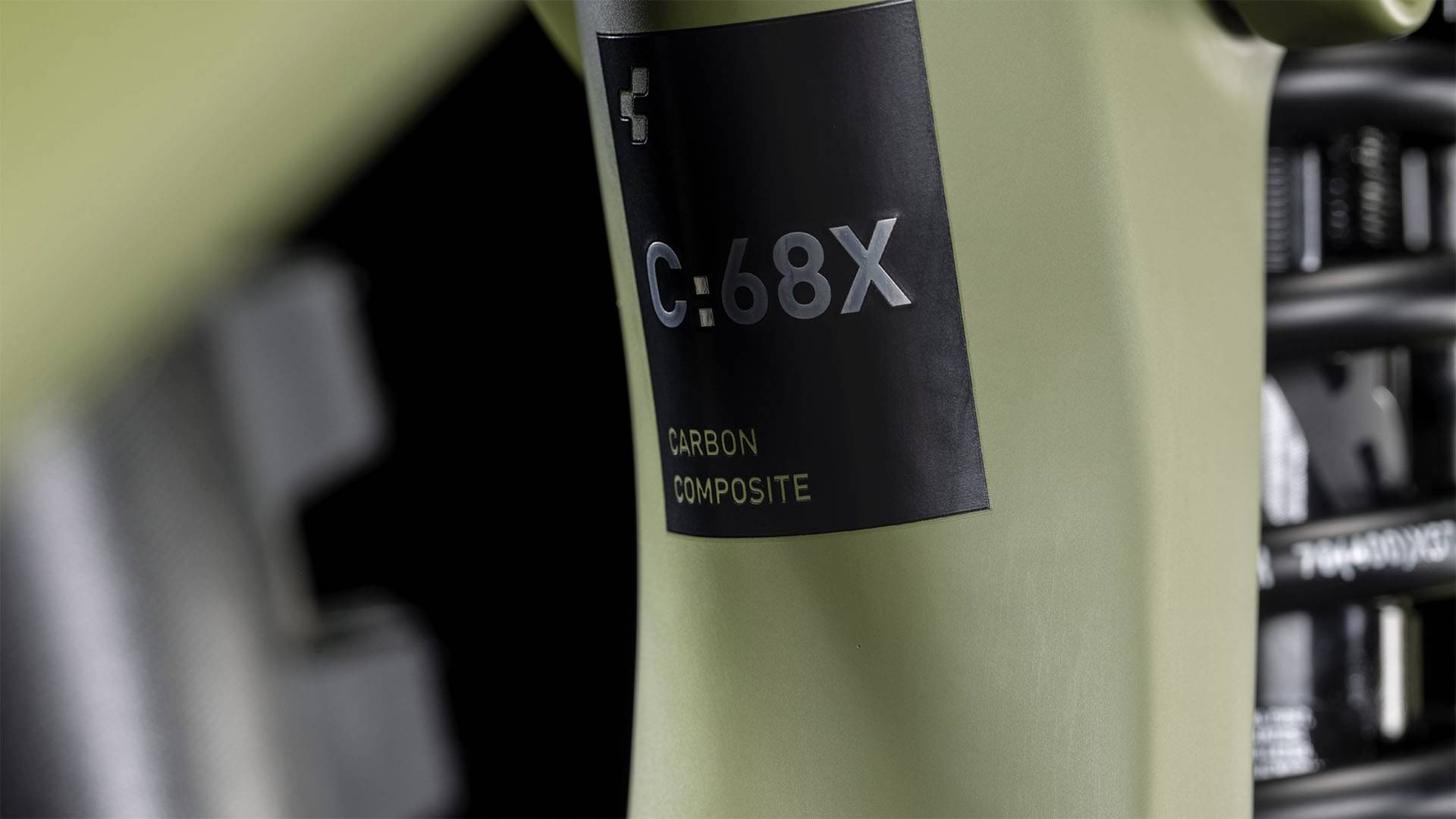

C:68X® Monocoque Advanced Twin Mold Technology, Air/Coil Shock Mount Flip-Chip, ISCG, Boost148, UDH™, 170mm travel
Suspension Fork
RockShox ZEB Select+ RC2, Tapered, 15x110mm, 170mm
Rear Shock
RockShox Super Deluxe Select+ Coil, 230x65mm
Drivetrain
Rear Derailleur
SRAM GX Eagle™, 12-Speed
Shift Levers
SRAM GX Eagle™ Trigger
Cassette
SRAM XG-1275 Eagle™, 10-52T
Crank
SRAM GX Eagle™ Boost DUB, 30T
Bottom Bracket
SRAM DUB MTB, 73mm BSA
Chain
SRAM SX Eagle™
Chain Guide
MRP SXg Chain Guide
Wheels
Rims
Newmen Evolution SL A.30, 28/28 Spokes, 15x110mm/12x148mm, Tubeless Ready
Tires
Front: Maxxis Assegai, MaxxGrip/EXO+, Tubeless Ready, 2.5 WT, Rear: Maxxis Minion DHR II, MaxxTerra/EXO+, Tubeless Ready, 2.4 WT
Brakes
Brakes

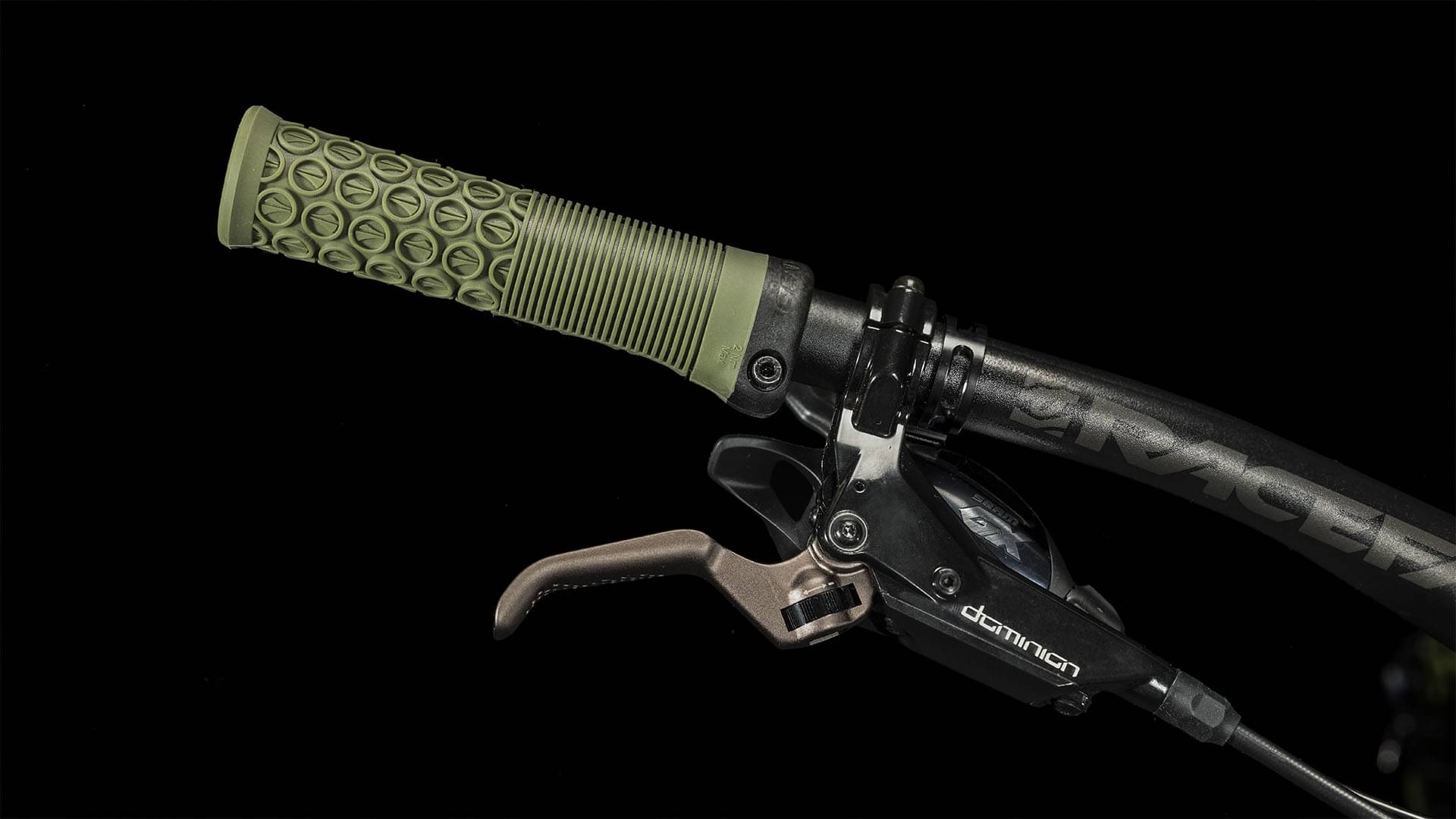

Hayes Dominion A4, Hydr. Disc Brake (203/180)
Cockpit
Stem
Race Face Turbine R 35
Handlebar
Race Face Turbine R 35, 800mm
Grips
SDG Thrice
Headset
ACROS AZF-675, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm), Fiber Inserts for Angle Adjustment
Seat
Saddle
SDG Bel Air V3 Lux Alloy
Seatpost
SDG Tellis, Handlebar Lever, Internal Cable Routing, 31.6mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL | XXL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.385 mm | 1.328 mm | 1.293 mm | 1.277 mm |
| Bottom Bracket Height | 347 mm | 347 mm | 347 mm | 347 mm |
| Front Center | 795 mm | 816 mm | 840 mm | 863 mm |
| Rake | 43 mm | 44 mm | 43 mm | 38 mm |
| Trail | 136 mm | 135 mm | 136 mm | 142 mm |
| Stack | 626 mm | 627 mm | 636 mm | 654 mm |
| Reach | 452 mm | 472 mm | 492 mm | 512 mm |
| Top Tube Length | 589 mm | 610 mm | 633 mm | 659 mm |
| Seat Tube Angle | 76.7 ° | 76.7 ° | 76.7 ° | 76.7 ° |
| Seat Tube Length | 405 mm | 420 mm | 470 mm | 470 mm |
| Head Tube Angle | 63.8 ° | 63.8 ° | 63.8 ° | 63.8 ° |
| Head Tube Length | 103 mm | 105 mm | 115 mm | 135 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1229 mm | 1250 mm | 1274 mm | 1297 mm |
| Bottom Bracket Drop | 27 mm | 27 mm | 27 mm | 27 mm |
| Rear Travel | 170 mm | 170 mm | 170 mm | 170 mm |
| Wheels | 29" | 29" | 29" | 29" |
