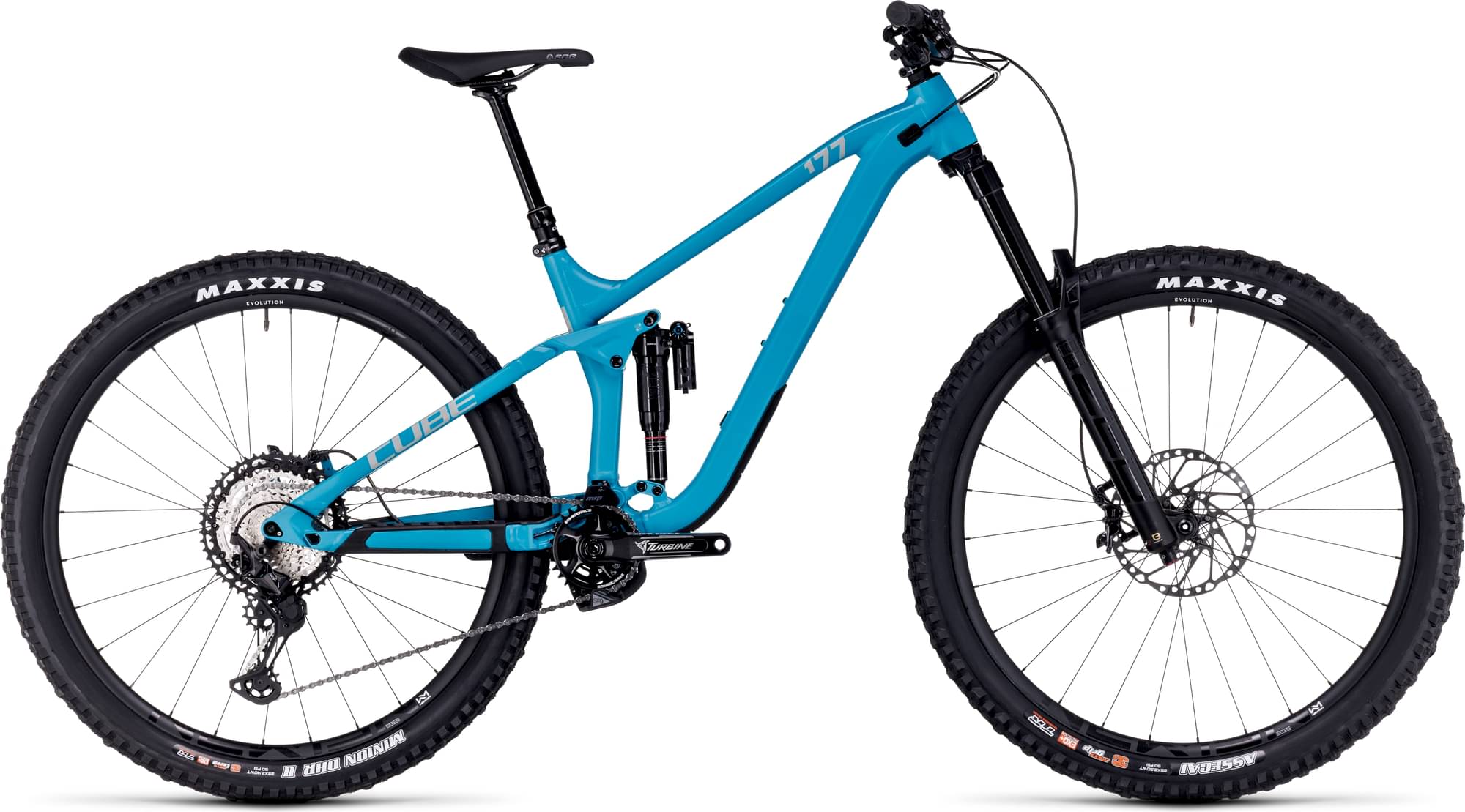

CUBE STEREO ONE77 RACE 29 2025
2025 Mountain
Estimate price |
4,420$
Weight | 15.6 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 170mm -
Travel Rear 170mm -
Fork RockShox ZEB Ultimate
-
Groupset XT -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame

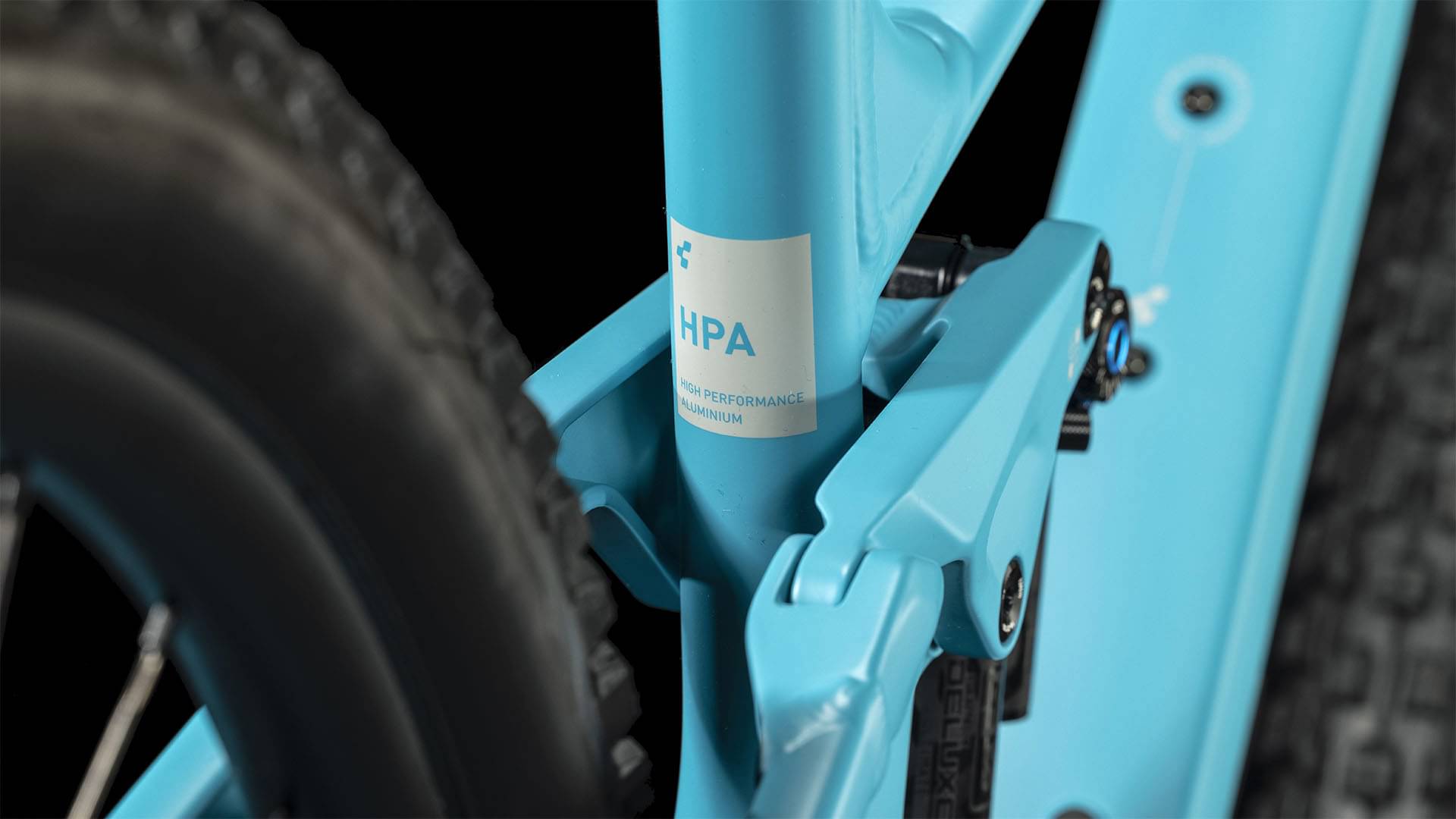

HPA Advanced Hydroform, ATG, ETC 4-Link, Air/Coil Shock Mount Flip-Chip, ISCG Mount, AXH, 170mm travel
Suspension Fork
RockShox ZEB Ultimate RC2, Tapered, 15x110mm, 170mm

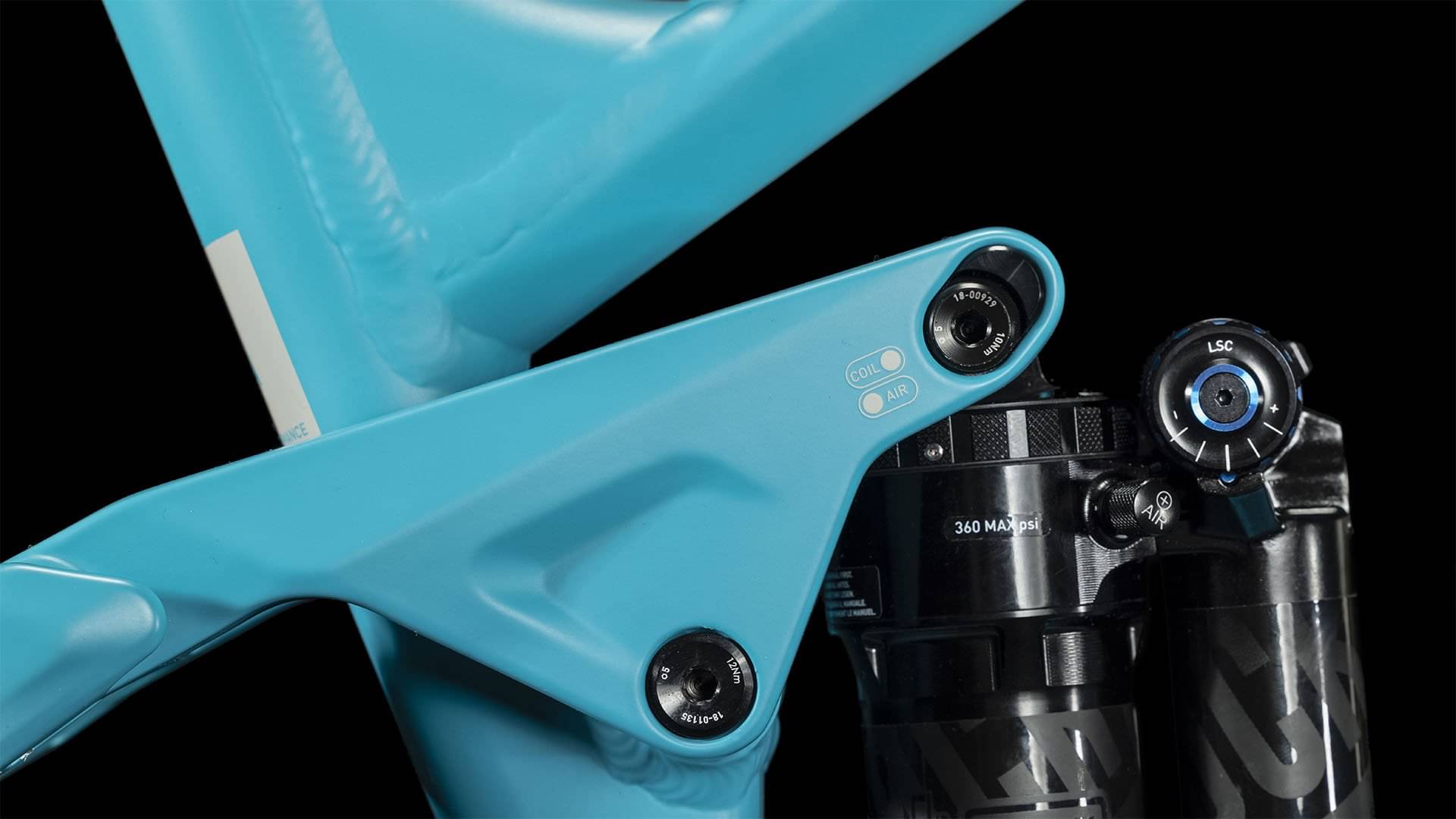

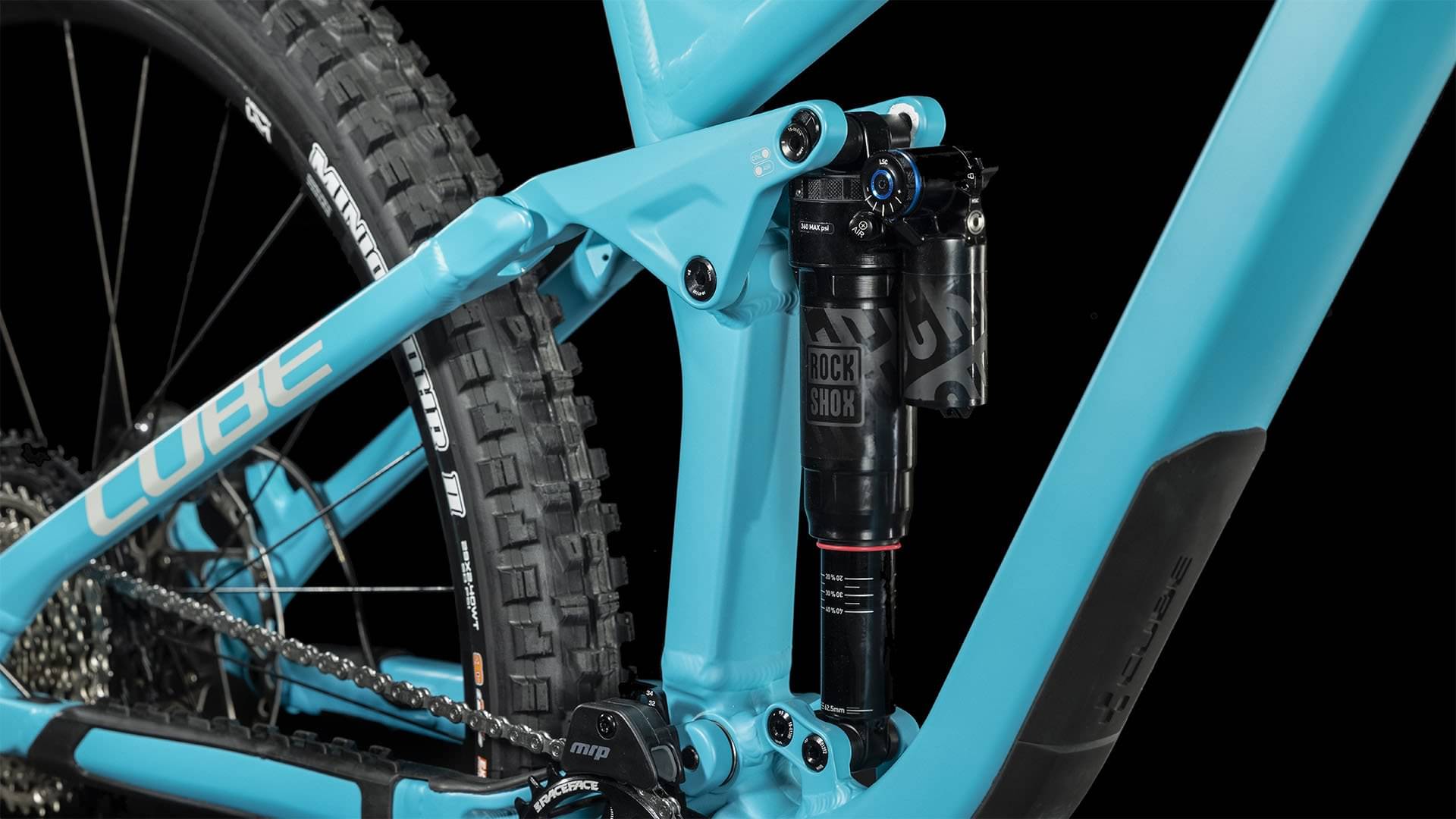

Rear Shock
RockShox Super Deluxe Ultimate, 230x65mm, Rebound & Low Speed Compression Adjust w/ 2- Pos. Lever
Drivetrain
Rear Derailleur
Shimano XT RD-M8100-SGS, ShadowPlus, 12-Speed
Shift Levers
Shimano XT SL-M8100-IR, Direct Attach
Cassette
Shimano XT CS-M8100, 10-51T

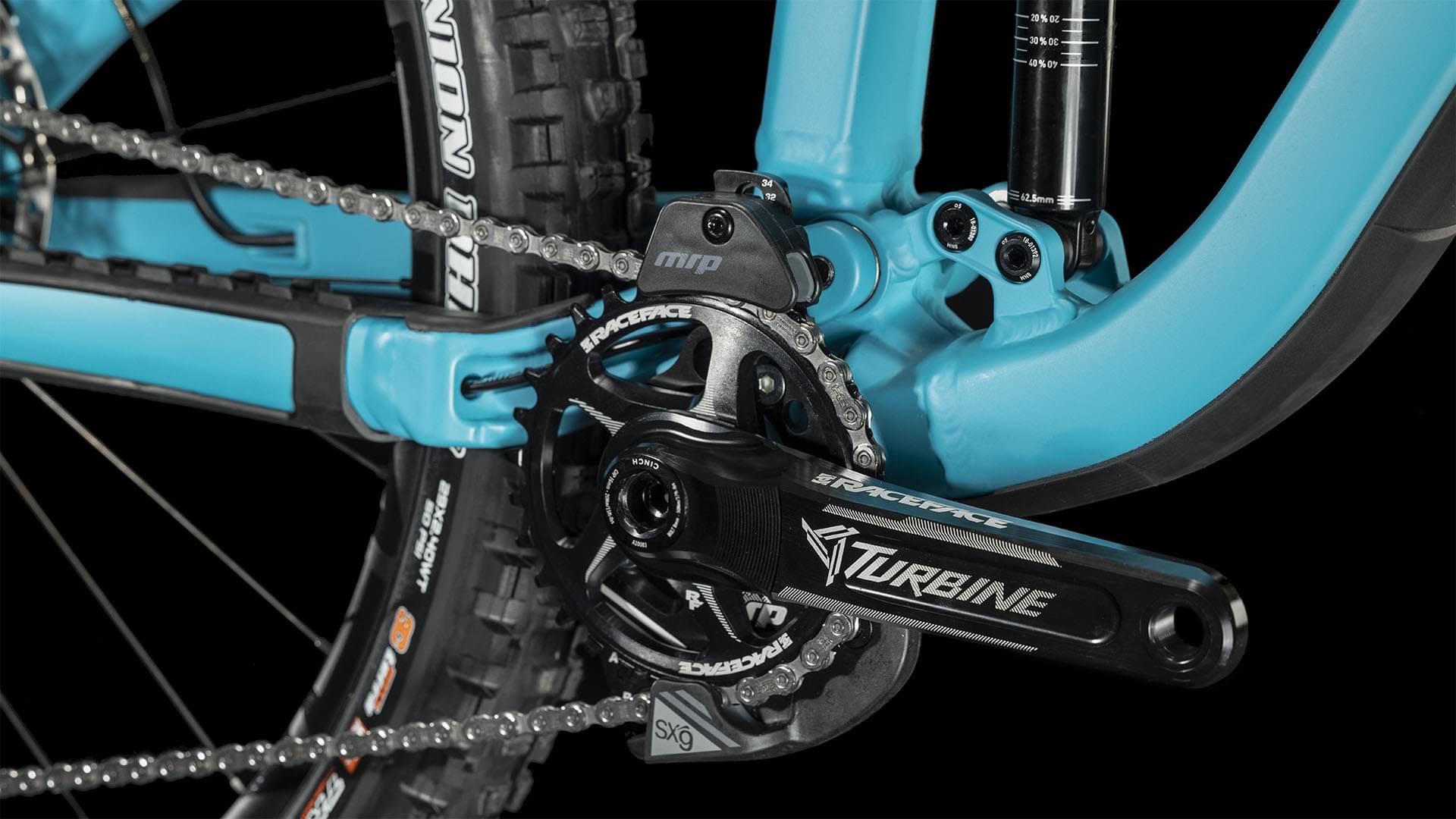

Crank
Race Face Turbine, 30T, 170mm
Bottom Bracket
Race Face BB30, 92mm Pressfit
Chain
Shimano CN-M6100
Chain Guide
MRP SXg Chain Guide
Wheels
Rims
Newmen Evolution SL A.30, 28/28 Spokes, 15x110mm/12x148mm, Tubeless Ready
Tires
Front: Maxxis Assegai, MaxxGrip/EXO+, Tubeless Ready, 2.5 WT, Rear: Maxxis Minion DHR II, MaxxTerra/EXO+, Tubeless Ready, 2.4 WT
Brakes
Brakes
Shimano XT BR-M8120, Hydr. Disc Brake (203/180)
Cockpit
Stem
Race Face Turbine R 35
Handlebar
Race Face Turbine R 35, 800mm
Grips
SDG Thrice
Headset
ACROS Integrated, Top 1 1/8", Bottom 1 1/2", Fiber Inserts for Angle Adjustment
Seat
Saddle
SDG Bel Air V3 Lux Alloy
Seatpost
CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL | XXL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.404 mm | 1.345 mm | 1.309 mm | 1.296 mm |
| Bottom Bracket Height | 347 mm | 347 mm | 347 mm | 349 mm |
| Front Center | 789 mm | 810 mm | 834 mm | 863 mm |
| Rake | 43 mm | 44 mm | 43 mm | 41 mm |
| Trail | 136 mm | 135 mm | 136 mm | 139 mm |
| Stack | 626 mm | 627 mm | 636 mm | 656 mm |
| Reach | 446 mm | 466 mm | 486 mm | 506 mm |
| Top Tube Length | 583 mm | 604 mm | 627 mm | 656 mm |
| Seat Tube Angle | 76.7 ° | 76.7 ° | 76.7 ° | 76.7 ° |
| Seat Tube Length | 420 mm | 420 mm | 470 mm | 470 mm |
| Head Tube Angle | 63.8 ° | 63.8 ° | 63.8 ° | 63.8 ° |
| Head Tube Length | 103 mm | 105 mm | 115 mm | 135 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1223 mm | 1244 mm | 1268 mm | 1297 mm |
| Bottom Bracket Drop | 27 mm | 27 mm | 27 mm | 25 mm |
| Rear Travel | 170 mm | 170 mm | 170 mm | 170 mm |
| Wheels | 29" | 29" | 29" | 29" |
