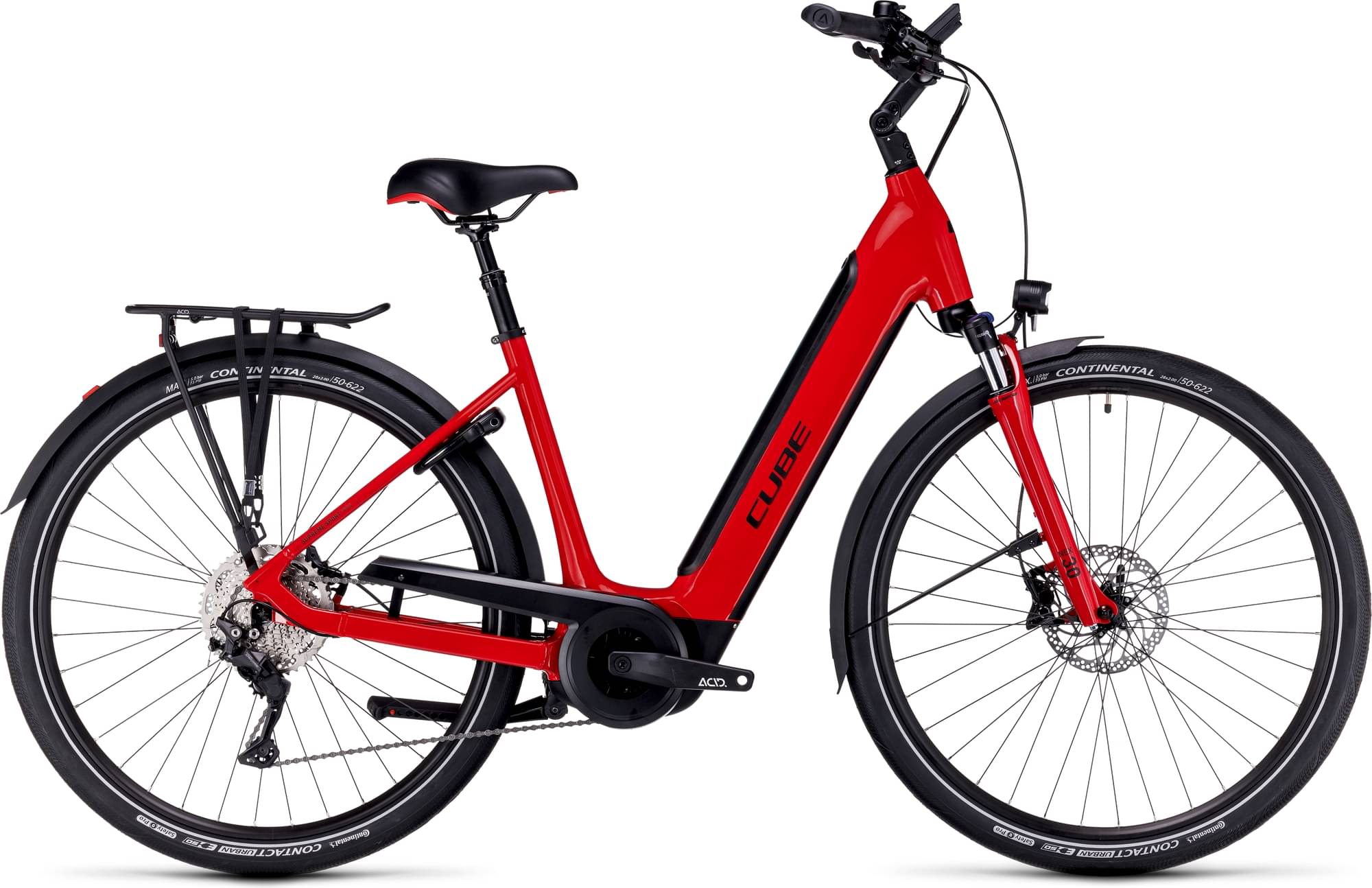

CUBE SUPREME SPORT HYBRID PRO 625 2024
2024 E-bike
Estimate price |
3,612$
Weight | 27.3 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 50mm -
Fork Suntour NEX
-
Groupset Deore -
Suspension Hardtail -
Motor Bosch 250W 75Nm mid-drive -
Battery Bosch PowerTube 625 -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium Superlite, Comfort Ride Geometry, Tapered Headtube, Premium Comfort And Safety, Semi-Integrated Carrier, Fully Integrated Battery
Suspension Fork
SR Suntour NEX-E25 NLO, 50mm, Lockout
Drivetrain
Rear Derailleur
Shimano Deore RD-M5120-SGS, 10-Speed
Shift Levers
Shimano Deore SL-M4100-IR, Direct Attach, Rapifire-Plus
Cassette
Shimano Deore CS-M4100, 11-46T
Crank
ACID E-Crank, 38T, 165mm
Chain
KMC X10
Pedals
ACID PP Trekking
Wheels
Front Hub
Shimano HB-TX505, QR, Centerlock
Rear Hub
Shimano FH-TX505, QR, Centerlock
Rims
CUBE EX23, 36H, Disc, Tubeless Ready
Tires
Conti Contact Urban, SafetyPro, 50-622
Brakes
Brakes
Shimano BR-MT420/MT410, Hydr. Disc Brake (180/180)
Cockpit
Stem
CUBE Comfort Stem Pro, 31.8mm, Adjustable
Handlebar
CUBE Comfort Shape Bar
Grips
ACID Travel Comfort
Headset
ACROS AZF-1039, 1 1/8" straight, Top Zero-Stack 1 1/8" (ZS 44mm), Bottom Zero-Stack 1 1/2" (ZS 56mm)
Seat
Saddle
Natural Fit Shen
Seatpost
CUBE Suspension Seatpost HD, 30.9mm
Motor & Battery
Motor
Bosch Drive Unit Performance Generation 3 (75Nm) Cruise (250Watt), Smart System
Battery
Bosch PowerTube 625
Remote
Bosch LED Remote
Charger
Bosch 2A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 42cm | 46cm | 50cm | 54cm | 58cm |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.574 mm | 1.729 mm | 1.729 mm | 1.736 mm | 1.751 mm |
| Front Center | 673 mm | 653 mm | 653 mm | 666 mm | 679 mm |
| Rake | 45 mm | 41 mm | 41 mm | 42 mm | 41 mm |
| Trail | 86 mm | 83 mm | 83 mm | 82 mm | 83 mm |
| Stack | 628 mm | 669 mm | 669 mm | 684 mm | 702 mm |
| Reach | 399 mm | 387 mm | 387 mm | 394 mm | 401 mm |
| Top Tube Length | 605 mm | 605 mm | 605 mm | 617 mm | 629 mm |
| Seat Tube Angle | 72 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 420 mm | 440 mm | 480 mm | 520 mm | 560 mm |
| Head Tube Angle | 69 ° | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 210 mm | 195 mm | 195 mm | 210 mm | 230 mm |
| Chainstay Length | 465 mm | 499 mm | 499 mm | 499 mm | 499 mm |
| Wheelbase | 1134 mm | 1143 mm | 1143 mm | 1156 mm | 1169 mm |
| Bottom Bracket Drop | 44 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
