CUBE SUPREME SPORT HYBRID SLX 625 2024
2024 E-bike
Estimate price |
4,701$
Weight | 27.5 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 50mm -
Fork RockShox Paragon Gold RL
-
Groupset XT, Deore -
Suspension Hardtail -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch PowerTube 625 -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium Superlite, Comfort Ride Geometry, Tapered Headtube, Premium Comfort And Safety, Semi-Integrated Carrier, Fully Integrated Battery
Suspension Fork
RockShox Paragon Gold Air, 50mm, Lockout
Drivetrain
Rear Derailleur
Shimano XT RD-M8100-SGS, ShadowPlus, 12-Speed
Shift Levers
Shimano Deore SL-M6100-IR, Direct Attach, Rapidfire-Plus
Cassette
Shimano Deore CS-M6100, 10-51T
Crank
ACID E-Crank, 38T, 165mm
Chain
Shimano CN-M6100
Pedals
ACID PP Trekking
Wheels
Front Hub
Shimano Deore HB-M6000, QR, Centerlock
Rear Hub
Shimano FH-MT401, QR, Centerlock
Rims
CUBE EX23, 36H, Disc, Tubeless Ready
Tires
Schwalbe Marathon E-Plus, Smart-DualGuard, 50-622
Brakes
Brakes
Shimano Deore BR-M6120/M6100, Hydr. Disc Brake (180/180)

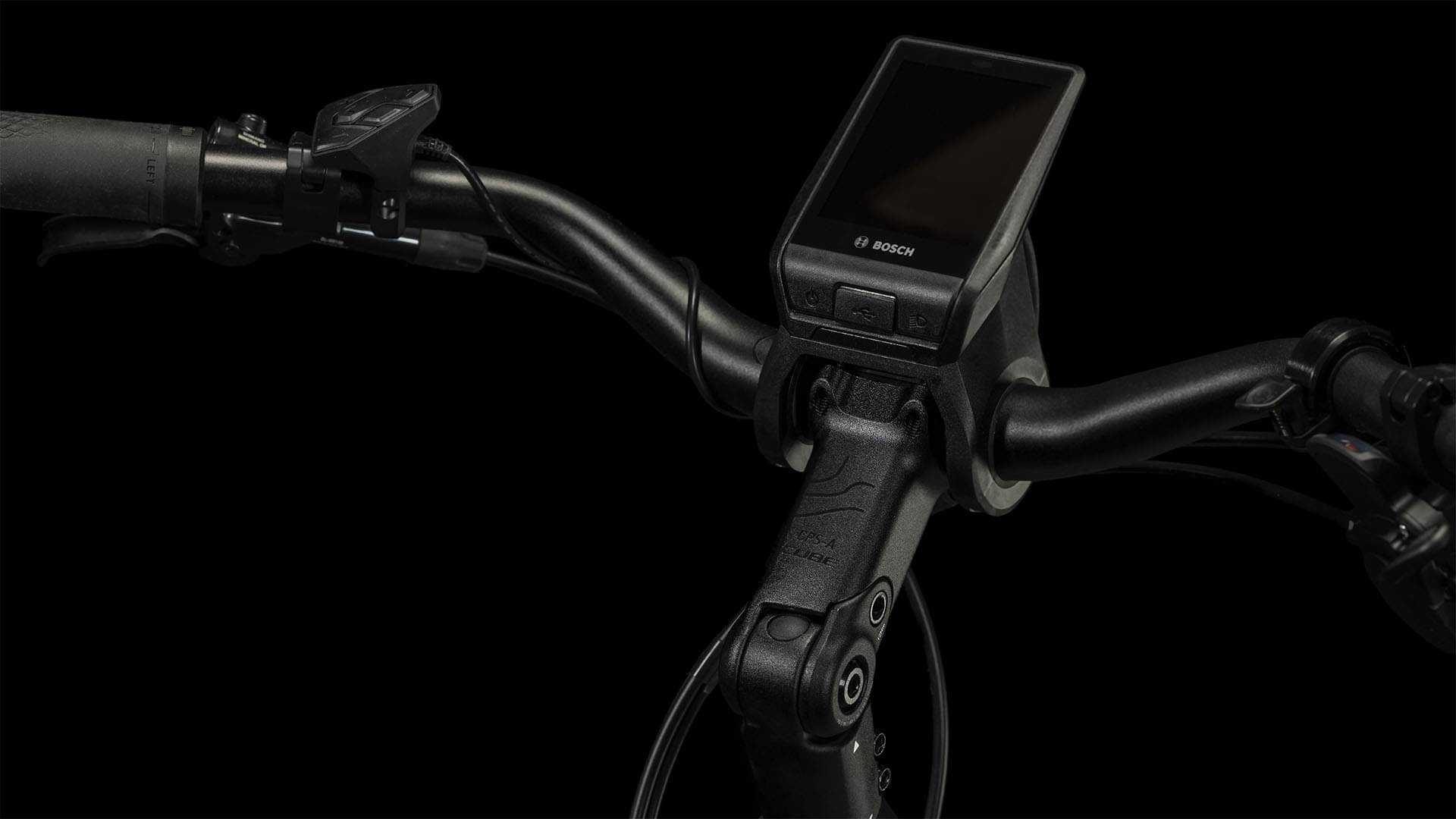

Cockpit
Stem
CUBE Comfort Stem Pro, 31.8mm, Adjustable
Handlebar
CUBE Comfort Shape Bar
Grips
ACID Travel Comfort
Headset
ACROS AZF-1039, 1 1/8" straight, Top Zero-Stack 1 1/8" (ZS 44mm), Bottom Zero-Stack 1 1/2" (ZS 56mm)
Seat

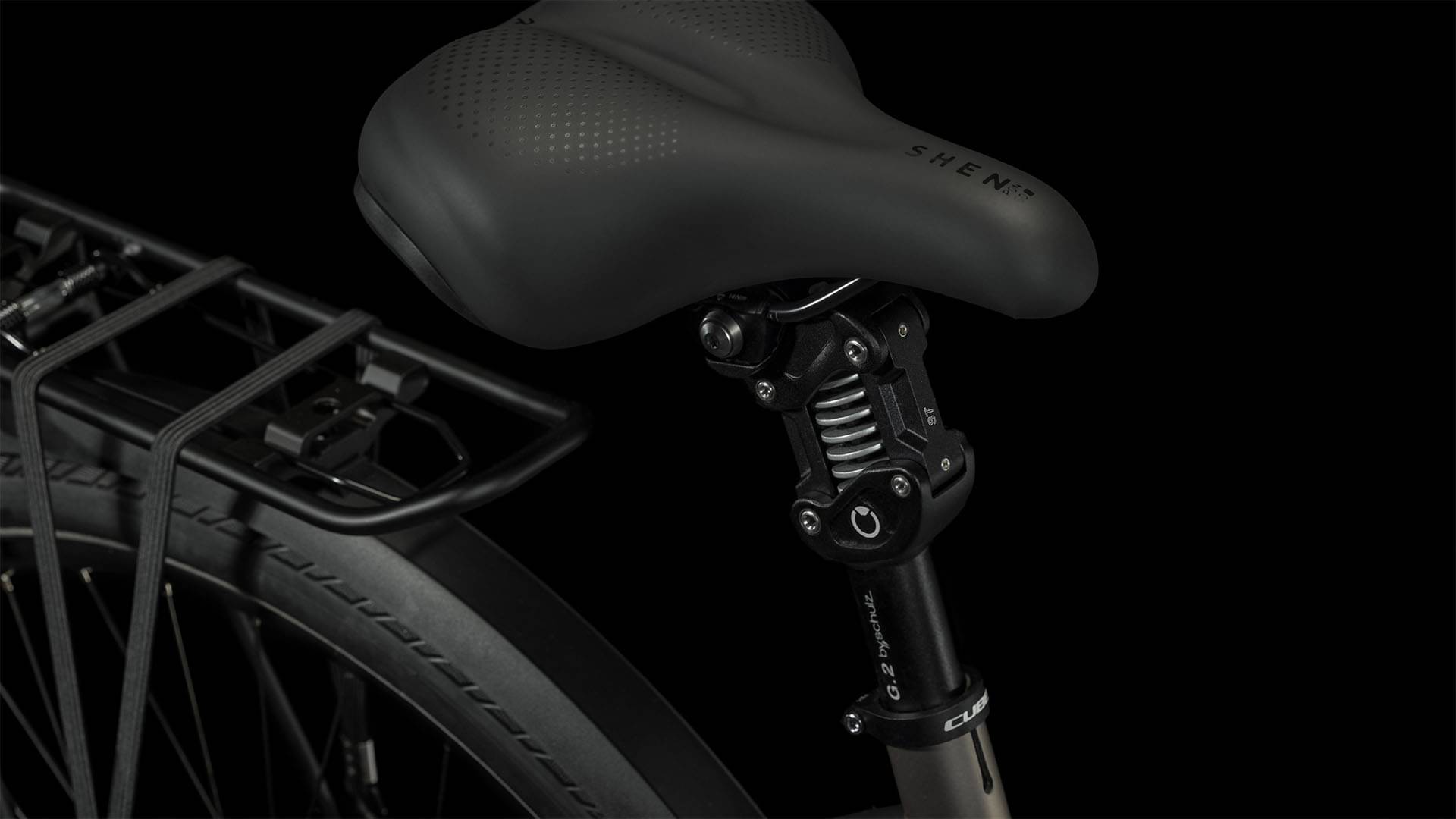

Saddle
Natural Fit Shen Ponso
Seatpost
BySchulz G.2 Parallelogram Suspension Seatpost, 30.9mm
Motor & Battery
Motor
Bosch Drive Unit Performance CX Generation 4 (85Nm) Cruise (250Watt)
Battery
Bosch PowerTube 625
Charger
Bosch 4A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 46cm | 50cm | 54cm | 58cm |
|---|---|---|---|---|
| Stack Reach Ratio | 1.729 mm | 1.729 mm | 1.736 mm | 1.751 mm |
| Front Center | 653 mm | 653 mm | 666 mm | 679 mm |
| Rake | 41 mm | 41 mm | 42 mm | 41 mm |
| Trail | 83 mm | 83 mm | 82 mm | 83 mm |
| Stack | 669 mm | 669 mm | 684 mm | 702 mm |
| Reach | 387 mm | 387 mm | 394 mm | 401 mm |
| Top Tube Length | 605 mm | 605 mm | 617 mm | 629 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 440 mm | 480 mm | 520 mm | 560 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 195 mm | 195 mm | 210 mm | 230 mm |
| Chainstay Length | 499 mm | 499 mm | 499 mm | 499 mm |
| Wheelbase | 1143 mm | 1143 mm | 1156 mm | 1169 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm |
| Wheels | 29" | 29" | 29" | 29" |
