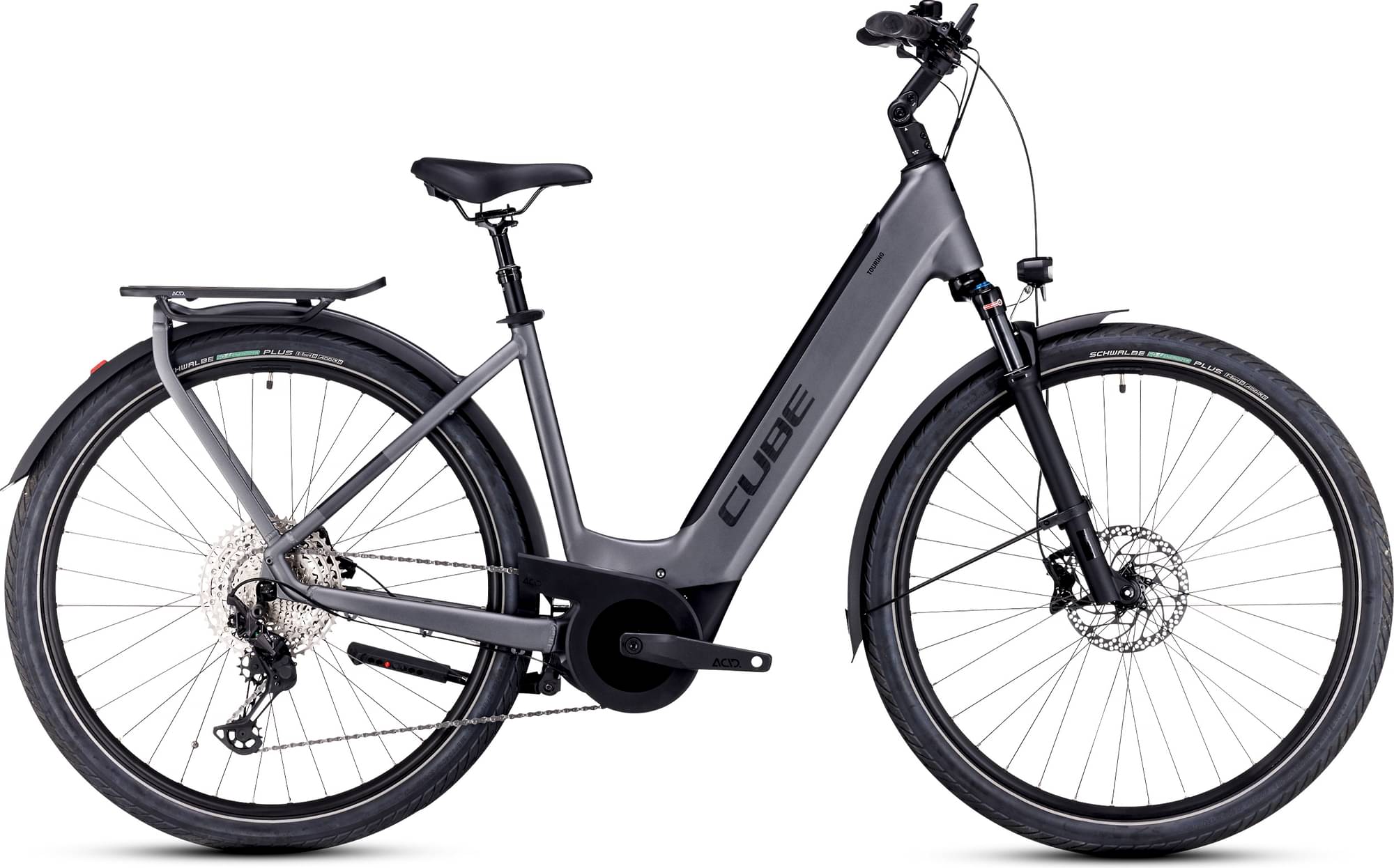

CUBE TOURING HYBRID, EXC 500 2024
2024 E-bike
Estimate price |
3,780$
Weight | 26.9 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 63mm -
Fork Suntour XCR Air
-
Groupset XT, Deore -
Suspension Hardtail -
Motor Bosch 250W 75Nm mid-drive -
Battery Bosch PowerTube 500 -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
151cm - 164cm
SM
159cm - 170cm
MD
165cm - 177cm
LG
171cm - 184cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium Superlite, Gravity Casting Technology, Efficient Comfort Geometry, Fully Integrated Battery, 1.5 Headtube, Integrated Carrier 3.0
Suspension Fork
SR Suntour XCR32 LO-R Air, Tapered, 15x110mm, 63mm, Lockout
Drivetrain
Rear Derailleur
Shimano XT RD-M8100-SGS, ShadowPlus, 12-Speed
Shift Levers
Shimano Deore SL-M6100-IR, Direct Attach
Cassette
Shimano Deore CS-M6100, 10-51T
Crank
ACID E-Crank, 40T, 170mm
Chain
Shimano CN-M6100
Pedals
ACID PP Trekking
Wheels
Front Hub
Shimano HB-MT400-B, 15mm, Boost, Centerlock
Rear Hub
Shimano FH-MT401, QR, Centerlock
Rims
CUBE EX23, 36H, Disc, Tubeless Ready
Tires
Schwalbe Energizer Plus, Performance, Green Guard, 55-622
Brakes
Brakes
Shimano BR-MT420, Hydr. Disc Brake (180/180)
Cockpit
Stem
CUBE Comfort Stem Pro, 31.8mm, Adjustable
Handlebar
CUBE Comfort Trail Bar, 700mm
Grips
ACID Travel Comfort
Headset
ACROS AZF-1030, Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm)
Seat
Saddle
Natural Fit Sequence Comfort
Seatpost
CUBE Suspension Seatpost HD, 30.9mm
Motor & Battery
Motor
Bosch Drive Unit Performance Generation 3 (75Nm) Cruise (250Watt), Smart System
Battery
Bosch PowerTube 500
Remote
Bosch LED Remote
Charger
Bosch 4A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG |
|---|---|---|---|---|
| Stack Reach Ratio | 1.697 mm | 1.659 mm | 1.623 mm | 1.595 mm |
| Front Center | 672 mm | 677 mm | 682 mm | 686 mm |
| Rake | 46 mm | 46 mm | 46 mm | 44 mm |
| Trail | 90 mm | 87 mm | 83 mm | 84 mm |
| Stack | 655 mm | 657 mm | 659 mm | 662 mm |
| Reach | 386 mm | 396 mm | 406 mm | 415 mm |
| Top Tube Length | 590 mm | 600 mm | 610 mm | 620 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 440 mm | 480 mm | 520 mm | 560 mm |
| Head Tube Angle | 68.2 ° | 68.7 ° | 69.2 ° | 69.5 ° |
| Head Tube Length | 160 mm | 160 mm | 160 mm | 160 mm |
| Chainstay Length | 509 mm | 509 mm | 509 mm | 509 mm |
| Wheelbase | 1171 mm | 1176 mm | 1181 mm | 1185 mm |
| Bottom Bracket Drop | 75 mm | 75 mm | 75 mm | 75 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 151 cm | 159 cm | 165 cm | 171 cm |
| Rider Max Height | 164 cm | 170 cm | 177 cm | 184 cm |
